My first Schumacher Refurb - CAT XLS

Post by [email protected] »

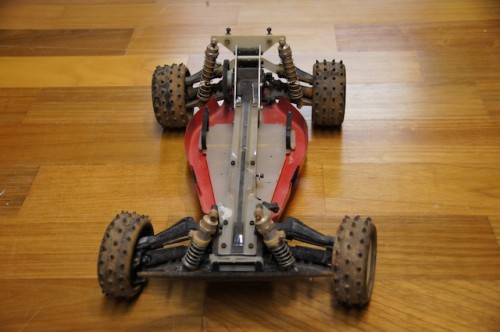

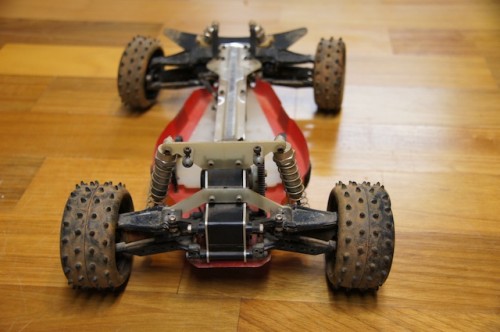

Just got this in the mail today. Real excited to get it cleaned up. It's my first Schumacher tear down & rebuild.

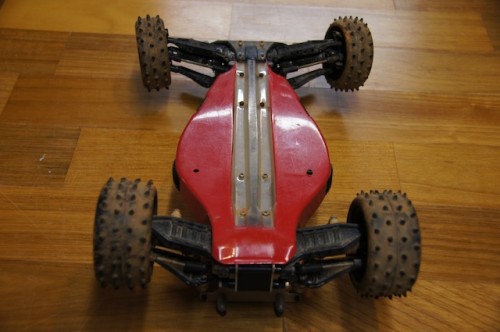

Purchased from original owner who ran it around 6-7 times and then put it in a box for 20 something years. Other than some vintage dirt....it looks to be in great shape. Under-tray is barely scratched. I don't see any gouges or wear to any of the chassis.

I plan to do some research of other posts but I welcome your points, suggestions, tricks if you think it would be helpful. (IE "Don't try to.....because you'll never get.....it back together!!!!)

Appreciate it if you notice anything unique along the way. New here and to CAT rebuilds so I have much to learn.

I'll continue to post pics as I make progress....

Thanks for looking!

Dan
Attachments
2011-10-01 at 18-39-29.jpg
2011-10-01 at 18-39-16.jpg
2011-10-01 at 18-38-56.jpg
2011-10-01 at 18-38-46.jpg
2011-10-01 at 18-38-36.jpg

[email protected]
Approved Member
Posts: 34
Joined: Wed Sep 07, 2011 1:51 am
Been thanked: 1 time

Re: My first Schumacher Refurb - CAT XLS

Post by [email protected] »

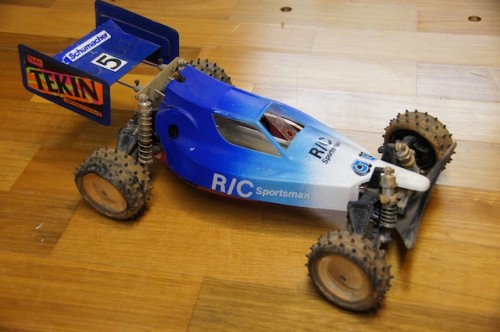

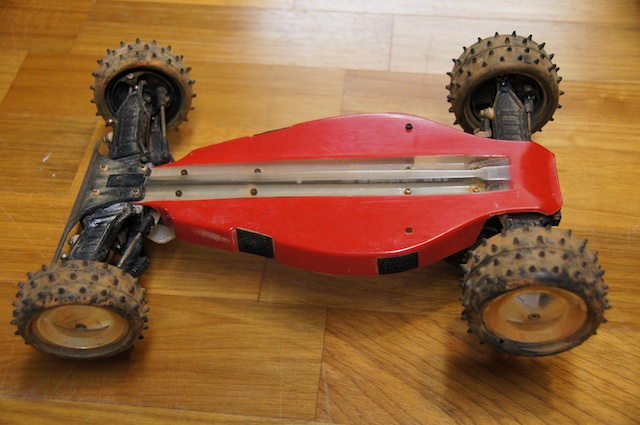

Few more pics of the untouched classic.
Attachments
2011-10-01 at 18-37-17.jpg
2011-10-01 at 18-36-54.jpg
2011-10-01 at 18-38-04.jpg

User avatar
Bormac
Approved Member
Posts: 3112
Joined: Wed Sep 05, 2007 7:52 pm
Location: CENTRAL COAST, NSW AUSTRALIA
Has thanked: 21 times
Been thanked: 3 times

Re: My first Schumacher Refurb - CAT XLS

Post by Bormac »

Congrats on landing yourself a very nice XLS. There are plenty of folks here who know a lot about these old Schueys and Im sure most will lend you a hand with advice and even parts should something not be in place.

Great old example, looks in very good condition too.
-Jason.

Still known as- bormac

My collection-http://www.tamiyaclub.com/showroom.asp?id=10980

uzzi
Approved Member
Posts: 374
Joined: Tue May 27, 2008 4:29 am
Location: Perth, Western Australia
Been thanked: 1 time

Re: My first Schumacher Refurb - CAT XLS

Post by uzzi »

Hi there,

Good job in getting the XLS...looks to be in very good shape. So what are your plans for it....shelf queen or runner?

She appears to have the following non Schumacher parts,
Buds wing and mount

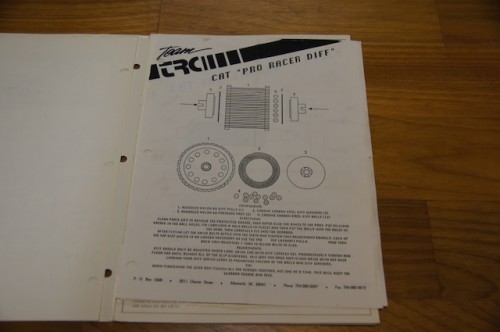

TRC drum diff and top pulley
Associated? spring clamp at the front (std are spacers)
Front end is held together by nuts and bolts as opposed to 8 screws (prob a good idea to use countersunk screws from the bottom)
Cable tie holding the crash back system

Its also missing the front anti roll bar.....hope this has helped as far :D
