My first transmitter

Post by TheObstacle »

Thought some folks here might get a kick out of this...

I bought this close to 30 years ago (well, actually my parents bought it for me ;) ) at the same time as my first real R/C car, which was a Tamiya Sand Scorcher. I'm still using it today to run my ~25 year old Edinger (for more pics of that, see my intro post over in the RC10 buggy forum: http://www.rc10talk.com/viewtopic.php?f=35&t=26052)

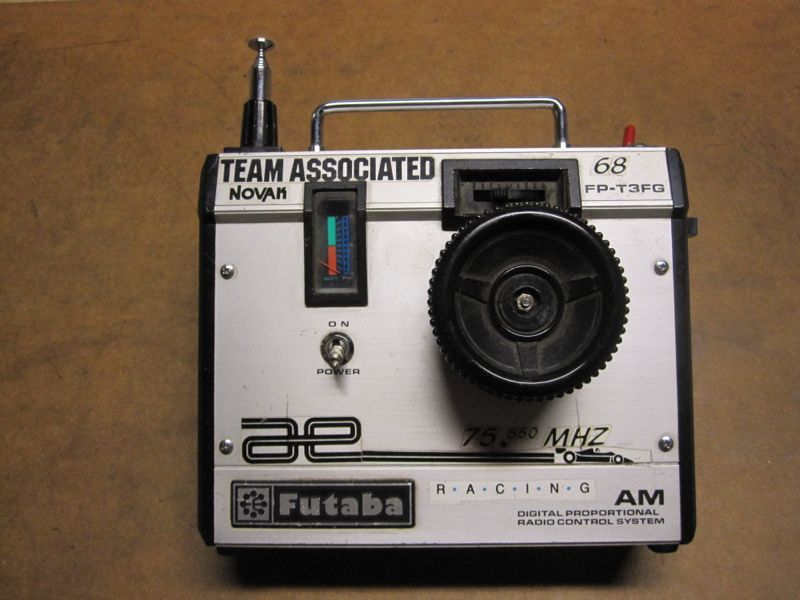

Front view
Front view

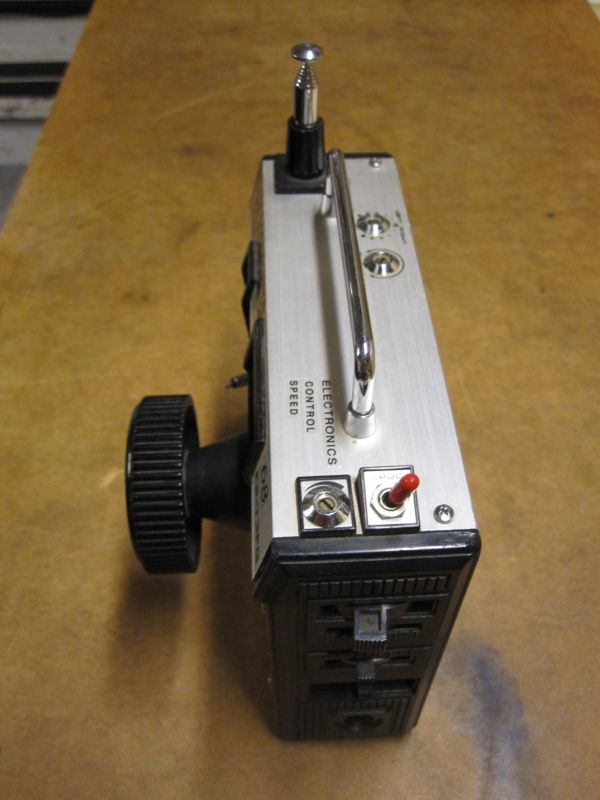

Throttle, throttle trim (center adjustment and fine trim), and 3rd channel lever.  The red switch cuts steering servo travel by an adjustable amount.
Throttle, throttle trim (center adjustment and fine trim), and 3rd channel lever. The red switch cuts steering servo travel by an adjustable amount.

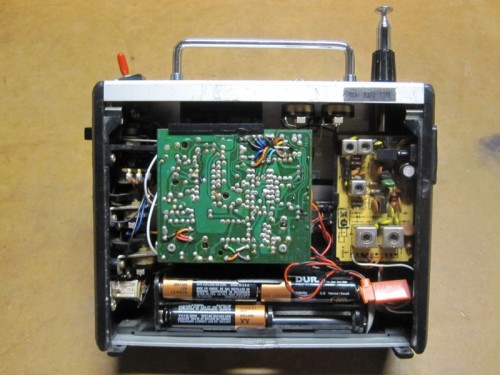

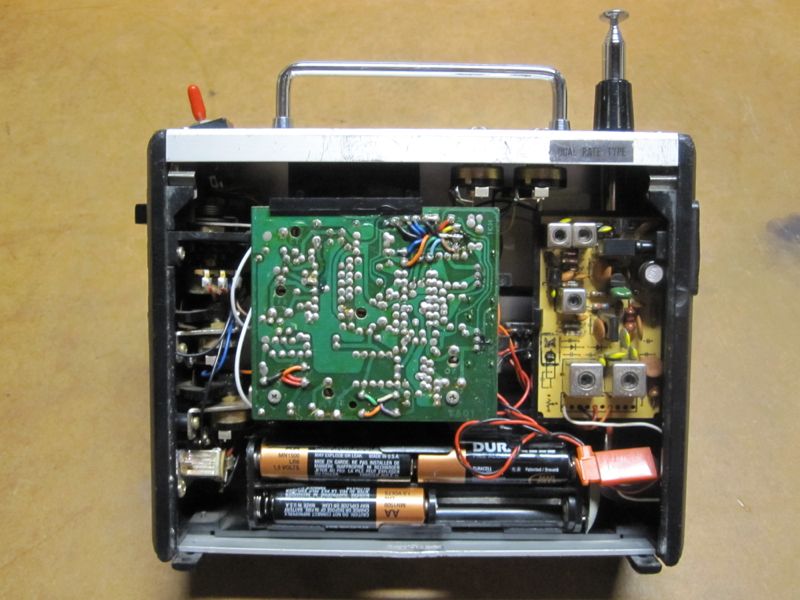

A peek inside
A peek inside

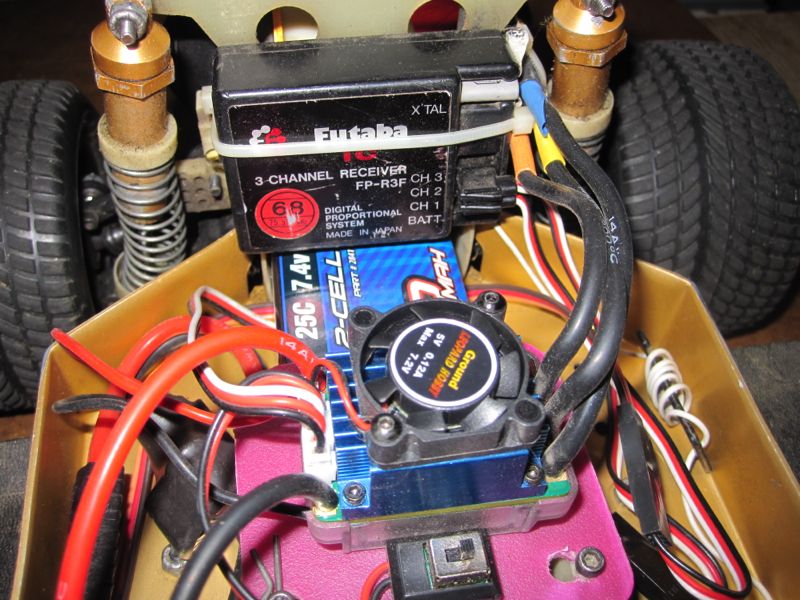

Matching receiver, in place
Matching receiver, in place

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 6:44 pm
Location: USA
Been thanked: 8 times

Re: My first transmitter

Post by Charlie don't surf »

The wheel.and throttle are on the same side? How the hell do you hold it?

User avatar
Lowgear
Administrator
Posts: 3980
Joined: Tue Feb 07, 2006 6:00 pm
Location: New England
Has thanked: 80 times
Been thanked: 625 times

Re: My first transmitter

Post by Lowgear »

Just like the old brown box ones. You cradle it in your left arm/hand and steer with the right... Awkwardly. :lol:

User avatar
TheObstacle
Regular Member
Posts: 10
Joined: Wed Feb 29, 2012 10:22 pm
Location: Portland, OR

Re: My first transmitter

Post by TheObstacle »

You cradle the box in your left hand, with your middle finger wrapped around the side to run the throttle, and hold the steering wheel with your right. It's basically the same position as a modern pistol-grip throttle, but the fingers of your left hand are straight against the back of the box instead of wrapped around a grip.

I don't find it awkward at all, but then I have been using this thing for almost 30 years, so I suppose I'm biased. ;)

User avatar
TheObstacle
Regular Member
Posts: 10
Joined: Wed Feb 29, 2012 10:22 pm
Location: Portland, OR

Re: My first transmitter

Post by TheObstacle »

If memory serves, the original wheel actually had 3 spokes with cutouts between them. Somewhere along the line that wheel broke, and I replaced it with one from a "brown box" model. (This model and the brown box used the same internal parts for the steering assembly, so they're interchangeable.)

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 6:44 pm
Location: USA
Been thanked: 8 times

Re: My first transmitter

Post by Charlie don't surf »

I'm right handed but drive left handed ( yep I'm amphibious :wink: ) so there is no way I could use that :lol: very cool!

User avatar
GreenHell
Approved Member
Posts: 495
Joined: Thu Dec 09, 2010 6:48 pm
Location: Detroit
Has thanked: 1 time

Re: My first transmitter

Post by GreenHell »

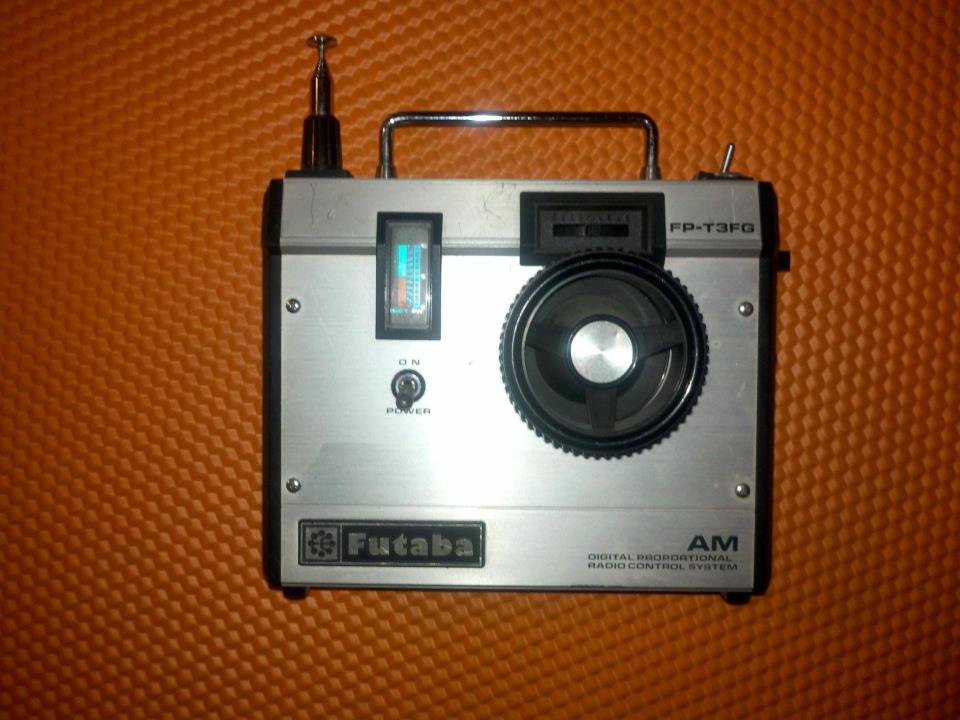

The futaba fp-t3fg It was my first radio too. I fully plan on using it on my next vintage build. :mrgreen:
Attachments
"All I wanted was a Pepsi..."

My Gallery | My Feedback | Rapid_RC

User avatar
GJW
Approved Member
Posts: 2325
Joined: Mon Oct 15, 2007 11:22 pm
Location: AUSTRALIA!!
Been thanked: 1 time

Re: My first transmitter

Post by GJW »

the early radio's are unreal, nice collection man 8)

User avatar
TheObstacle
Regular Member
Posts: 10
Joined: Wed Feb 29, 2012 10:22 pm
Location: Portland, OR

Re: My first transmitter

Post by TheObstacle »

Just an update... I've converted this TX to 2.4 GHz. Full write-up is over in the tech forum, here.

justinspeed79
Approved Member
Posts: 1679
Joined: Mon Aug 14, 2006 2:54 am
Location: Houston Texas
Has thanked: 2 times
Been thanked: 4 times

Re: My first transmitter

Post by justinspeed79 »

When I look at these old radios I can't help but wonder how in the world they were designed the way they were. They are just terrible. lol..... I think these old radios are the only thing in rc were I am actually glad that I missed them.

I do think its pretty cool that you still have it and still run it though. 8) If I had started on one of those it may have turned me away from the hobby completely. :oops:

orangejulius
Regular Member
Posts: 11
Joined: Wed Feb 20, 2013 5:20 pm

Re: My first transmitter

Post by orangejulius »

Very cool. Must bring back a ton of good memories!
