two more Checkpoint motors

Post by V12 »

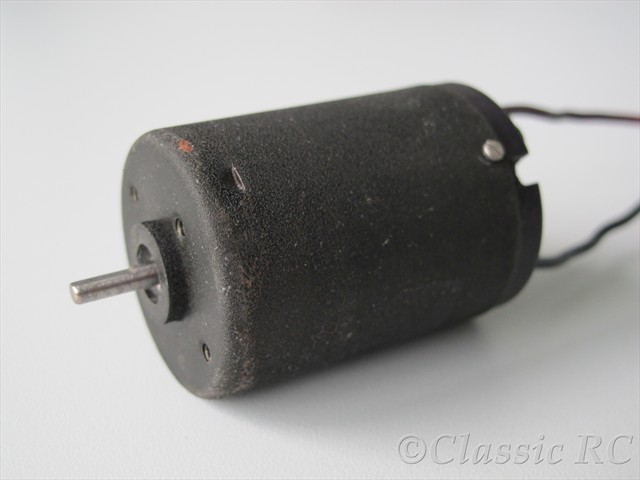

Got two interesting Checkpoint motors, the first one I was hunting for since long a time, a Checkpoint Igarashi modified.

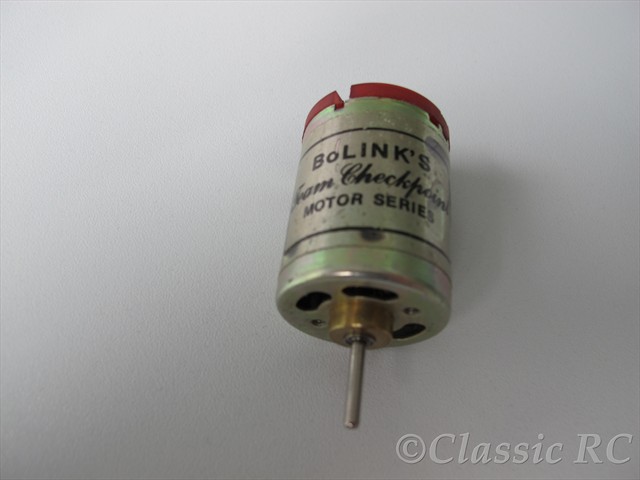

The second one a very rare BoLink Checkpoint motor, but not the typical 05 motor. Did you ever hear of a 380 size modified motor?

more pics at Classic RC
http://classicrc.wordpress.com/motors/checkpoint/checkpoint-igarashi-modified/
http://classicrc.wordpress.com/motors/checkpoint/checkpoint-mabuchi-380/
Attachments

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: two more Checkpoint motors

Post by GoMachV »

Wow! Very cool!
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 2:44 pm
Location: USA
Been thanked: 8 times

Re: two more Checkpoint motors

Post by Charlie don't surf »

gomachv wrote:Wow! Very cool!
X2 That is very cool!

This is Jims early work then?

V12
Approved Member
Posts: 1221
Joined: Thu Mar 31, 2011 7:53 pm
Location: EU
Has thanked: 13 times
Been thanked: 78 times

Re: two more Checkpoint motors

Post by V12 »

Yes seems so. He sold his slot car stuff in 1978 and started making RC motors the same time. In 1979 the 1/12 4WD cars appeared, I think that´s when this 380 motor was made. I knew Jim was fiddling with those cars but didn´t know before such motors really were sold.

User avatar
WC1982
Approved Member
Posts: 267
Joined: Thu Oct 29, 2009 8:05 pm
Location: USA
Has thanked: 1 time
Been thanked: 14 times

Re: two more Checkpoint motors

Post by WC1982 »

Can we see some pics of the armature?

Trinity's early Igarashi motors also had the crinkle finish.

V12
Approved Member
Posts: 1221
Joined: Thu Mar 31, 2011 7:53 pm
Location: EU
Has thanked: 13 times
Been thanked: 78 times

Re: two more Checkpoint motors

Post by V12 »

Maybe later possible. All motors are packed away at the moment as being busy with other stuff currently.
But I was talking to the previous owner about this motor. It is a Checkpoint motor for sure, he never had a Trinity.
Regarding the crinkle finish, from what I know Jim was the first using this at RC motors. Also he was working for Trinity several times and from what he told me years ago, some of their motors had that crinkle because of this.

V12
Approved Member
Posts: 1221
Joined: Thu Mar 31, 2011 7:53 pm
Location: EU
Has thanked: 13 times
Been thanked: 78 times

Re: two more Checkpoint motors

Post by V12 »

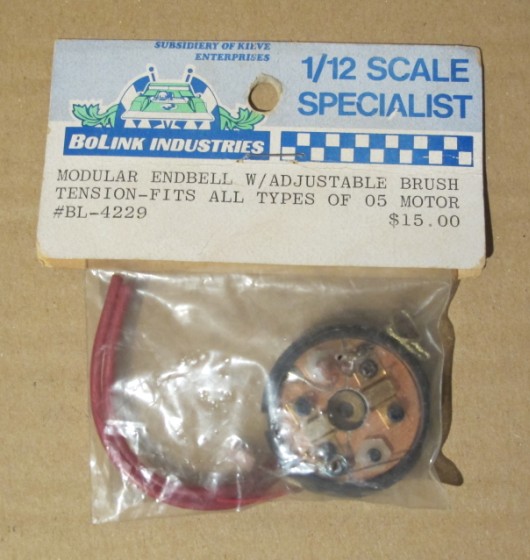

Sold trough BoLink but actually an early Checkpoint modular endbell for Igarashi motors. I like those slot racing gear used at RC motors. :D
BTW someone have BoLink Checkpoint Stage motors or BoLink catalog of 1978 to 1980 area?
Attachments
mod endbell.jpg

User avatar
RC10resto
Super Member
Posts: 2946
Joined: Tue Sep 09, 2008 2:26 am
Location: Los Angeles, CA
Has thanked: 1138 times
Been thanked: 441 times

Re: two more Checkpoint motors

Post by RC10resto »

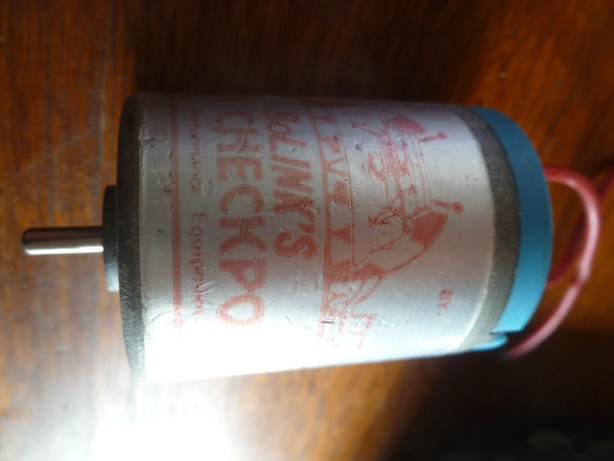

A motor I wish I did not sell a couple years ago......


V12
Approved Member
Posts: 1221
Joined: Thu Mar 31, 2011 7:53 pm
Location: EU
Has thanked: 13 times
Been thanked: 78 times

Re: two more Checkpoint motors

Post by V12 »

Thanks. There had been at least 5 different versions of the Stage motors, do you know which one this was?
I think Stage IV and Stage V were using black painted cans so maybe this could be a Stage III.

User avatar
Incredible_Serious
Approved Member
Posts: 3437
Joined: Tue Jan 29, 2008 12:09 am
Location: Melbourne, Victoria, Australia
Has thanked: 1424 times
Been thanked: 866 times

Re: two more Checkpoint motors

Post by Incredible_Serious »

RC10resto wrote:A motor I wish I did not sell a couple years ago......


Would you like one back?
Alex
Osiris is the key.

"The world looks so much better through beer goggles... except Farmer in his underwear" - Ken

Look out for Todd K. - he's a convicted serial killer!!!
