Aftermarket Turbo Inferno chassis question

The place for all things Kyosho.

Moderators: scr8p, klavy69

Jpjp
Regular Member
Posts: 8
Joined: Tue Jan 17, 2023 10:00 pm

Aftermarket Turbo Inferno chassis question

Post by Jpjp »

Hi! Do anyone know the if I can find a blueprint for the turbo inferno chassis. I don’t have the original. I’ve been trying to find any aftermarket chassis for this model but without any luck. Figured i could probably order a custom carbon fiber chassis if I had the blueprint.

/J

Jpjp
Regular Member
Posts: 8
Joined: Tue Jan 17, 2023 10:00 pm

Re: Aftermarket Turbo Inferno chassis question

Post by Jpjp »

And I realized that I don’t necessarily mean a blueprint “pice of paper” Maybe more like a 3d printable stl-file…

q8t
Regular Member
Posts: 5
Joined: Wed Dec 02, 2009 7:57 am

Re: Aftermarket Turbo Inferno chassis question

Post by q8t »

I remember in 2006 I bought a turbo inferno chassis from those guys

http://www.jaracing.com/

Try them, it was made on order by them.

Jpjp
Regular Member
Posts: 8
Joined: Tue Jan 17, 2023 10:00 pm

Re: Aftermarket Turbo Inferno chassis question

Post by Jpjp »

Thank you! I’ll check if it’s still possible

User avatar
Lavigna
Approved Member
Posts: 1260
Joined: Wed Aug 05, 2015 8:24 am
Location: Petaluma, CA
Has thanked: 751 times
Been thanked: 1009 times

Re: Aftermarket Turbo Inferno chassis question

Post by Lavigna »

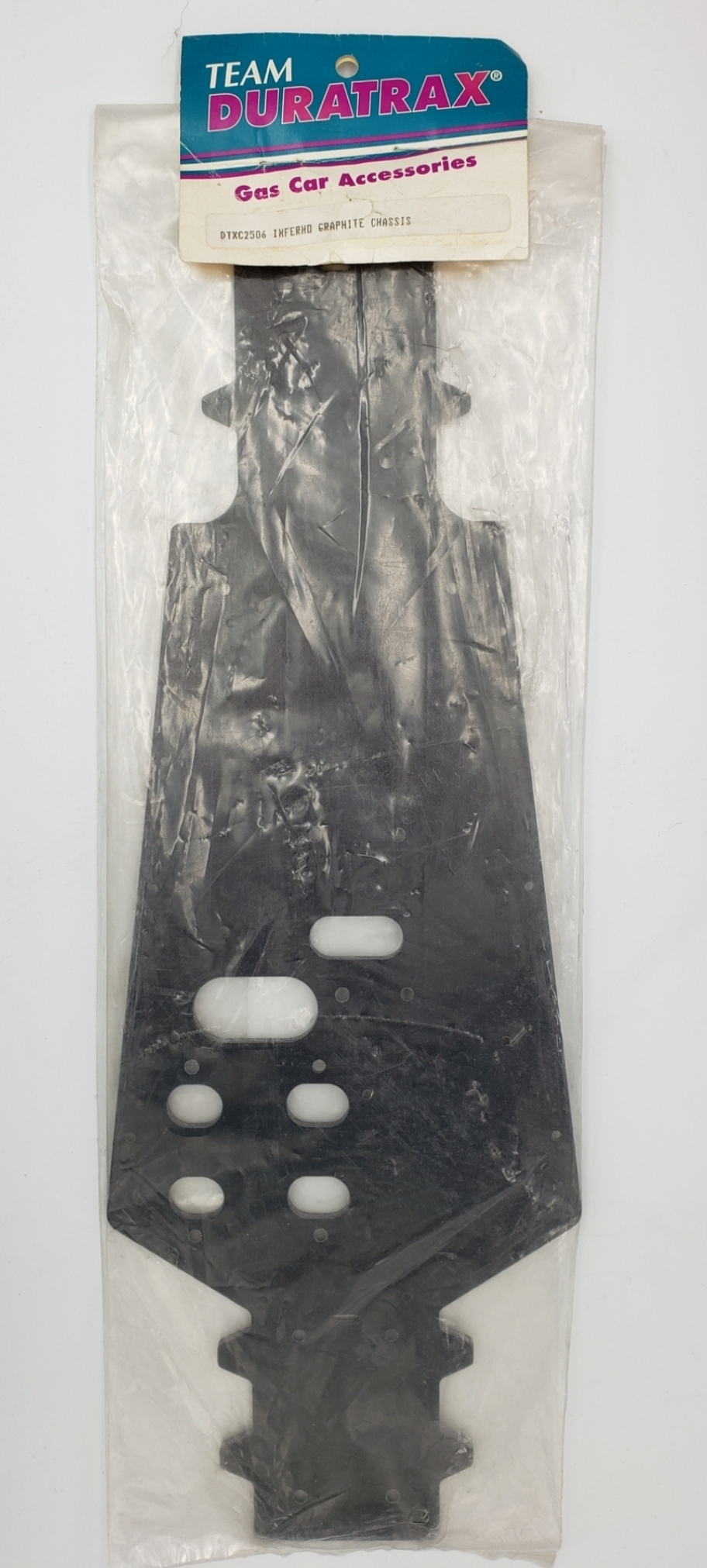

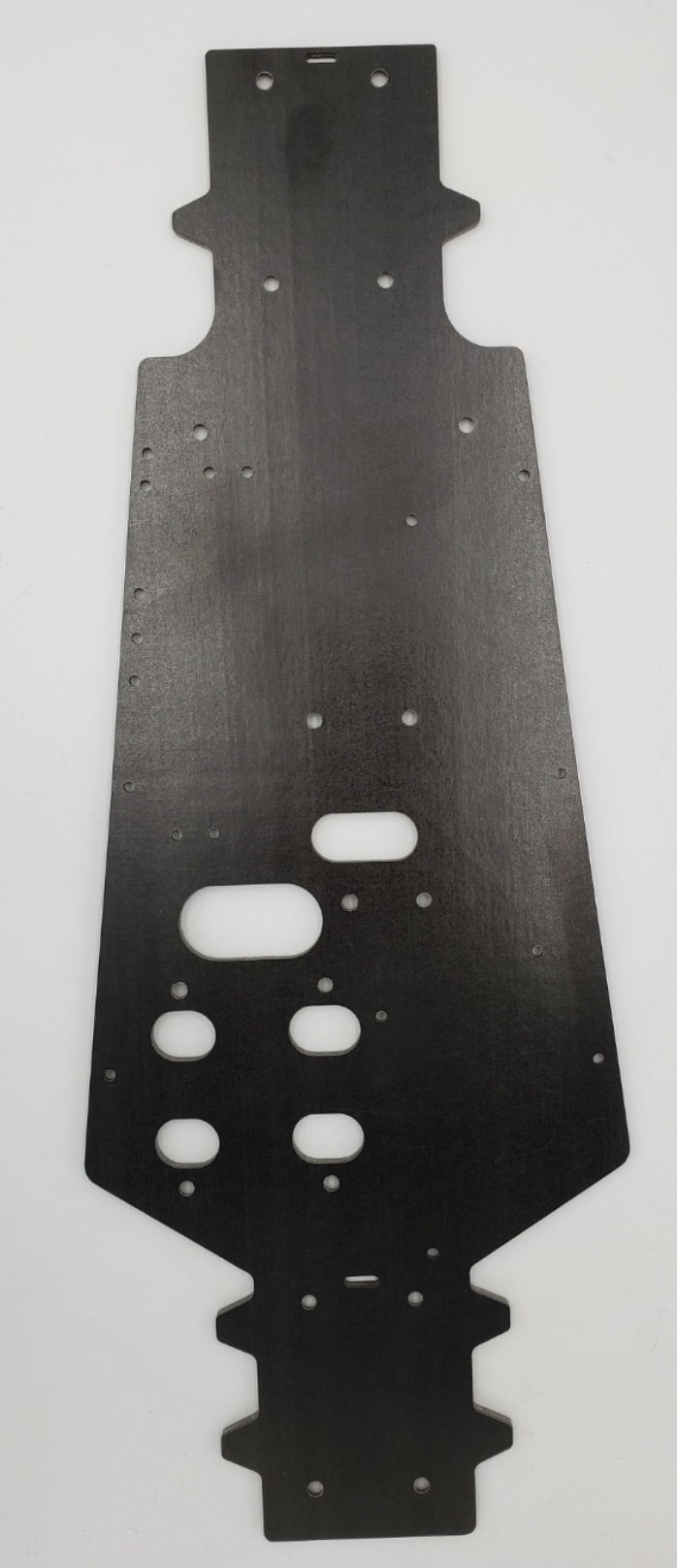

This is the graphite chassis I have on my Turbo Inferno. It is basically the same shape as a stock chassis. You could do the same if you got a piece of graphite sheet.
Attachments

Jpjp
Regular Member
Posts: 8
Joined: Tue Jan 17, 2023 10:00 pm

Re: Aftermarket Turbo Inferno chassis question

Post by Jpjp »

I thought about that but figured I would just mess it up.
Is it easy to work with or do i need like special precision tools for it to look good ?

User avatar
Lavigna
Approved Member
Posts: 1260
Joined: Wed Aug 05, 2015 8:24 am
Location: Petaluma, CA
Has thanked: 751 times
Been thanked: 1009 times

Re: Aftermarket Turbo Inferno chassis question

Post by Lavigna »

Jpjp wrote: Fri Feb 03, 2023 8:40 pm I thought about that but figured I would just mess it up.
Is it easy to work with or do i need like special precision tools for it to look good ?
I think you would want to have someone cut it for you with a CAD program. But the dimensions can be taken straight from a stock chassis. No need to incorporate the side bends of the stock chassis, as the Duratrax chassis I have doesn't do so.

If you wanted to do it by hand, it is certainly possible. I would suggest bolting the stock chassis to the graphite sheet using several of the chassis holes, and then cut around the chassis and drill all the corresponding holes. It won't be fun, but certainly doable.
