It’s been a while since i started a new project again, but…. Something has drawn me back into my garage to start getting out the pencil, hacksaw, file and dremel!
In January 2024 we have a indoor vintage race in the Netherlands.

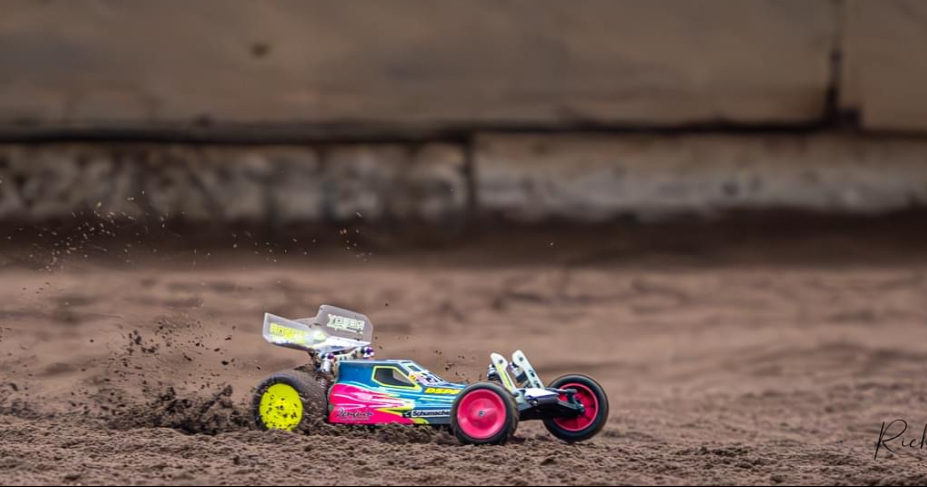

“Southern Indoor Masters Supercross” is in REAL deep hardcore sand!
This made me think, as we drive most on carpet or Astro nowadays I actually don’t have a suitable car for this circumstances… it looks a lot like Detroit 91!!
So, i went wild this time again…

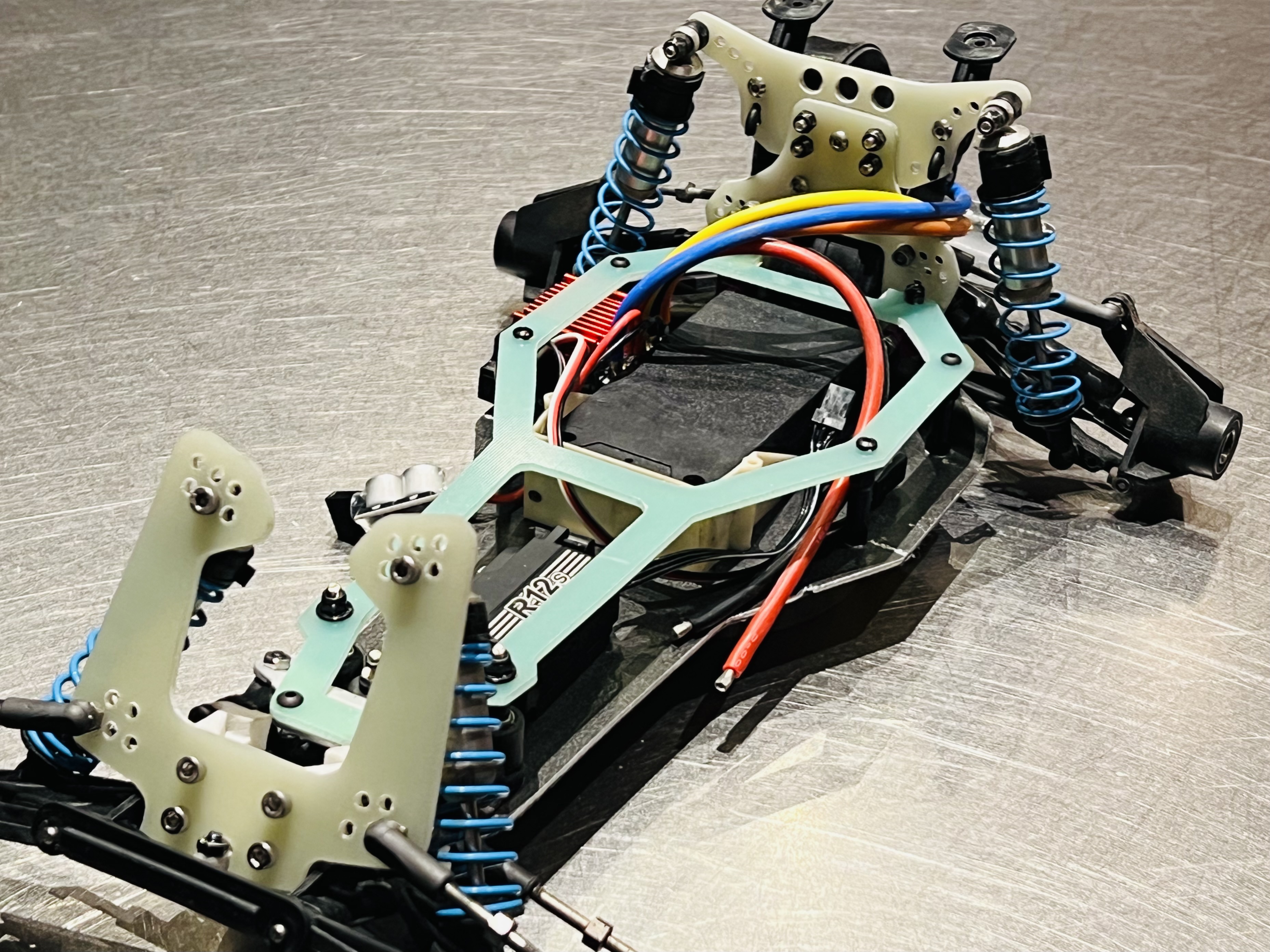

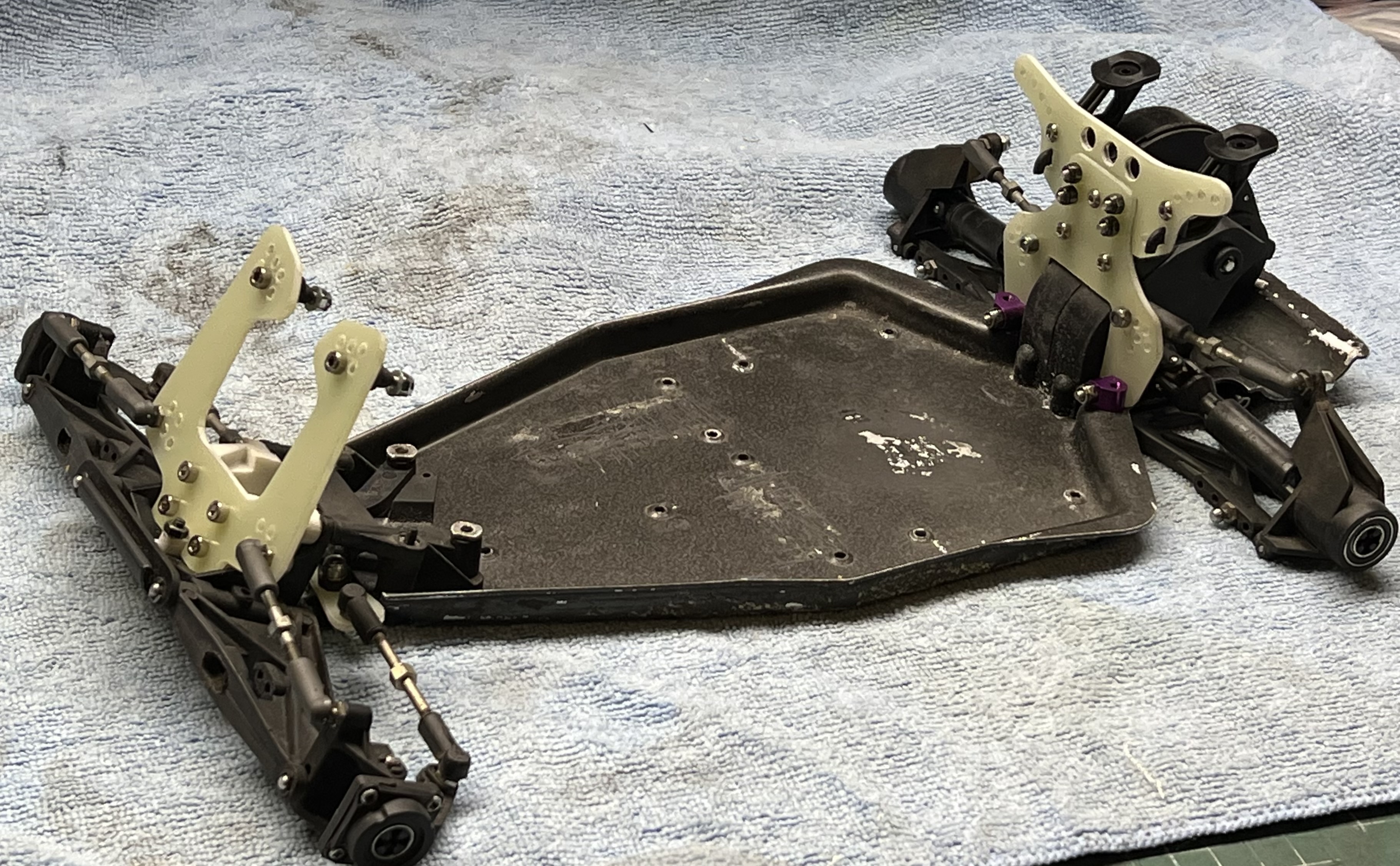

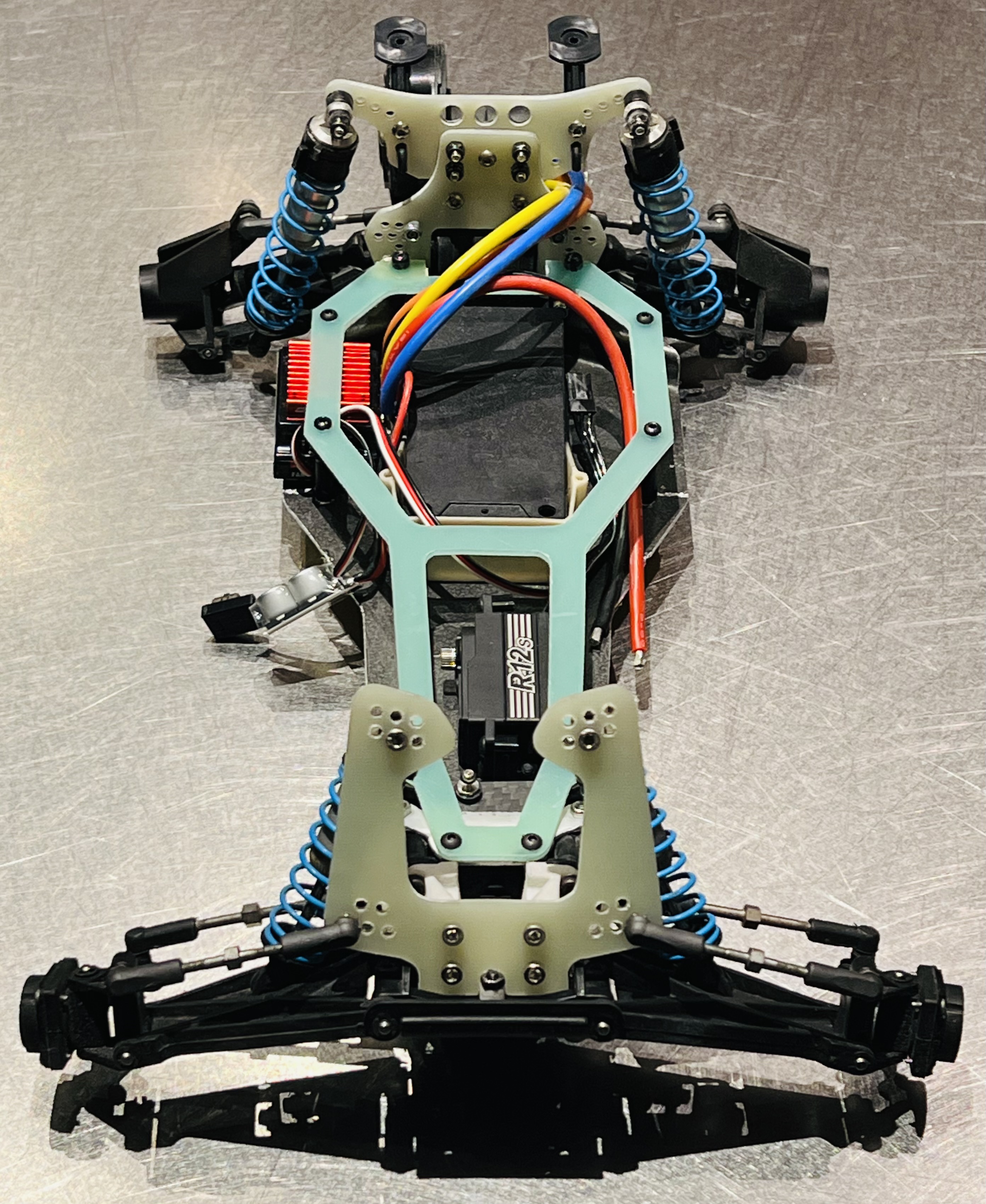

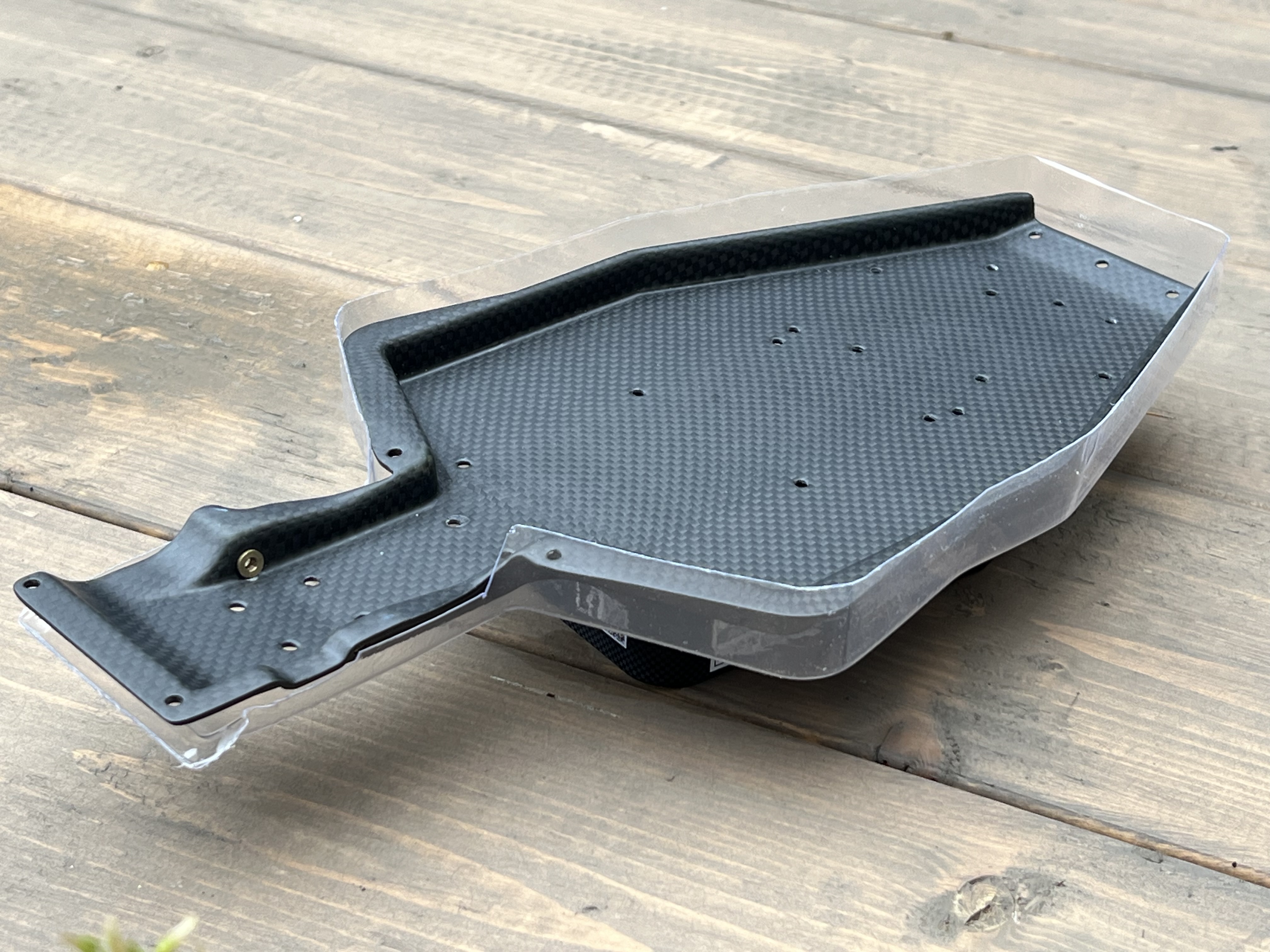

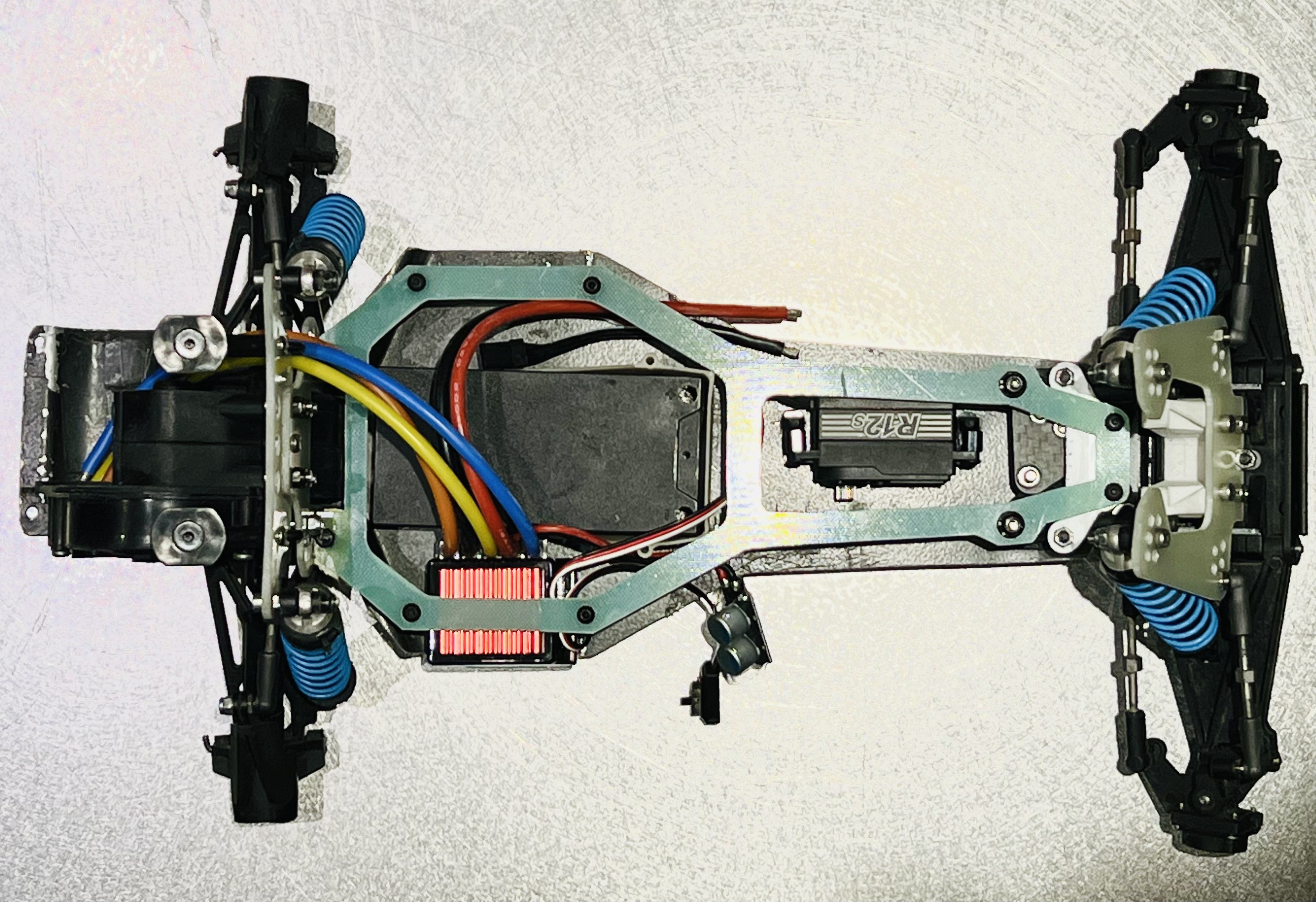

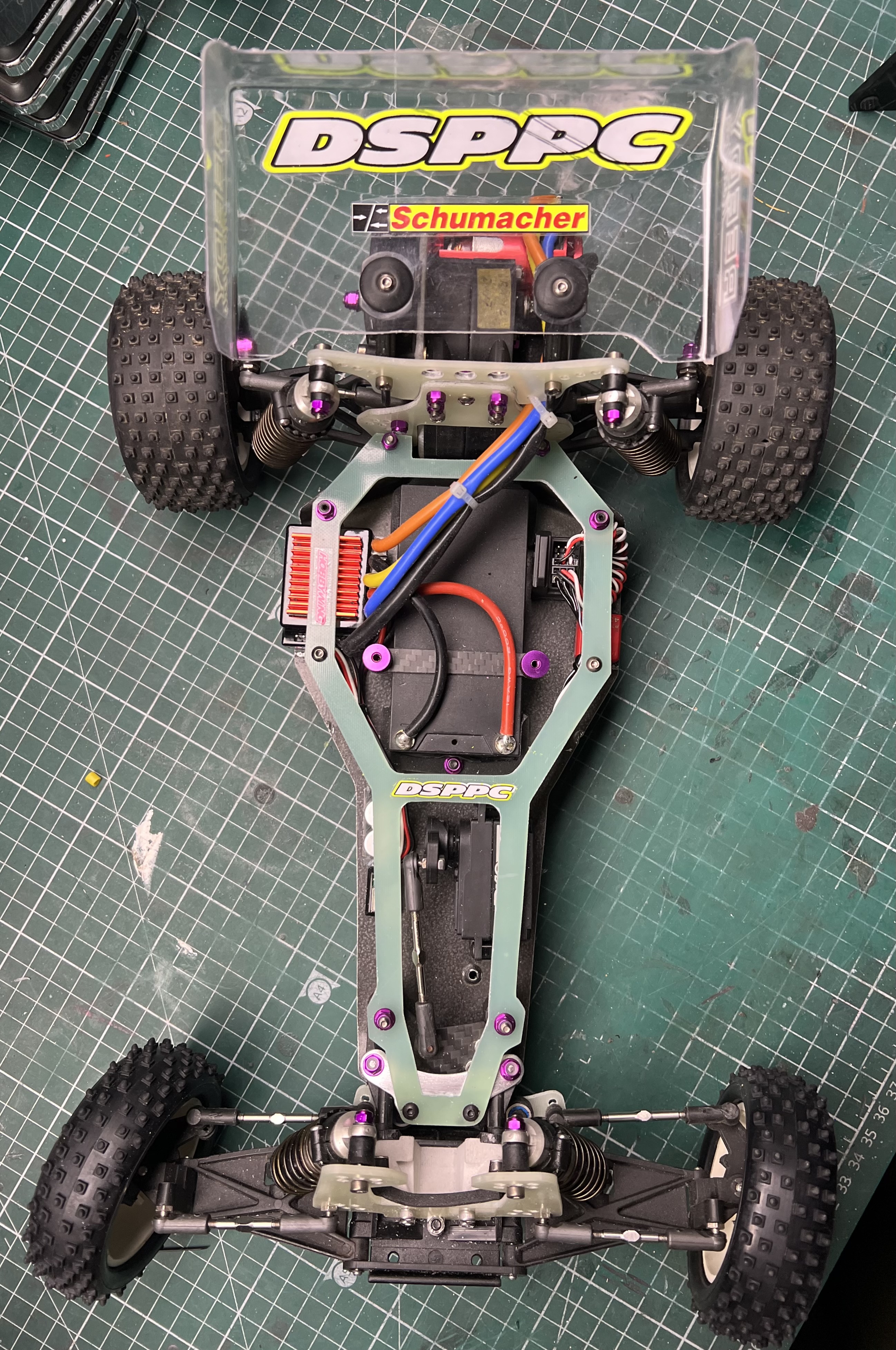

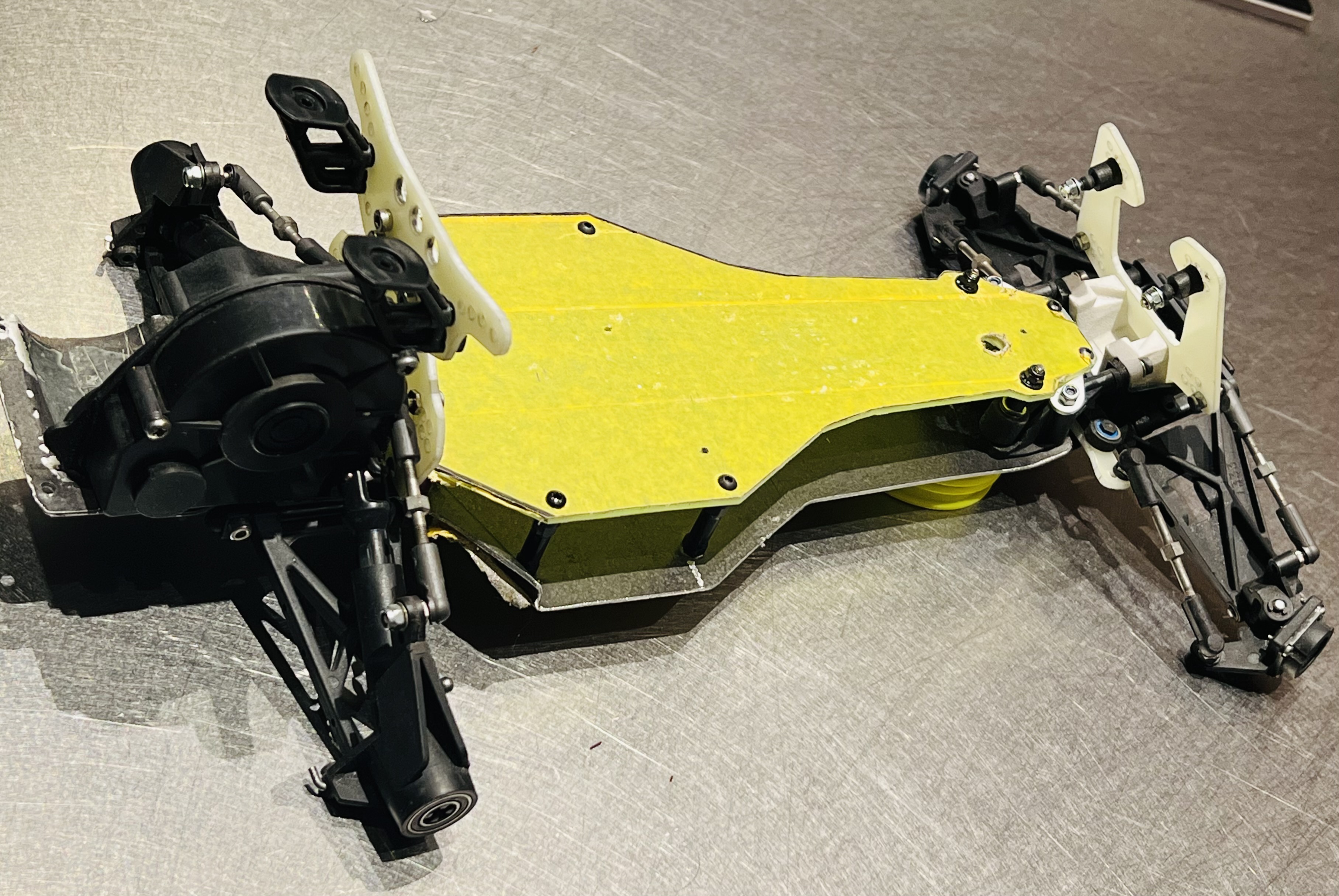

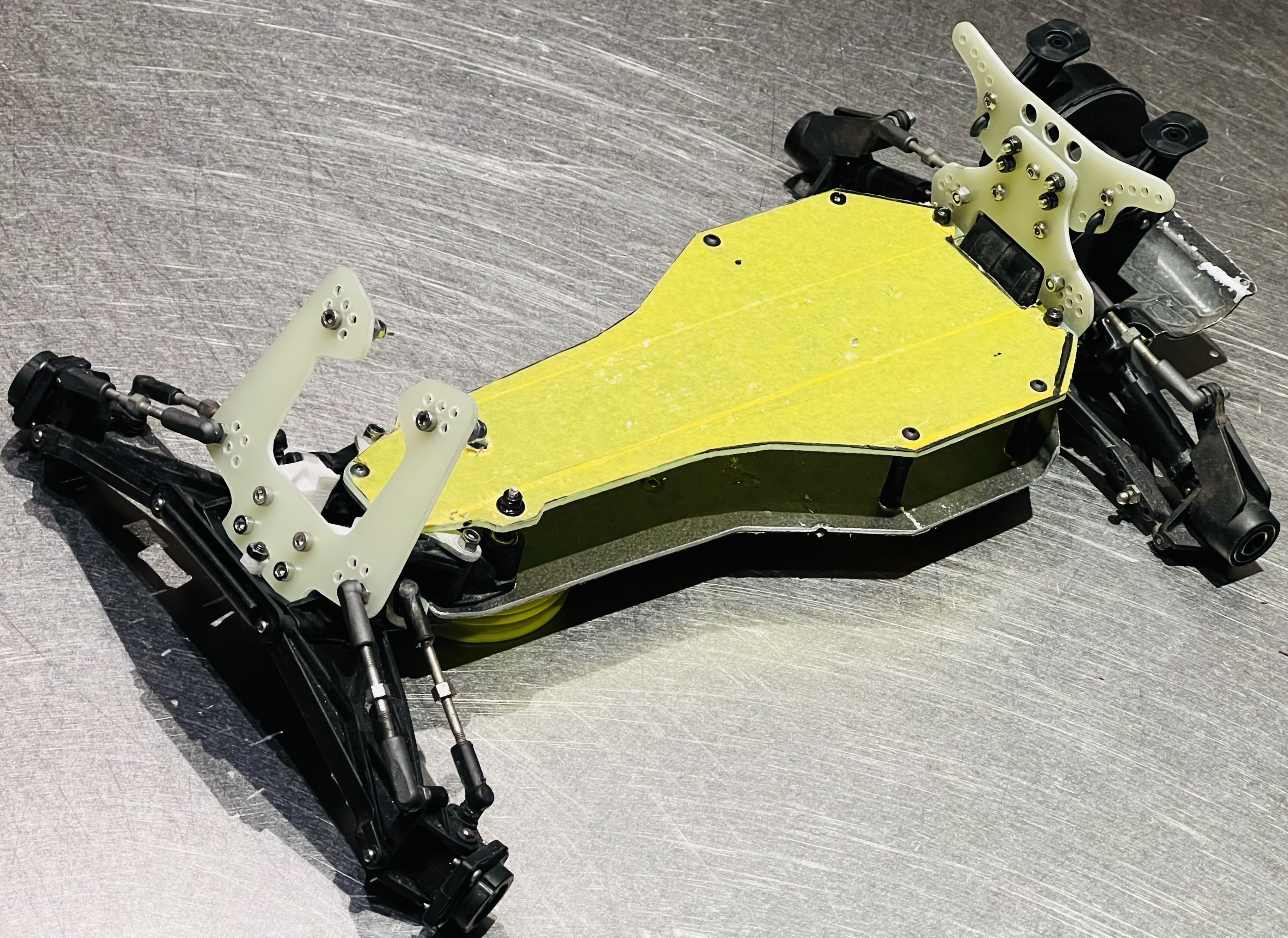

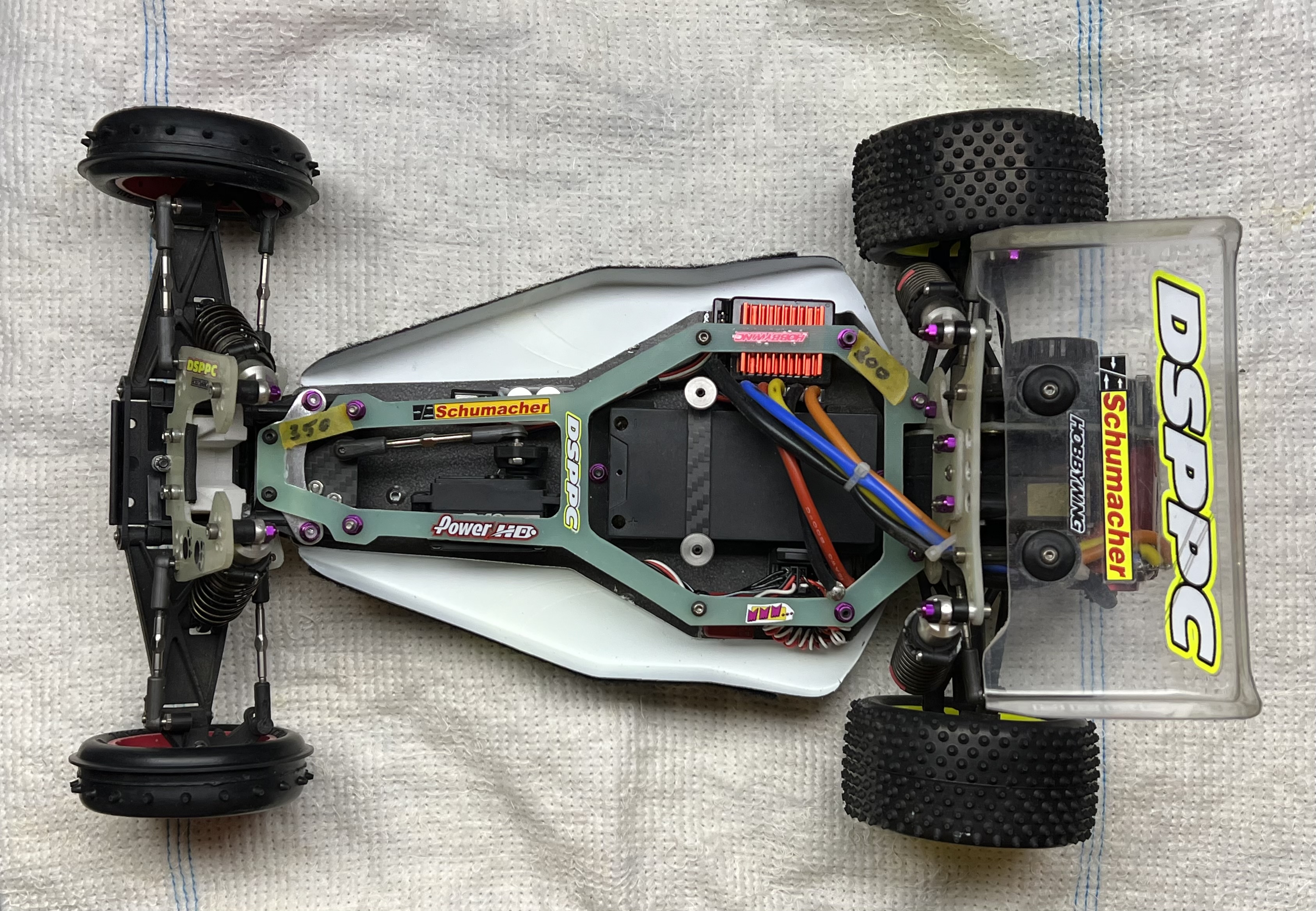

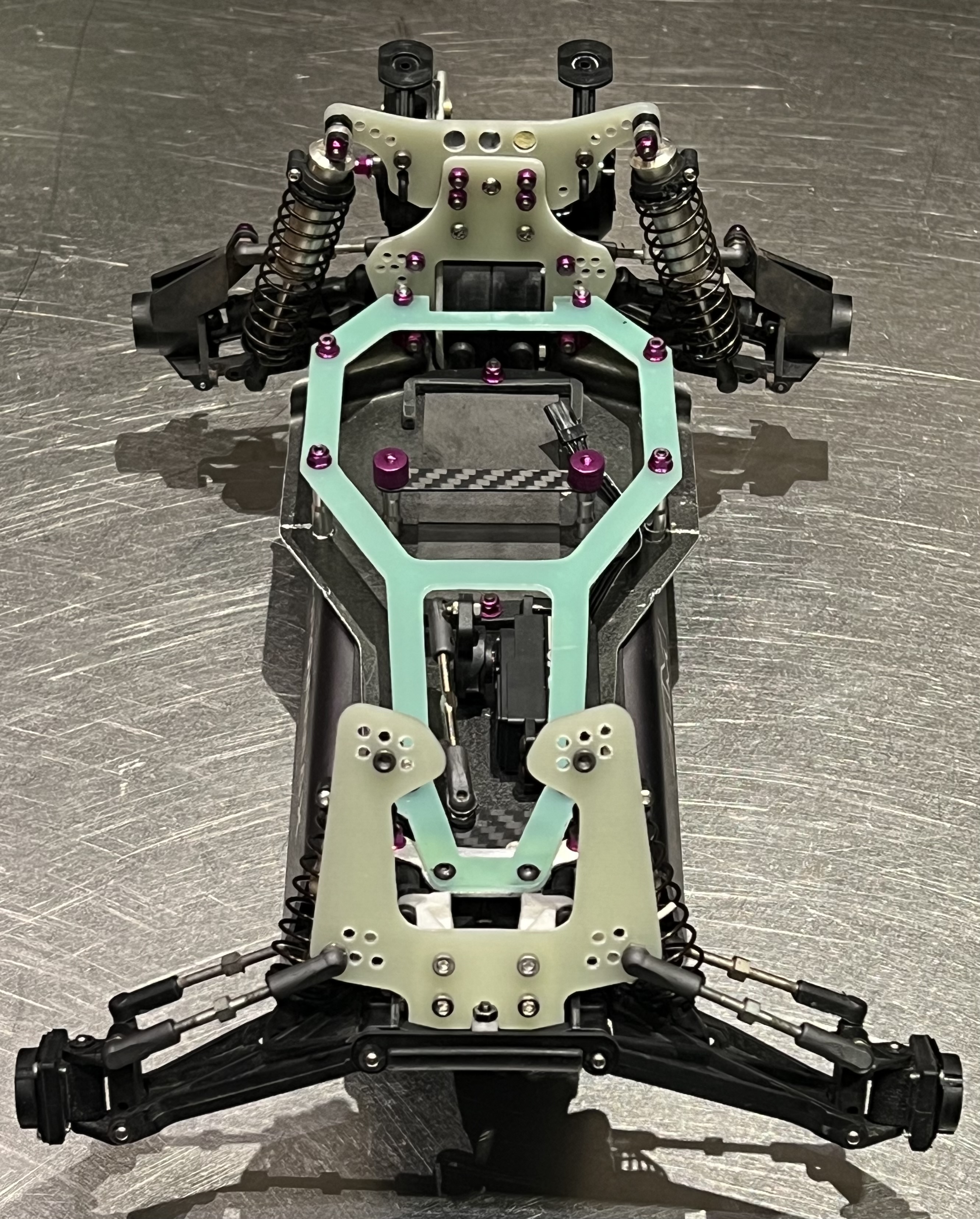

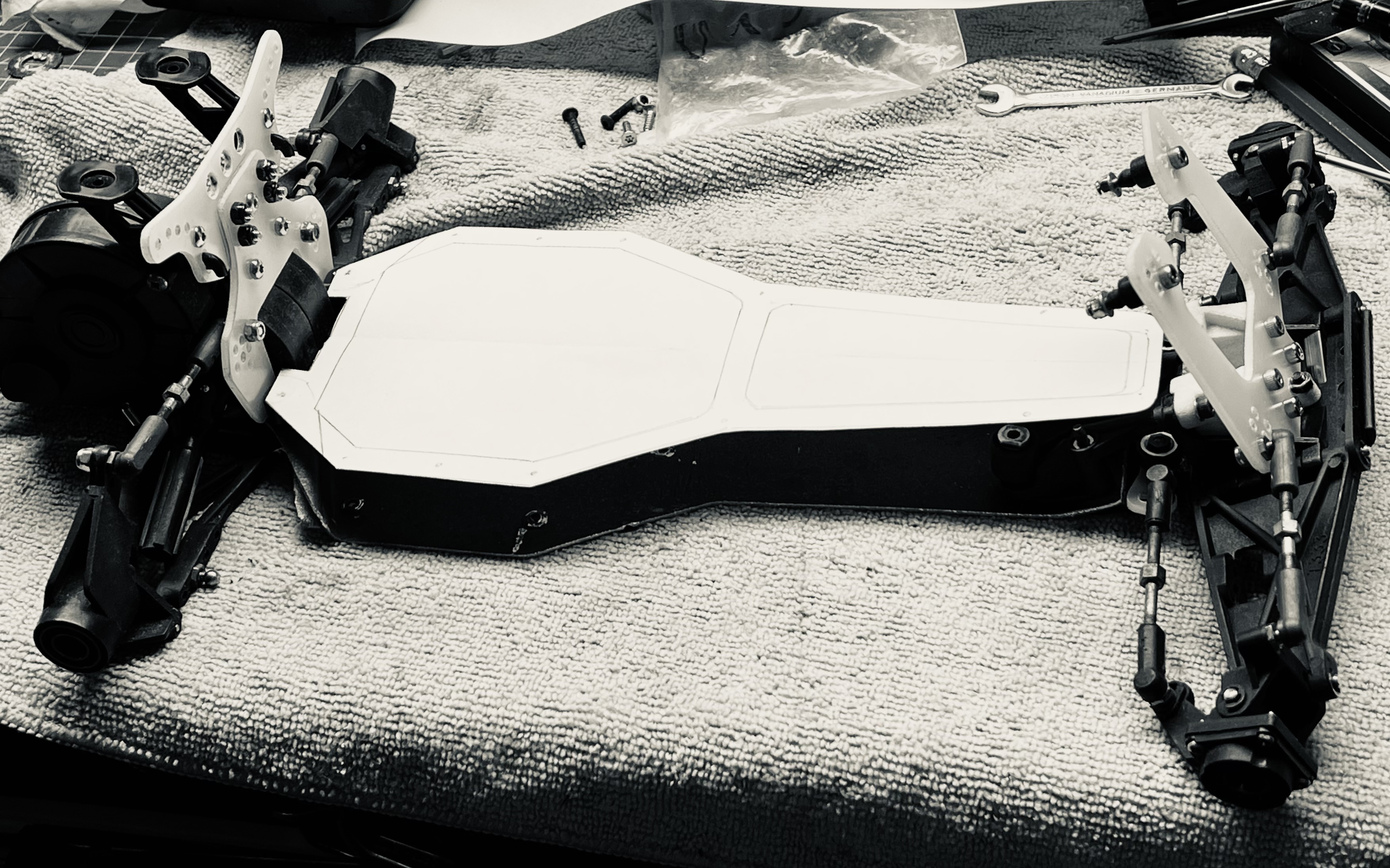

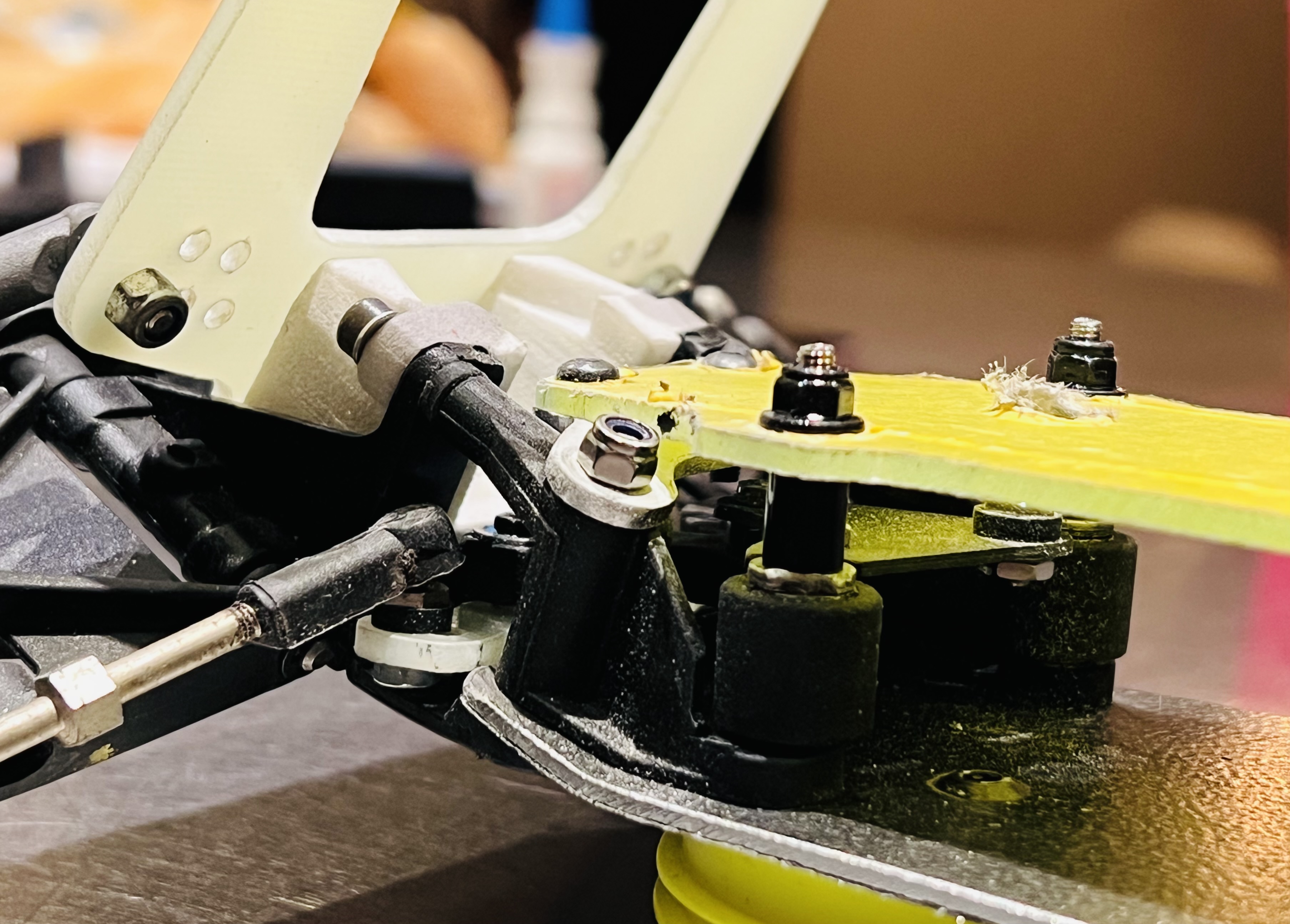

Took an old alloy chassis, cut the sides, and created a topdeck of GR10 Epoxy sheet.

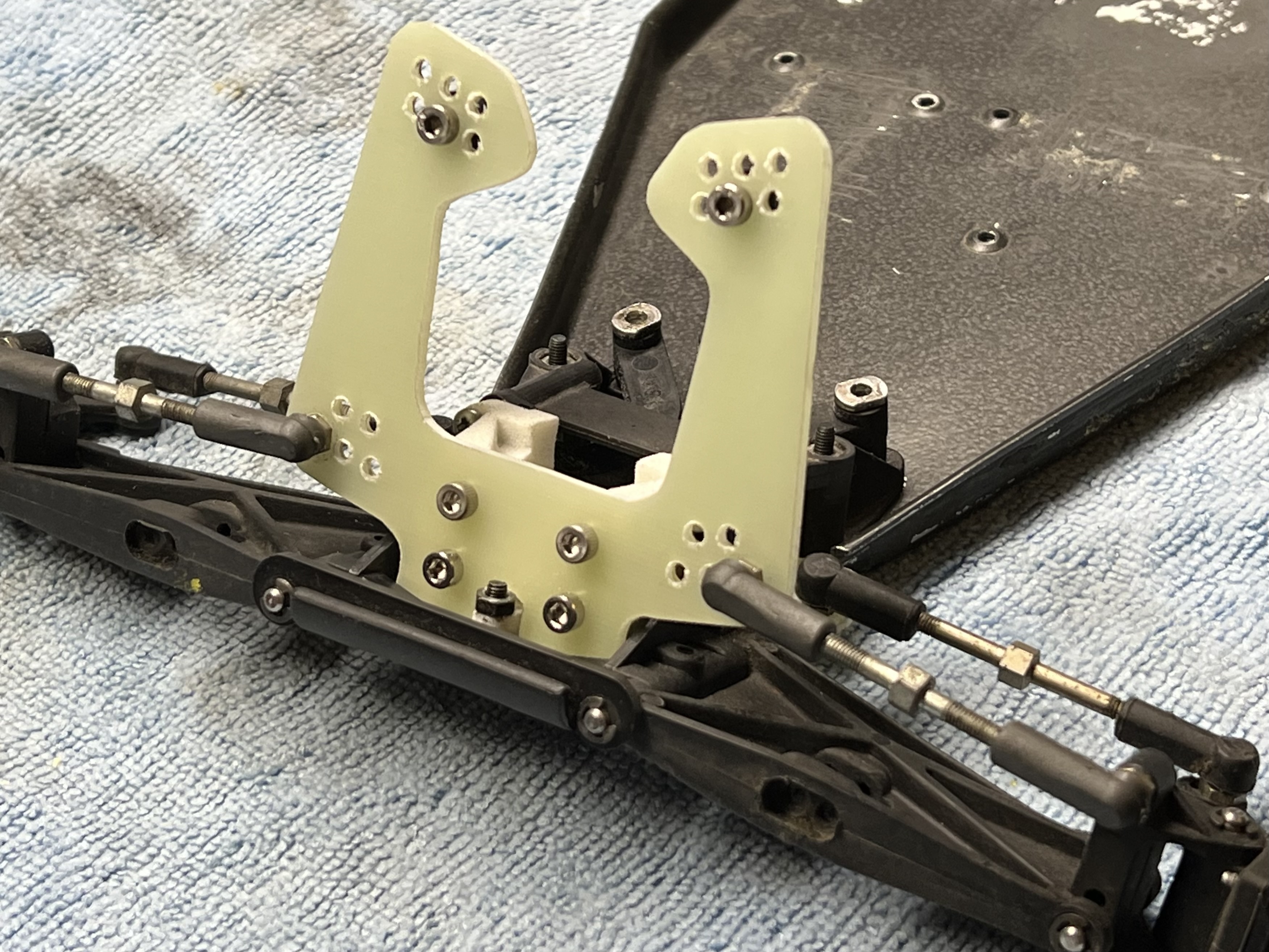

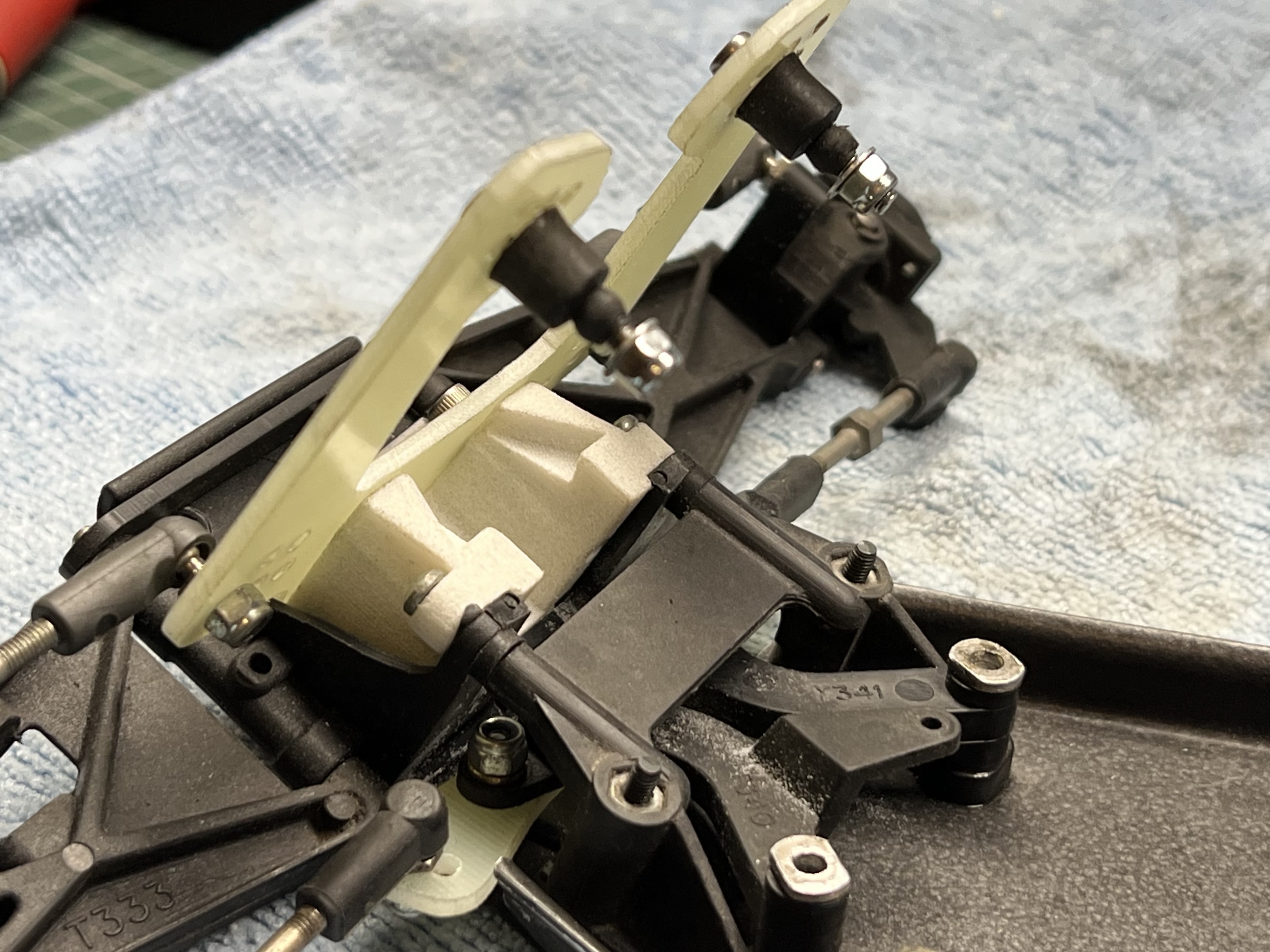

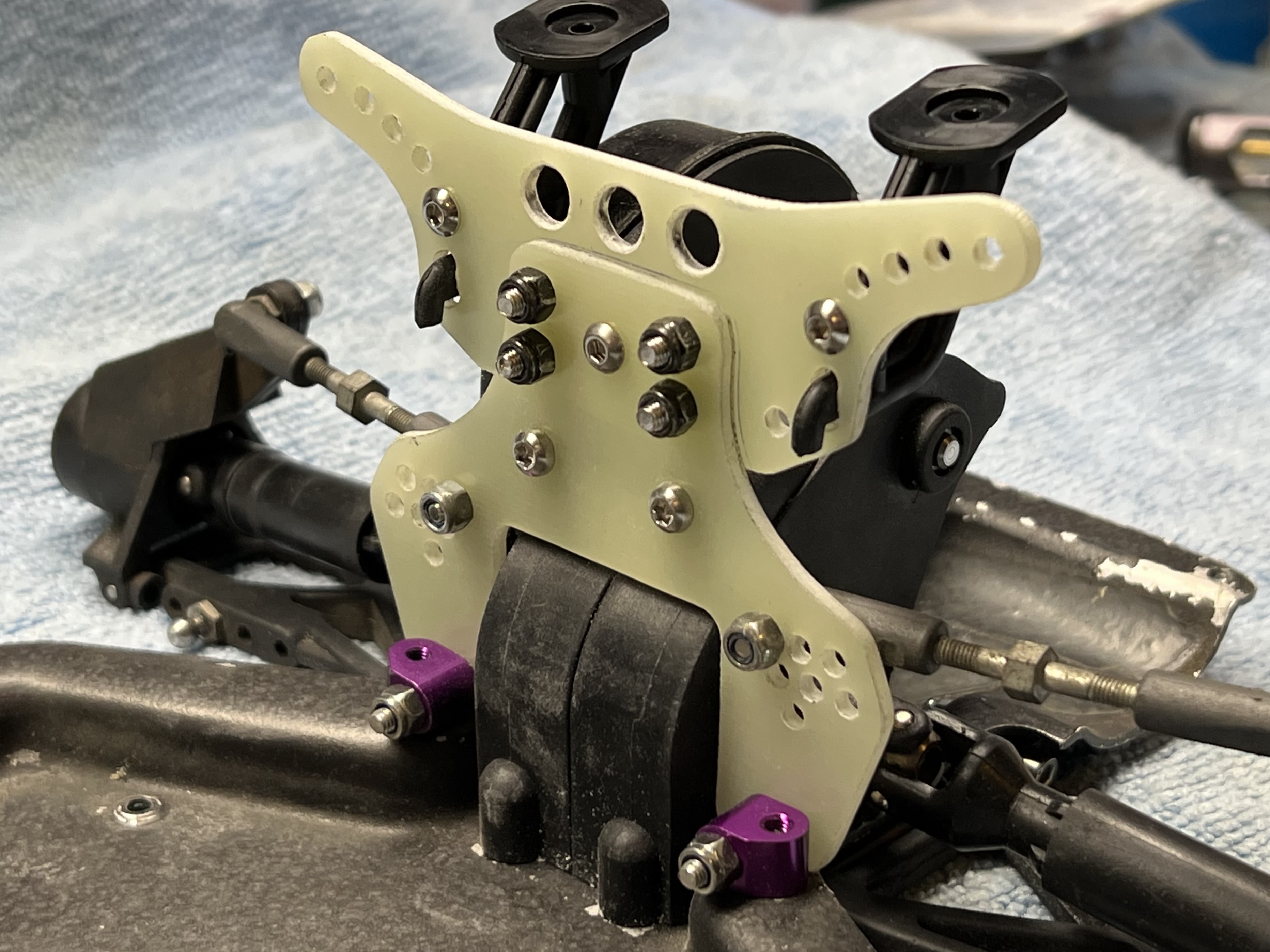

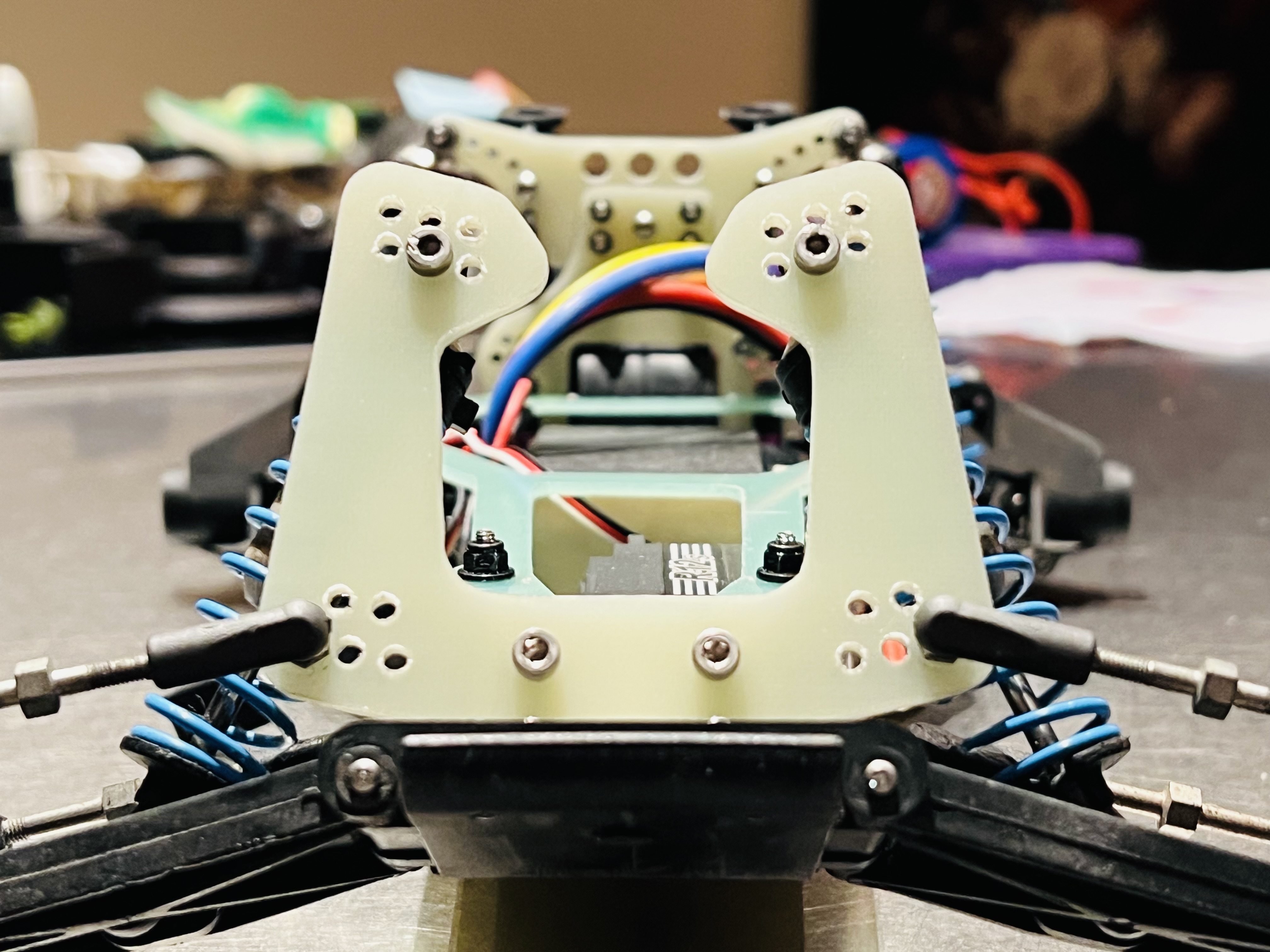

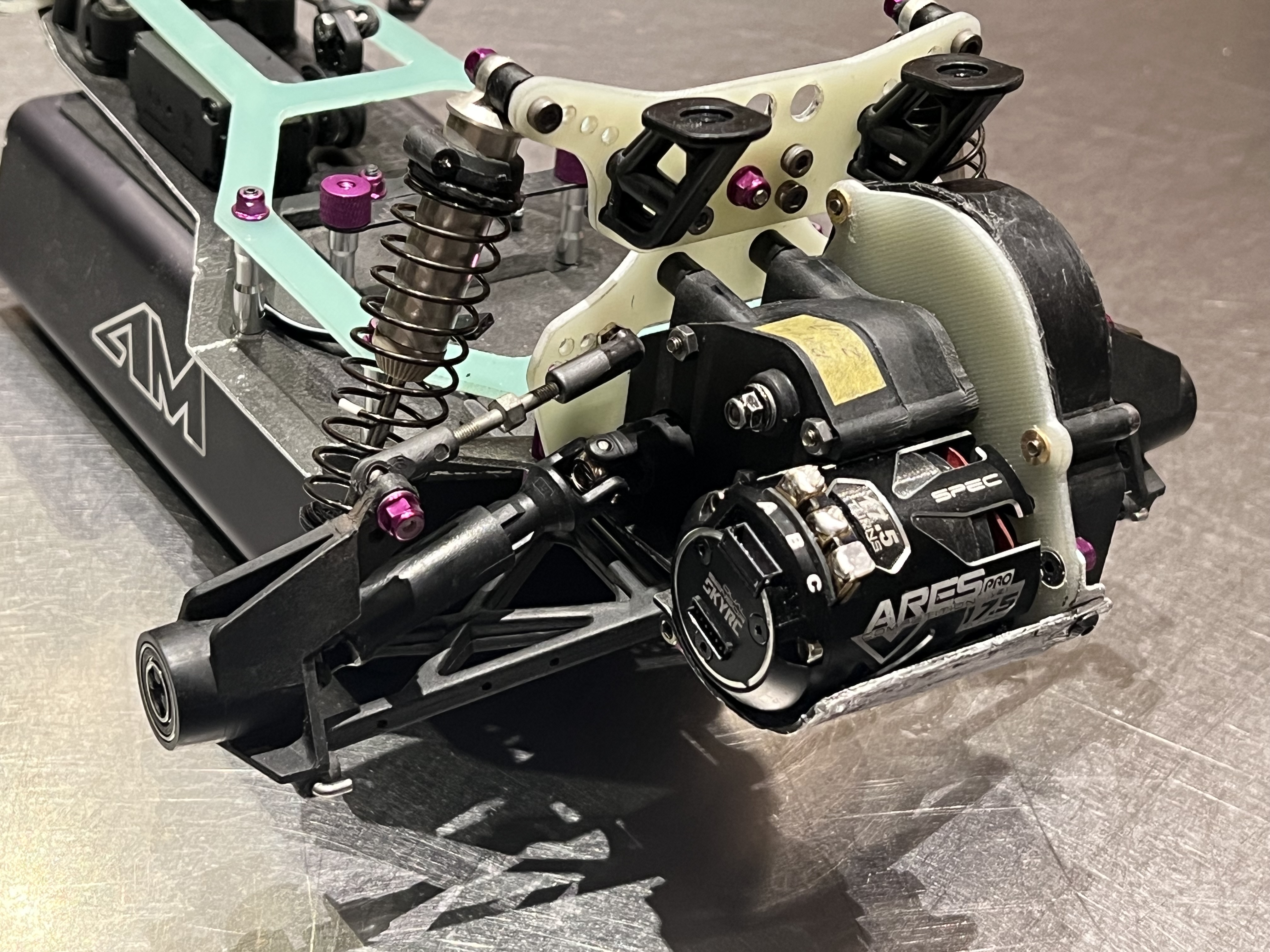

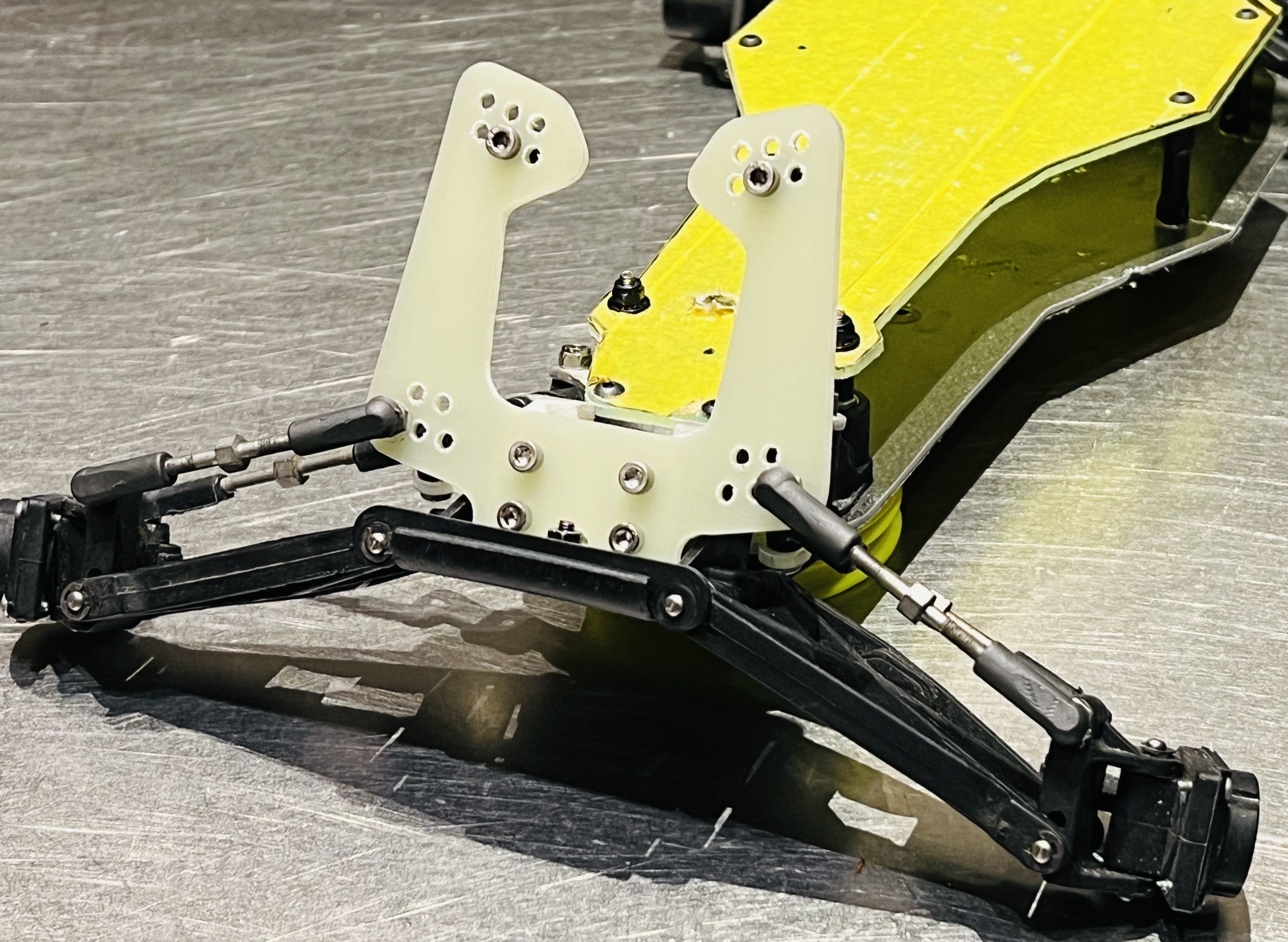

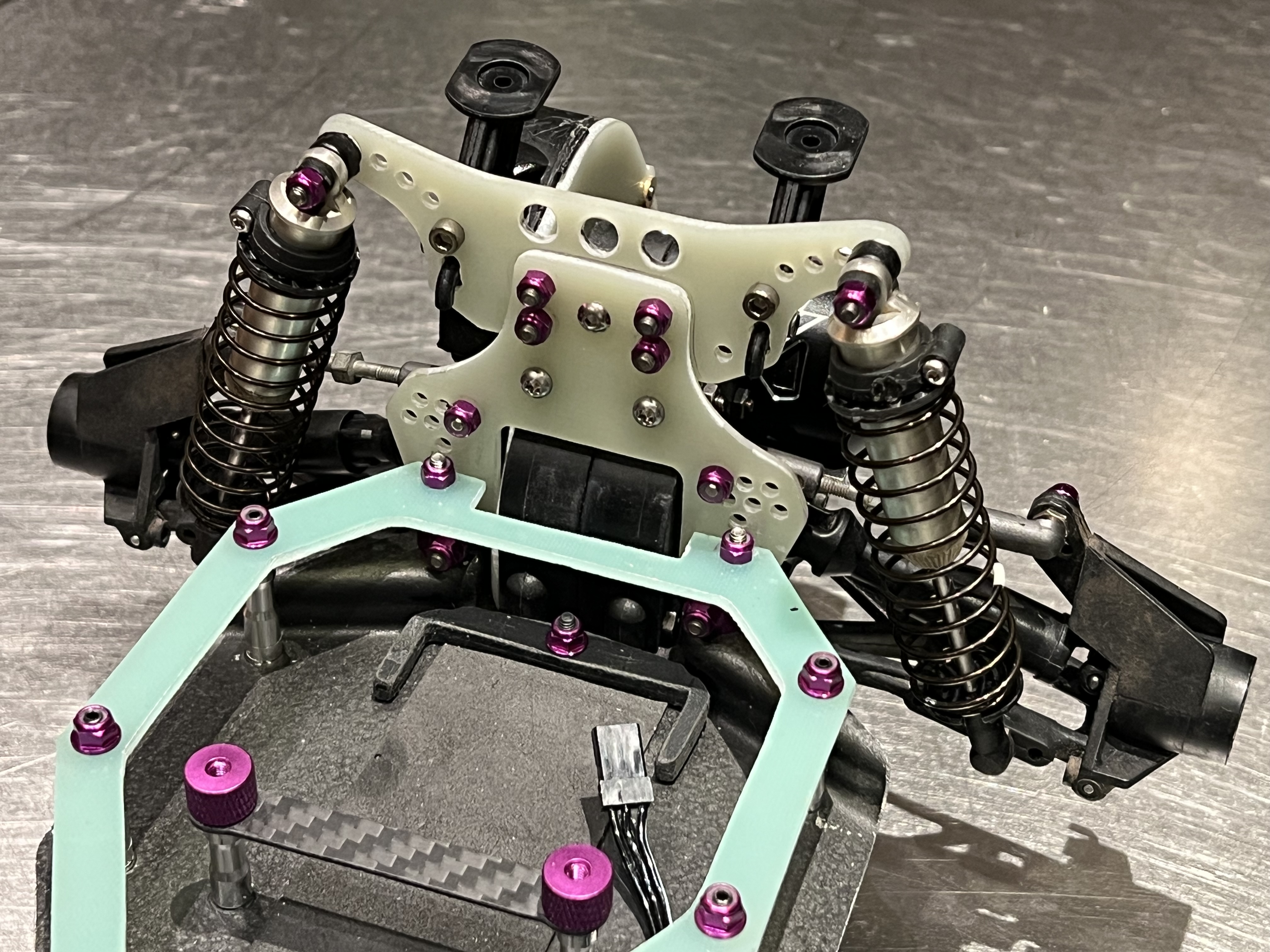

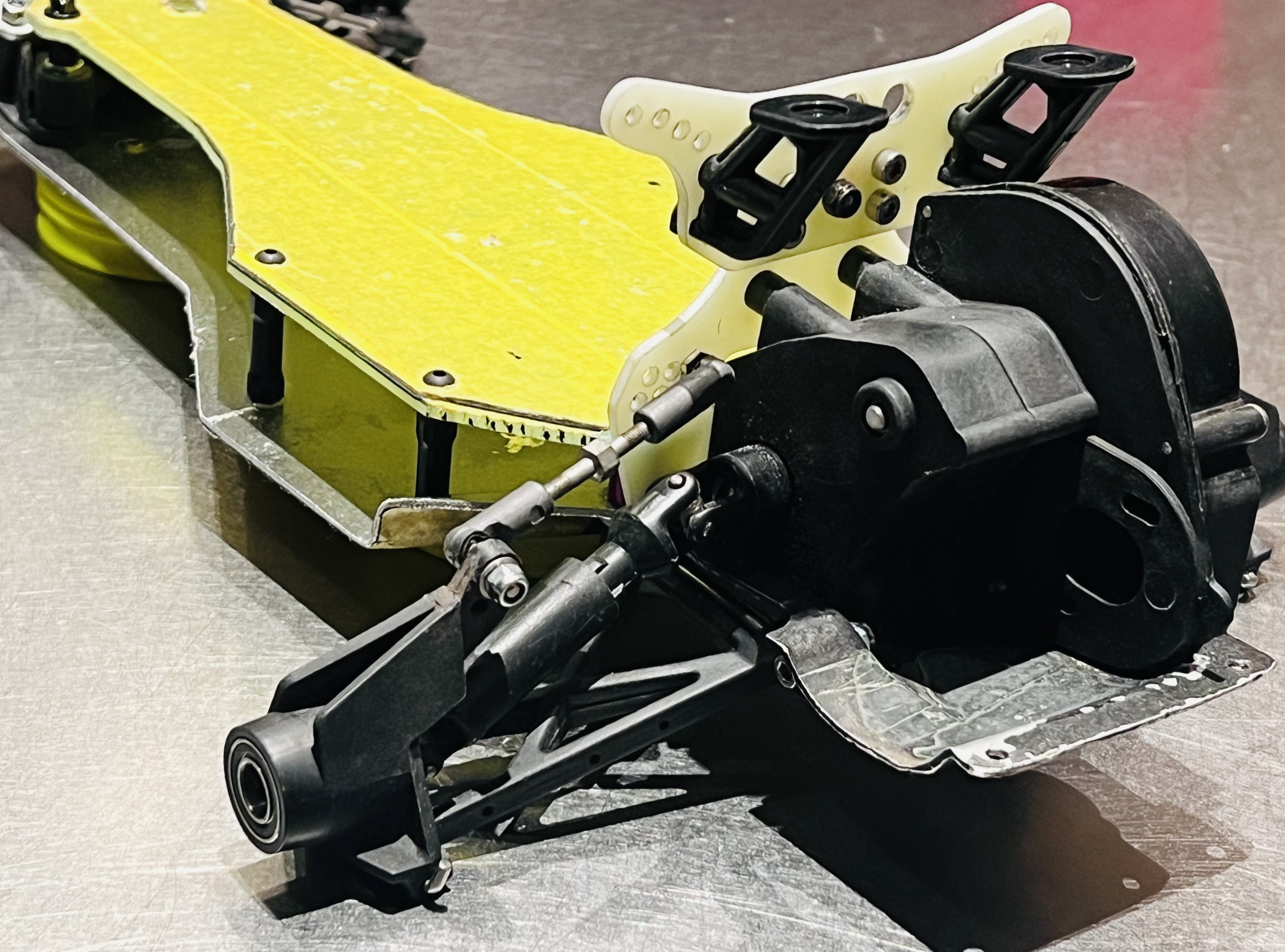

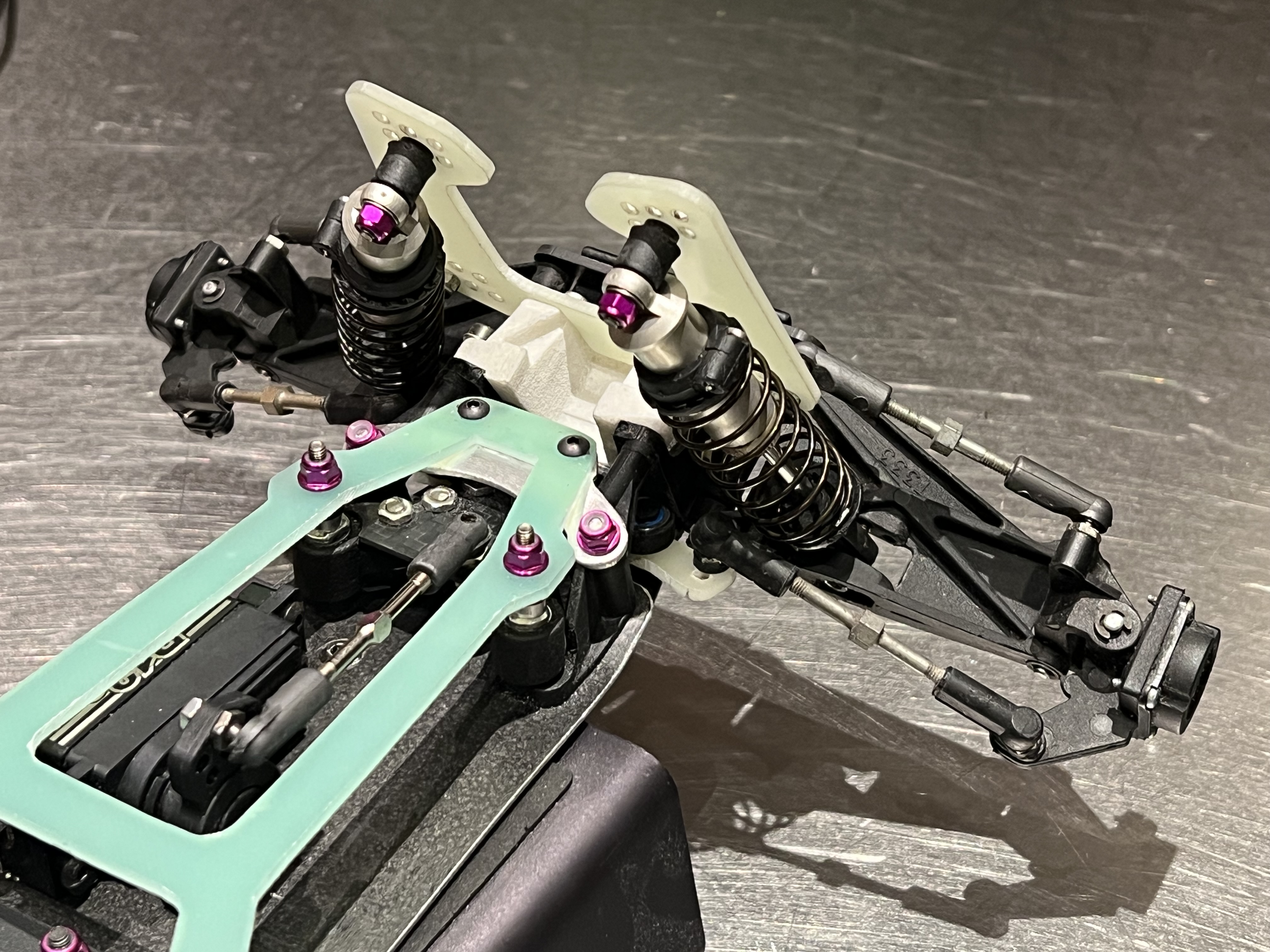

Used my stencil for the MIX21’ front shocktower, and created the front and rear towers by hand, as the 91” inspired rear bulkhead as well.

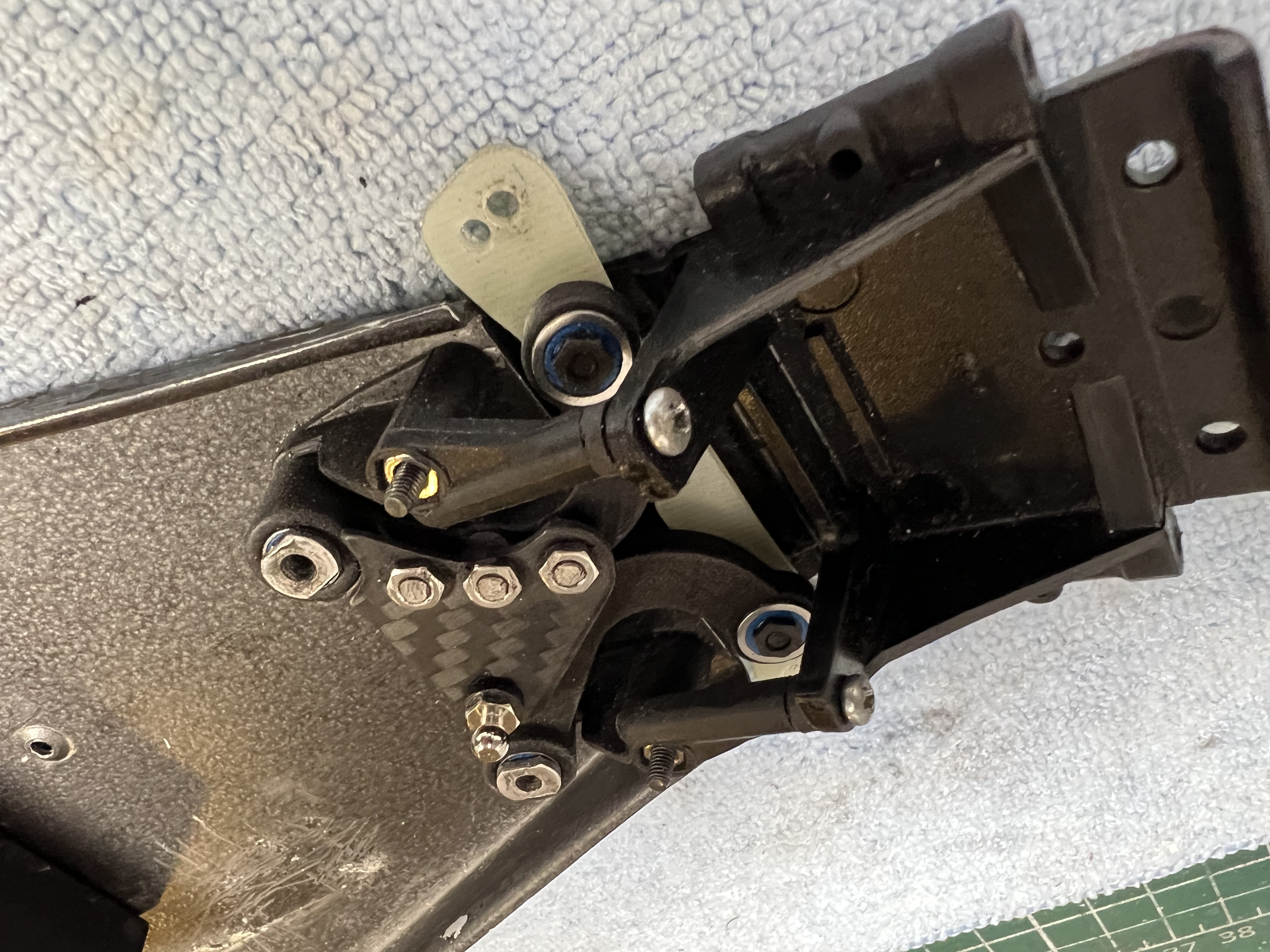

Also made an alloy brace in the front, created an 8 bearing steering lever, with a GR10 ackerman plate, with a more aggressive extra position.

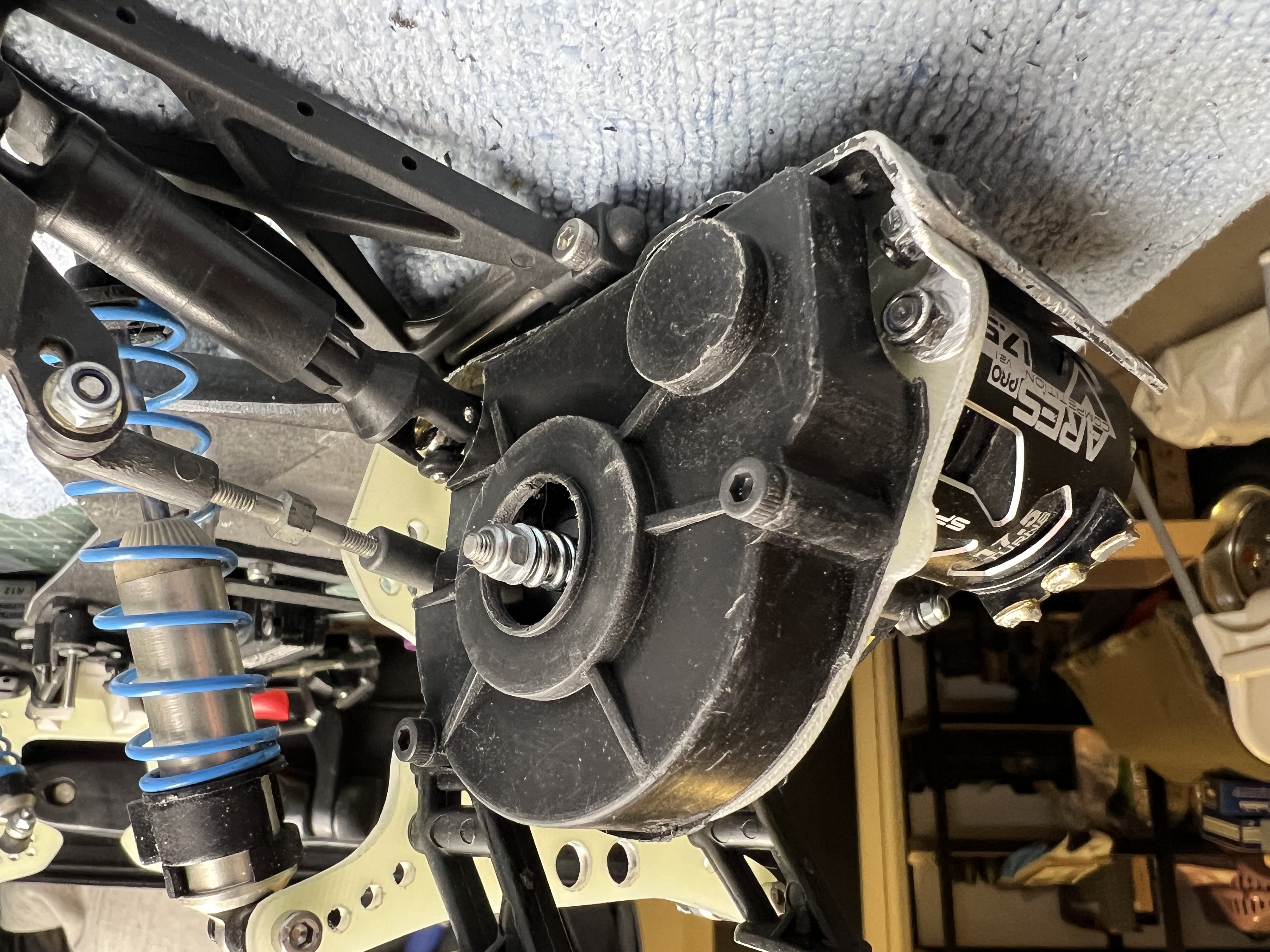

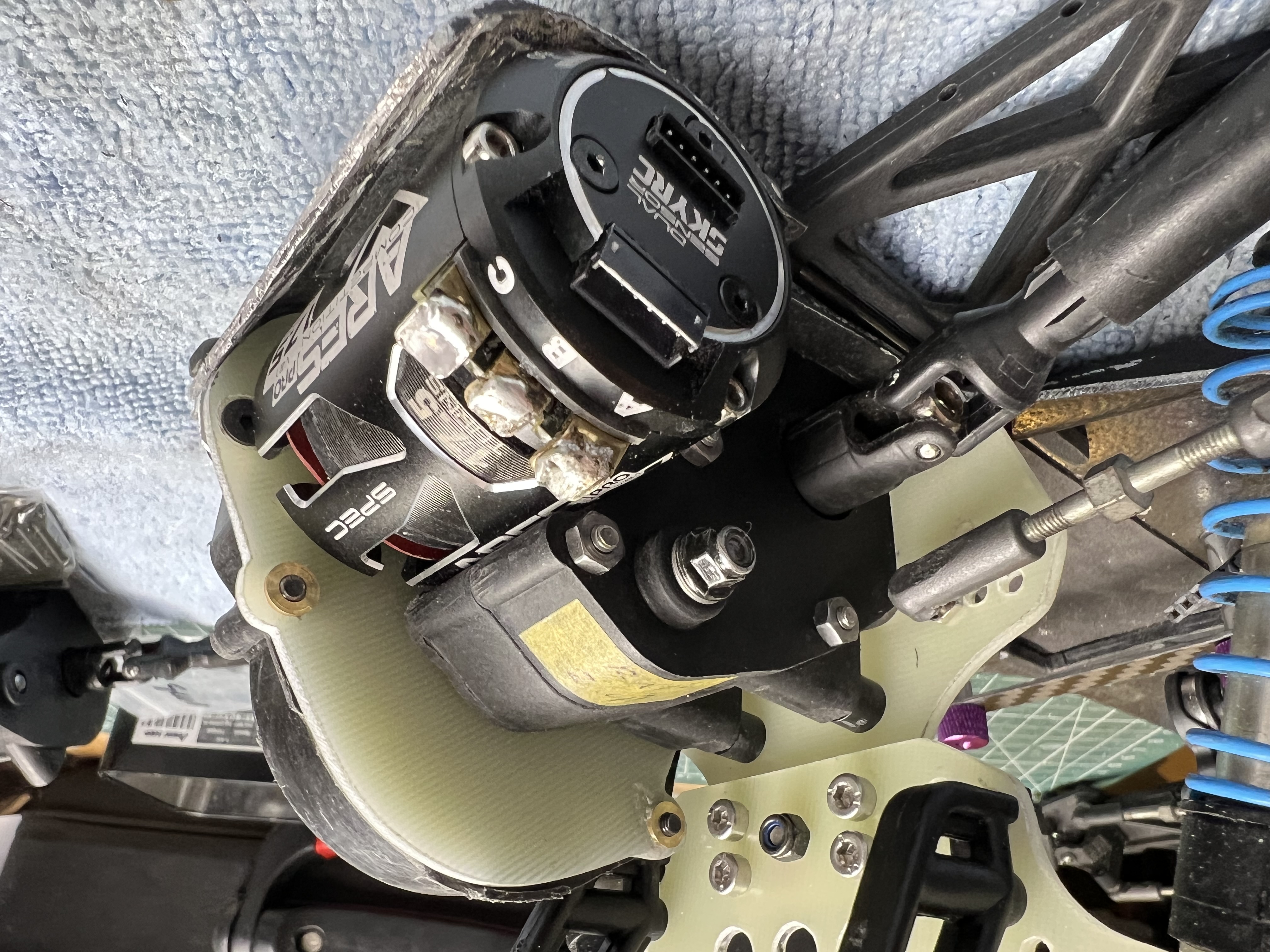

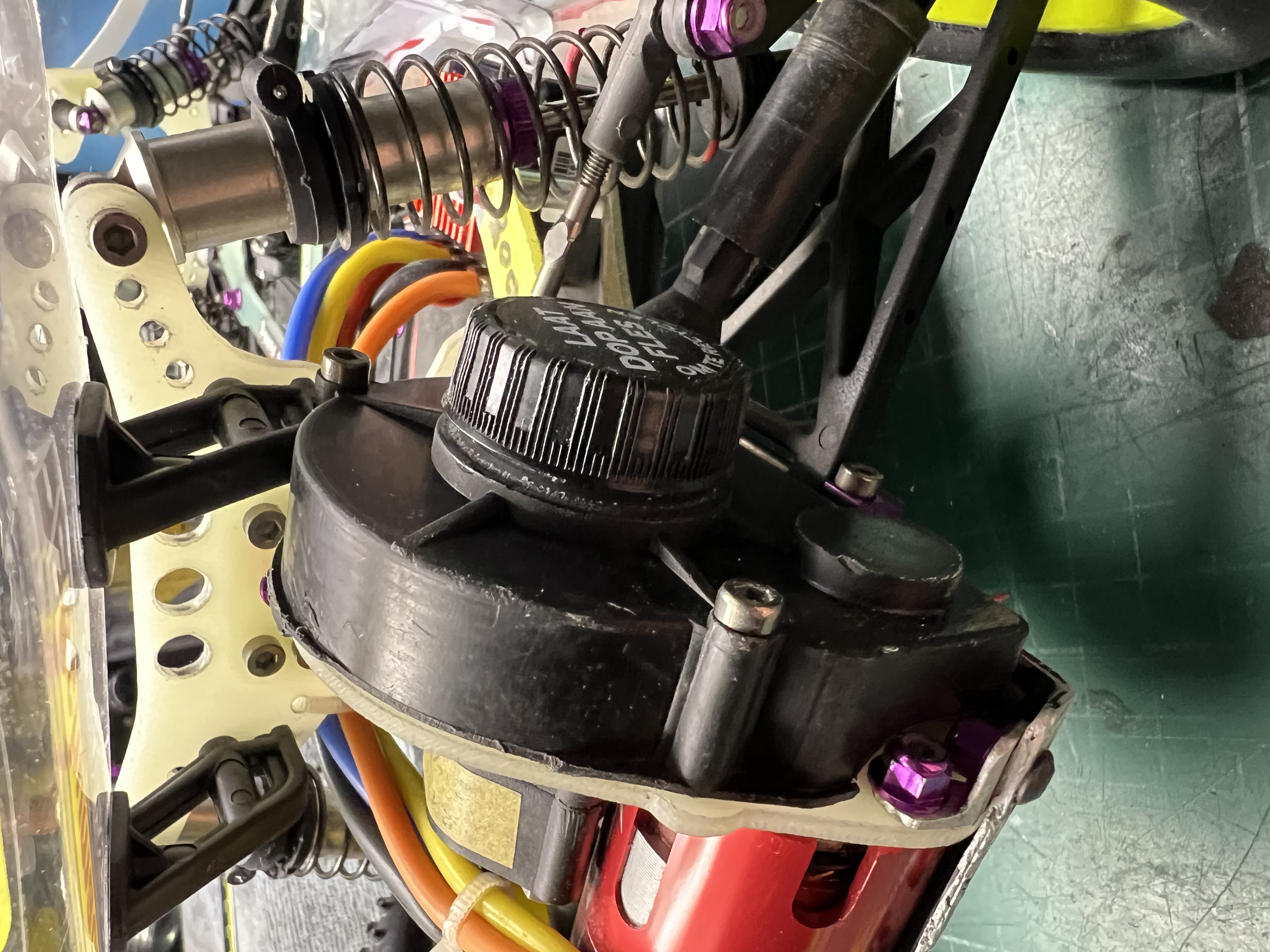

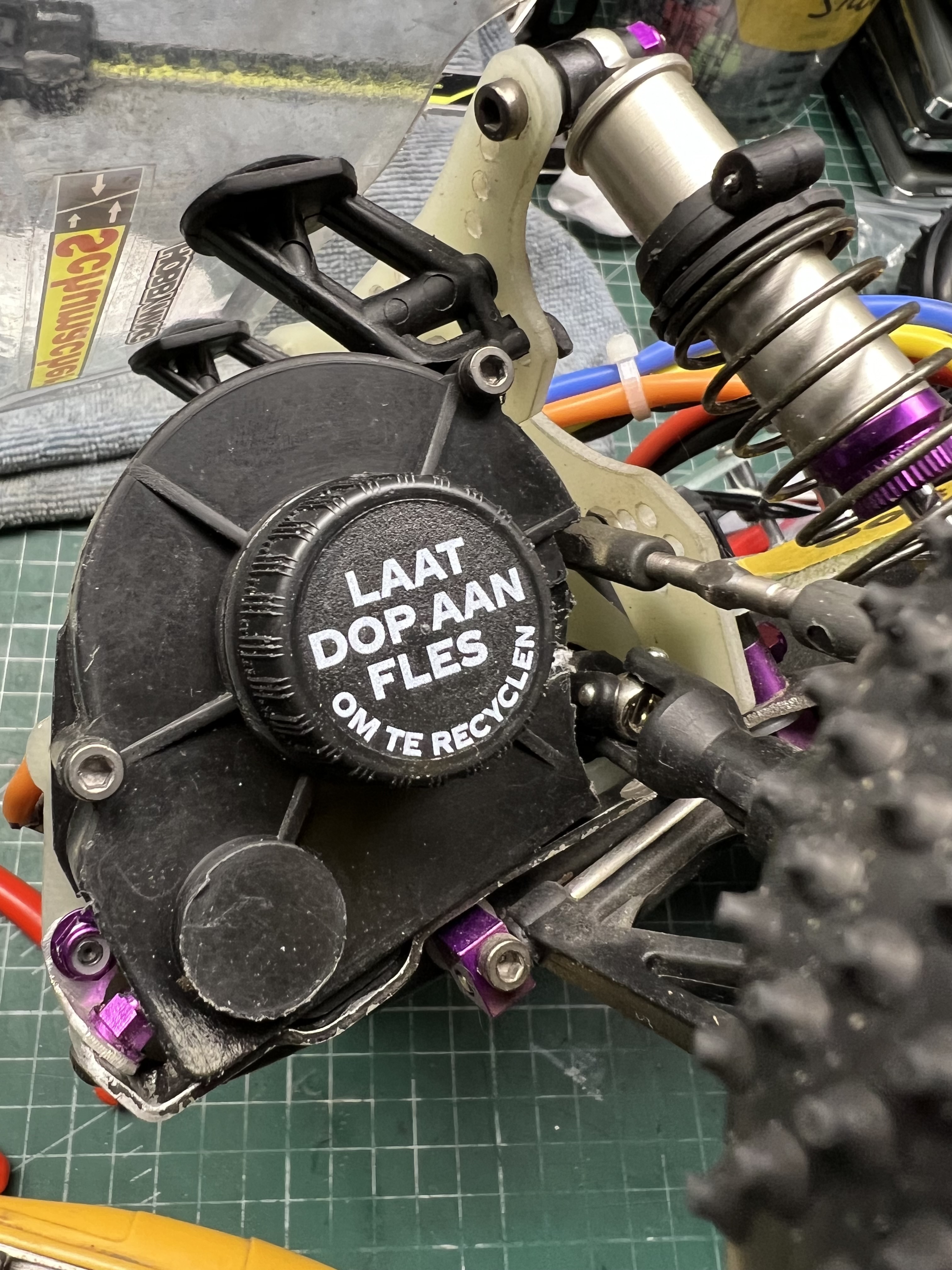

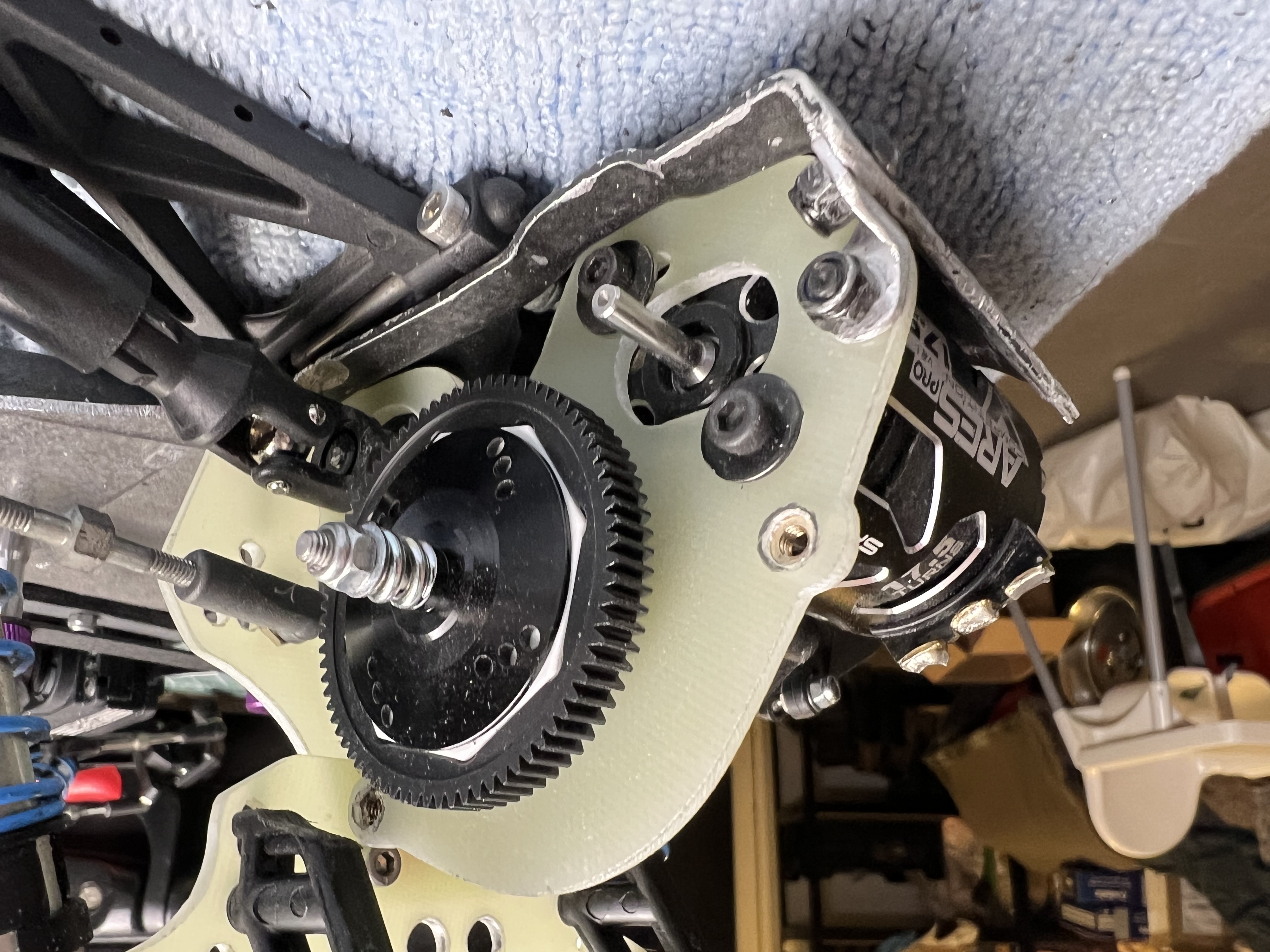

I use a Club10 diff, because it has gears, and a much tougher inner diff, which i used alloy inner parts for, and asked a friend to rework a KF layshaft on a Lathe to fit a slipper on her.

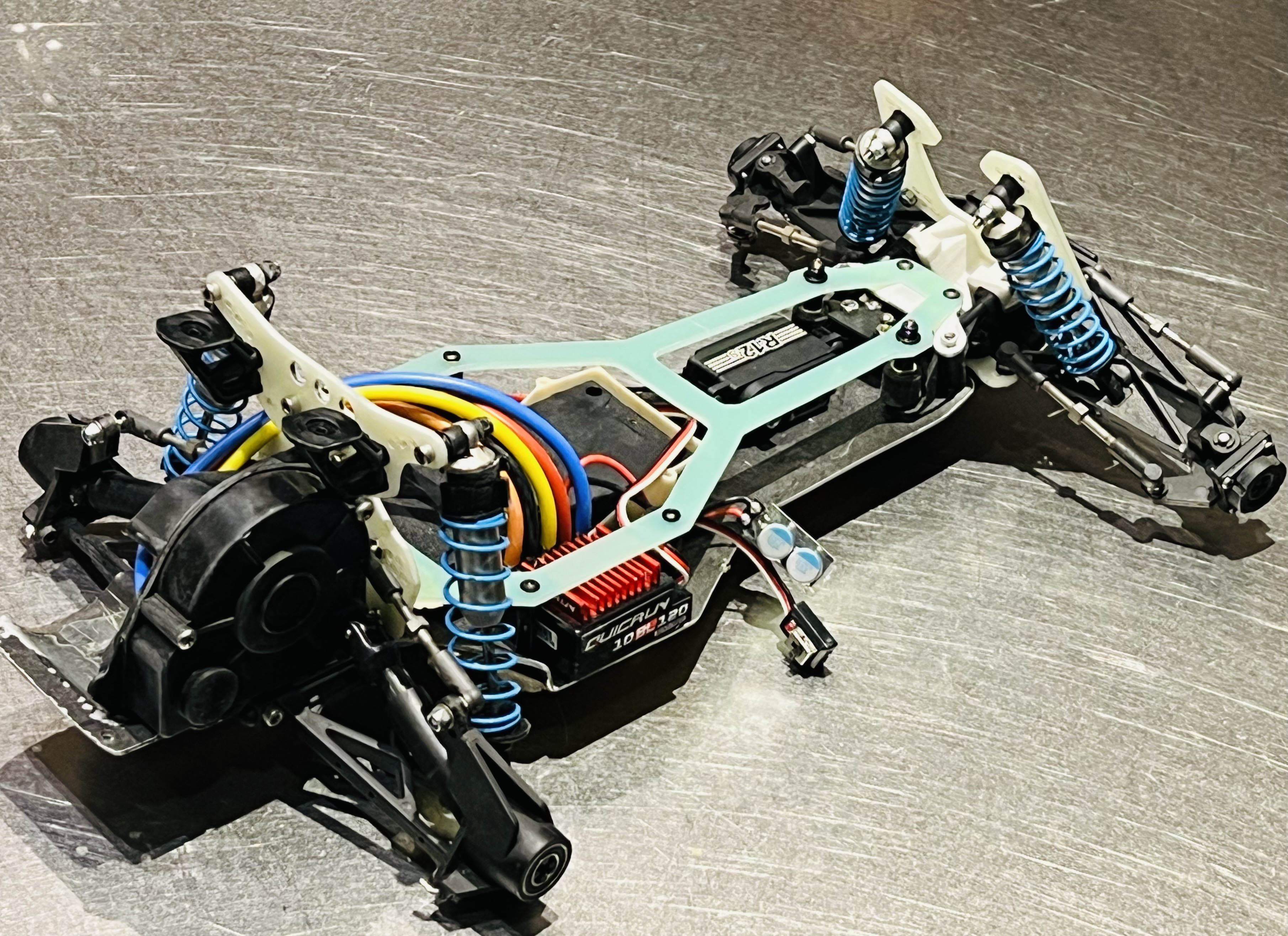

The main goal was, a light Cougar, but as strong as a modern buggy!
I wanted to stay under 1400grams, just as a goal.

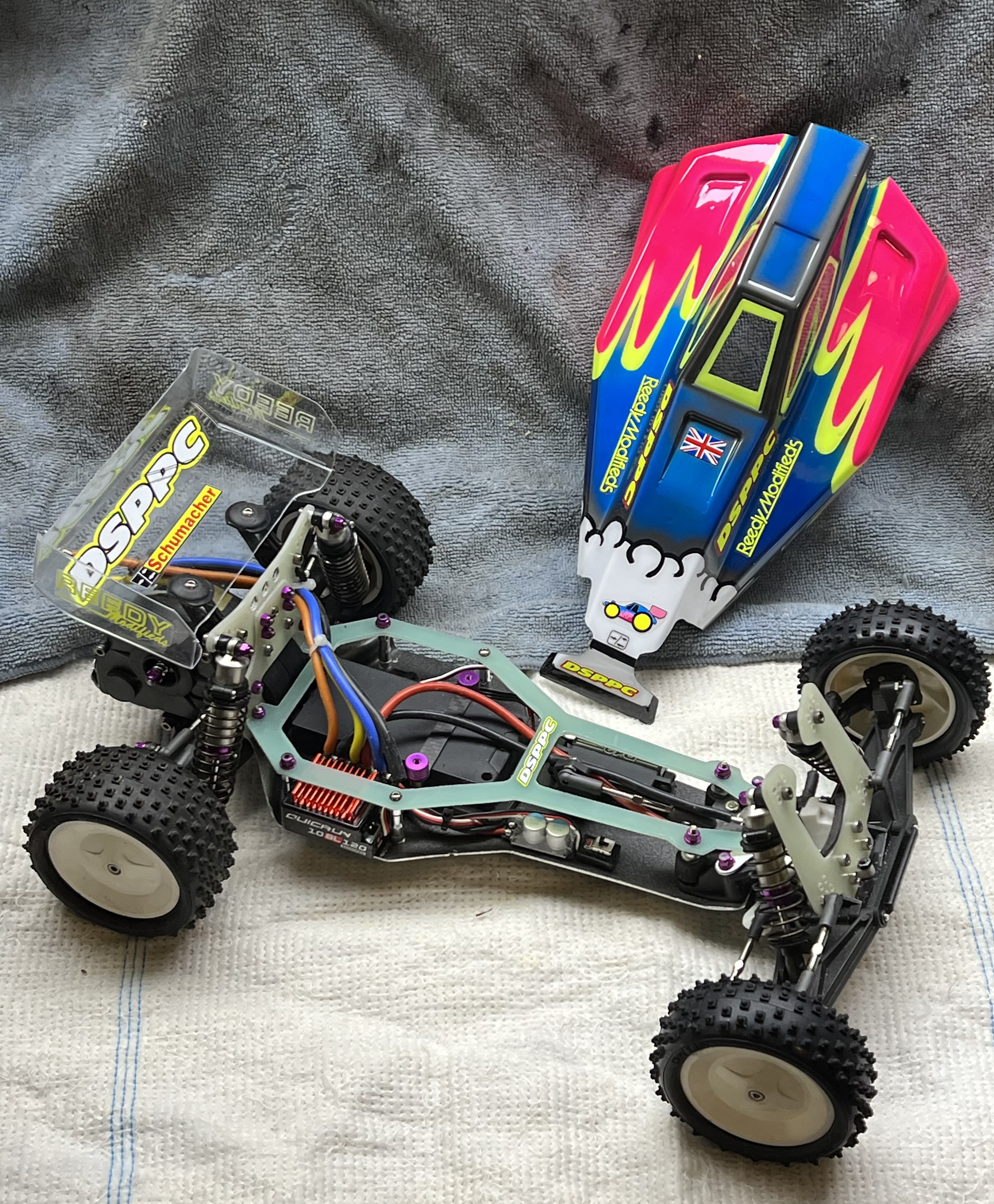

In the end, after using all titanium bolts, and alloy nuts, simple lightweight electronics etc… it ended up to be 1435 grams… that will do!
So, nothing much less to say for now, just dropping some pictures, and if you have any questions, just reach out.
