TQ10 resto

General discussion, builds/restorations, etc...

Moderators: scr8p, klavy69

sixdub
Approved Member
Posts: 148
Joined: Fri Jan 19, 2007 5:30 pm
Location: Senoia Georgia
Has thanked: 11 times
Been thanked: 89 times

Re: TQ10 resto

Post by sixdub »

Supplies!
I'm going to redo the motor plate touchup. The paint pen I used is a bit too flat. I'll experiment with the epoxy to fill in the stealth holes on the chassis if I can get the color dark enough while mixing.

I think these are the correct towers.

And started on assembling the shocks. Dry for now.
I think I have the correct lower spring cups (without the cutout).
Still scrubbing on plastics and will do a peroxide soak if the sun comes out this weekend.
Kyosho, JRX-2, Gold Tub Fan

User avatar
MarkyDents
Approved Member
Posts: 1100
Joined: Sun Jan 10, 2021 4:52 pm
Location: Staten Island, N.Y.
Has thanked: 1527 times
Been thanked: 559 times

Re: TQ10 resto

Post by MarkyDents »

Your chassis looks to be the last version. You could build it short or long front arm.
https://rc10talk.com/viewtopic.php?t=47447
That would also decide which towers and spring cups you would use.
Who do you race for ?
Me……. I race for me.
That’s impossible, I was told you need a sponsor to race.
Hey Cru ! Go balls out 8)

sixdub
Approved Member
Posts: 148
Joined: Fri Jan 19, 2007 5:30 pm
Location: Senoia Georgia
Has thanked: 11 times
Been thanked: 89 times

Re: TQ10 resto

Post by sixdub »

Thanks for the link!

I'm leaning towards short arm, so I'll go with the full spring cups.
Kyosho, JRX-2, Gold Tub Fan

sixdub
Approved Member
Posts: 148
Joined: Fri Jan 19, 2007 5:30 pm
Location: Senoia Georgia
Has thanked: 11 times
Been thanked: 89 times

Re: TQ10 resto

Post by sixdub »

The aluminum black is working pretty well. I'll need to hit the edges again, but happy so far. Thanks for the suggestion.
Blued the axles and dogbones also.
Filling the poorly drilled stealth holes with epoxy. I'm definately not a body work pro. A bit of sanding will be required after this cures.
Kyosho, JRX-2, Gold Tub Fan

sixdub
Approved Member
Posts: 148
Joined: Fri Jan 19, 2007 5:30 pm
Location: Senoia Georgia
Has thanked: 11 times
Been thanked: 89 times

Re: TQ10 resto

Post by sixdub »

Started sanding on the epoxy and it is looking better. I'll have to do another skim coat prior to final sanding and then I'll decide if I need to paint the chassis.
The arms and hinge pins are cleaned up and ready to go.
And I cleaned up a Trinity stock motor to park in the chassis until I find a period correct Reedy or similar.
Kyosho, JRX-2, Gold Tub Fan

User avatar
LurkingCAT
Super Member
Posts: 312
Joined: Wed Jul 04, 2012 10:11 am
Location: Norway
Has thanked: 134 times
Been thanked: 175 times

Re: TQ10 resto

Post by LurkingCAT »

Your efforts are rewarded in a nice and clean build.
Also want to say I would put my vote in for NOT painting the chassis.
Looks very good as is :D

User avatar
MarkyDents
Approved Member
Posts: 1100
Joined: Sun Jan 10, 2021 4:52 pm
Location: Staten Island, N.Y.
Has thanked: 1527 times
Been thanked: 559 times

Re: TQ10 resto

Post by MarkyDents »

I second that, the holes look great the way they came. Well done. I wouldn’t paint the chassis either 8)
Who do you race for ?
Me……. I race for me.
That’s impossible, I was told you need a sponsor to race.
Hey Cru ! Go balls out 8)

sixdub
Approved Member
Posts: 148
Joined: Fri Jan 19, 2007 5:30 pm
Location: Senoia Georgia
Has thanked: 11 times
Been thanked: 89 times

Re: TQ10 resto

Post by sixdub »

Thanks!
I decided to forego painting, but did apply a low gloss clearcoat I have on hand for HO slot car bodies to clean up some sanding scratches. It turned out pretty decent .

Fairly glossy when wet.
But loses some gloss as it dries.

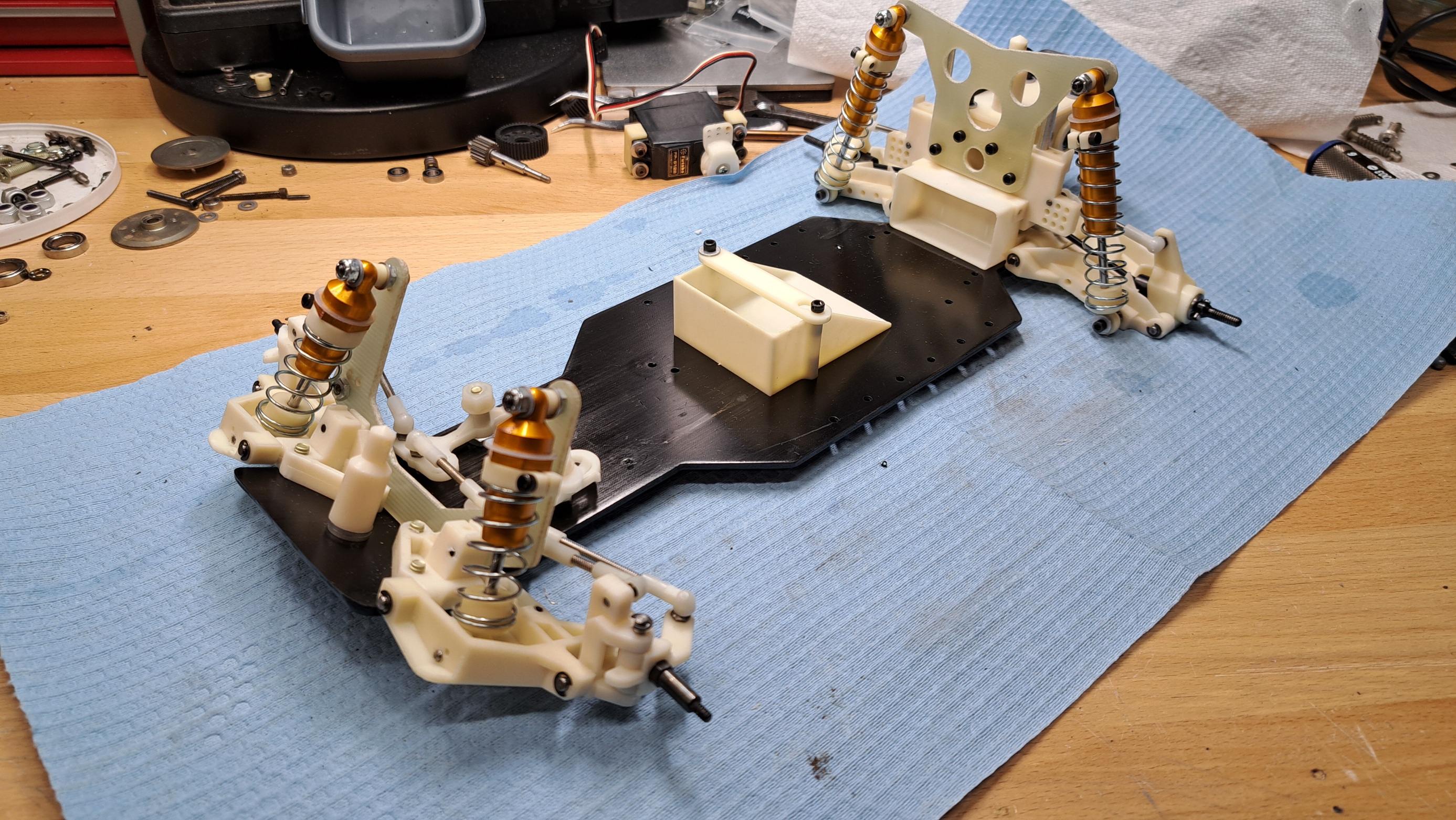

Time to hang some parts.
Kyosho, JRX-2, Gold Tub Fan

mikea96
Approved Member
Posts: 3428
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 356 times
Been thanked: 689 times

Re: TQ10 resto

Post by mikea96 »

Car is looking good!

sixdub
Approved Member
Posts: 148
Joined: Fri Jan 19, 2007 5:30 pm
Location: Senoia Georgia
Has thanked: 11 times
Been thanked: 89 times

Re: TQ10 resto

Post by sixdub »

Thanks! Dang pleased with it so far and have stuck to my plan to restore it without any re-re parts.

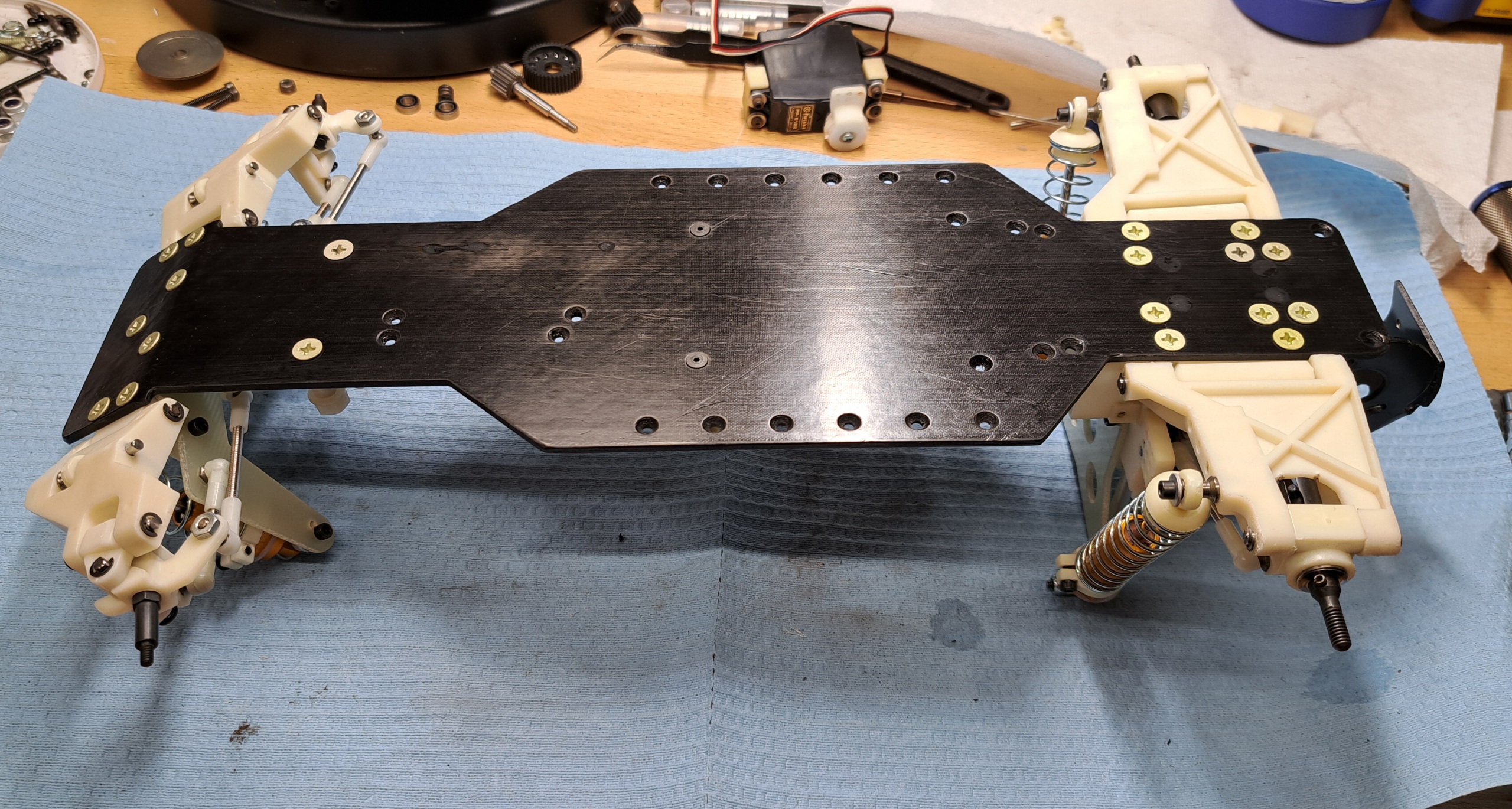

The rear hole patch is not perfect, but it is presentable.
Attachments
Kyosho, JRX-2, Gold Tub Fan

sixdub
Approved Member
Posts: 148
Joined: Fri Jan 19, 2007 5:30 pm
Location: Senoia Georgia
Has thanked: 11 times
Been thanked: 89 times

Re: TQ10 resto

Post by sixdub »

Forum image attachments acting strange, so editing this a bit.

New in bag TQ wheels that came back to the US from Germany several years ago.
Instructions included with the TQ wheels.

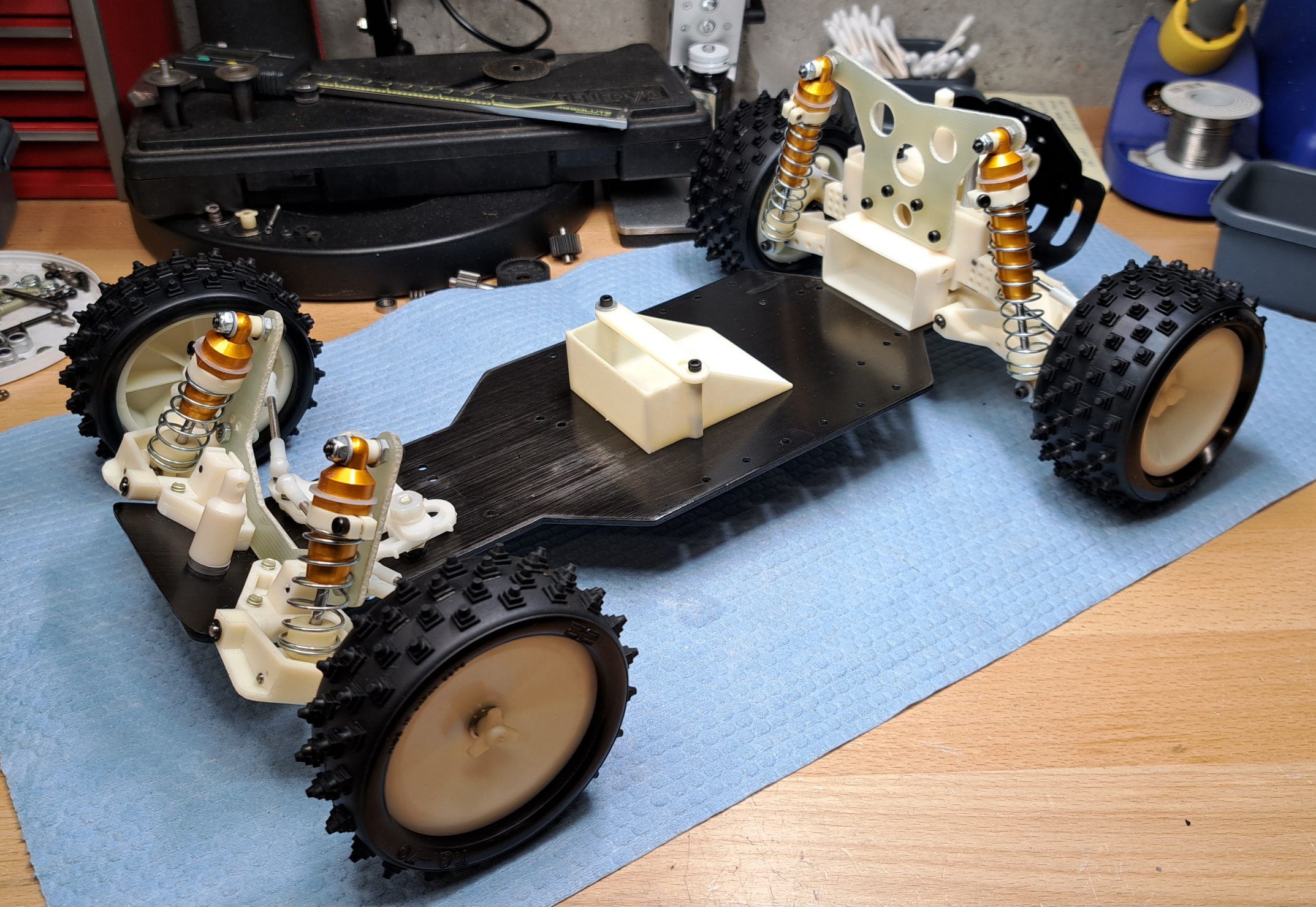

On a roll as a roller.
New in bag TQ tires!
I don't have the correct Proline boxart tires (Dirt Flirts) but I do have Terra Tamers which are similar.

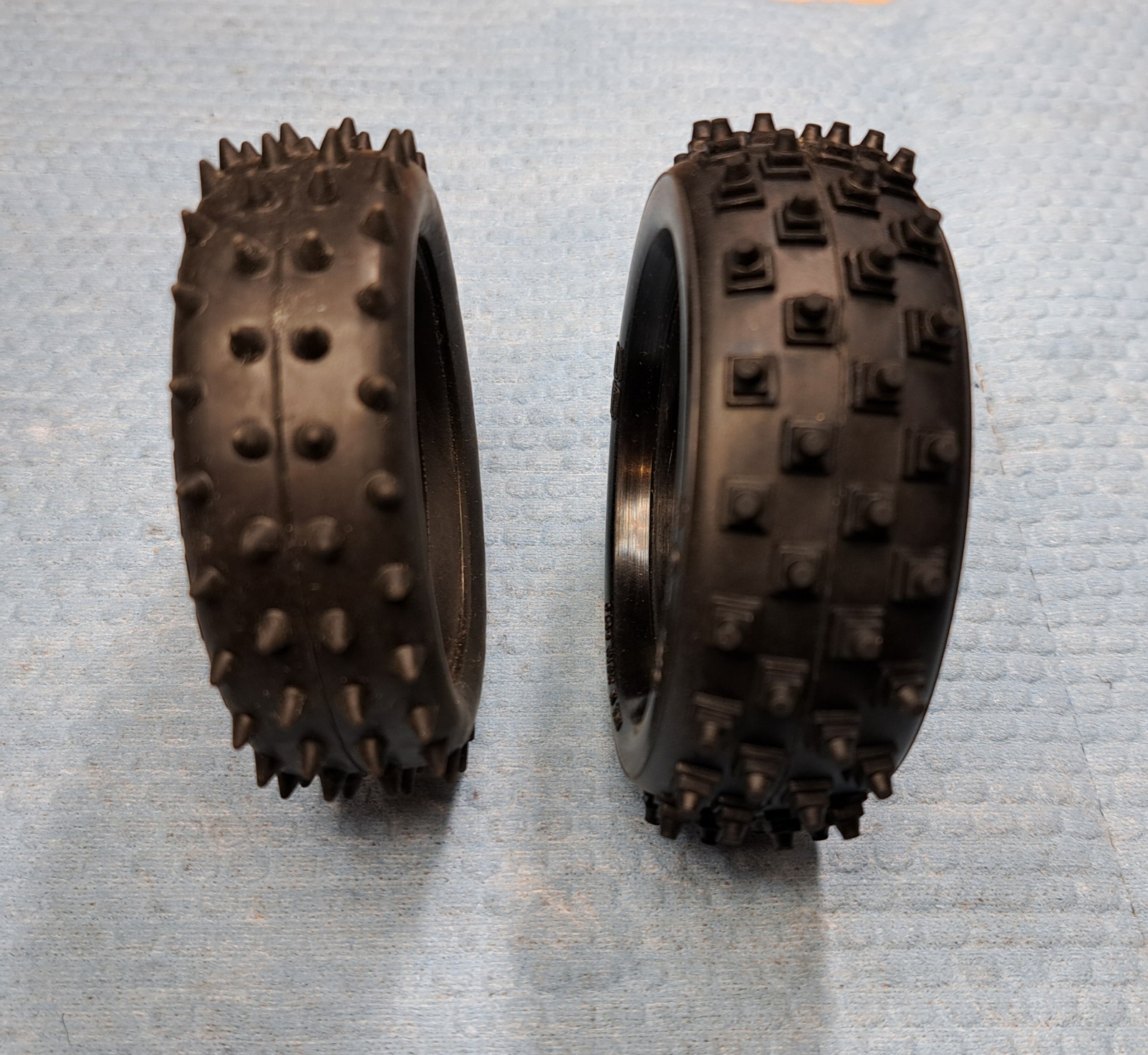

Side by side.
I think TQ front tires are the correct choice.
Kyosho, JRX-2, Gold Tub Fan

sixdub
Approved Member
Posts: 148
Joined: Fri Jan 19, 2007 5:30 pm
Location: Senoia Georgia
Has thanked: 11 times
Been thanked: 89 times

Re: TQ10 resto

Post by sixdub »

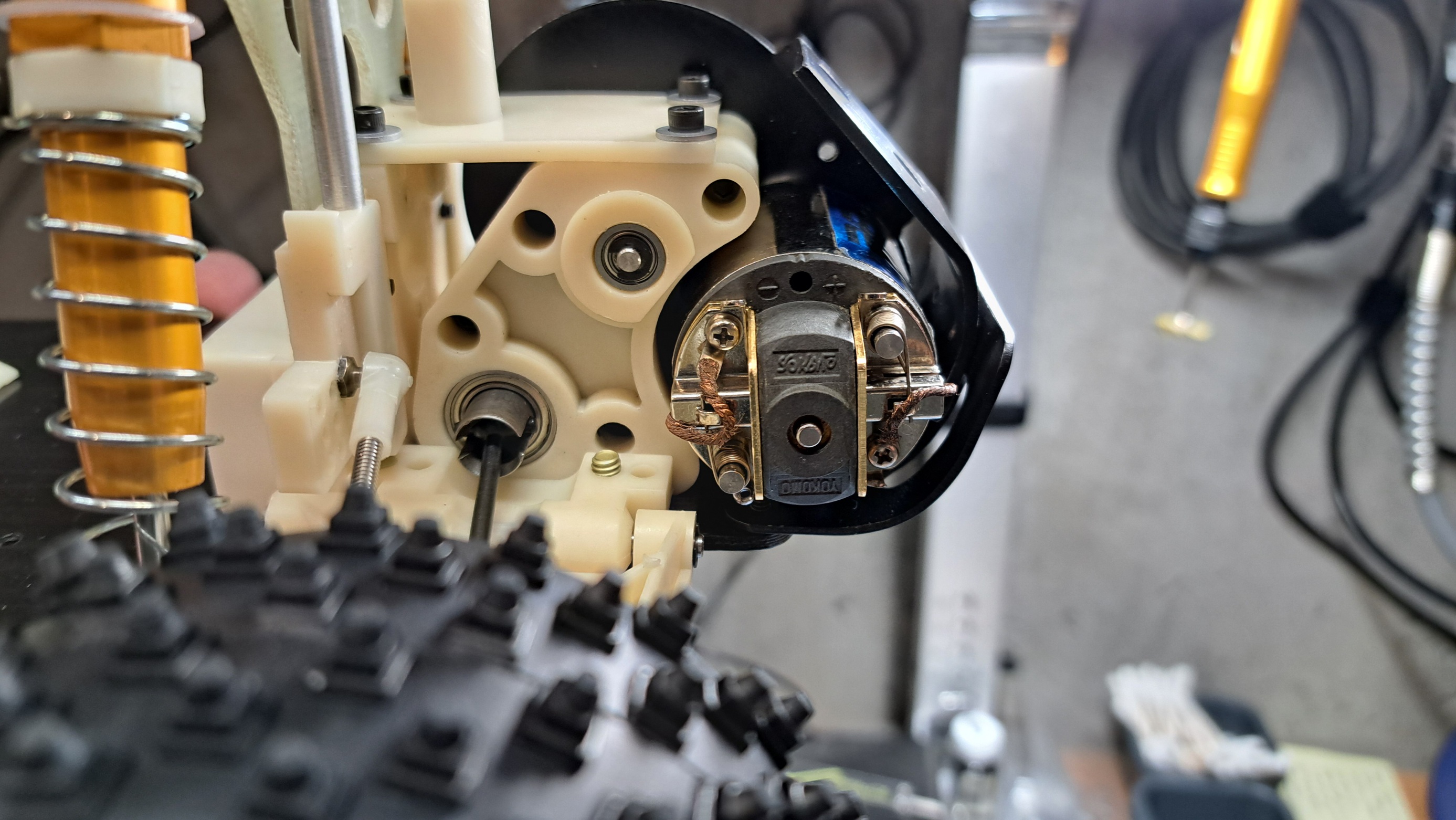

Scored a clean stock motor on Ebay.
Shame that the label is not visible once installed, but looks more at home than a Trinity motor.

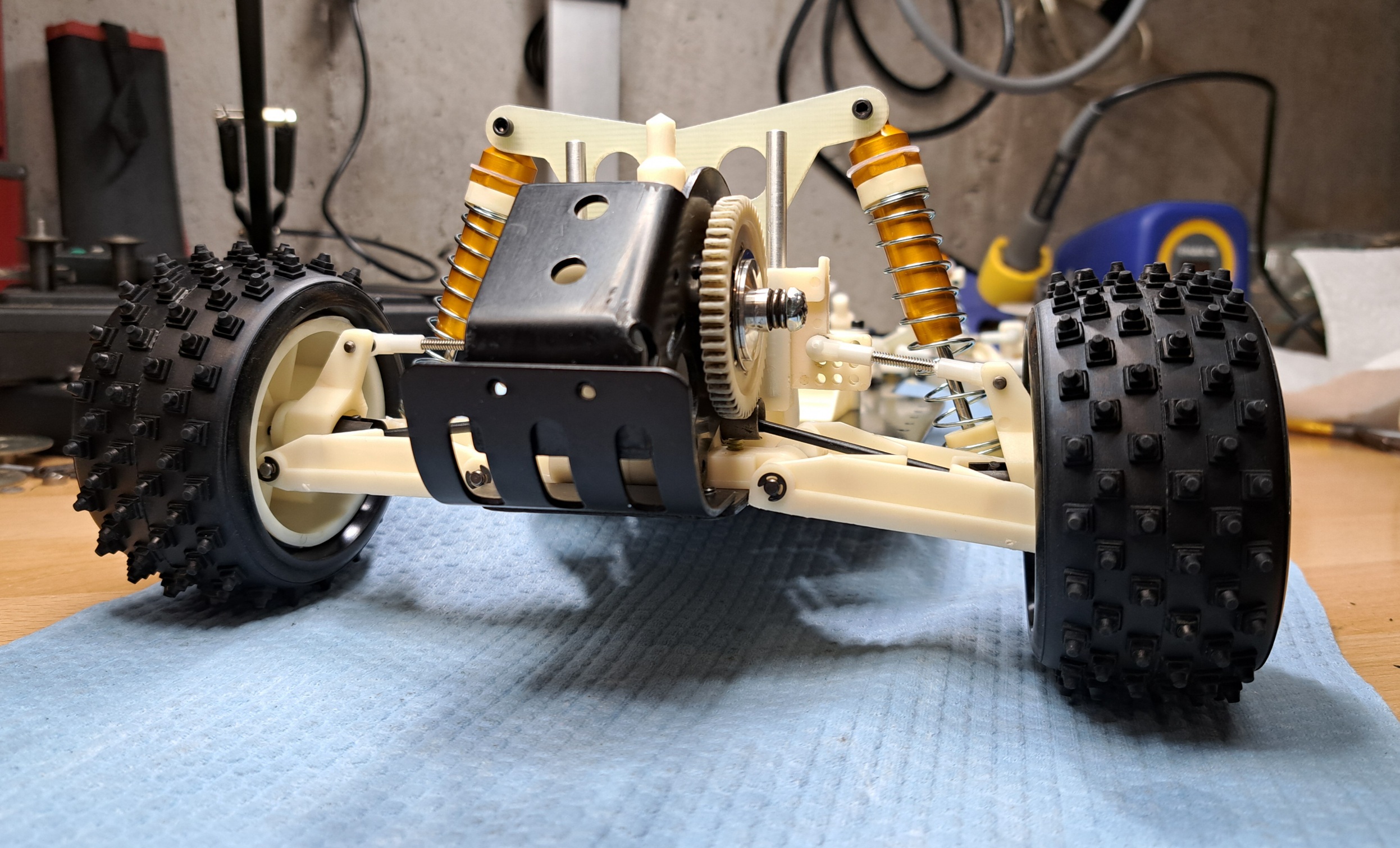

Protection installed.
And for the first repro part on the project. I'll probably use a TBG Sidewinder body, also. So, 2 repro parts are necessary in the project in total.
Kyosho, JRX-2, Gold Tub Fan

mikea96
Approved Member
Posts: 3428
Joined: Thu Oct 01, 2009 8:34 pm
Location: Puyallup, WA
Has thanked: 356 times
Been thanked: 689 times

Re: TQ10 resto

Post by mikea96 »

Is that an MCI decal sheet? Car looks great

User avatar
juicedcoupe
Super Member
Posts: 3151
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 243 times
Been thanked: 1787 times

Re: TQ10 resto

Post by juicedcoupe »

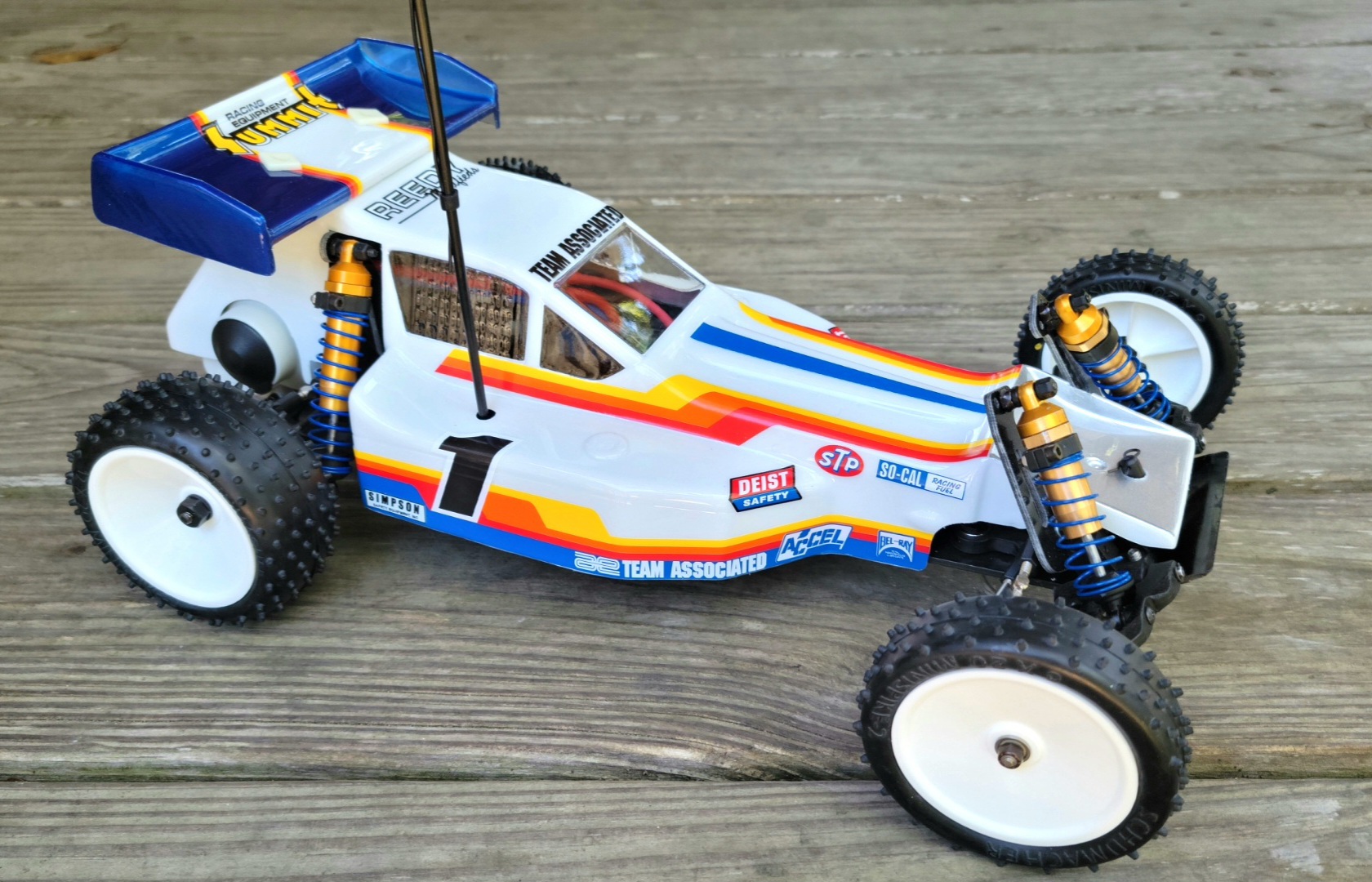

Here is mine. TBG body and MCI decals.
Mine isn't an exact original, more original themed car.
Always looking for new and interesting ways to waste money.

sixdub
Approved Member
Posts: 148
Joined: Fri Jan 19, 2007 5:30 pm
Location: Senoia Georgia
Has thanked: 11 times
Been thanked: 89 times

Re: TQ10 resto

Post by sixdub »

mikea96 wrote: Sat Mar 02, 2024 3:57 pm Is that an MCI decal sheet? Car looks great
Yup!
juicedcoupe wrote: Sat Mar 02, 2024 4:59 pm Here is mine. TBG body and MCI decals.
Mine isn't an exact original, more original themed car.
Very nice!
Kyosho, JRX-2, Gold Tub Fan
