VAE's 91 Stealth build

Post by **vintage AE** » Wed Mar 11, 2015 11:29 pm

romulus22 wrote:This may sound stupid but it worked really good for me. I took and old truck hingpin and put a small diagonal nick in it with some linesman pliers. Chucked it in a drill and reamed the hole a couple times. Worked good for me...

Huh, so simple, I think you are onto something. Just trying to figure out why I haven't thought of that.

Post by **vintage AE** » Thu Mar 12, 2015 9:50 pm

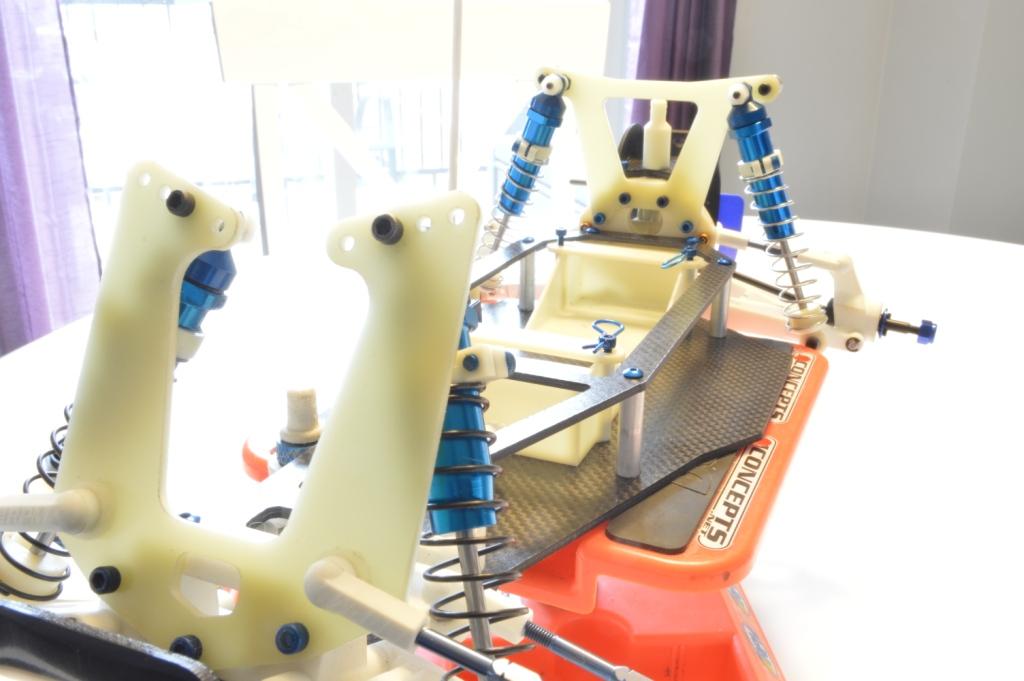

I haven't done the hinge pin hole yet, but here is an update... I think some will like this

Post by **JK Racing** » Fri Mar 13, 2015 1:43 am

Anthony, can you bolt up a wheel, and go full lock to the right? I have the extended axles and B4 wheel, but get just the slightest bit of interference with the ball cup at full lock.

Post by **GoMachV** » Fri Mar 13, 2015 1:49 am

The blue looks Purdy!

Post by **Niki** » Fri Mar 13, 2015 6:46 am

Front end will be too wide with long #7222 axles.
To have it race legal you need #6220 axles with old 3/4" wide wheels... or #7459 axles and narrowed B4 wheel.
Or then I have to make shorter arms for you...

-Niki-

EDIT: This was wrong information. Axle #7222 and B4 front wheels are spot on right and race legal. Sorry.

Post by **vintage AE** » Fri Mar 13, 2015 11:22 am

It okay I have the wide axles, I should be racing with a handicap anyways, people say I'm "special" so it all balances out

Post by **JK Racing** » Fri Mar 13, 2015 11:32 pm

Niki...I think my front with wide axles and B4 wheels is spot on. But I get a slight amount of interference at full lock with the outside front ballcup

Post by **vintage AE** » Fri Mar 13, 2015 11:54 pm

Sorry Joey, I'll do that for ya and see what happens. I'll get back to ya.

Post by **vintage AE** » Sat Mar 14, 2015 12:00 am

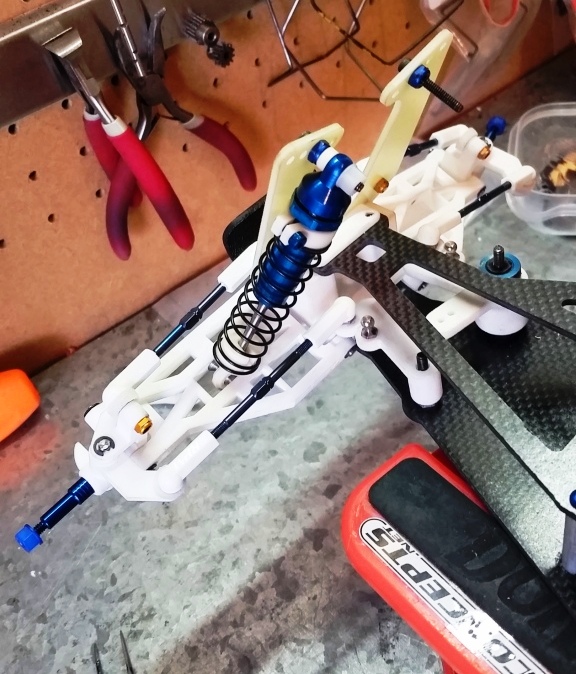

Just did it and yes, the castor block ball cup interferes with the wheel.

Post by **JK Racing** » Sat Mar 14, 2015 12:03 am

thank you...I know your a busy guy

I'll eyeball this weekend to see what I can figure out.

Post by **vintage AE** » Sun Mar 15, 2015 7:41 pm

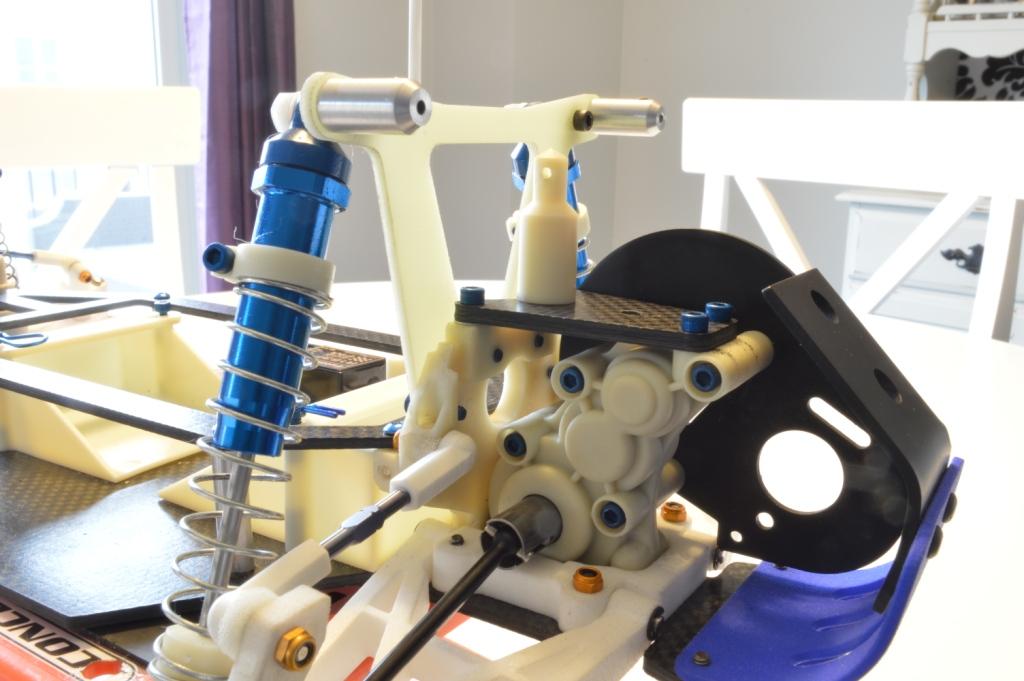

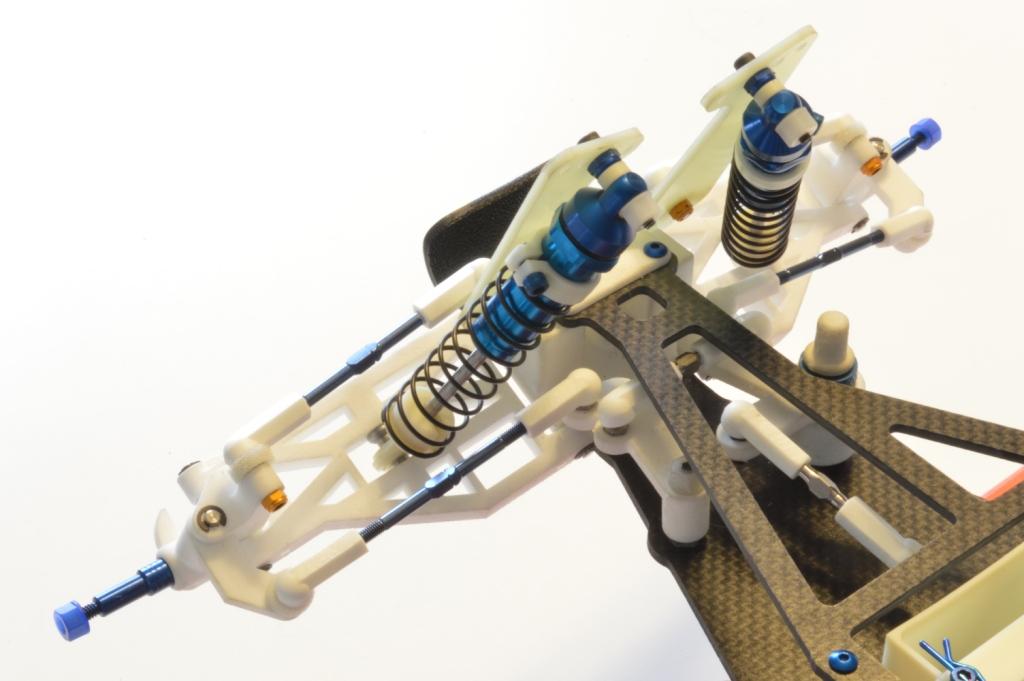

This thing is coming together quite nicely. Looks like I need to order some short FT turnbuckles. I used some B4 ones for the front, but had to trim the castor block turnbuckles about a 15mm. The rears weren't even close, but I had a random short one I used for mock up. I need to order 4 all together, the steering arm and bellcrank turnbuckles and the 2 rear turnbuckles.

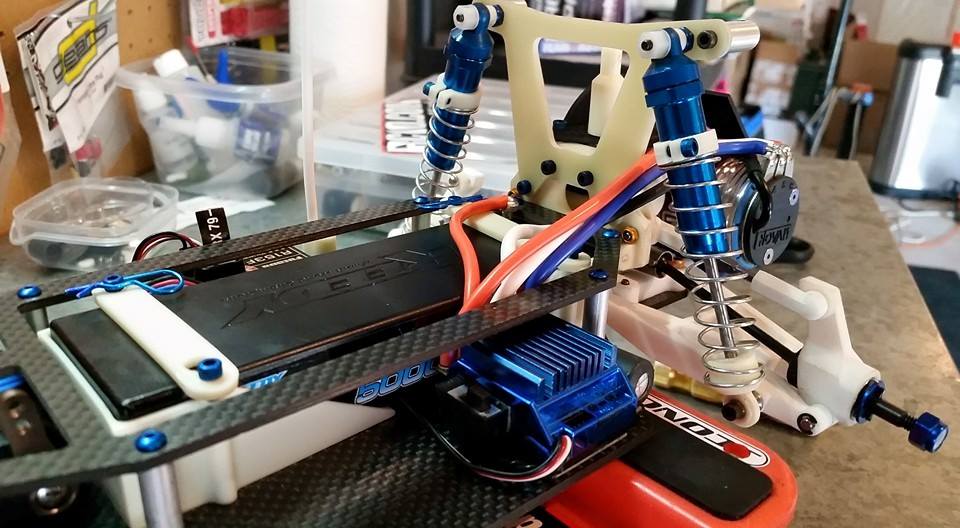

Here are the electronics that are hopefully going to be installed. Got some white/orange/blue wires to match my paint scheme.

Post by **DennisM** » Mon Mar 16, 2015 12:17 am

Post by **Mark Westerfield** » Mon Mar 16, 2015 7:20 am

Niki wrote:Front end will be too wide with long #7222 axles.
To have it race legal you need #6220 axles with old 3/4" wide wheels... or #7459 axles and narrowed B4 wheel.
Or then I have to make shorter arms for you...

-Niki-

Or a vertical camber ball stud and steering blocks with slightly different geometry (don't ask how I know

)

Post by **vintage AE** » Mon Mar 16, 2015 10:14 am

I was thinking to narrow the front wheel by cutting the inner part of the wheel off.

Post by **vintage AE** » Mon Mar 16, 2015 8:05 pm

Thanks for your help on the esc Rod, much appreciated!!!
