Project RC10 - LCG

[Headling]

Thanks for the help guys, I will take some pics and measurements later today and see if we can come up with a plan

Test run videos are uploading to youtube now, it went really well

[Headling]

Couple of pics from the track

[Headling]

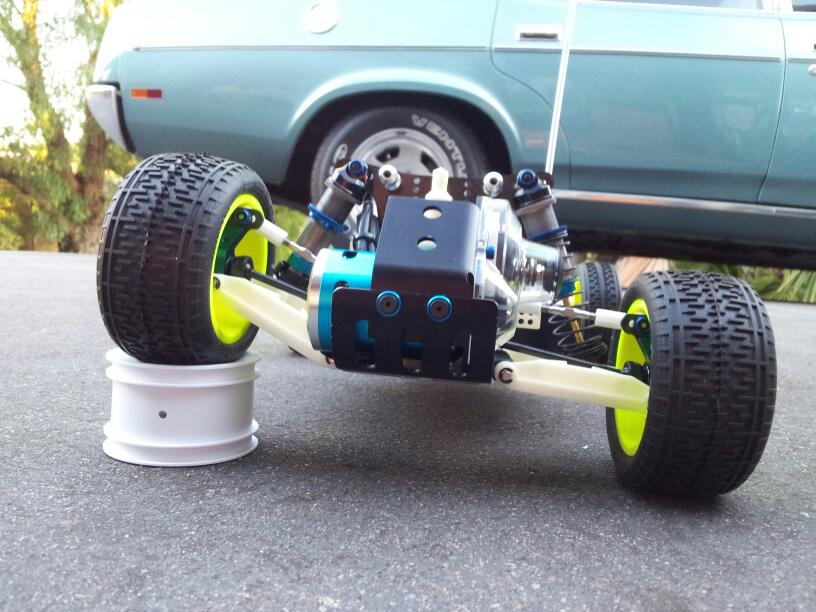

Pics of the rear end for the wishbone/driveshaft help

[Headling]

Videos of the first test on Med grip astro:

https://www.youtube.com/watch?v=ZqyEhZdKdqo

https://www.youtube.com/watch?v=0E-uMWvITaM

https://www.youtube.com/watch?v=4ld-ga_6-bU

https://www.youtube.com/watch?v=xEYentLrJpw

https://www.youtube.com/watch?v=_h2Ll5tZ9EE

[RC10th]

Maybe try a Yokomo Bmax 2 rear bone #B2-010RB and Bmax 4 universal joint #BM-010TPC ?

Not sure about the YZ-2 gearbox but it worked for me with the stock gearbox, standard arms and B4 hubs.

[Bubbleboy]

So I have a few dogbones in my collection. These measure some center to center, not total length. They are:

- 65.5mm front axles from B44.3
- 59mm from a B44.3 optional slipper kit
- 54.25mm from a B44.1 front center shaft

Hope this helps for your options.

[Headling]

Thanks so much for the info, this is a great help, I will take some measurements and go down the AE route so I can keep hubs etc

[RC10th]

For what it's worth I measured the Yokomo bone at 62.2mm center to center.

[Headling]

Ok good news so maybe the yokomo driveshaft/hub may give me the answer to get the full suspension travel

Cant wait to race this and surprise the modern cars!!

[jwscab]

i was going to suggest looking at the bones/axles from the car you 'trans'planted the trans from for bone length. I would assume that this setup would be in the right width to be at or near the ROAR maximum, then you just need to work the arms/hubs to fill the gap.

[Headling]

Thanks for the suggestions guys and I have a solution!!

In the end I used Yokomo yz2 stock dog bone and drilled out the AE axle to 2mm and job done we have full suspension travel!!

[RC10th]

That's all I did, drill the hole in the axle to 2mm to accommodate the yokomo universal joint pin.

[Headling]

Running video from last night

https://youtu.be/UQW4TFEfJSw

[Headling]

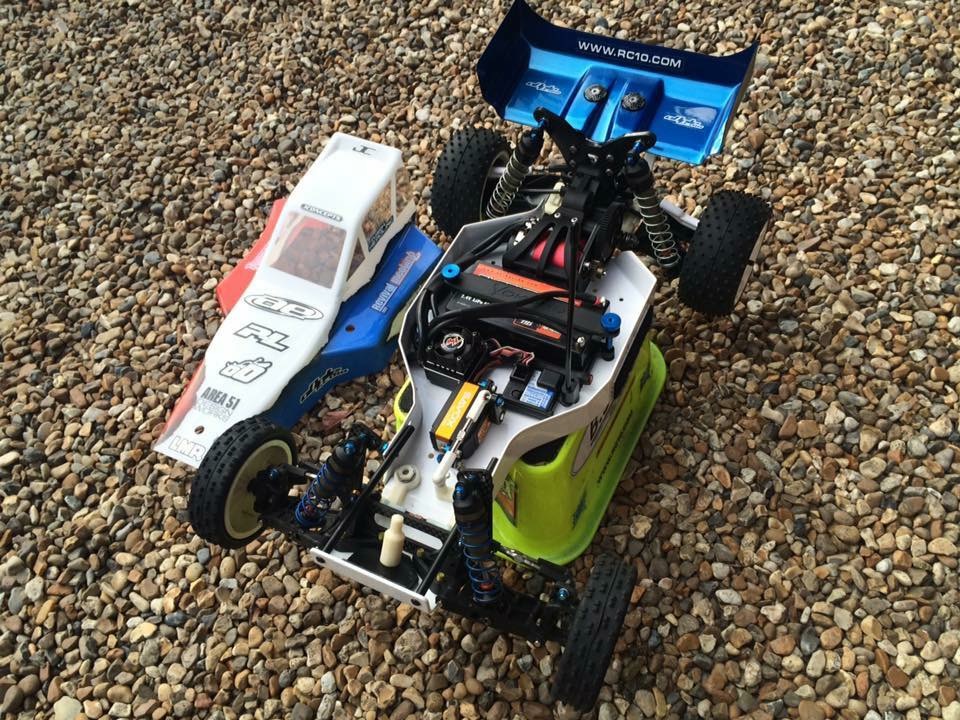

Pic of the car post photobucket
