Ten4: the 4WD RC10 project
-
- Approved Member
- Posts: 343
- Joined: Wed Jun 08, 2016 4:56 am
- Location: Spain
- Has thanked: 41 times
- Been thanked: 90 times
Re: Ten4: the 4WD RC10 project
Looking good ra272
The one way clutch needs to be looked in to, I did a little searching but metric sizes seem to be more popular
That would need new shaft and pulley.
The one way clutch needs to be looked in to, I did a little searching but metric sizes seem to be more popular
That would need new shaft and pulley.
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 830 times
- Been thanked: 2460 times
Re: Ten4: the 4WD RC10 project
Yeah, its too bad that 3/16 isnt a common one way inner diameter, because the shafts are already hardened and would likely be perfect
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 830 times
- Been thanked: 2460 times
Re: Ten4: the 4WD RC10 project
Thats all up to Brian and he is pretty busy latelyra272 wrote: Do you think it is possible to make tigher 3d parts for the steering?
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- JK Racing
- Super Member
- Posts: 4603
- Joined: Thu Jul 19, 2007 2:32 pm
- Location: Placentia, CA
- Has thanked: 103 times
- Been thanked: 200 times
Re: Ten4: the 4WD RC10 project
XX4 style clicker for the front pulley maybe?
--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com
- mk-Zero
- Business Member
- Posts: 1678
- Joined: Fri Jan 03, 2014 2:14 pm
- Location: Orange, CA
- Has thanked: 4 times
- Been thanked: 19 times
Re: Ten4: the 4WD RC10 project
Sorry to hear your steering is sloppy. Unfortunately that is due to variation in Shape ways printing the parts. I can tell you that all the steering sets I have had them print have fit the bearings nice and tight.ra272 wrote:Do you think it could be harmful for the belt or The pulley ?
I may just reduce the braking power.
Do you think it is possible to make tigher 3d parts for the steering?
If it becomes a consistent problem I can tweak the part model so the bearing hole is a little undersized, and then they may have to be reamed a little to get the bearings in.
Which steering set (what input) are you running?
- ra272
- Approved Member
- Posts: 312
- Joined: Fri Nov 17, 2006 9:32 am
- Location: NANCY FRANCE
- Been thanked: 7 times
Re: Ten4: the 4WD RC10 project
Don't be sorry, your parts are fantastic. I love the integration of the front gear case.mk-Zero wrote:Sorry to hear your steering is sloppy. Unfortunately that is due to variation in Shape ways printing the parts. I can tell you that all the steering sets I have had them print have fit the bearings nice and tight.ra272 wrote:Do you think it could be harmful for the belt or The pulley ?
I may just reduce the braking power.
Do you think it is possible to make tigher 3d parts for the steering?
If it becomes a consistent problem I can tweak the part model so the bearing hole is a little undersized, and then they may have to be reamed a little to get the bearings in.
Which steering set (what input) are you running?
I have found an easy fix: a thin coat of cyanoacrylate glue inside the part. It sticks and blend very well on the porous 3d nylon.
The other steering part required two thin coats. The inside is now shinny and the bearings have now a very snug fit.
I also used a longer ball stud, for better rigidity.
Last thing I made today is to install RPM rod ends. The slop is almost gone, I even put the ball bearings back.
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 830 times
- Been thanked: 2460 times
Re: Ten4: the 4WD RC10 project
Nice work. I should do that to my car at some point. My cranks have enough play that it could bind in places.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- ra272
- Approved Member
- Posts: 312
- Joined: Fri Nov 17, 2006 9:32 am
- Location: NANCY FRANCE
- Been thanked: 7 times
Re: Ten4: the 4WD RC10 project

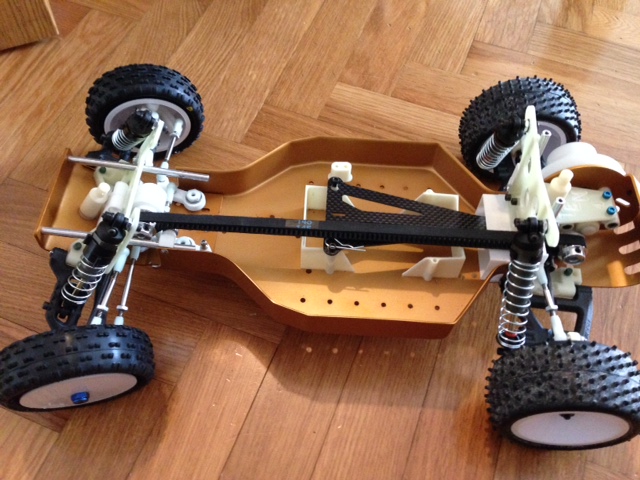

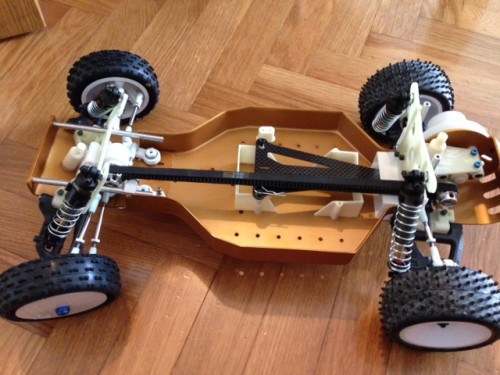

Thanks, I made a little carbon stiffener for the chassis to keep the belt in tension during hard braking. It's interlocking in a notch that I cut in the front nose tube, and at the rear its bolted between the chassis and the bulkhead.
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 830 times
- Been thanked: 2460 times
Re: Ten4: the 4WD RC10 project
Nice work!
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
-
- Approved Member
- Posts: 343
- Joined: Wed Jun 08, 2016 4:56 am
- Location: Spain
- Has thanked: 41 times
- Been thanked: 90 times
Re: Ten4: the 4WD RC10 project
Hi,
Thank you Brian and Jeff pulleys and tower received.
I put it all together and the belt seems way to tight, I used a 570 I got on ebay https://www.ebay.es/itm/201296136538
It seems like it should work, as I've seen a bunch of people use 570 instead of 573.
It is so tight it wont even roll across the floor
I ordered the correct belt but in the mean time...
Thank you Brian and Jeff pulleys and tower received.
I put it all together and the belt seems way to tight, I used a 570 I got on ebay https://www.ebay.es/itm/201296136538
It seems like it should work, as I've seen a bunch of people use 570 instead of 573.
It is so tight it wont even roll across the floor
I ordered the correct belt but in the mean time...
-
- Approved Member
- Posts: 343
- Joined: Wed Jun 08, 2016 4:56 am
- Location: Spain
- Has thanked: 41 times
- Been thanked: 90 times
Re: Ten4: the 4WD RC10 project
I also tried the LWB belt from the same supplier but the belt does not seat properly in the pulley, due to it bieng the correct length 597mm for this config and not bieng so tight. I am beginning to suspect that the belt has longer teeth since the pitch seems correct.
- GoMachV
- Super Member
- Posts: 11352
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 830 times
- Been thanked: 2460 times
Re: Ten4: the 4WD RC10 project
Strange, the belt should be a standardized size. I have only used the specific ones listed so I can't speak for other vendors but there is no reason they should be incompatible
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
-
- Approved Member
- Posts: 343
- Joined: Wed Jun 08, 2016 4:56 am
- Location: Spain
- Has thanked: 41 times
- Been thanked: 90 times
Re: Ten4: the 4WD RC10 project
I have done some digging and pulled up the data sheet of the dunlop belts that I have and compared them to the ametric data sheets.
Voila...
The dunlop belts have RPP tooth profile...
I'm curious of how these belts if used with the compatible pulleys would compare.
EDIT: The belts are HTD also... They should work...
Voila...
The dunlop belts have RPP tooth profile...
I'm curious of how these belts if used with the compatible pulleys would compare.
EDIT: The belts are HTD also... They should work...
-
- Approved Member
- Posts: 49
- Joined: Sun Sep 18, 2016 11:05 am
- Location: Beachwood, NJ USA
- Has thanked: 2 times
- Been thanked: 1 time
Re: Ten4: the 4WD RC10 project
Outstanding work. The whole project is just awesome.
Can someone clarify the issue with the need for a 6565 trans case when using a rere worlds kit as the donor car?
Can someone clarify the issue with the need for a 6565 trans case when using a rere worlds kit as the donor car?
