SRB brass idler gear.

Post by 1300GT »

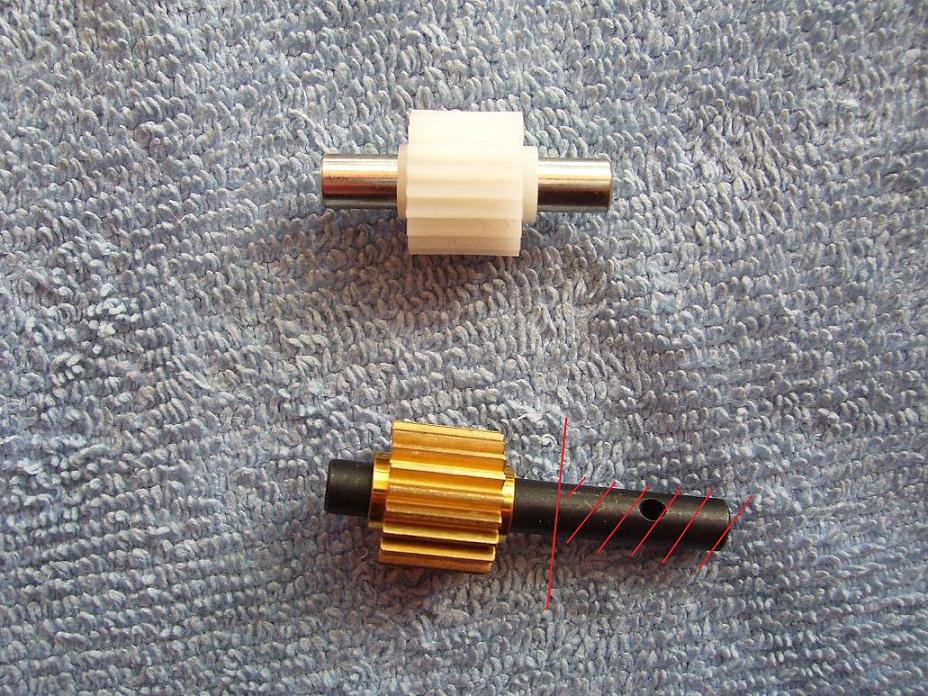

This one's for people who run their SRBs. Take one top gear and shaft (the one the spur gear bolts to) and Dremel off the excess. Or find someone to part it off in a lathe for you. Deburr the cut end of the shaft and you now have a brass idler gear. I run one in my SRB and it's fine. The first gear in the picture is the standard plastic idler gear. The second gear in the picture shows what to do. The shaded area is removed. Both gears have 20 teeth. Hope this helps, Chris.
Attachments
Chris.

Toys.............they are!

User avatar
GoMachV
Super Member
Posts: 11330
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 821 times
Been thanked: 2416 times

Re: SRB brass idler gear.

Post by GoMachV »

Or drill the side of the case which will give you a pto to run the front drive of the 4wd system that everyone wants to build :mrgreen:

Very cool idea, just like the metal idlers on the 6 gear are the same as the output gears.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
1300GT
Super Member
Posts: 692
Joined: Fri Feb 01, 2013 11:58 pm
Location: Clare, Australia
Has thanked: 330 times
Been thanked: 272 times

Re: SRB brass idler gear.

Post by 1300GT »

You're right about the 4WD idea. I have some spare top gears/shafts and gearboxes. Chain drive sounds good. Hmmmmmmmmmmm.
Chris.

Toys.............they are!
