A-Main Racing Co. Bullet (FWD/4WS RC10)

Post by Phin »

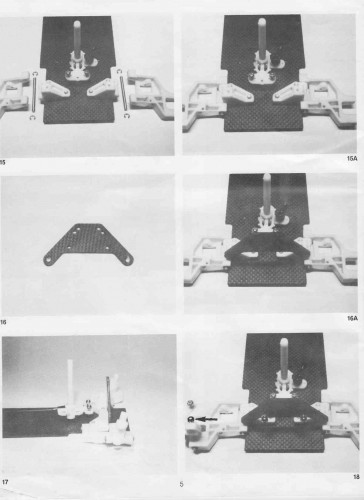

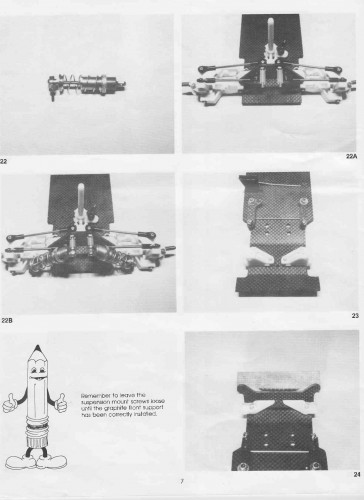

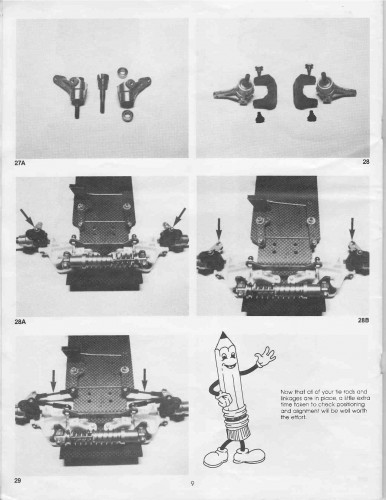

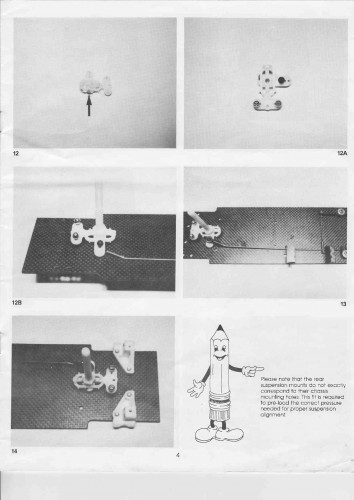

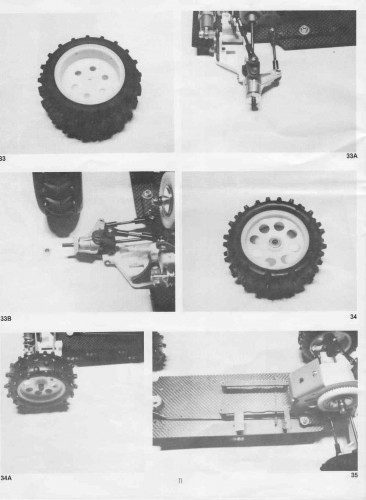

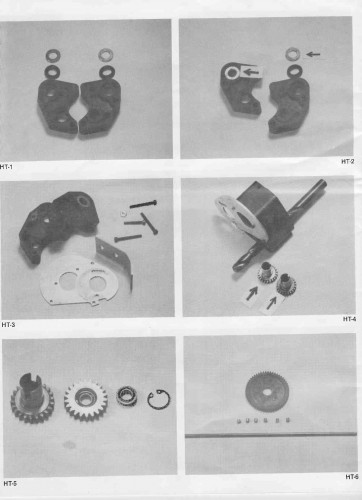

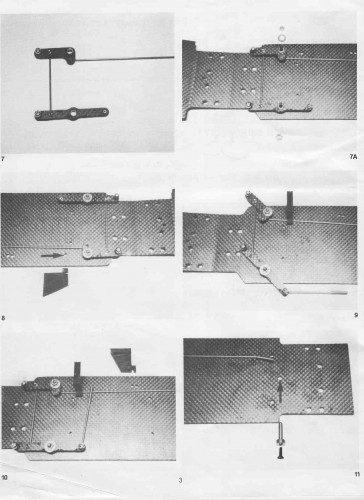

All credit goes to Gomachv for this super find. After having the smarts to link A-Main's address from the RCCA ad to an old hobby shop in Oregon Gomachv actually managed to find a local racer who ran the Bullet at a ROAR event and still had the manual.
Attachments

User avatar
Phin
Approved Member
Posts: 2695
Joined: Tue Feb 21, 2012 10:17 pm
Location: NY²
Has thanked: 56 times
Been thanked: 158 times

Re: A-Main Racing Co. Bullet (Front Wheel Drive RC10)

Post by Phin »

...and the rest.
Attachments

User avatar
GoMachV
Approved Member
Posts: 11125
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 736 times
Been thanked: 2114 times

Re: A-Main Racing Co. Bullet (Front Wheel Drive RC10)

Post by GoMachV »

Don't forget- its bit just fwd but also 4ws 8) likely with very little rear steer. Probably kept it from pushing quite as bad

The last pic is of a brass rod that they apparently would cut and make slugs to install in place of diff balls. I guess they liked their diffs locked. Hmm.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
Phin
Approved Member
Posts: 2695
Joined: Tue Feb 21, 2012 10:17 pm
Location: NY²
Has thanked: 56 times
Been thanked: 158 times

Re: A-Main Racing Co. Bullet (Front Wheel Drive RC10)

Post by Phin »

gomachv wrote:Don't forget- its bit just fwd but also 4ws 8) likely with very little rear steer. Probably kept it from pushing quite as bad

The last pic is of a steel rod that they apparently would cut and make slugs to install in place of diff balls. I guess they liked their diffs locked. Hmm.
Doh...how'd I forget the four wheel steering bit. :?


I think your racer friend wrote in his email that they were brass slugs, which got me thinking that they may have been used to let the wheels independently slip a bit. I've mentioned it a few times before that I've wanted to try the same thing on a 6-gear with Traxxas friction pegs.

User avatar
GoMachV
Approved Member
Posts: 11125
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 736 times
Been thanked: 2114 times

Re: A-Main Racing Co. Bullet (FWD/4WS RC10)

Post by GoMachV »

I think friction pegs would be a great thing to try. I read his email at 2am so its still a blur. Your right about the brass and it makes more sense lol
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
LTO_Dave
Approved Member
Posts: 1724
Joined: Tue Mar 03, 2009 8:33 am
Location: Rossiter, PA
Has thanked: 45 times
Been thanked: 217 times

Re: A-Main Racing Co. Bullet (FWD/4WS RC10)

Post by LTO_Dave »

:shock:

Mr. Graphite seems like a cool guy. :D
