What RC10T steering arms are these?

General info, Q&A.

Moderators: scr8p, klavy69

Post Reply
pumpkinfish
Approved Member
Posts: 263
Joined: Wed Nov 06, 2013 8:01 am
Location: Schwenksville, PA

What RC10T steering arms are these?

Post by pumpkinfish »

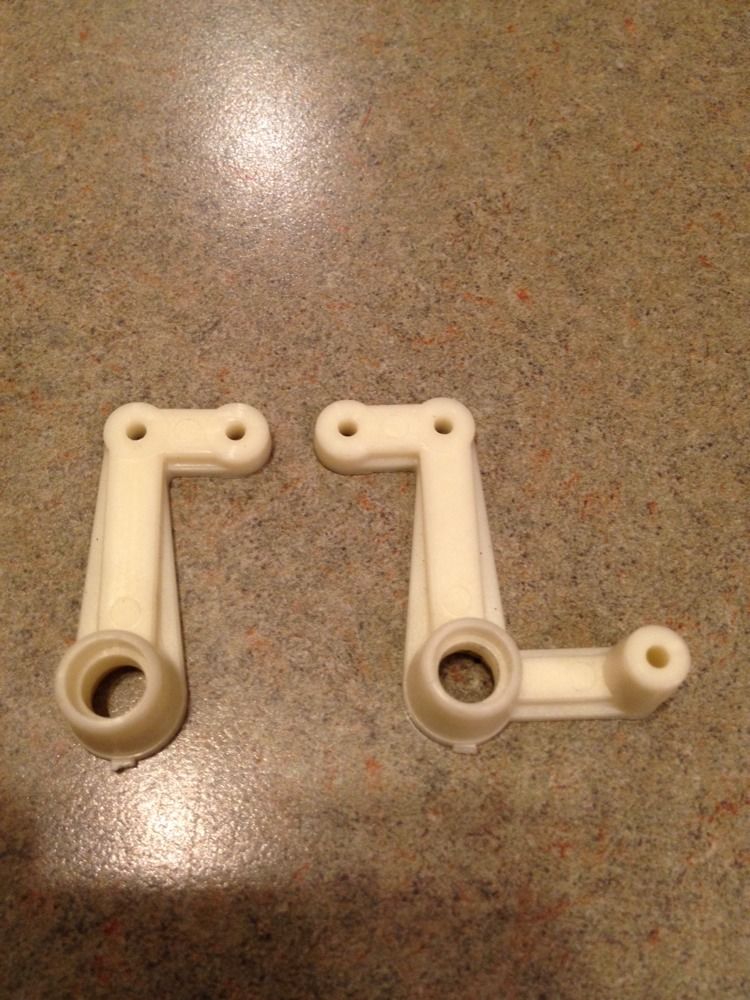

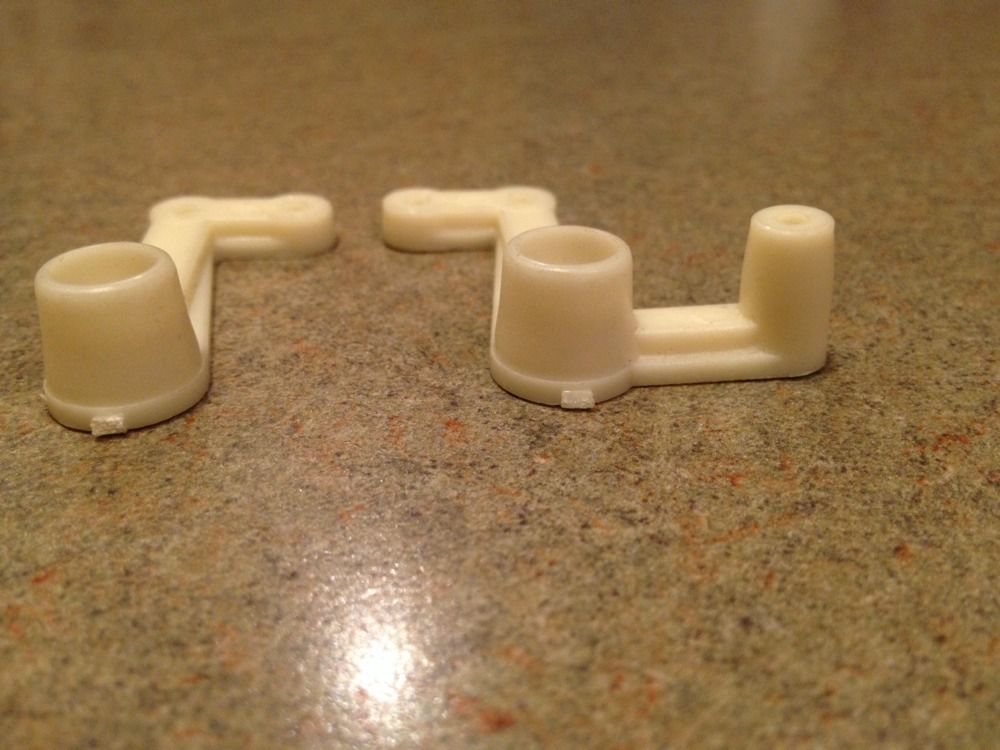

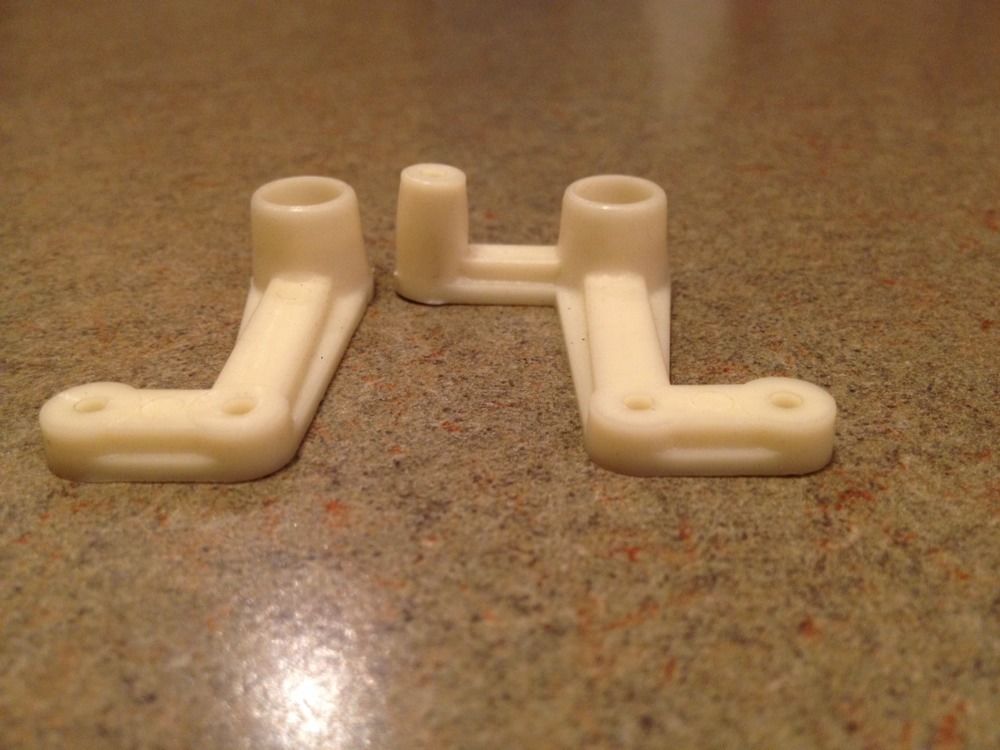

I bought these off eBay hoping to use them with my WOIN racer and ballbearings. Not sure what arms they are or what size bearings to use. I think they may be Houge, not sure.
Attachments
$_57 (3).JPG
$_57 (2).JPG
$_57 (1).JPG

User avatar
GoMachV
Super Member
Posts: 11351
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2458 times

Re: What RC10T steering arms are these?

Post by GoMachV »

MIP. Can't recall bearing size but I think it was 3/16x5/16. The aluminum shaft used a 4/40 fh screw instead of a 8/32
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
Phin
Approved Member
Posts: 2733
Joined: Tue Feb 21, 2012 5:17 pm
Location: NY²
Has thanked: 64 times
Been thanked: 186 times

Re: What RC10T steering arms are these?

Post by Phin »

Yup MIP. Typical one's I've owned all have "MIP" molded into the arms.

Can confirm bearings are 3/16" x 5/16" (flangeless) and an aluminum standoff reduces the hole down to a 4-40 screw.

pumpkinfish
Approved Member
Posts: 263
Joined: Wed Nov 06, 2013 8:01 am
Location: Schwenksville, PA

Re: What RC10T steering arms are these?

Post by pumpkinfish »

So am I missing the aluminum standoff? Where can I get one of them? I thought these screws had to thread through into the nose plate to help keep it sturdy.

User avatar
GoMachV
Super Member
Posts: 11351
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2458 times

Re: What RC10T steering arms are these?

Post by GoMachV »

Most do, MIP is the exception. They have an area milled to fit into the hole to center it. It's a unique part that will have to be found or machined.....x2
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
Phin
Approved Member
Posts: 2733
Joined: Tue Feb 21, 2012 5:17 pm
Location: NY²
Has thanked: 64 times
Been thanked: 186 times

Re: What RC10T steering arms are these?

Post by Phin »

If you've got any, you can use a couple of the shorter screws that the GT/DS servo saver uses and then go with 1/8" x 5/16" bearings.

I don't know if the Thunder Tiger AT10 screws are the same diameter (could be metric) but the screws I'm talking about look like these:

http://www.ebay.com/itm/Thunder-Tiger-PD8180-Servo-Saver-Screws-AT10-Phoenix-GT-TTRC8180-/301218978041?pt=Radio_Control_Parts_Accessories&hash=item46220cd8f9
