RC10 - FF10 -Done-

Post by sandkil »

I'm not a hundred percent sure how and where this is going to end up in the end, but i will give it a try.
I had another thread on here on prel. investigation.
https://www.rc10talk.com/viewtopic.php?f=35&t=42443

I will give it a try. This is going to be a slow one and i will use "the Postmans" prototype as some what a base, but with own diviations and solutions.
For example I will be using Kyosho Optima rere parts instead of Yokomo 870c parts for the front end.

I also found this interesting web page wich helps alot with some of the details.
http://www.rabbit-racing.jp/works.html
focusing on the RRT 1991 F-91

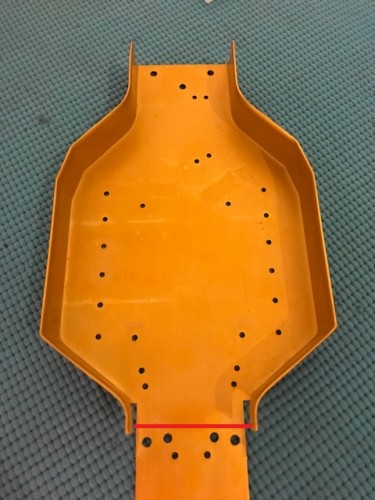

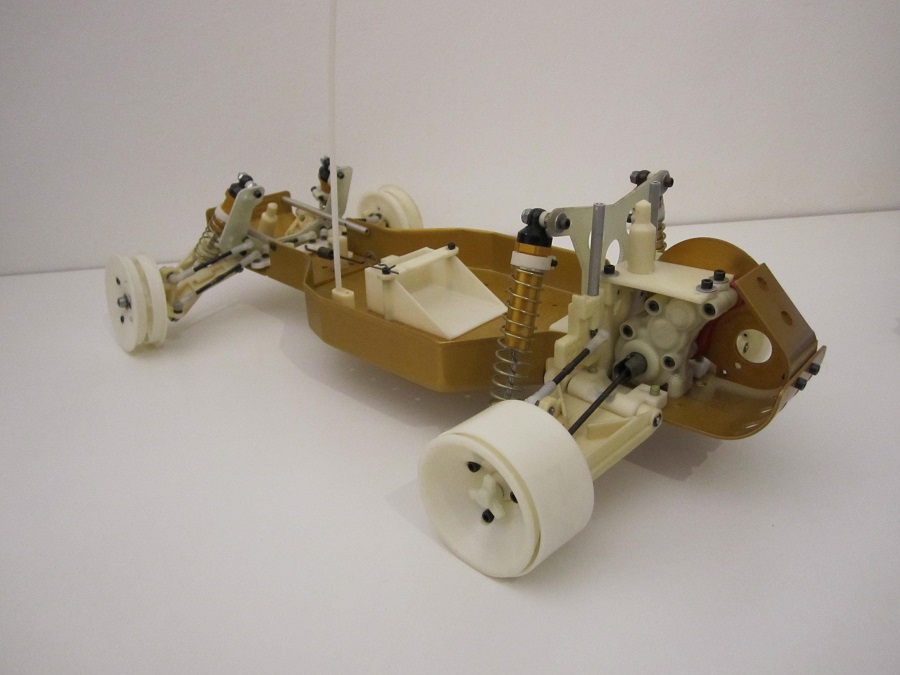

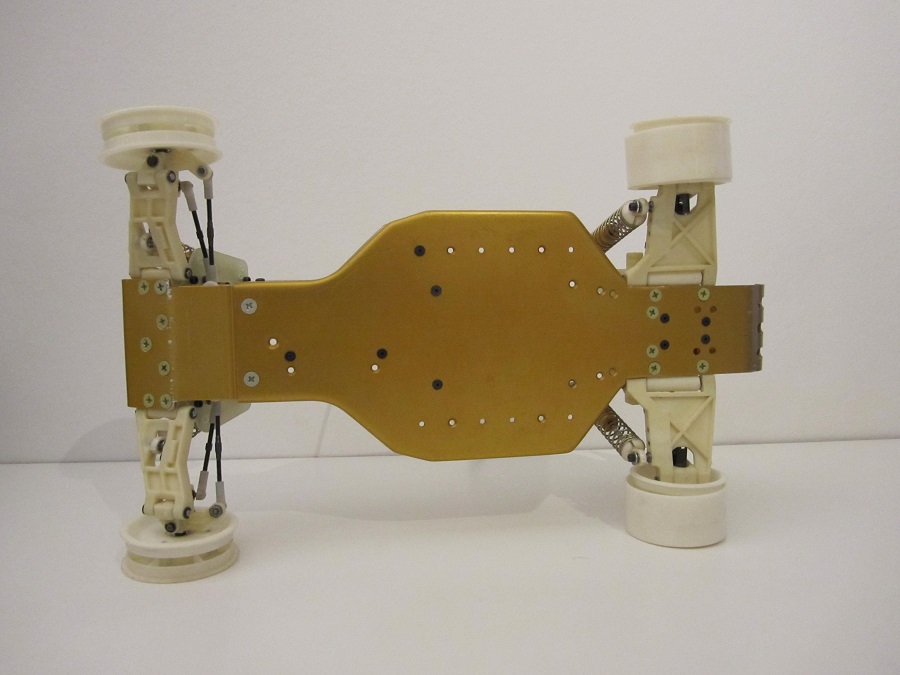

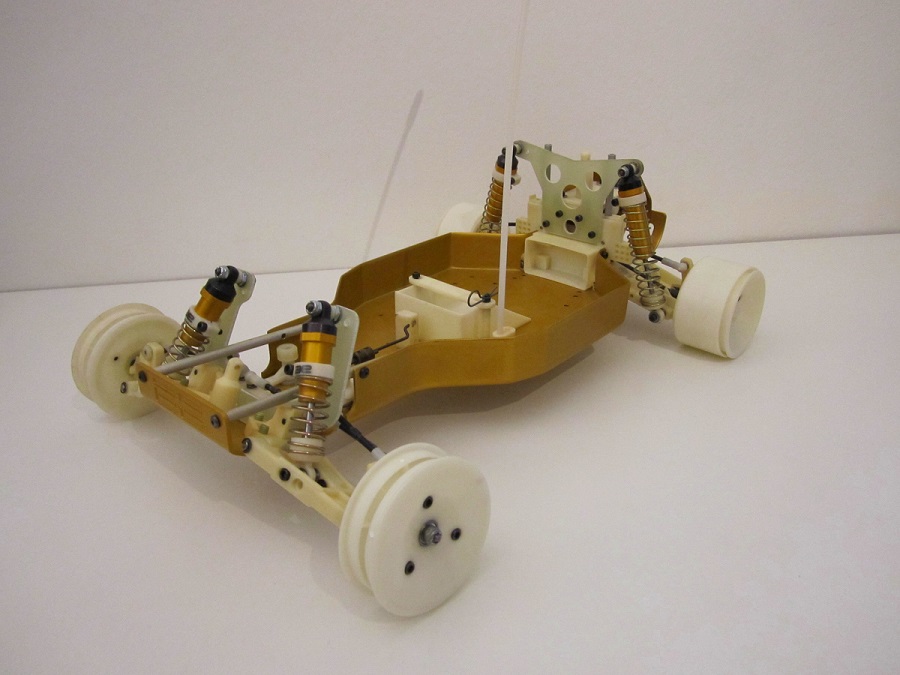

Here is the donor car.
For those who thinks that it's sacrilegious to cut this into bits and there after merging it with Kyosho part... well I'm sorry, but i'm going to do it.
Attachments

User avatar
Phin
Approved Member
Posts: 2726
Joined: Tue Feb 21, 2012 10:17 pm
Location: NY²
Has thanked: 60 times
Been thanked: 181 times

Re: RC10 FF

Post by Phin »

I'm not against the project itself but there are plenty of crappier tubs you can start with. :?

User avatar
jwscab
Super Member
Posts: 6494
Joined: Wed Jan 28, 2009 2:42 pm
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 446 times

Re: RC10 FF

Post by jwscab »

FOR SURE.

User avatar
sandkil
Approved Member
Posts: 1044
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 670 times
Been thanked: 462 times

Re: RC10 FF

Post by sandkil »

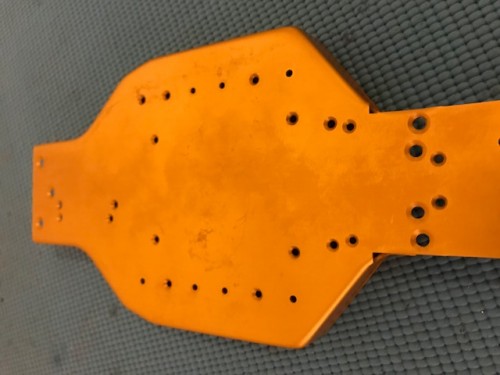

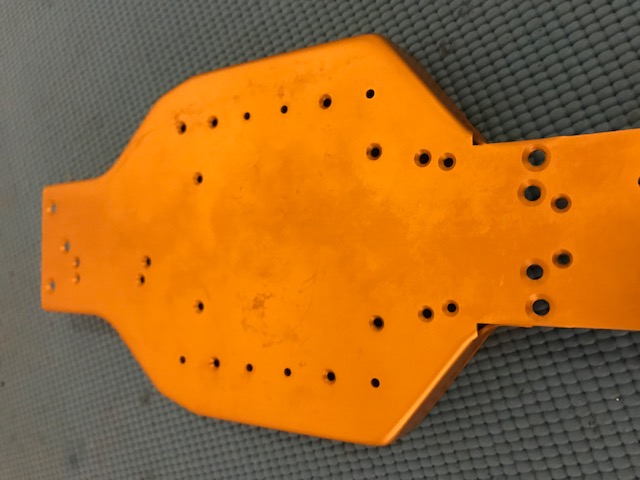

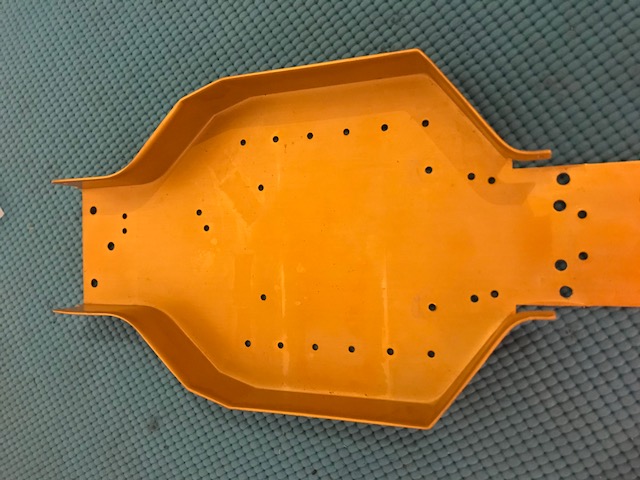

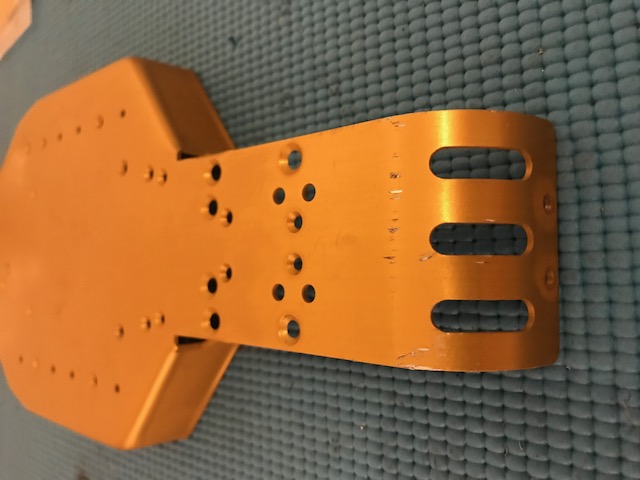

Well the chassis isn't flawless.
Gave it a wash in hot water and simple green.
Attachments

User avatar
Phin
Approved Member
Posts: 2726
Joined: Tue Feb 21, 2012 10:17 pm
Location: NY²
Has thanked: 60 times
Been thanked: 181 times

Re: RC10 FF

Post by Phin »

That's in very nice condition. It doesn't even have a servo access hole in it. :(

User avatar
DennisM
Approved Member
Posts: 2403
Joined: Sun Feb 26, 2012 12:07 pm
Location: Denmark
Has thanked: 30 times
Been thanked: 64 times

Re: RC10 FF

Post by DennisM »

That chassis is going to fold like cardboard if You cut the sides of?
Gone fishing

User avatar
sandkil
Approved Member
Posts: 1044
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 670 times
Been thanked: 462 times

Re: RC10 FF

Post by sandkil »

Phin wrote: Fri Feb 09, 2018 5:12 pm That's in very nice condition. It doesn't even have a servo access hole in it. :(
Ok, we'll see if I use it or not. A new #6300 is about 70-75$ shipped and I do not wish to use a scratched up one.

User avatar
sandkil
Approved Member
Posts: 1044
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 670 times
Been thanked: 462 times

Re: RC10 FF

Post by sandkil »

DennisM wrote: Fri Feb 09, 2018 6:25 pm That chassis is going to fold like cardboard if You cut the sides of?

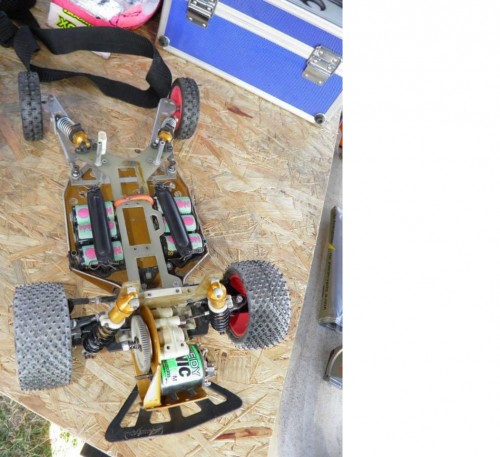

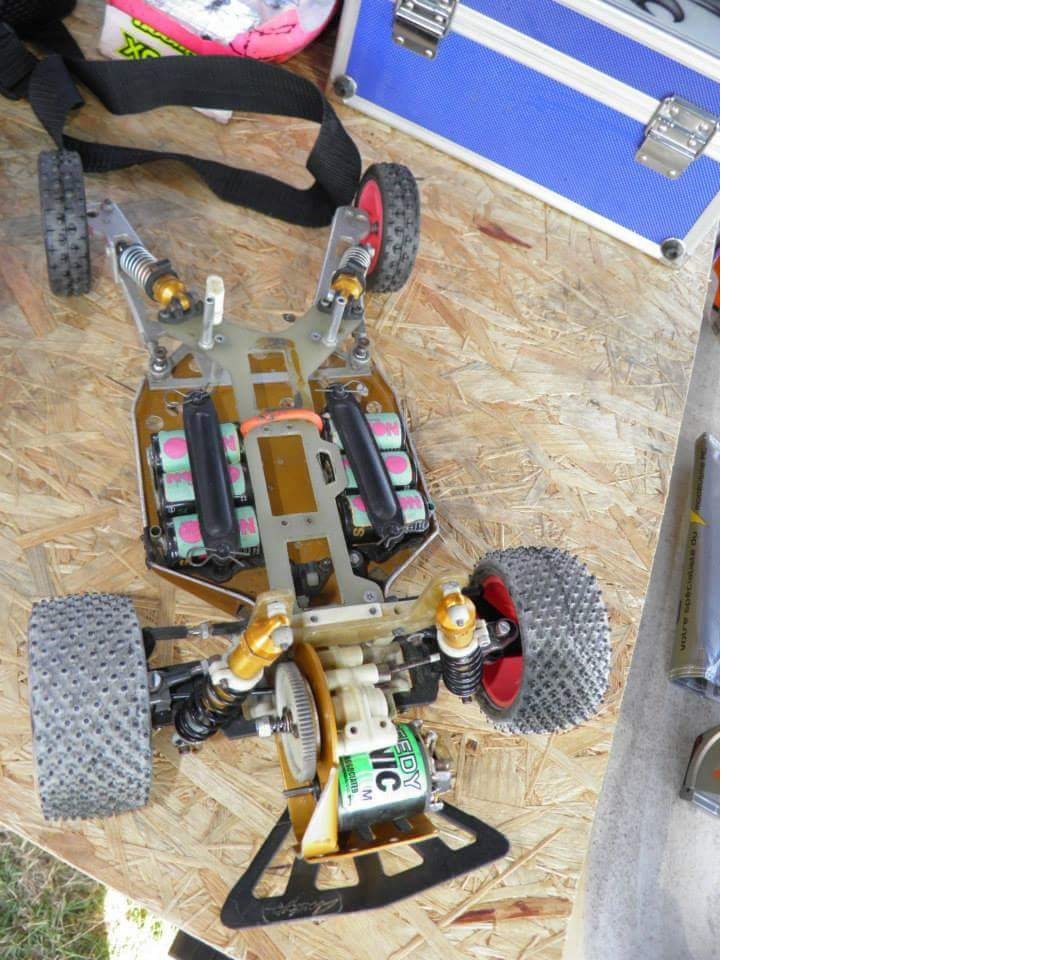

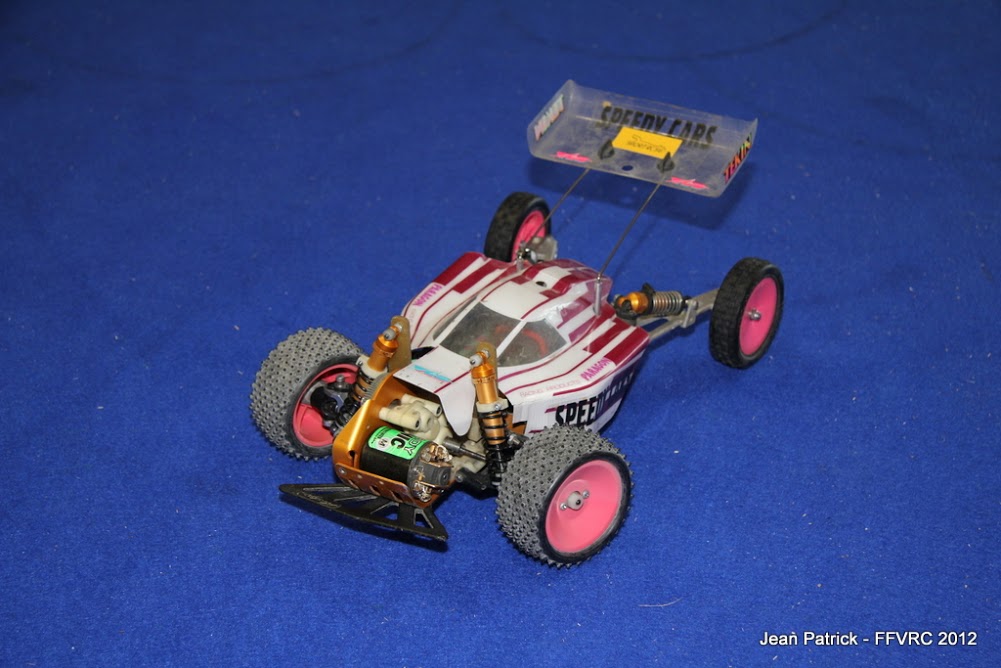

No worries. As I mentioned in the beginning I will base the build on the french prototype that have an upper deck.
Attachments

User avatar
sandkil
Approved Member
Posts: 1044
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 670 times
Been thanked: 462 times

Re: RC10 FF

Post by sandkil »

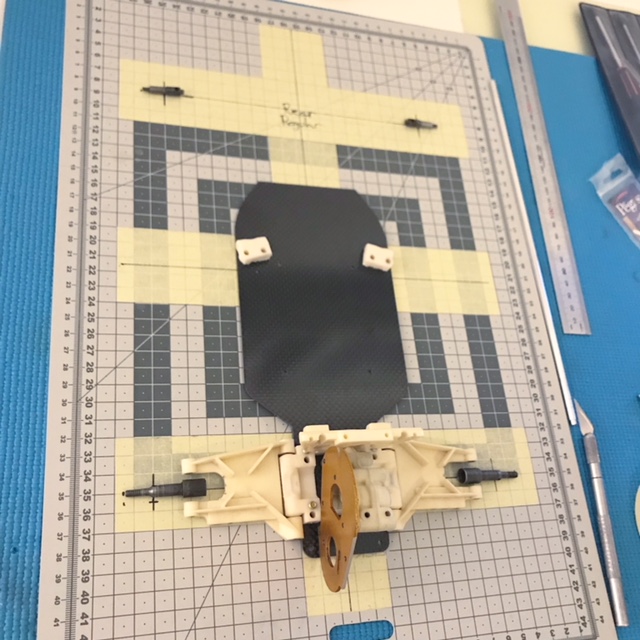

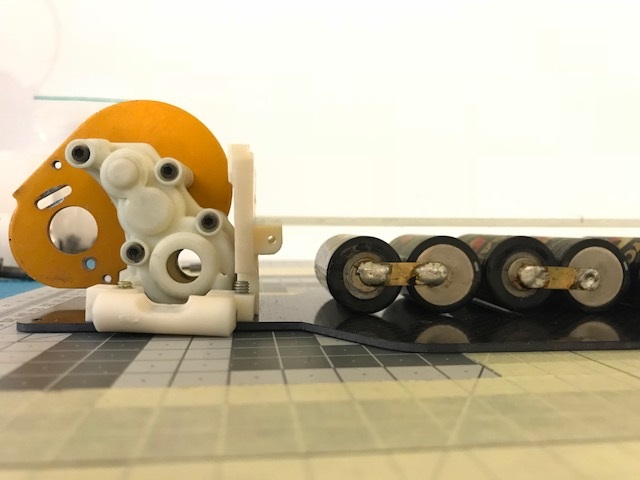

So I made a mockup graphite chassis just so i can figure how to go about it all.
I will not use the rear a-arms. They're only for reference.
My brain is hurting now. Time for beer
Attachments

User avatar
Asso_man!
Approved Member
Posts: 3959
Joined: Thu Aug 03, 2006 11:49 am
Location: EU
Has thanked: 40 times
Been thanked: 70 times

Re: RC10 FF

Post by Asso_man! »

Good start! No front kick?
_____________________________________________
_____________________________________________
Come and visit the stable

User avatar
sandkil
Approved Member
Posts: 1044
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 670 times
Been thanked: 462 times

Re: RC10 FF

Post by sandkil »

Asso_man! wrote: Sat Feb 10, 2018 4:51 pm Good start! No front kick?
Thanks!
With a graphite chassis the kick up will be the 3 degree on the arm mounts.
I have tried to see if "the Postman's" rc10 had a kick on his chassis, but i doesn't look like it. Looking att the rear guard and motor plate.
but it could be that he did what i'm thinking of.

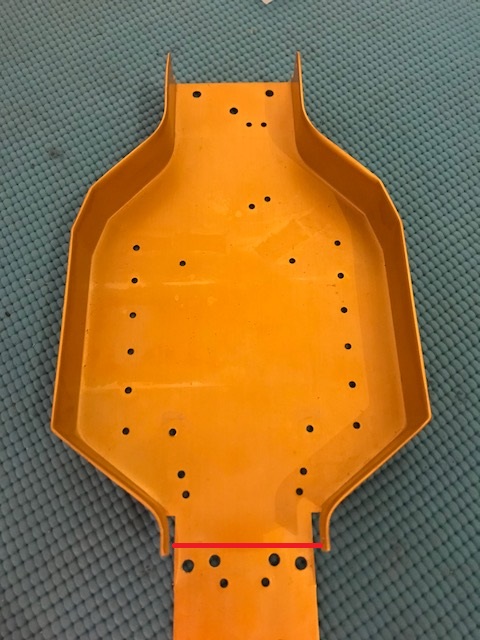

If to use gold pan chassi I would try to give it a bend just infront of the rear bulkhead. It might still be possible to use existing screw holes on the sides.
There will be a small angle differance for the top deck when doing this.

User avatar
sandkil
Approved Member
Posts: 1044
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 670 times
Been thanked: 462 times

Re: RC10 FF

Post by sandkil »

I listened to you guys.

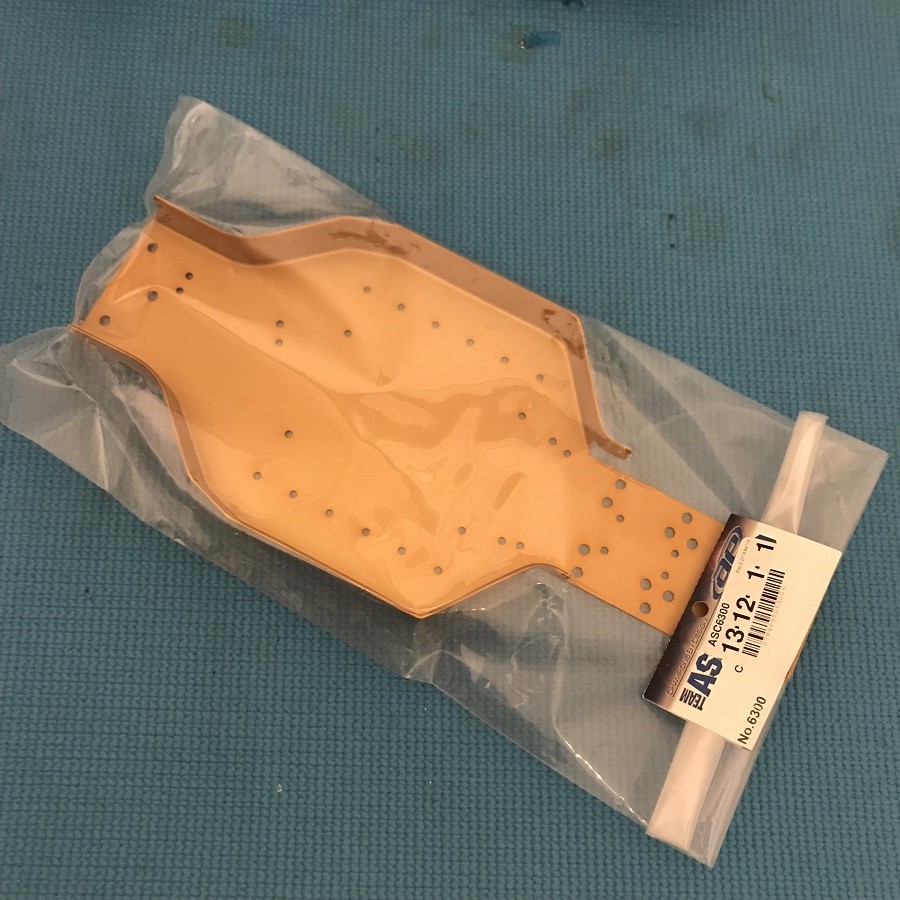

I decided to save the old B stamped chassis and ordered a re-release chassis for this build. I will give a bit more time for parts to gather up before I start this one.
Attachments

User avatar
sandkil
Approved Member
Posts: 1044
Joined: Tue Jan 15, 2013 3:00 pm
Location: Stockholm Sweden
Has thanked: 670 times
Been thanked: 462 times

Re: RC10 FF

Post by sandkil »

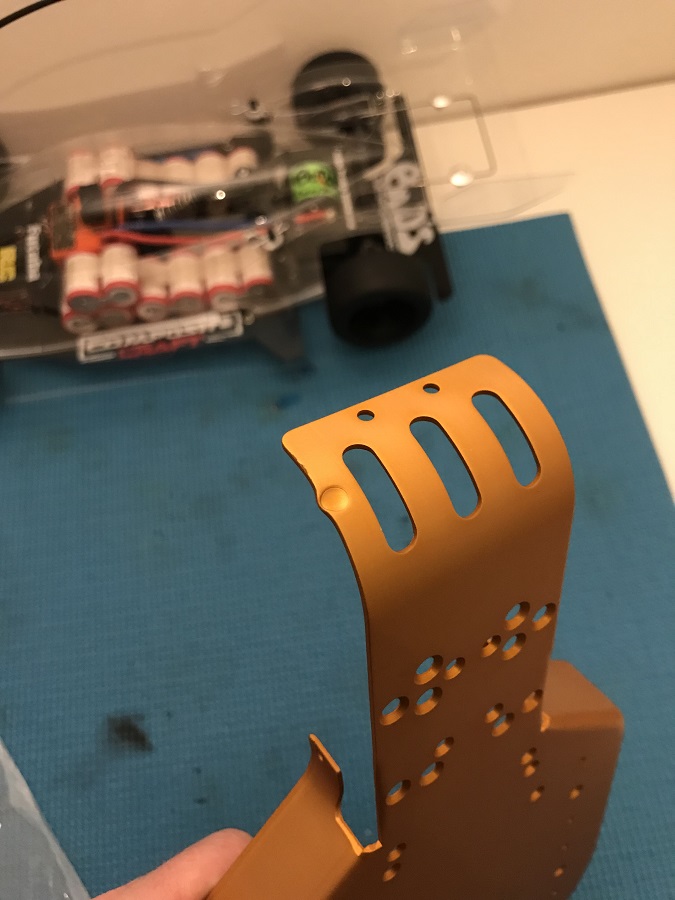

Nice one AE!
Attachments

User avatar
GoMachV
Super Member
Posts: 11312
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 818 times
Been thanked: 2399 times

Re: RC10 FF

Post by GoMachV »

doh! you should send them a pic. Might be worth a new chassis.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
jwscab
Super Member
Posts: 6494
Joined: Wed Jan 28, 2009 2:42 pm
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 446 times

Re: RC10 FF

Post by jwscab »

ouch, for sure send them a pic of that, that was done in manufacturing.
