RC16? Because I like Mini Scale...

Post by clm »

I dont know if I will follow through on this or if it is just a 3d modeling exercise, but I have been modeling RC10 parts and trying to translate them to 1/16 scale. I do not have any front arms anymore apparently so I had to find some parts on yeggi (the grey ones).

In the picture is the model next to the parts I have modeled for the Mini Jrx2 to give you size scale. I would love to find a graphite chassis and some actual front arms to model.
Attachments
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

User avatar
Gastruckracer14
Approved Member
Posts: 57
Joined: Fri Nov 01, 2013 6:31 pm
Location: Oklahoma
Has thanked: 2 times
Been thanked: 2 times

Re: RC16? Because I like Mini Scale...

Post by Gastruckracer14 »

HECK YEAH!!!! I'd be down to buying one, heck I'd buy 2 if you made them. Freaking cool!

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

We will just have to see how it goes. I have pondered making some bucks and trying to squish a chassis with my hydraulic press.

I fiddled around with the chassis I downloaded, it looks nice, but I still want a real og chassis in hand to get the model right, you will also notice the battery box is taller in the cup and bulkhead, this is same height as Horizon made the Losi battery compartment, seemed like a good option.
Attachments
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

Have the other printer out of the closet grinding away again making more prototypes...

the tiny battery box is precious :o
Attachments
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

scoobyrs25
Approved Member
Posts: 72
Joined: Sat May 30, 2015 10:43 pm
Has thanked: 7 times
Been thanked: 11 times

Re: RC16? Because I like Mini Scale...

Post by scoobyrs25 »

I like it.

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

I think it is pretty sweet myself. :)
Attachments
losi needs a friend.jpg
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

Got a chassis printed wheeee, I need to mess with my support settings on this computer as they are not coming off like they did this weekend heh.
Attachments
mini rc10 wip.jpg
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

User avatar
Gastruckracer14
Approved Member
Posts: 57
Joined: Fri Nov 01, 2013 6:31 pm
Location: Oklahoma
Has thanked: 2 times
Been thanked: 2 times

Re: RC16? Because I like Mini Scale...

Post by Gastruckracer14 »

OOOOOOHHHH YEAH! Friggin awesome. Love it

User avatar
MarkyDents
Approved Member
Posts: 1020
Joined: Sun Jan 10, 2021 4:52 pm
Location: Staten Island, N.Y.
Has thanked: 1347 times
Been thanked: 509 times

Re: RC16? Because I like Mini Scale...

Post by MarkyDents »

Looks like it’s coming along nicely, what’s the plan for the trans internals ? Seeing short front arms so I’m guessing 6 gear, correct ?
Who do you race for ?
Me……. I race for me.
That’s impossible, I was told you need a sponsor to race.
Hey Cru ! Go balls out 8)

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

Trans will externally look correct but internally likely be off the shelf. I don't have any precision machining tools :)

Short arms is because I have no other models to use or full size ones to model. A graphite should be long arm.
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

User avatar
Frankentruck
Super Member
Posts: 2561
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1572 times
Been thanked: 1733 times

Re: RC16? Because I like Mini Scale...

Post by Frankentruck »

....but a TQ10 is a short arm.
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

Frankentruck wrote: Tue Aug 09, 2022 2:01 am ....but a TQ10 is a short arm.
and has that bizzaro world superman faceted chassis ;)
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

Dadio
Approved Member
Posts: 3868
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2279 times
Been thanked: 1993 times

Re: RC16? Because I like Mini Scale...

Post by Dadio »

That's coming along nicely, there are short front arms on Thingiverse , in Cura you can scale things , then just drill to fit the hardware , bit of a shortcut , or upload them into Fusion and modify them properly .
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

User avatar
Frankentruck
Super Member
Posts: 2561
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1572 times
Been thanked: 1733 times

Re: RC16? Because I like Mini Scale...

Post by Frankentruck »

clm wrote: Tue Aug 09, 2022 2:22 am
Frankentruck wrote: Tue Aug 09, 2022 2:01 am ....but a TQ10 is a short arm.
and has that bizzaro world superman faceted chassis ;)

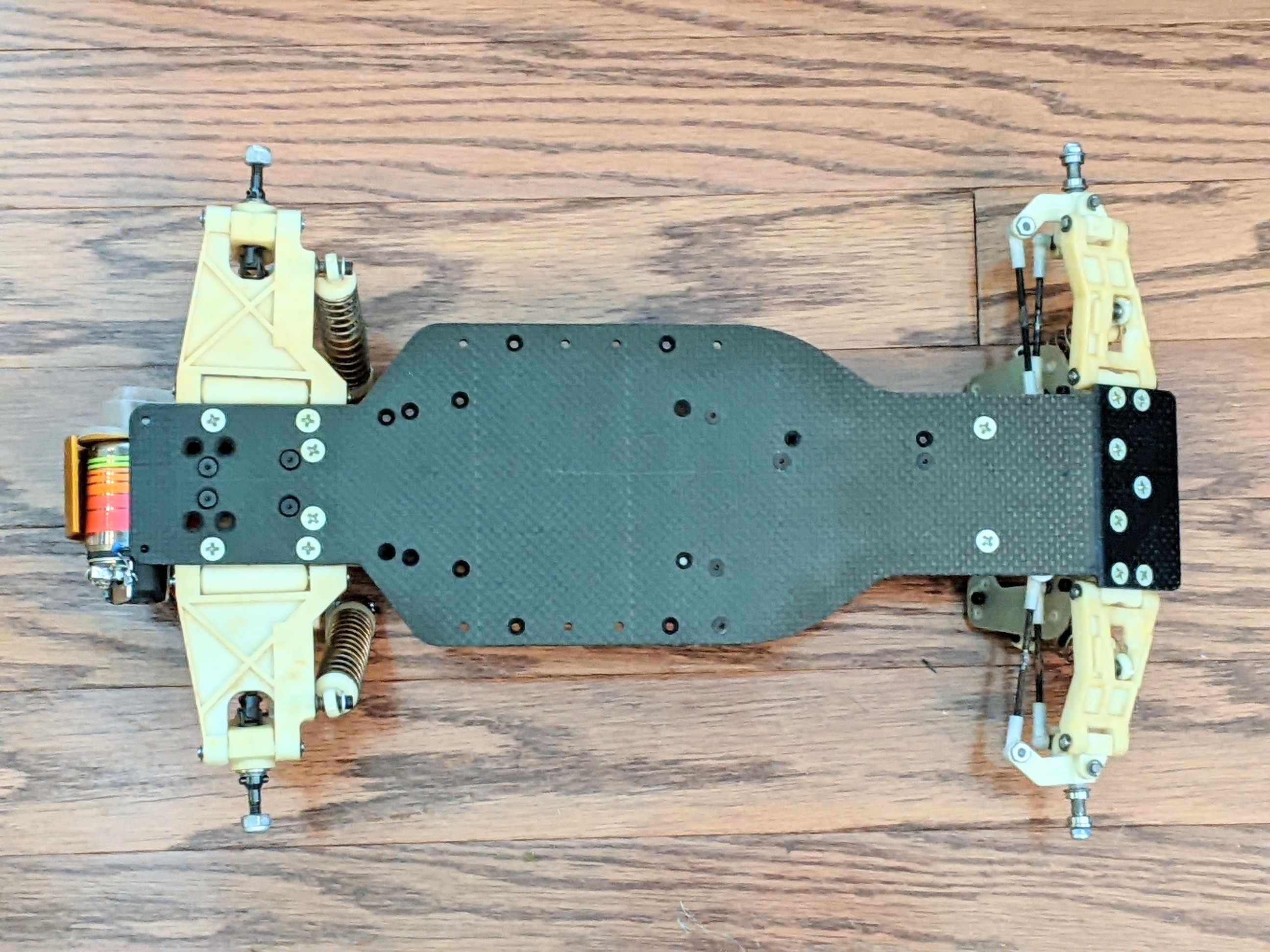

The TQ10 chassis isn't too different from the more common version of chassis for the RC10 Graphite.
.
.
.
Maybe your thinking of the rare 'coffin' chassis RC10 Graphite.
.
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

Oh yes it was the TQ 10 chassis I was mentioning because of its hard sharp corners, it is like an alternate universe rc10 graphite... from the same universe lol

It would not be hard to mod the chassis I have into a quasi TQ 10, just need measurements. But I will worry about that when the rest of the parts are done. :)
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2
