MIP SP1 Transmission Assembly Manual

The place for digital versions of catalogs and instruction manuals.

Moderators: scr8p, klavy69

User avatar
bscotti
Approved Member
Posts: 617
Joined: Fri Jul 14, 2006 1:48 pm
Location: Freeville, NY
Been thanked: 1 time

MIP SP1 Transmission Assembly Manual

Post by bscotti »

PM me your email address if you would like better quality scans.
Attachments
MIP-SP1-Instructions-Page6-web (2).jpg
MIP-SP1-Instructions-Page6-web (2).jpg (199.75 KiB) Viewed 2678 times
MIP-SP1-Instructions-Page6-web (2).jpg
MIP-SP1-Instructions-Page6-web (2).jpg (199.75 KiB) Viewed 2678 times
MIP-SP1-Instructions-Page5-web (2).jpg
MIP-SP1-Instructions-Page5-web (2).jpg (203.63 KiB) Viewed 2682 times
MIP-SP1-Instructions-Page5-web (2).jpg
MIP-SP1-Instructions-Page5-web (2).jpg (203.63 KiB) Viewed 2682 times
MIP-SP1-Instructions-Page4-web (2).jpg
MIP-SP1-Instructions-Page4-web (2).jpg (199.46 KiB) Viewed 2683 times
MIP-SP1-Instructions-Page4-web (2).jpg
MIP-SP1-Instructions-Page4-web (2).jpg (199.46 KiB) Viewed 2683 times
MIP-SP1-Instructions-Page3-Web (2).jpg
MIP-SP1-Instructions-Page3-Web (2).jpg (193.68 KiB) Viewed 2683 times
MIP-SP1-Instructions-Page3-Web (2).jpg
MIP-SP1-Instructions-Page3-Web (2).jpg (193.68 KiB) Viewed 2683 times
MIP-SP1-Instructions-Page2-Web (2).jpg
MIP-SP1-Instructions-Page2-Web (2).jpg (190.69 KiB) Viewed 2684 times
MIP-SP1-Instructions-Page2-Web (2).jpg
MIP-SP1-Instructions-Page2-Web (2).jpg (190.69 KiB) Viewed 2684 times
MIP-SP1-Instructions-Page1-Web (2).jpg
MIP-SP1-Instructions-Page1-Web (2).jpg (182.56 KiB) Viewed 2686 times
MIP-SP1-Instructions-Page1-Web (2).jpg
MIP-SP1-Instructions-Page1-Web (2).jpg (182.56 KiB) Viewed 2686 times

User avatar
jcwrks
Super Member
Posts: 511
Joined: Wed Jun 21, 2017 7:40 pm
Location: San Angelo, TX
Has thanked: 116 times
Been thanked: 237 times

Re: MIP SP1 Transmission Assembly Manual

Post by jcwrks »

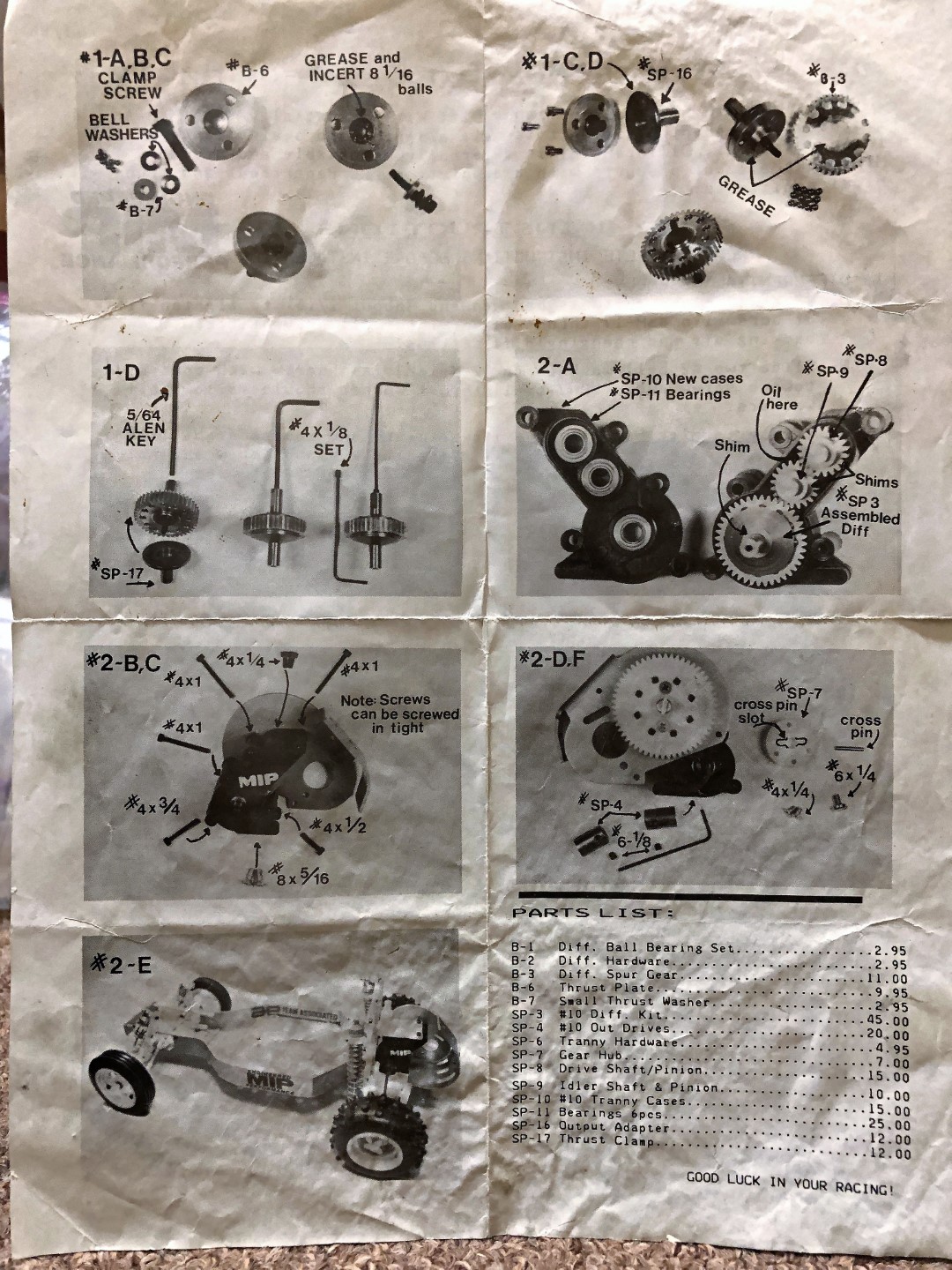

Here's the original instruction sheet from 11/1986
