Re: RC16? Because I like Mini Scale...

Post by juicedcoupe »

clm wrote: Tue Aug 09, 2022 7:35 pm Oh yes it was the TQ 10 chassis I was mentioning because of its hard sharp corners, it is like an alternate universe rc10 graphite... from the same universe lol
Since the TQ10 came before the RC10 Graphite, wouldn't that make the Graphite the "Bizzaro" car.
Always looking for new and interesting ways to waste money.

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

It would, but most associated chassis since then tend to have some curves ;)
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

User avatar
MarkyDents
Approved Member
Posts: 1022
Joined: Sun Jan 10, 2021 4:52 pm
Location: Staten Island, N.Y.
Has thanked: 1354 times
Been thanked: 511 times

Re: RC16? Because I like Mini Scale...

Post by MarkyDents »

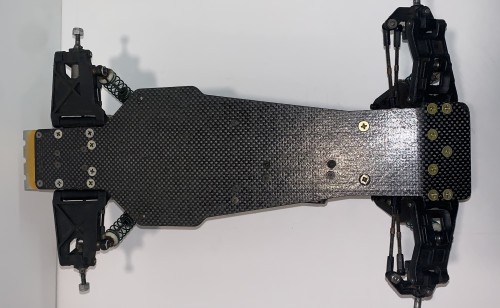

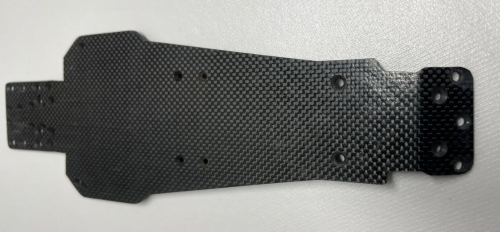

Yo FT this is not a late graphite….
This is :D
Who do you race for ?
Me……. I race for me.
That’s impossible, I was told you need a sponsor to race.
Hey Cru ! Go balls out 8)

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

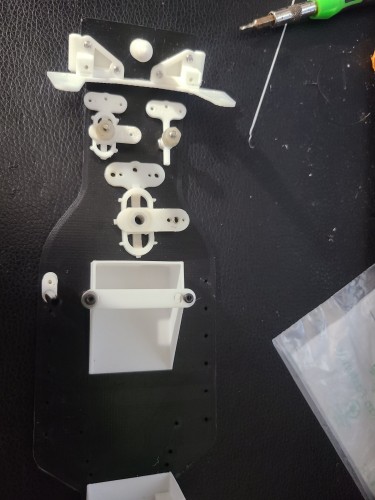

Decided to focus on bellcranks today, got them designed went to design the nylon nuts for the top and.. went "you imbecile" and pulled some 4-40 nylon shock nuts out lol

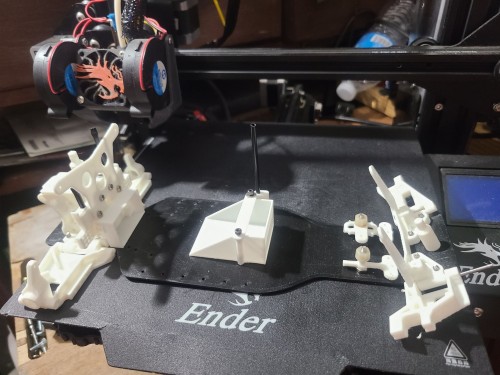

Some interesting shots showing the bellcrank shrinkage and the.. erm. trans lol
Attachments
8-9-22 1.jpg
8-9-22 2.jpg
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

User avatar
MarkyDents
Approved Member
Posts: 1022
Joined: Sun Jan 10, 2021 4:52 pm
Location: Staten Island, N.Y.
Has thanked: 1354 times
Been thanked: 511 times

Re: RC16? Because I like Mini Scale...

Post by MarkyDents »

Seeing all these parts scaled down like this is too cool !
Who do you race for ?
Me……. I race for me.
That’s impossible, I was told you need a sponsor to race.
Hey Cru ! Go balls out 8)

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

MarkyDents wrote: Wed Aug 10, 2022 2:11 am Seeing all these parts scaled down like this is too cool !
You think photos are cool? You should see them in person! I can't help thinking how cool each piece is as it comes off the printer :)
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

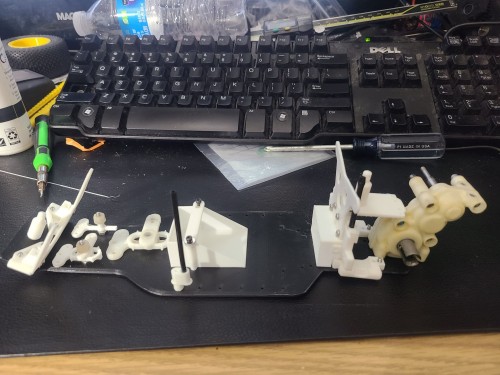

I have been in a sort of conundrum over this project, namely the the transmission. I don't know any transmission internals that will fit in the space of the transmission case and retain a differential. I have been considering using a series of pinions to emulate the internals of the 6 gear transmission, there would be no real diff but it could have a slipper so it would LOOK like the 6 gear.

I just don't know. I just know it can't really be lots of super custom parts if I want this car to be easily makeable by other people.
Attachments
mini rc10.jpg
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

WriteDean
Approved Member
Posts: 105
Joined: Thu Jul 24, 2008 1:40 am
Location: Massachusetts
Has thanked: 173 times
Been thanked: 45 times

Re: RC16? Because I like Mini Scale...

Post by WriteDean »

This all looks amazing and count me in for getting/printing one of these!

Just a suggestion - use the gears out of the Mini B/Mini T/Mini T 2.0 transmission if they will fit. The dogbones and outdrives might work/fit too. Don't get too caught up in being perfect. The Mini JRX2, as you know, has a few differences including the transmission. Simplify and use existing parts when/where you can...

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

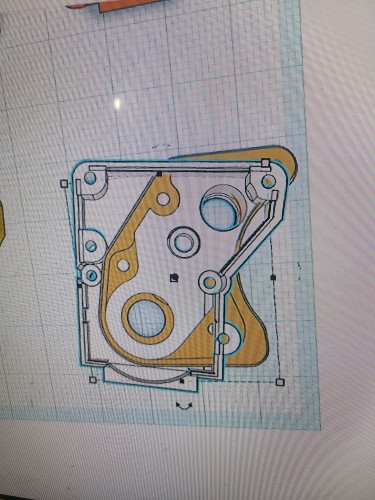

That was the first thing I tried but it literally doesn't fit in any way that the trans would look even close to original. I even pulled apart my mini t 1.0 and it's diff is even bigger. I measured the stealth and that diff is far too big for that as well.. I need to find a 1/18 diff that is smaller od than the mini b 2.0 by quite a bit...
Attachments
case size.jpg
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

WriteDean
Approved Member
Posts: 105
Joined: Thu Jul 24, 2008 1:40 am
Location: Massachusetts
Has thanked: 173 times
Been thanked: 45 times

Re: RC16? Because I like Mini Scale...

Post by WriteDean »

Thunder Tiger made a 1:18 truck - the ZT2 and ZK2 - I wonder if that would work - that said, I wonder if one could be found!

User avatar
MarkyDents
Approved Member
Posts: 1022
Joined: Sun Jan 10, 2021 4:52 pm
Location: Staten Island, N.Y.
Has thanked: 1354 times
Been thanked: 511 times

Re: RC16? Because I like Mini Scale...

Post by MarkyDents »

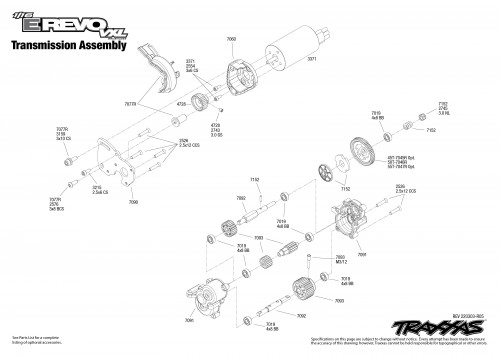

How bout the 1/16 traxxas vehicles center trans internals ?
They are still current so parts availability wouldn’t be an issue.
Who do you race for ?
Me……. I race for me.
That’s impossible, I was told you need a sponsor to race.
Hey Cru ! Go balls out 8)

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

Do the 1/16 traxxas vehicles have a differential available for the center trans? If not the pinion setup is probably just as viable.

Ok I see they do have a center diff available, I just ordered a cheap trans from ebay we will see. I am still open to other options as well :)
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

User avatar
GoMachV
Super Member
Posts: 11329
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 821 times
Been thanked: 2410 times

Re: RC16? Because I like Mini Scale...

Post by GoMachV »

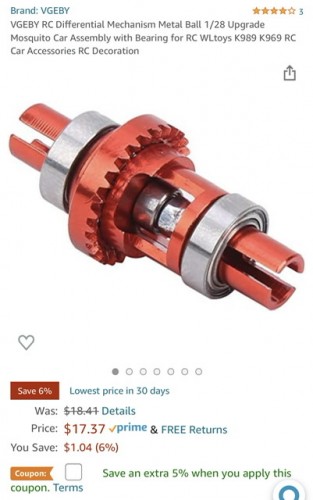

Also check Amazon for these 1/28 diffs, might be able to make em work with a spur cut to fit against the ring gear.
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

Converting a bevel drive differential to the other style is a possibility but a bit further than I am trying to go modifying wise. I want to make it as easy as possible to do this for other people if possible.
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 206 times

Re: RC16? Because I like Mini Scale...

Post by clm »

Well the mini revo center trans is a no go, OD is only 1mm smaller from 20 to 19... still too big. I might look into the micro cars or just make a trans case that doesnt look right... or make a trans without a diff whee :)
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2
