Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

I'm still in search of a capable local driver :mrgreen: probably have to supply their own electronics as well, mine are all "vintage" :lol:
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

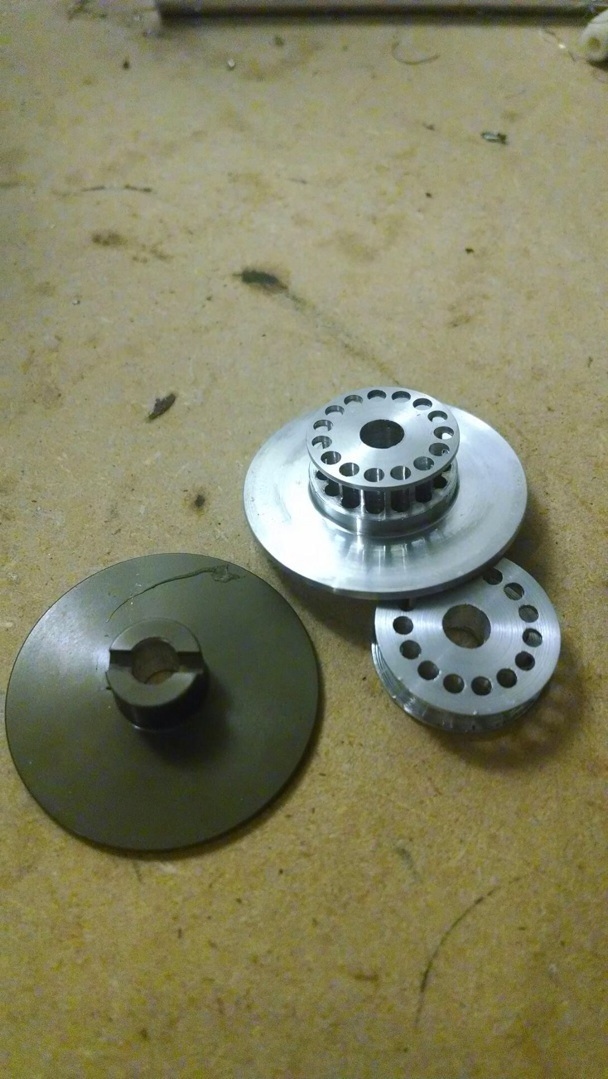

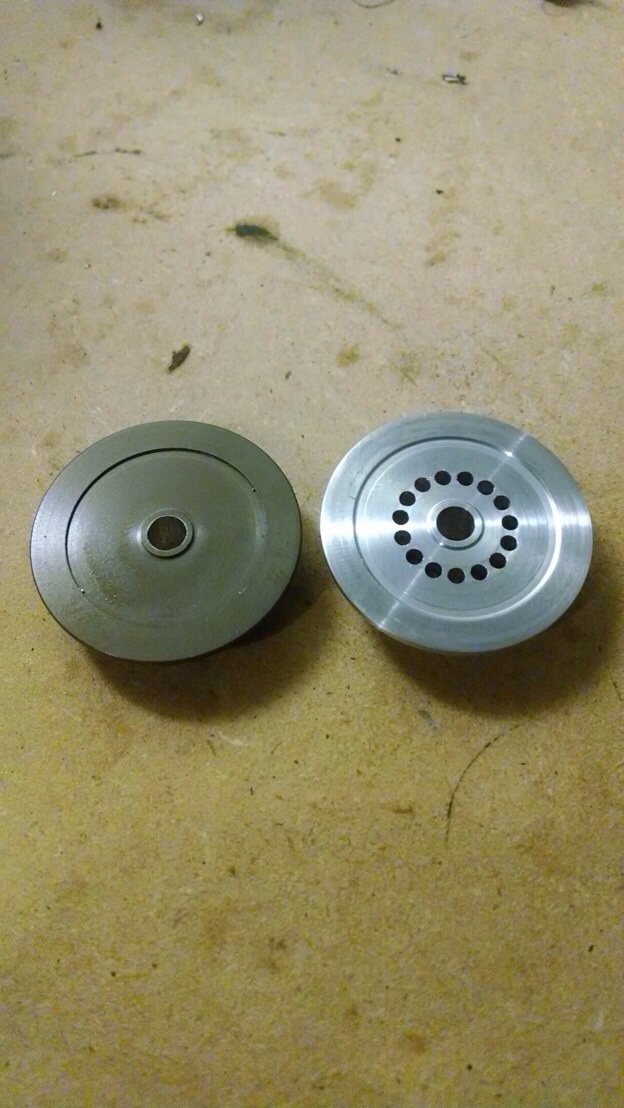

...and the rear slipper pulley. Gonna have to trim the motor plate a tad bit :mrgreen:
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
JK Racing
Super Member
Posts: 4603
Joined: Thu Jul 19, 2007 2:32 pm
Location: Placentia, CA
Has thanked: 103 times
Been thanked: 200 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by JK Racing »

I'll drive it :)
--Joey --
Vintage A&L and Factory Works
Old School Racer & Vintage RC Car nut
JKRacingRC.com

kink
Approved Member
Posts: 695
Joined: Fri Mar 08, 2013 5:31 am
Location: UK, Surrey

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by kink »

Lovely components there. Looking great so far :)
GARBO 1/8

User avatar
marlo
Approved Member
Posts: 2071
Joined: Tue Jan 22, 2013 5:31 pm
Has thanked: 21 times
Been thanked: 21 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by marlo »

Great work! I maybe sending a PM :mrgreen:

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

Sprockets on...now to locate a 582mm belt :shock: haha

I do need to sink the rear pulley just a tad more. I didnt check to see if I was bottomed out it not

This shaft can get cut off


Btw, perfect size on the pulley jake! Smaller would have rubbed and larger would have also
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
Seabass
Business Member
Posts: 1402
Joined: Mon Jul 27, 2009 8:34 pm
Location: Mississippi
Been thanked: 12 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by Seabass »

The parts look good and I am glad they work. We could always take some more material out of the rear pin slot to have the pulley set deeper on the shaft.

User avatar
marlo
Approved Member
Posts: 2071
Joined: Tue Jan 22, 2013 5:31 pm
Has thanked: 21 times
Been thanked: 21 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by marlo »

I love the way this is all coming together.

Sixtysixdeuce
Approved Member
Posts: 494
Joined: Tue Aug 20, 2013 1:07 am
Location: Elbert County, CO
Been thanked: 2 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by Sixtysixdeuce »

Very nice! Making more progress than I have on my 4WD GT project.

Did you run into issues with the front end regarding axles? I'm gonna have to sink my front diff into the chassis, because as I have it mounted now, the inner end of the bone barely engages with the arms level, but bottoms out in the outdrive cup with only 1-1/4" compression.
"When you are dead, you do not know you are dead; It is difficult only for others. It is the same when you are stupid."

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

I based it around optima bones to keep it era correct and mounting the trans on the tower I could easily adjust the outdrive height. As it sits the bones are pretty secure although I will be switching to universals at some point. With the kyosho carriers the camber link points are also a lot higher than with a standard front end. I didn't do any math really just projected the camber link up the same height as the difference at the wheel. It will take a driver to see how it performs
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
UltraHIVE
Approved Member
Posts: 369
Joined: Mon May 30, 2011 1:31 am
Location: Cape Coral, FL

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by UltraHIVE »

This is awesome, nice work dude! :)

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

I sunk the rear pulley a tad more, you can see it is fairly flush with the plate now. Also test fitted a Protech, just a tad high in the front but not too bad.


It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
romulus22
Super Member
Posts: 2496
Joined: Wed May 19, 2010 7:30 pm
Location: KY
Has thanked: 710 times
Been thanked: 685 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by romulus22 »

Not sure if you're worried about it at all but just a suggestion to lower the body a little more. You could make a small two hole strap that goes into the trans brace holes and remove the case bolt on the top of the trans. Not sure how much you'll actually gain from that but a thought.

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

Or even a hole in the body to poke thru

It was just a test fit to make sure it wouldn't be rediculously high so far. I was surprised it fit this low
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
scr8p
Administrator
Posts: 16540
Joined: Tue Feb 07, 2006 9:46 pm
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 975 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by scr8p »

maybe you can mill out the backside of the motor plate to gain some some belt clearance.......
