B1M mid motor RC10

Post by Northeee »

Building Brian’s B1M conversion kit. Which arrived superfast from the States :D maybe be the 1st in the Uk ?. first thing I will say it’s not a shelf Queen . So its not spotless it gets raced . I mess about and change set ups a fair bit . Car for the conversion is a worlds rere , and now has a carbon works chassis .
Attachments
How the car looked to start .
How the car looked to start .

Northeee
Approved Member
Posts: 40
Joined: Sun Jul 30, 2017 6:57 pm
Location: U.K.

Re: B1M mid motor RC10

Post by Northeee »

1st job strip the gearbox of my worlds and take everything of the back , diff didn’t feel fantastic so that was stripped and rebuilt . New gearbox was then Prepared as Brian excellent instructions . Which is a must read , when building . I used the end of the plastic associated tool to help push the bearings home . As not to damage anything .
Attachments

User avatar
mk-Zero
Business Member
Posts: 1678
Joined: Fri Jan 03, 2014 7:14 pm
Location: Orange, CA
Has thanked: 4 times
Been thanked: 18 times

Re: B1M mid motor RC10

Post by mk-Zero »

8)

Northeee
Approved Member
Posts: 40
Joined: Sun Jul 30, 2017 6:57 pm
Location: U.K.

Re: B1M mid motor RC10

Post by Northeee »

Going together great .can see the tool I used to help push in the bearings on the right . That bottle of tri flow oil is 30 years old ! Still great stuff . Each bearing had a drop
Attachments

Northeee
Approved Member
Posts: 40
Joined: Sun Jul 30, 2017 6:57 pm
Location: U.K.

Re: B1M mid motor RC10

Post by Northeee »

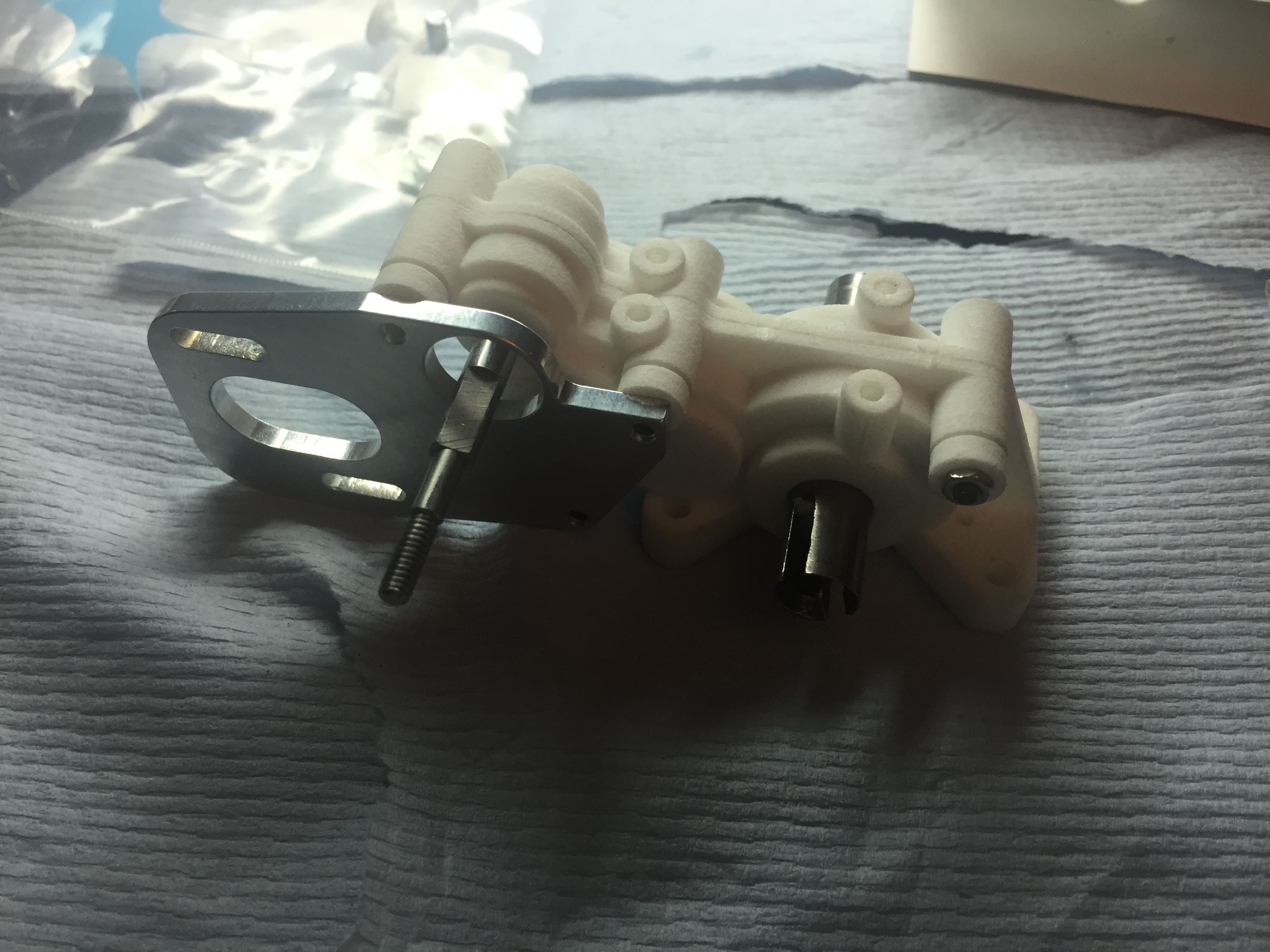

Next gearbox half’s come together , there’s a small gap when you screw the two half’s down the Center . But once the motor plate is fitted that was gone .Made sure not to go to tight on the 4 gearbox screws
Attachments

User avatar
NomadRacer
Approved Member
Posts: 1467
Joined: Sun Apr 16, 2017 11:29 am
Location: Eastern Shore of Virginia
Has thanked: 83 times
Been thanked: 77 times

Re: B1M mid motor RC10

Post by NomadRacer »

Cheers Mate! It's good to see another B1M going together.
Bum on Direct Deposit

Northeee
Approved Member
Posts: 40
Joined: Sun Jul 30, 2017 6:57 pm
Location: U.K.

Re: B1M mid motor RC10

Post by Northeee »

This has no fancy screw sets or extra bling just putting it together . Then Race it :mrgreen:

Northeee
Approved Member
Posts: 40
Joined: Sun Jul 30, 2017 6:57 pm
Location: U.K.

Re: B1M mid motor RC10

Post by Northeee »

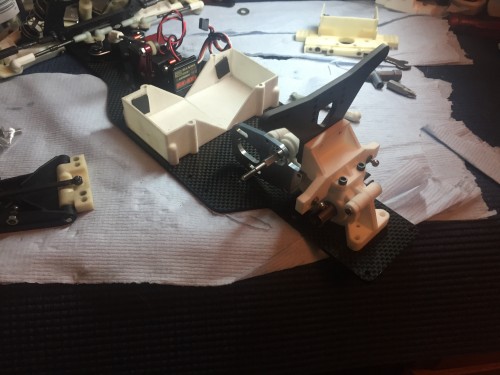

Bit more done,test fit of shock tower kit fits together really nicely .
Attachments

Northeee
Approved Member
Posts: 40
Joined: Sun Jul 30, 2017 6:57 pm
Location: U.K.

Re: B1M mid motor RC10

Post by Northeee »

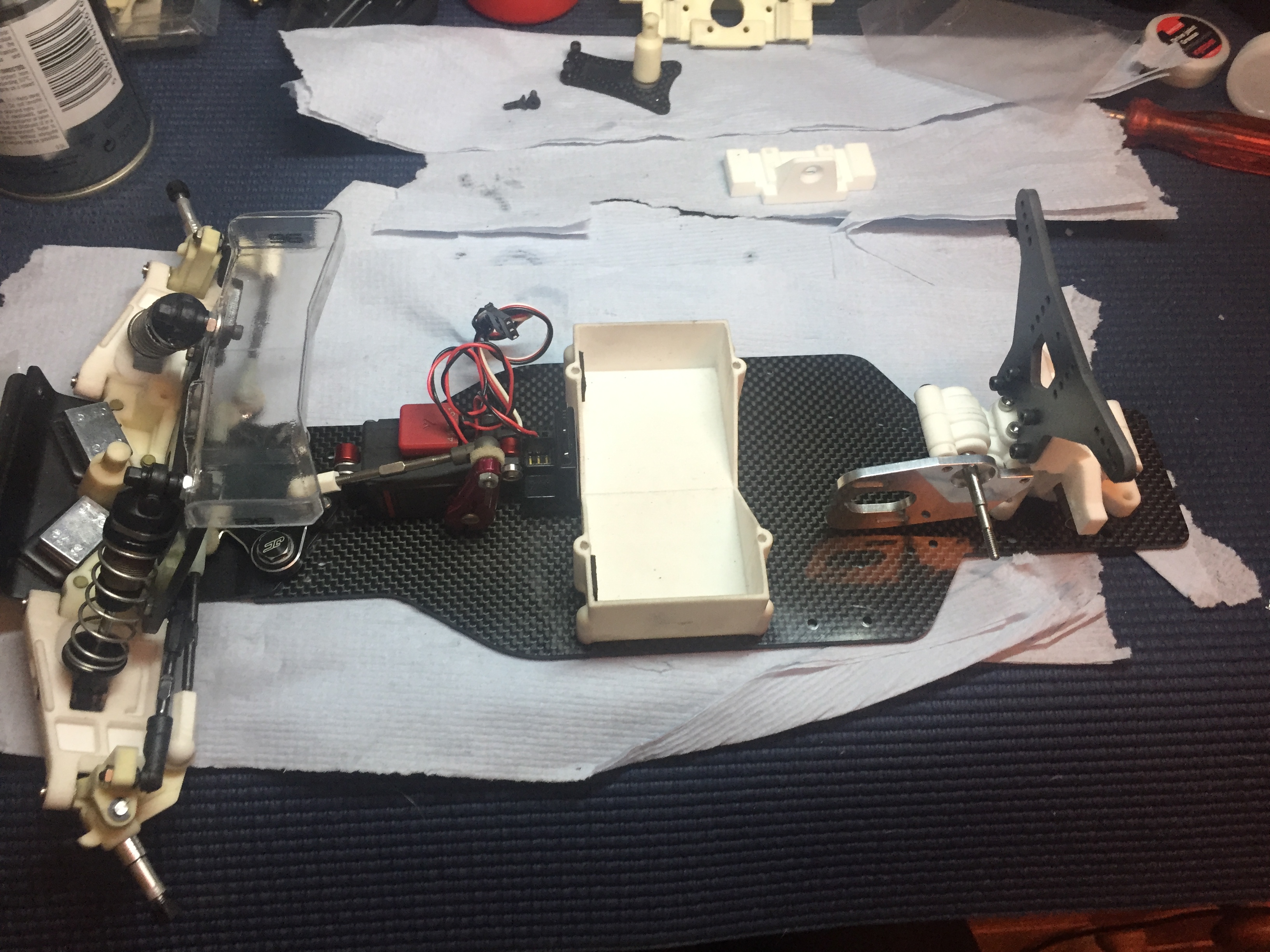

And there’s more :D
Attachments

Northeee
Approved Member
Posts: 40
Joined: Sun Jul 30, 2017 6:57 pm
Location: U.K.

Re: B1M mid motor RC10

Post by Northeee »

Front arms are shapways , which increase the car length 5mm .going to put the rear Arms for long wheelbase to start and see how it goes .
Attachments

MCE Jason
Regular Member
Posts: 3
Joined: Sat Dec 17, 2016 12:04 am

Re: B1M mid motor RC10

Post by MCE Jason »

Looks great, I need this conversion in my life. Can you post a link were you ordered it?
Thanks,

Northeee
Approved Member
Posts: 40
Joined: Sun Jul 30, 2017 6:57 pm
Location: U.K.

Re: B1M mid motor RC10

Post by Northeee »

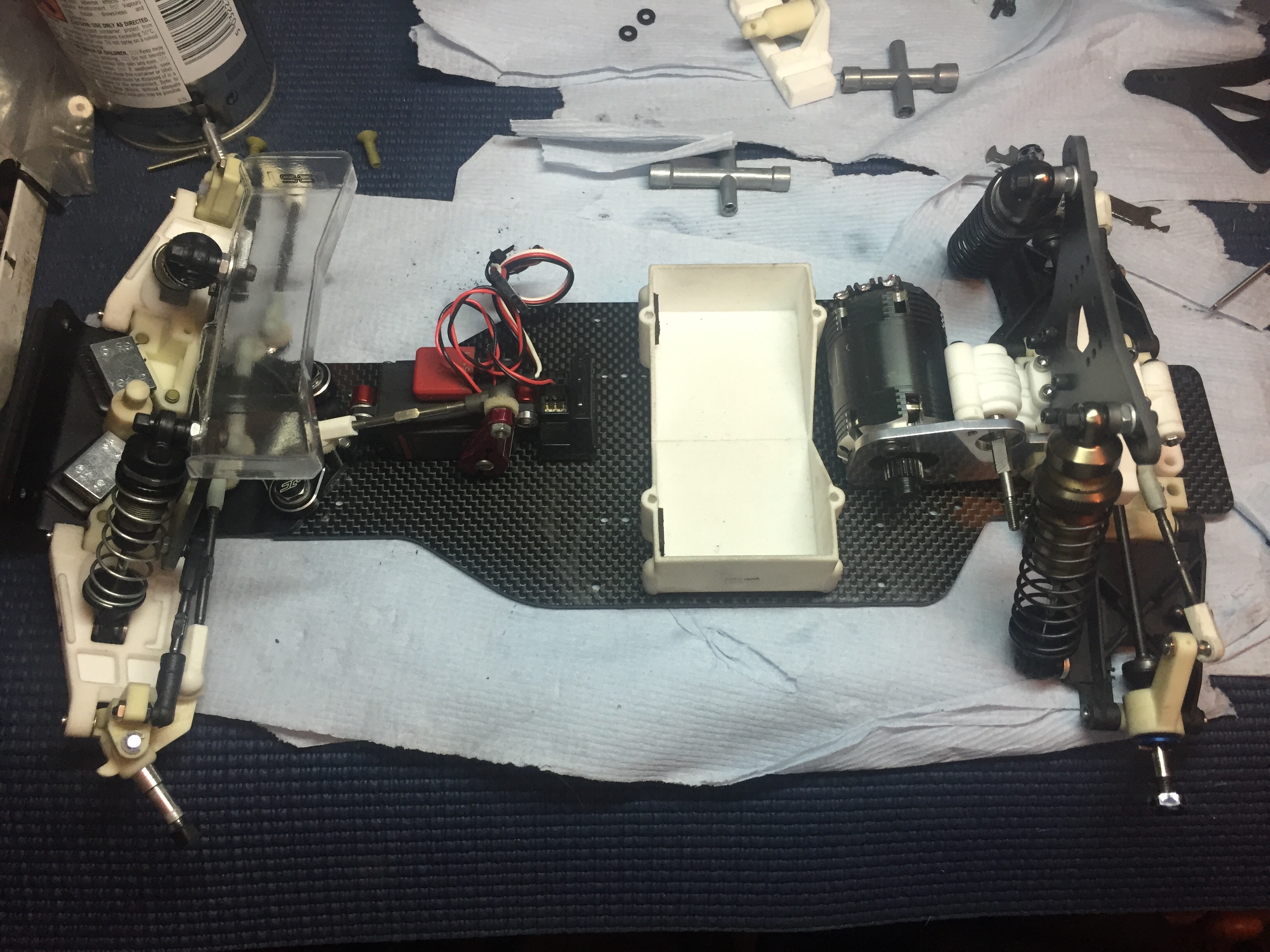

Rear dampers are Kyosho RB6 big bore 30w oil .front Standerd Worlds dampers 32w . Esc is going to be a hobbywing 120A . Steering jconcepts , futaba bls551 mini servo . Motor LRP 7 .5 x20 which is great as long as you can keep the front wheels on the deck :mrgreen: lipo team orian 110c 5000 .
Attachments

Northeee
Approved Member
Posts: 40
Joined: Sun Jul 30, 2017 6:57 pm
Location: U.K.

Re: B1M mid motor RC10

Post by Northeee »

MCE Jason wrote: Sat Jan 06, 2018 5:11 pm Looks great, I need this conversion in my life. Can you post a link were you ordered it?
Thanks,
Hi get in touch with “mk-zero” he’s on here On this post . You won’t regret it :D

User avatar
mk-Zero
Business Member
Posts: 1678
Joined: Fri Jan 03, 2014 7:14 pm
Location: Orange, CA
Has thanked: 4 times
Been thanked: 18 times

Re: B1M mid motor RC10

Post by mk-Zero »

Please see the thread here for info on the kit. Thanks!
https://www.rc10talk.com/viewtopic.php?f=103&t=42374

Northeee
Approved Member
Posts: 40
Joined: Sun Jul 30, 2017 6:57 pm
Location: U.K.

Re: B1M mid motor RC10

Post by Northeee »

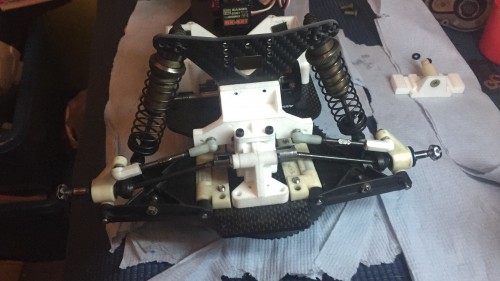

Rear end .
Attachments
