Rc10 aftermarket diff tube id

Post by JosephS »

I finally got the parts I needed from McMaster carr and started my 6 gear rebuilds.

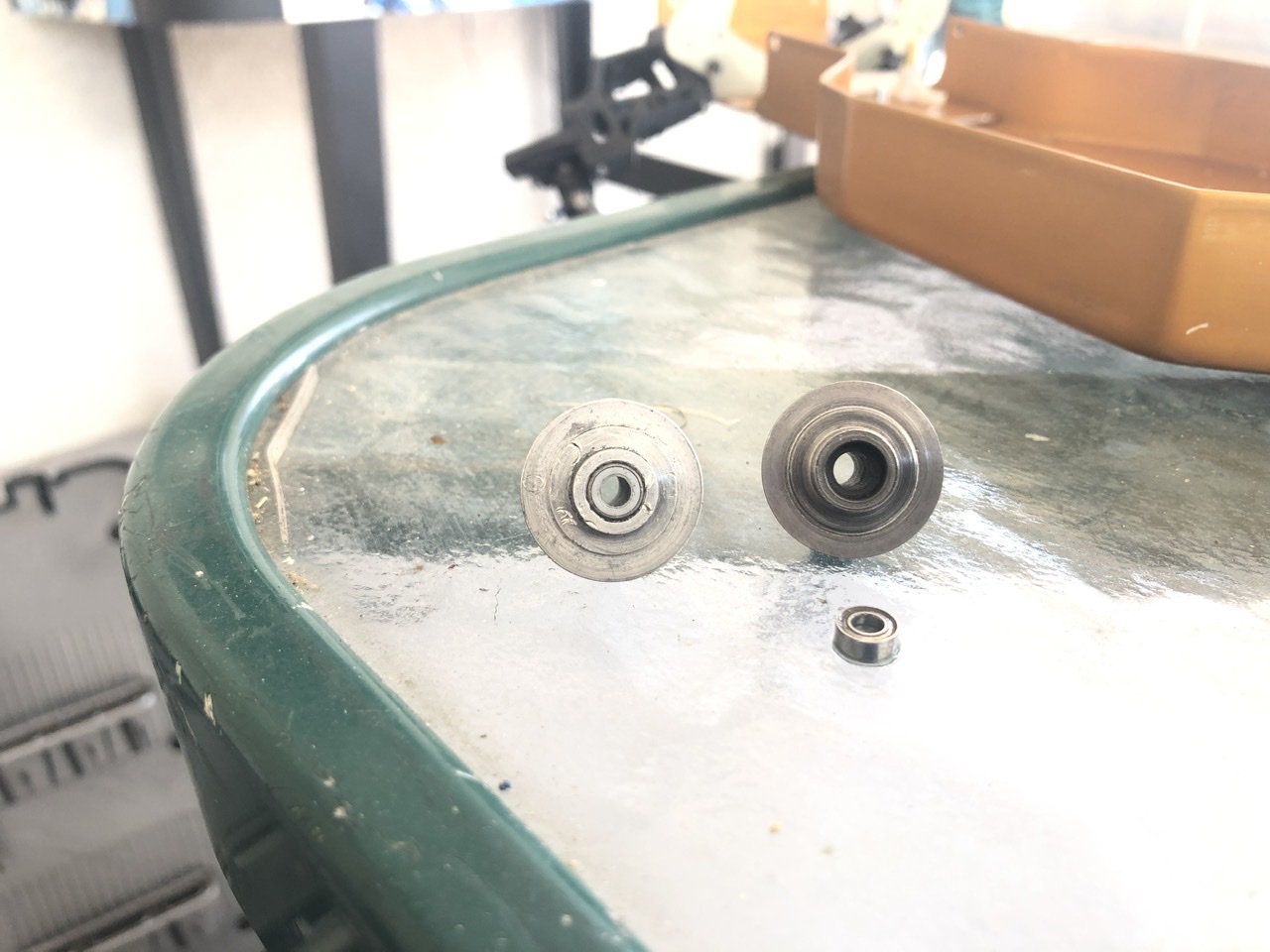

One of the diff tubes is non-stock.
Can anyone help me identify it?
The most obvious difference in that. 1/4 (.24”) x1/8 ball bearing is replacing the .2” Teflon bushing.
Besides that it appears to be made of steel as it was rusted before cleaning , the original seems to be aluminum.

User avatar
juicedcoupe
Super Member
Posts: 2850
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 223 times
Been thanked: 1623 times

Re: Rc10 aftermarket diff tube id

Post by juicedcoupe »

Looks like the Losi version. One of my six gears has a different aftermarket diff tube.
Always looking for new and interesting ways to waste money.

JosephS
Approved Member
Posts: 1381
Joined: Thu Mar 23, 2017 9:31 pm
Has thanked: 925 times
Been thanked: 394 times

Re: Rc10 aftermarket diff tube id

Post by JosephS »

juicedcoupe wrote: Fri Sep 24, 2021 9:30 pm Looks like the Losi version. One of my six gears has a different aftermarket diff tube.
It does appear to be losi 4005
Have you replaced the bearing in yours? does 1/4x1/8 bearing fit?

User avatar
juicedcoupe
Super Member
Posts: 2850
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 223 times
Been thanked: 1623 times

Re: Rc10 aftermarket diff tube id

Post by juicedcoupe »

JosephS wrote: Fri Sep 24, 2021 10:03 pm
juicedcoupe wrote: Fri Sep 24, 2021 9:30 pm Looks like the Losi version. One of my six gears has a different aftermarket diff tube.
It does appear to be losi 4005
Have you replaced the bearing in yours? does 1/4x1/8 bearing fit?
I didn't do anything to mine other than lube it. Other than one outdrive bearing, the whole transmission didn't need anything.
Always looking for new and interesting ways to waste money.

JosephS
Approved Member
Posts: 1381
Joined: Thu Mar 23, 2017 9:31 pm
Has thanked: 925 times
Been thanked: 394 times

Re: Rc10 aftermarket diff tube id

Post by JosephS »

juicedcoupe wrote: Fri Sep 24, 2021 10:28 pm
JosephS wrote: Fri Sep 24, 2021 10:03 pm
juicedcoupe wrote: Fri Sep 24, 2021 9:30 pm Looks like the Losi version. One of my six gears has a different aftermarket diff tube.
It does appear to be losi 4005
Have you replaced the bearing in yours? does 1/4x1/8 bearing fit?
I didn't do anything to mine other than lube it. Other than one outdrive bearing, the whole transmission didn't need anything.
The bearing in mine feel dead, but at least not crunchy. I'm hoping to replace it.

User avatar
juicedcoupe
Super Member
Posts: 2850
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 223 times
Been thanked: 1623 times

Re: Rc10 aftermarket diff tube id

Post by juicedcoupe »

Out of curiosity, I pulled the spur gear off that car. It actually has that same steel tube as yours (for some reason, I thought it was aluminum). I tried to remove the bearing without disassembling the top shaft but it seems to be tight.
Always looking for new and interesting ways to waste money.

JosephS
Approved Member
Posts: 1381
Joined: Thu Mar 23, 2017 9:31 pm
Has thanked: 925 times
Been thanked: 394 times

Re: Rc10 aftermarket diff tube id

Post by JosephS »

juicedcoupe wrote: Sat Sep 25, 2021 12:18 am Out of curiosity, I pulled the spur gear off that car. It actually has that same steel tube as yours (for some reason, I thought it was aluminum). I tried to remove the bearing without disassembling the top shaft but it seems to be tight.
Mine was snug, put it came out with appropriate force.

User avatar
Frankentruck
Super Member
Posts: 2277
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1341 times
Been thanked: 1483 times

Re: Rc10 aftermarket diff tube id

Post by Frankentruck »

I just came across one of these Losi diff tubes for the RC10. It seems crazy to me that Losi would have made an aftermarket part for the RC10 BITD. Maybe it was to try and encourage RC10 owners not to change over to Stealth gearboxes. 😁
.
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

User avatar
GoMachV
Approved Member
Posts: 11103
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 726 times
Been thanked: 2080 times

Re: Rc10 aftermarket diff tube id

Post by GoMachV »

This was pre JRX2, they did the steering kit as well. Good stuff!

That sticker date is waaaaay newer than the part
