Finally getting around to building a clod

Post by GoMachV »

I’ve wanted a clod for a long time. It’s just never been a priority. Figured it was time to build one.

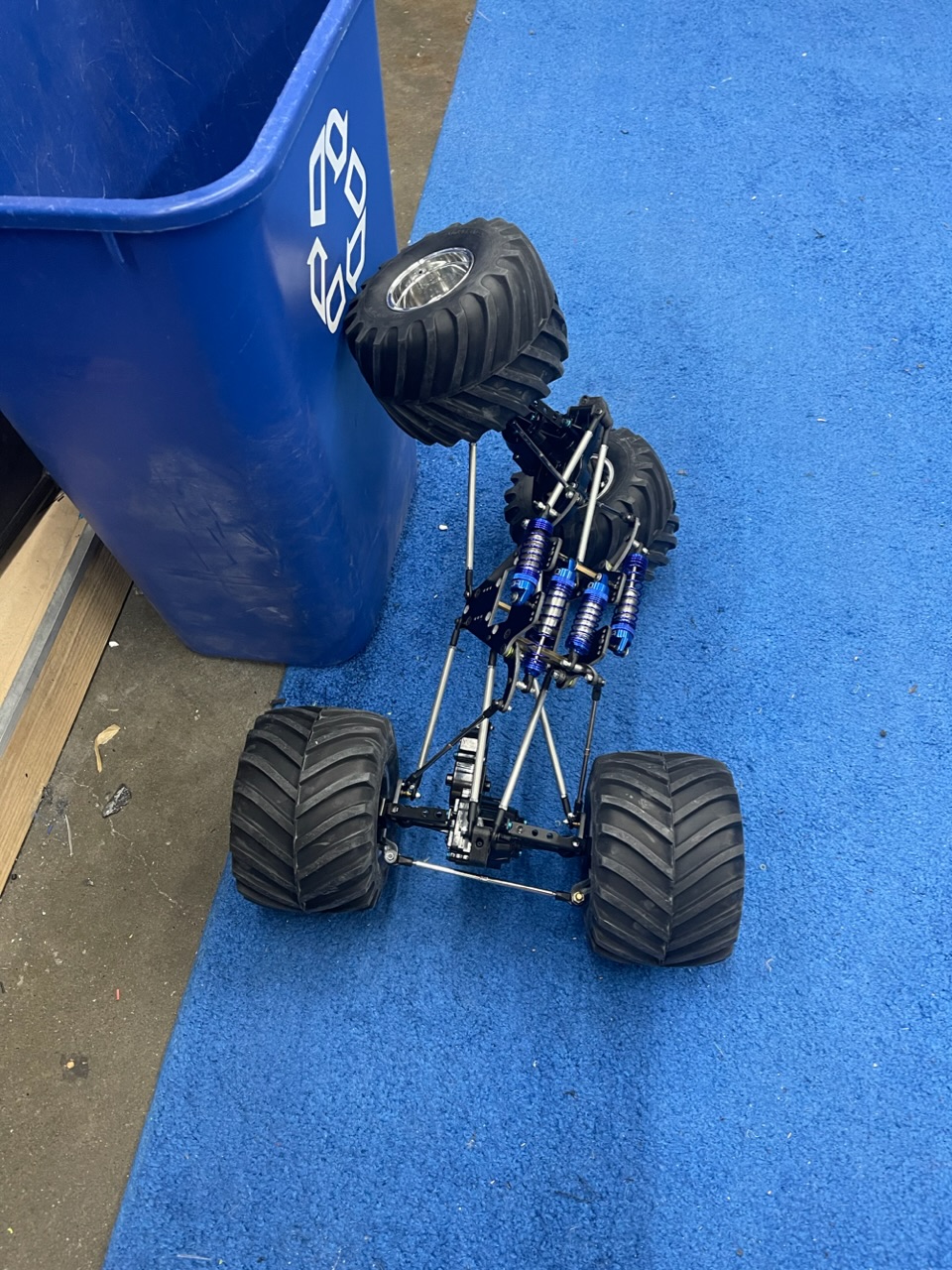

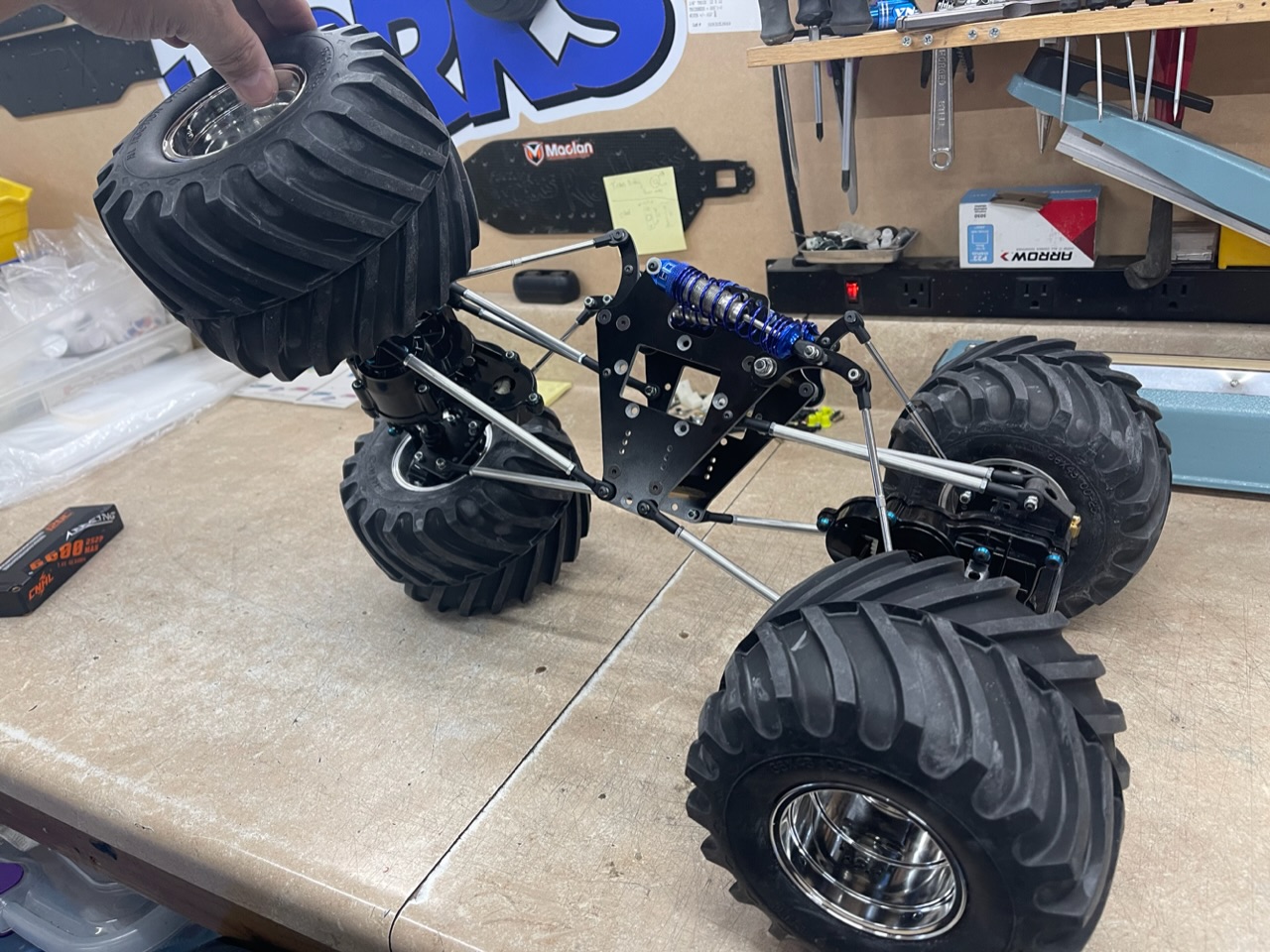

For the first one, stock gearboxes with “bolt on” parts. Later I’ll build a fancy one. I am a huge fan of cantilever especially with proper geometry so there is a progressive rate to it. Even though the shocks are mounted identically on this first one (just on different planes), I don’t like the aesthetics. I’ll probably try them upright next. The geometry itself seems good and I’m happy with the articulation.

Once the suspension is sorted, I will work on the rest. It will have a bolt on front and rear “clip” for the stock hard body or you can leave them off for Lexan use. Also I am planning to add a cage as imo with the body off they just look amazing.

Lots more to come, this is just the start!
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
LoboNYC
Approved Member
Posts: 778
Joined: Tue Apr 09, 2013 4:26 pm
Location: Staten Island, NYC
Has thanked: 814 times
Been thanked: 344 times

Re: Finally getting around to building a clod

Post by LoboNYC »

Looks like your off to a very nice start.

Always loved monster trucks like the Clod buster and the USA-1. They are fun to watch especially when you have several of them on a starting line and watching the dust kick up when they all take off at the sound of the start.

Your Clod already has a ton of flex so that is definitely a great start. Totally understand converting the shocks to vertical setup and would probably do the same in your shoes.

can wait to see more progress!

User avatar
GoMachV
Approved Member
Posts: 11176
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 751 times
Been thanked: 2173 times

Re: Finally getting around to building a clod

Post by GoMachV »

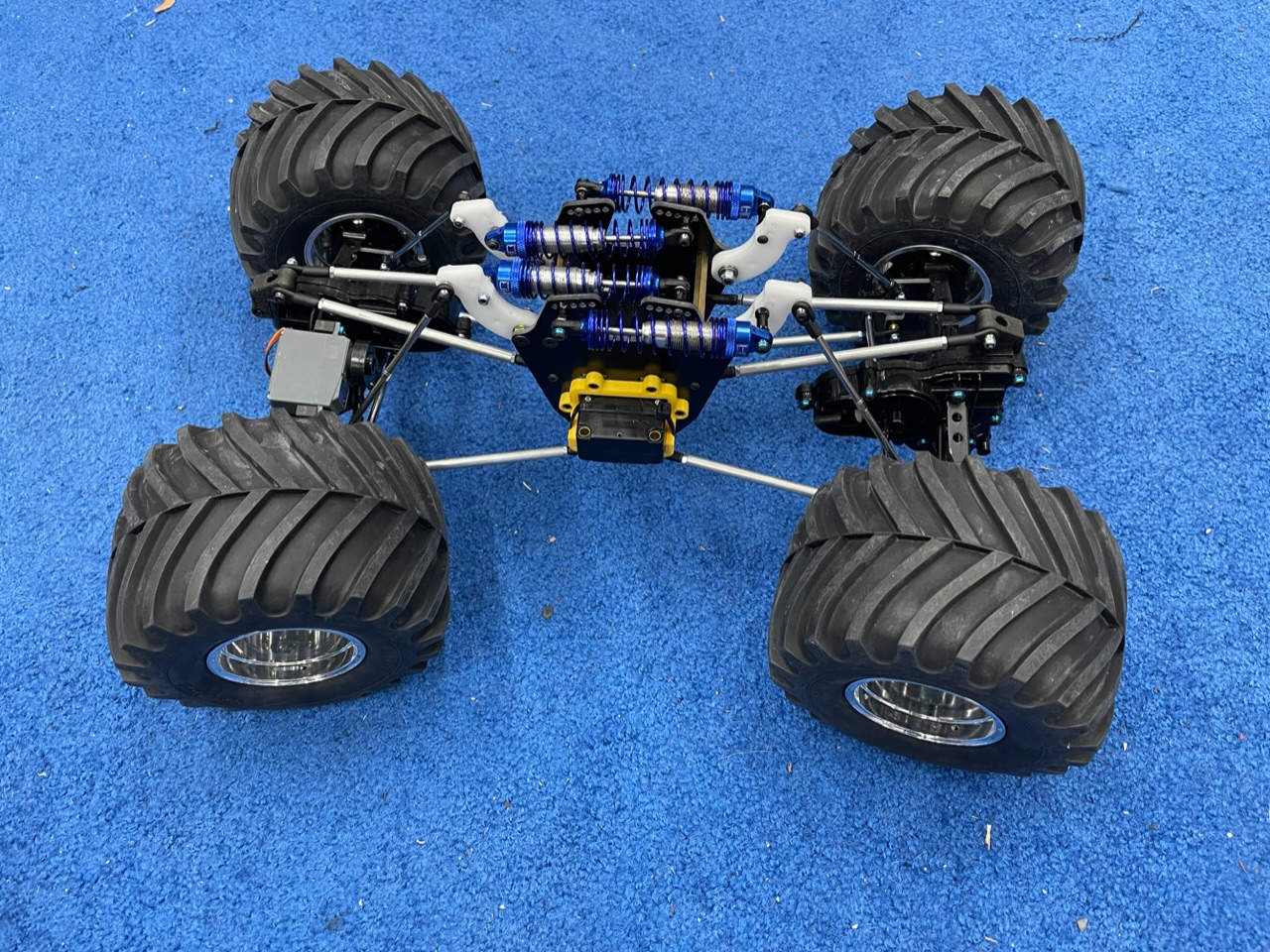

Well, I played around with vertical shocks and it ended up taking up much more space and was in the way of the battery unless mounted longitudinal (which is always and option however it’s hard to access). I decided to just optimize the lay down shocks. I cut the rockers from delrin and modified the shock mounting layout for more adjustability. The battery box was dropped quite a bit, and a shelf added above it for the esc and receiver. I flipped the knuckles to fix the reversed Ackerman and made a servo mount for the axle brace. It’s a tight fit but nothing hits or rubs at full articulation. I have the Brood 17T clod motors coming as well as a pair of ecopower servos. It appears the 880 speed control that comes with the kit is capable of handling the motors so we will see lol.

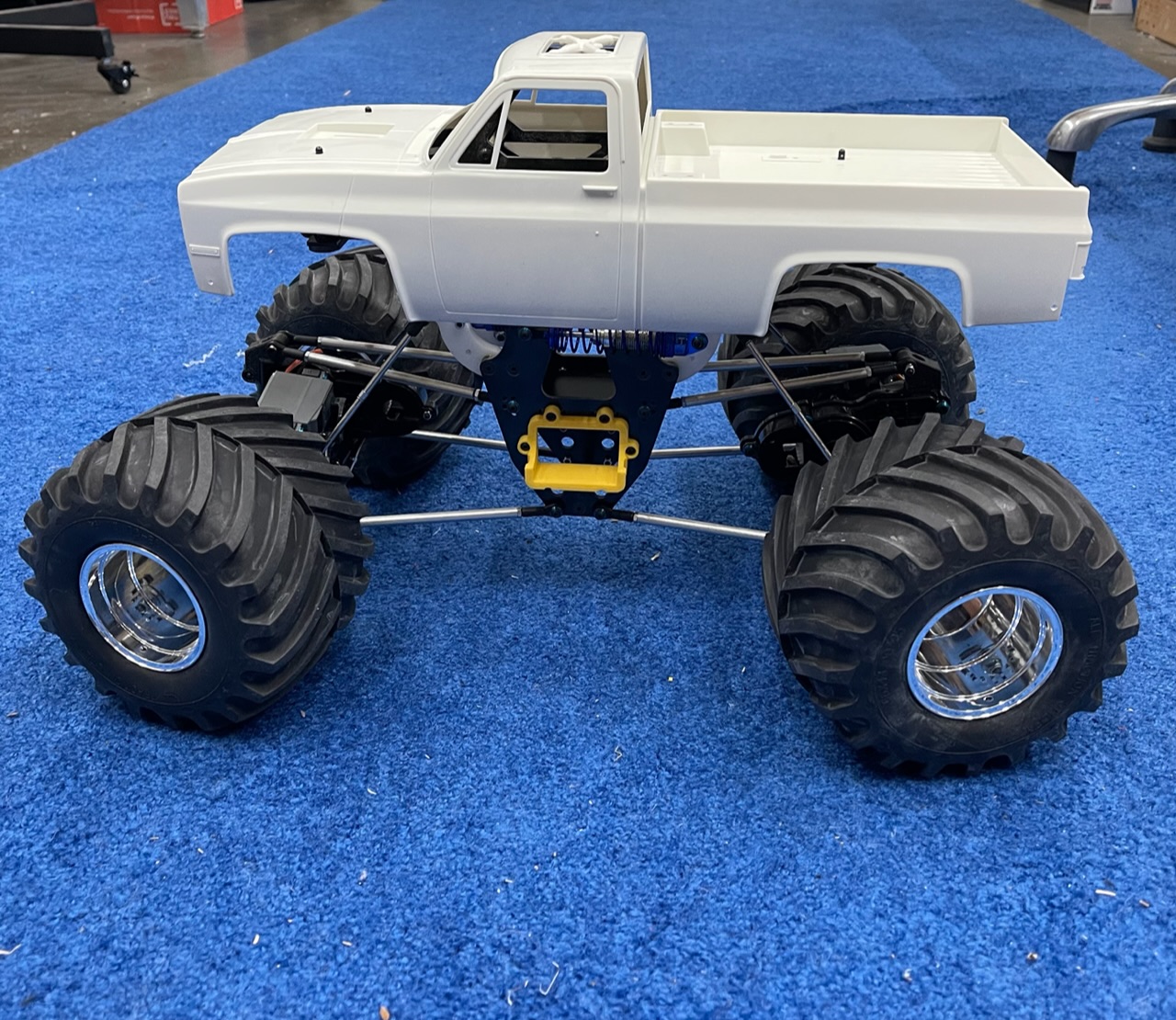

While I wait, body mounts are up next. It needs to be able to support a stock body, a bullhead body, as well as Lexan bodies.
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
GoMachV
Approved Member
Posts: 11176
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 751 times
Been thanked: 2173 times

Re: Finally getting around to building a clod

Post by GoMachV »

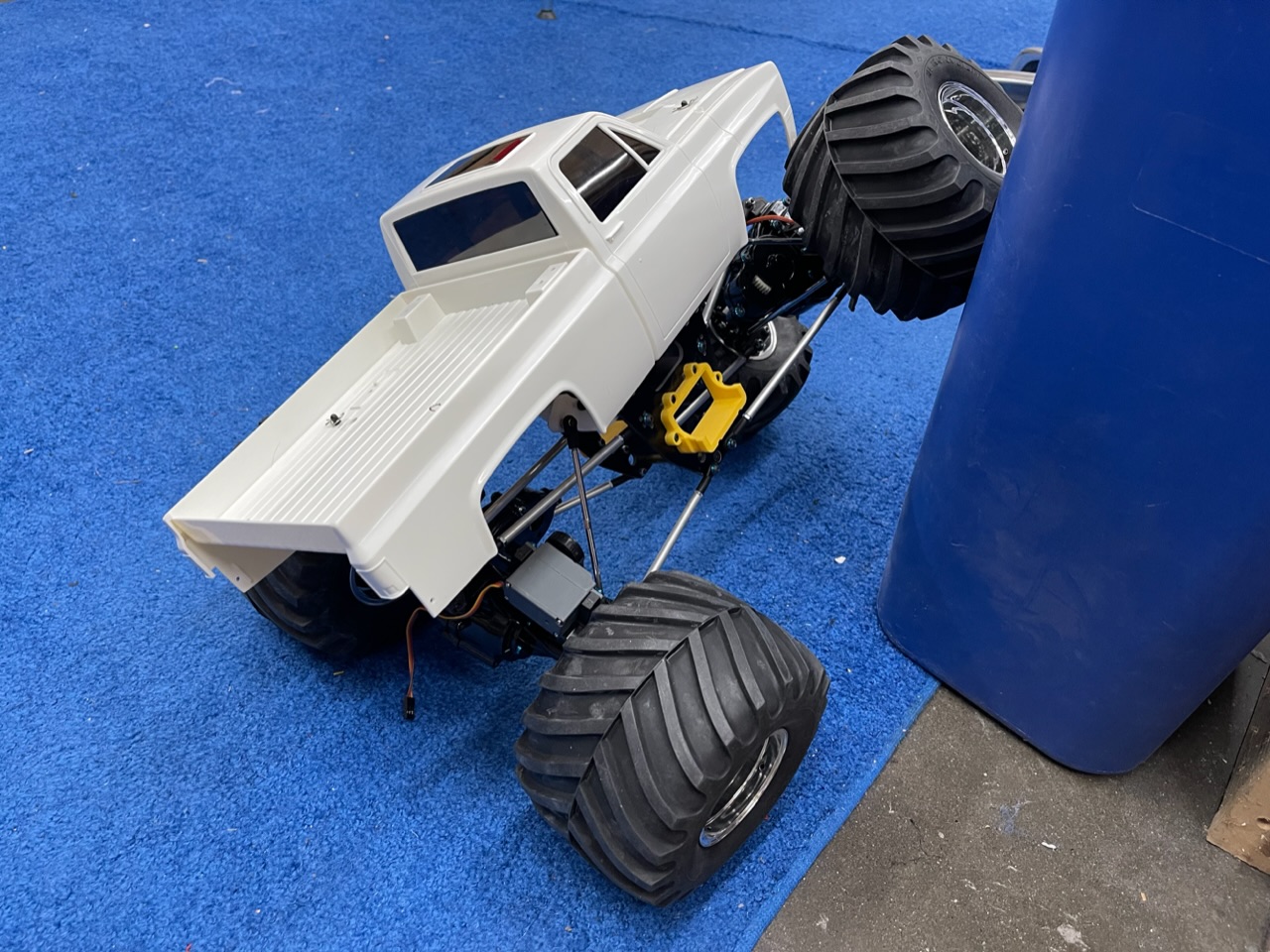

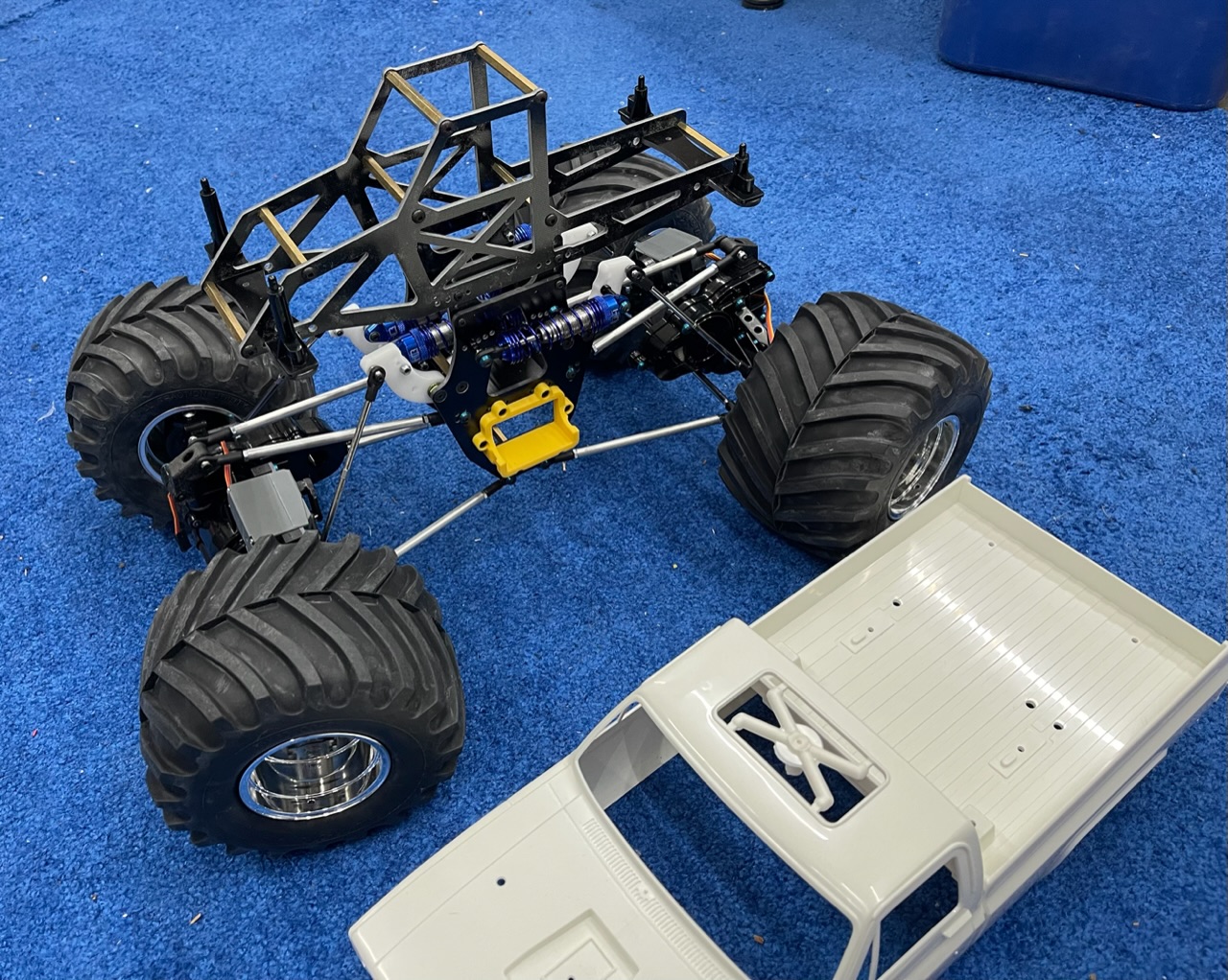

And now with a cage that fits the hard body
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

Dadio
Approved Member
Posts: 3807
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2181 times
Been thanked: 1931 times

Re: Finally getting around to building a clod

Post by Dadio »

That's nice , strange not seeing the shocks , looks sort of bare but very tidy .
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

User avatar
GoMachV
Approved Member
Posts: 11176
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 751 times
Been thanked: 2173 times

Re: Finally getting around to building a clod

Post by GoMachV »

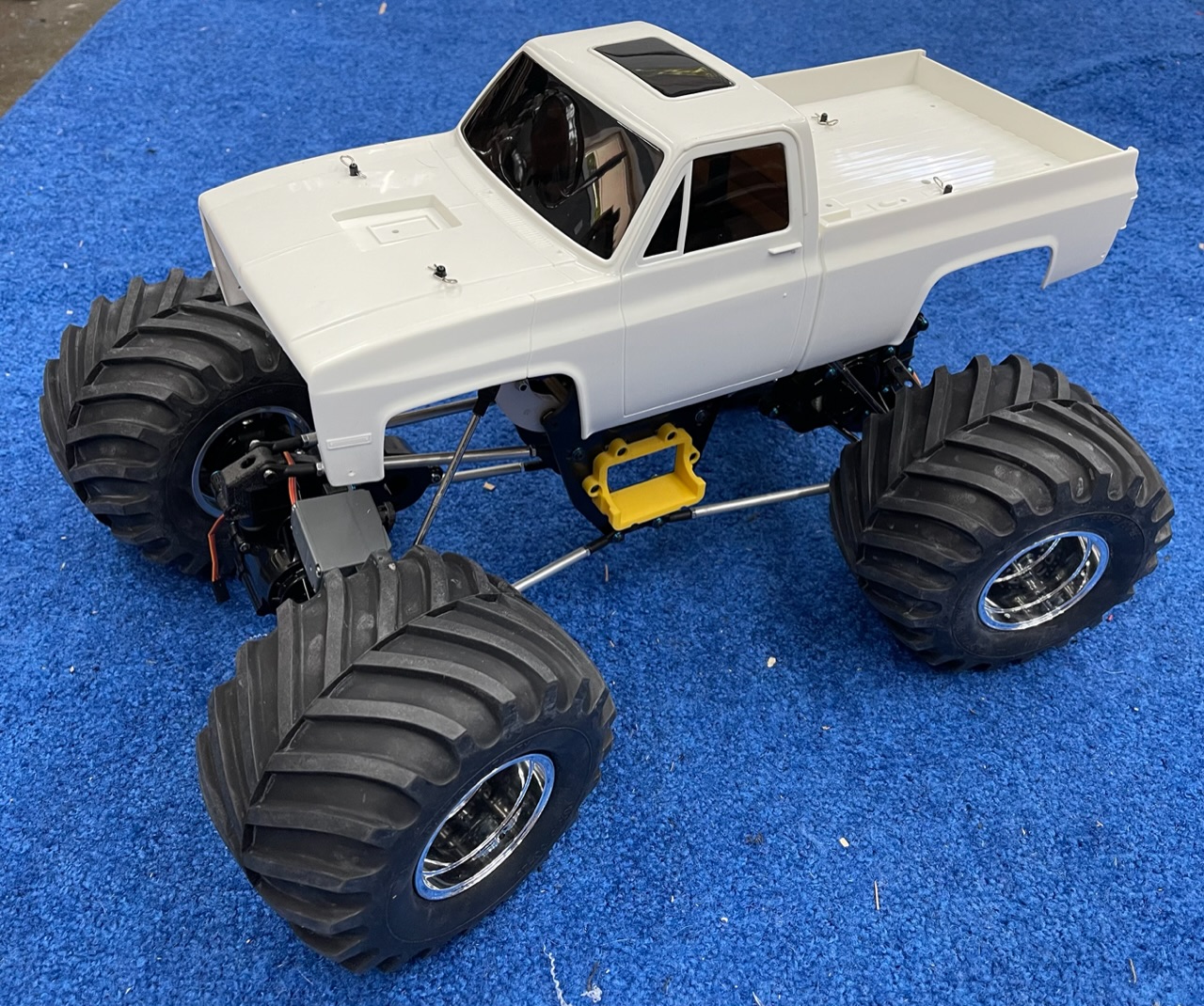

Last one, waiting for motors and servos but I think the cage is good to go. Added a basic dash and corrected the fit with the smoked windshield installed. It’s now sitting in the lowest position and towards the back a bit, but it’s adjustable. It can also be left off and you can run a Lexan body. Sheds like a full pound or more 😂

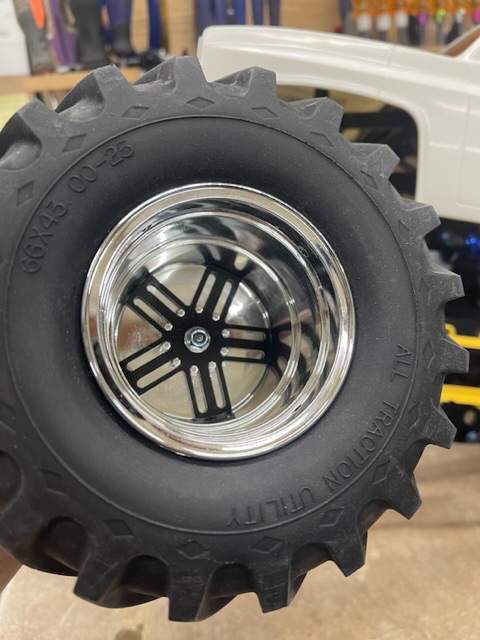

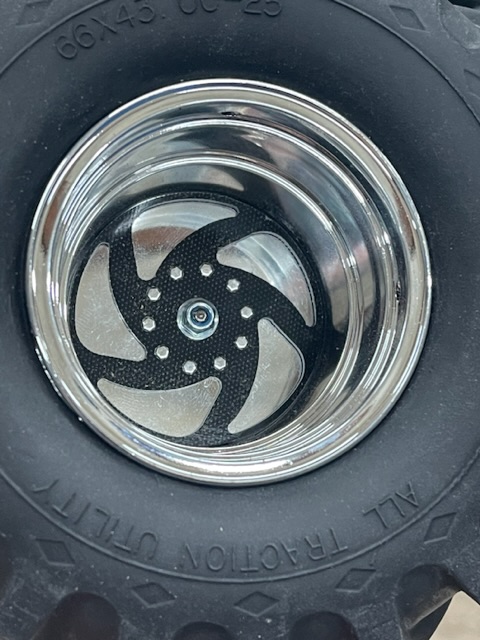

Also designed up some quick and easy wheel inserts. I can afford the nice wheels so these will do for now.
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

BillKrueger
Approved Member
Posts: 44
Joined: Sat Apr 09, 2022 3:18 am
Location: Adell, WI
Has thanked: 2 times
Been thanked: 12 times

Re: Finally getting around to building a clod

Post by BillKrueger »

Good looking truck! Be careful! Clods can get addicting... I should know. Haha. Next thing you know you'll have 12 and a bunch of clod related websites and maybe even a RC10 one. Haha

User avatar
klavy69
Moderator
Posts: 5141
Joined: Thu May 29, 2008 8:11 pm
Location: Fulton, IL (Land of one stop light but we DO have a windmill!)
Has thanked: 540 times
Been thanked: 253 times

Re: Finally getting around to building a clod

Post by klavy69 »

GoMachV wrote: Wed Oct 12, 2022 10:28 pm Also designed up some quick and easy wheel inserts. I can afford the nice wheels so these will do for now.
Didn't expect to see you around these parts Jeff!. LOL. Truck looks great but those wheel inserts are fricken awesome. really dress these wheels up. You gonna offer up these on your site?

Todd
Peace and professionlism.....Kabunga signing off!!!

User avatar
GoMachV
Approved Member
Posts: 11176
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 751 times
Been thanked: 2173 times

Re: Finally getting around to building a clod

Post by GoMachV »

Website will be updating in the next couple months. These will be there. A couple styles are on eBay.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

moto-steve
Approved Member
Posts: 130
Joined: Thu Dec 06, 2012 11:38 pm
Has thanked: 30 times
Been thanked: 3 times

Re: Finally getting around to building a clod

Post by moto-steve »

Jeff has a clod???? Lol it's about damn time, you will learn the term BASH and CRUSH. Us clod guys created the term bash and crawl. I still have my original, plus 2 originals in box. You won't believe I still use a futaba s148 for steering, works best while moving. Not sure why everyone wants to spend well over $100.00 bucks on a steering servo for lots of rc vehicles?? Enjoy Buddy, they are fun.
Lifes to short not to play with toys.

User avatar
SFC K
Approved Member
Posts: 1336
Joined: Wed Dec 01, 2010 2:24 am
Location: Oakdale, MN
Has thanked: 47 times
Been thanked: 9 times

Re: Finally getting around to building a clod

Post by SFC K »

Awesome build Jeff! Love the wheel inserts as well and will keep an eye out for them.
Jeff

User avatar
GoMachV
Approved Member
Posts: 11176
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 751 times
Been thanked: 2173 times

Re: Finally getting around to building a clod

Post by GoMachV »

I’ve listed some on eBay already, but if anyone needs em it’s always best to reach out directly and save some dough 8) When I find the time I’ll list some other styles I have done but haven’t had time to market yet
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
GoMachV
Approved Member
Posts: 11176
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 751 times
Been thanked: 2173 times

Re: Finally getting around to building a clod

Post by GoMachV »

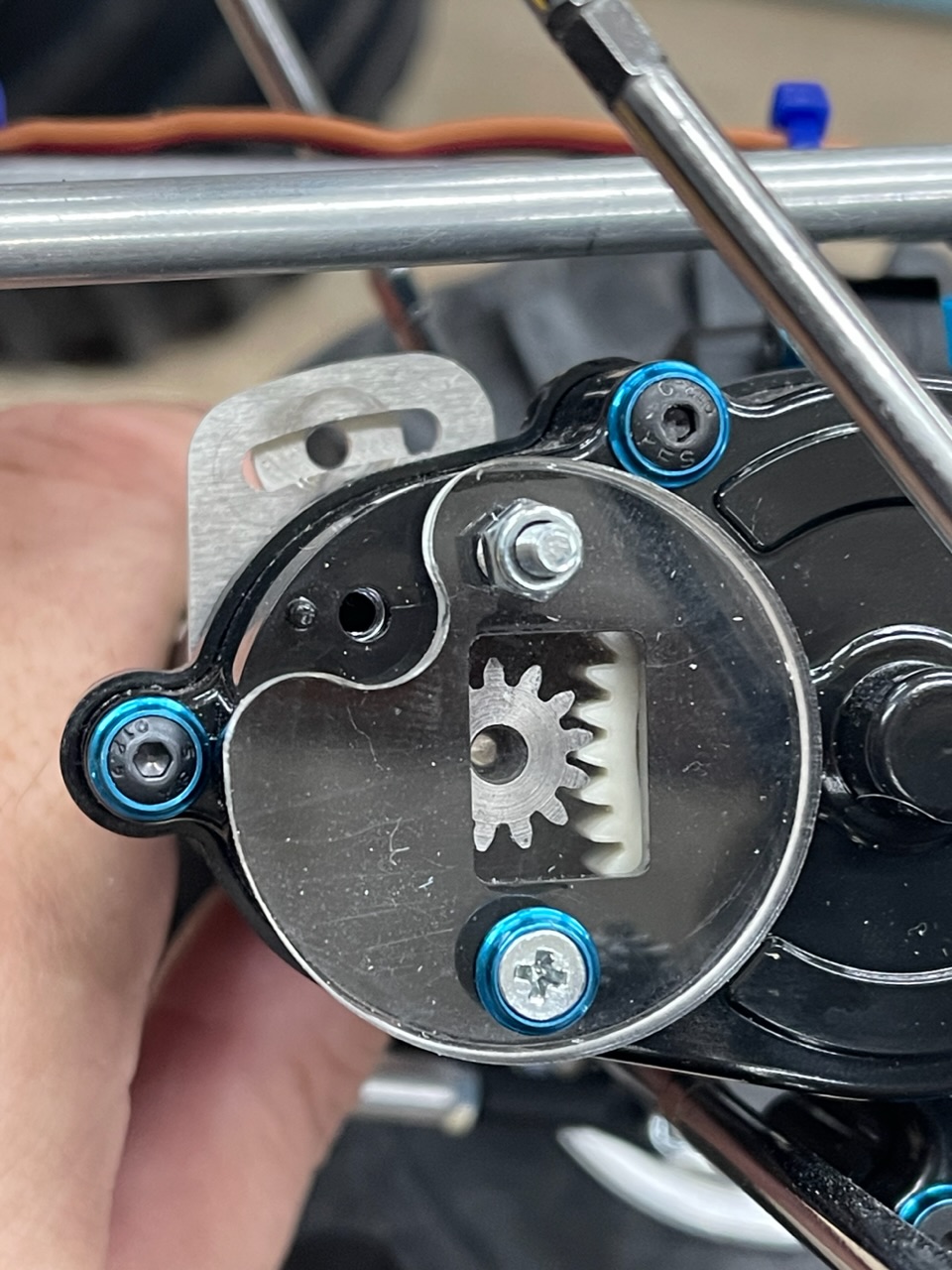

I also forgot to show the motor mount I’m working on. It’s down to finding proper hardware and the long flat head screws with nuts are just ugly to me. Functionally it works great I just have issue with the aesthetics. The clear cover makes mesh a breeze on these stock cases.
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
juicedcoupe
Super Member
Posts: 2916
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 224 times
Been thanked: 1687 times

Re: Finally getting around to building a clod

Post by juicedcoupe »

GoMachV wrote: Sun Jan 22, 2023 3:19 pm I also forgot to show the motor mount I’m working on. It’s down to finding proper hardware and the long flat head screws with nuts are just ugly to me. Functionally it works great I just have issue with the aesthetics. The clear cover makes mesh a breeze on these stock cases.
Do you have to be able to loosen it? Or is it locked in place on installation?

If its locked, maybe consider some type of threaded insert in the clear cover.
Always looking for new and interesting ways to waste money.

User avatar
GoMachV
Approved Member
Posts: 11176
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 751 times
Been thanked: 2173 times

Re: Finally getting around to building a clod

Post by GoMachV »

An insert would work- however after considering how that would go I almost think I could just pocket out for the nut to recess into the cover basically doing the same thing and retaining a locking fastener which I prefer. That would clean it up. Thanks!

Edit- I forgot- there are thick bosses that protrude from the case which is why there is a washer. Might be tricky to pocket a nut with that blown out hole
