16 guage novak esc wiring

Post by fleetwood472 »

Has anyone had any luck finding similar diameter wiring to the novak 16 guage wires in the Novak Rooster ESCs? I have 2 with really short wiring. I could splice on but it wouldnt look very good. Other 16 guage wire aeems to be too thick for the case and i didnt want to bore thw casing out. Thanks!

User avatar
Frankentruck
Super Member
Posts: 2427
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1456 times
Been thanked: 1631 times

Re: 16 guage novak esc wiring

Post by Frankentruck »

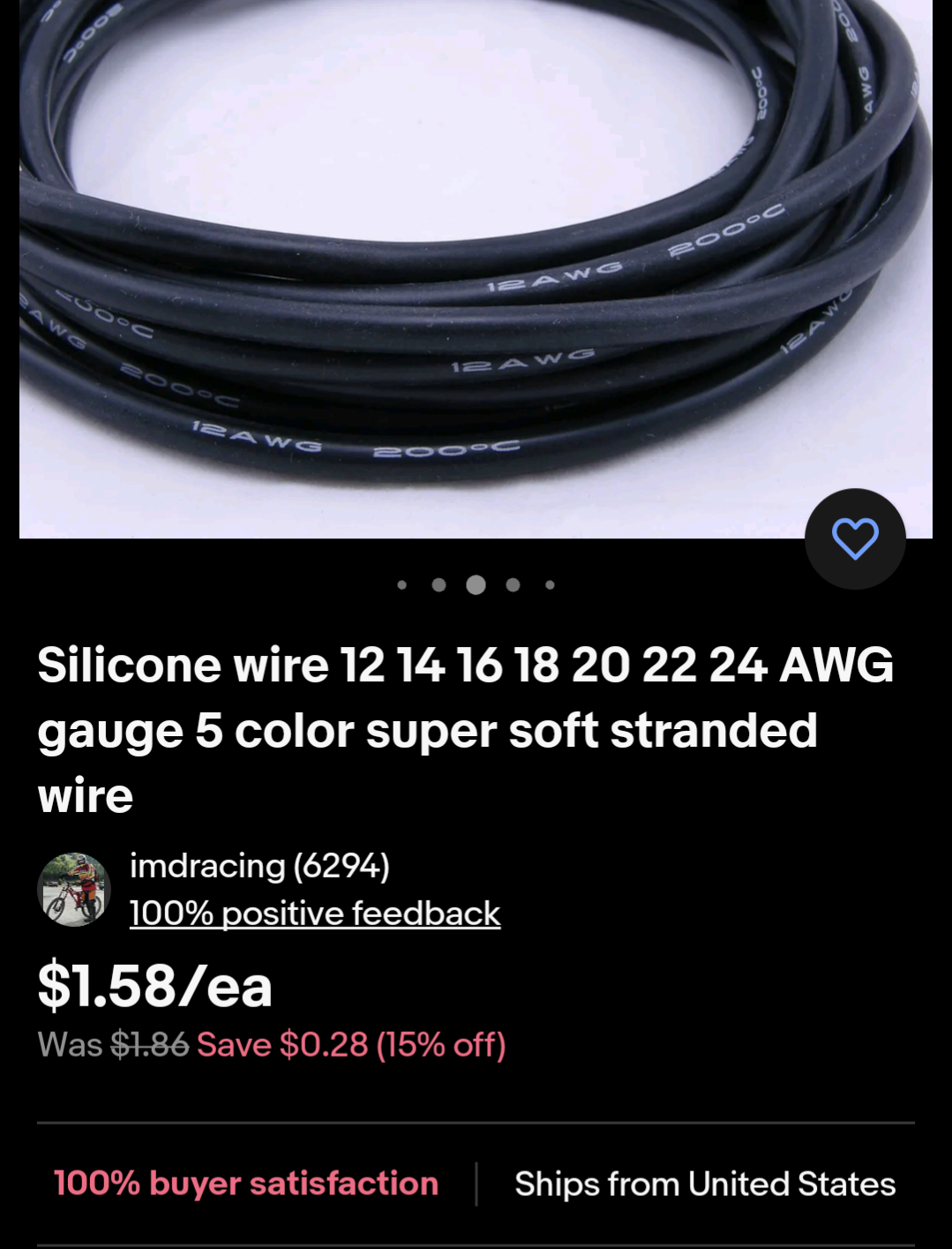

I've bought 14awg from this seller, but there is also 16awg available.
.
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

User avatar
radioactivity
Super Member
Posts: 787
Joined: Wed Jan 24, 2018 4:46 pm
Location: Dripping Springs Tx
Has thanked: 322 times
Been thanked: 477 times

Re: 16 guage novak esc wiring

Post by radioactivity »

Fleetwood

Deans Ultra wire would probably my first choice but they don't offer yellow wire in 16ga.

TQ wire does offer a couple 16ga wire kits that do include yellow.


Chuck
Hydrodip how to https://www.rc10talk.com/viewtopic.php?f=62&t=42727
When all you have is a hammer everything looks like a nail :wink:

User avatar
juicedcoupe
Super Member
Posts: 2914
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 224 times
Been thanked: 1684 times

Re: 16 guage novak esc wiring

Post by juicedcoupe »

Always looking for new and interesting ways to waste money.

fleetwood472
Regular Member
Posts: 25
Joined: Thu Jan 17, 2013 12:12 am
Has thanked: 3 times
Been thanked: 3 times

Re: 16 guage novak esc wiring

Post by fleetwood472 »

Frankentruck wrote: Tue Feb 14, 2023 9:13 pm I've bought 14awg from this seller, but there is also 16awg available.
.
Thanks! I am going to try them I looked them up amd saw thry also have blue and yellow which should be perfect.

fleetwood472
Regular Member
Posts: 25
Joined: Thu Jan 17, 2013 12:12 am
Has thanked: 3 times
Been thanked: 3 times

Re: 16 guage novak esc wiring

Post by fleetwood472 »

juicedcoupe wrote: Tue Feb 14, 2023 9:47 pm https://www.amainhobbies.com/yeah-racing-silicone-wire-set-red-black-blue-3-1.9-16awg-yea-wpt-0032/p1451384?v=1358961

I've used this on several Novak esc's but no yellow either.
Those will be perfect for my 410 esc. Thanks!

User avatar
juicedcoupe
Super Member
Posts: 2914
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 224 times
Been thanked: 1684 times

Re: 16 guage novak esc wiring

Post by juicedcoupe »

Here it is on a T4, with is tighter than a 410.
Screenshot_20230214_160820_Samsung Internet.jpg
Always looking for new and interesting ways to waste money.

fleetwood472
Regular Member
Posts: 25
Joined: Thu Jan 17, 2013 12:12 am
Has thanked: 3 times
Been thanked: 3 times

Re: 16 guage novak esc wiring

Post by fleetwood472 »

That looks great. How did everything fit? Did you have to open up the case any for the wire to fit?

User avatar
juicedcoupe
Super Member
Posts: 2914
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 224 times
Been thanked: 1684 times

Re: 16 guage novak esc wiring

Post by juicedcoupe »

fleetwood472 wrote: Tue Feb 14, 2023 10:15 pm That looks great. How did everything fit? Did you have to open up the case any for the wire to fit?
No. But some of the wires in a T4 have sharp turns.

I've repaired the wires on a couple 410-M5's, which were easier to work with.
Always looking for new and interesting ways to waste money.

fleetwood472
Regular Member
Posts: 25
Joined: Thu Jan 17, 2013 12:12 am
Has thanked: 3 times
Been thanked: 3 times

Re: 16 guage novak esc wiring

Post by fleetwood472 »

One other thing I was going to ask is has anyone had any luck finding switches that are close to stock replacements. Ive seen some replacements for the smaller novak switches but any luck on the larger ones?

User avatar
juicedcoupe
Super Member
Posts: 2914
Joined: Sun Aug 16, 2020 8:05 pm
Location: Pascagoula, MS
Has thanked: 224 times
Been thanked: 1684 times

Re: 16 guage novak esc wiring

Post by juicedcoupe »

Tekin makes a switch that has a vintage look.

Hobbywing switches can be used as well but obviously aren't vintage.

Yeah Racing has a waterproof switch that doesn't look out of place.

The common inline switches can be rewired. They are bigger than the large Novak switches, more like those used on Futaba esc's.
Always looking for new and interesting ways to waste money.

Mark Westerfield
Approved Member
Posts: 340
Joined: Wed Apr 23, 2008 1:32 pm
Location: Connecticut, USA
Has thanked: 11 times
Been thanked: 24 times

Re: 16 guage novak esc wiring

Post by Mark Westerfield »


fleetwood472
Regular Member
Posts: 25
Joined: Thu Jan 17, 2013 12:12 am
Has thanked: 3 times
Been thanked: 3 times

Re: 16 guage novak esc wiring

Post by fleetwood472 »

Thanks guys! Its awesome that there are some really close matches for these parts out there!
