some drivetrain comparisons between Samurai and Dolphin

Post by GoMachV »

I've seen it mentioned that the drivetrain of the Aristocraft Dolphin is compatible with the Samurai. Since I am currently rebuilding a Samurai and needed a few things I ordered a Dolphin gear set and front diff.

I'll keep the Dolphin parts on the right and Samurai on the left

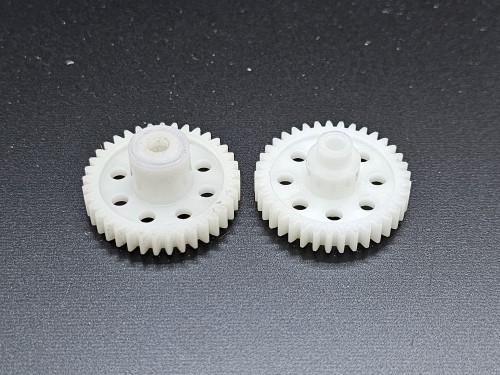

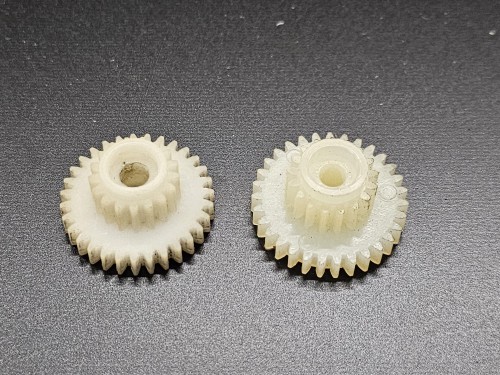

First thing I found is that the idlers seem to be totally compatible.

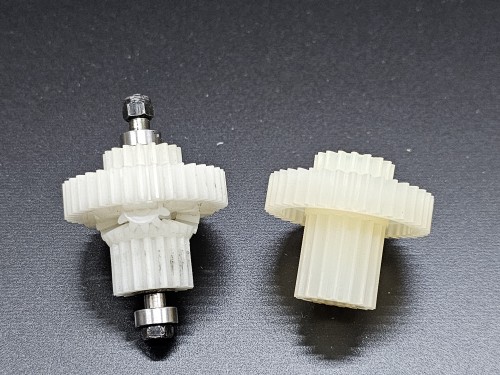

The Dolphin lacks a center diff, but I believe the cluster gear would be a perfect substitute if you were desperate or wanted to lock it up

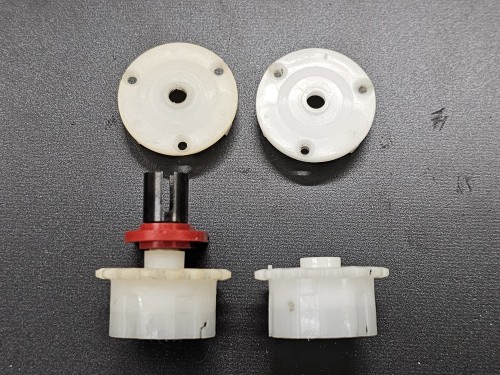

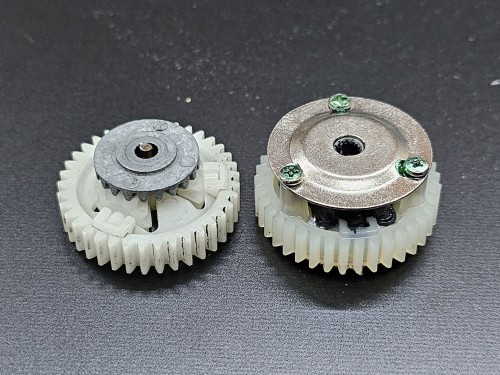

The diff in the bag I bought is from the later upgraded dolphin, and is substantially wider than the samurai. I do not know if the older version was the same or not. So this part is incompatible at least with the reinforcement plates installed.

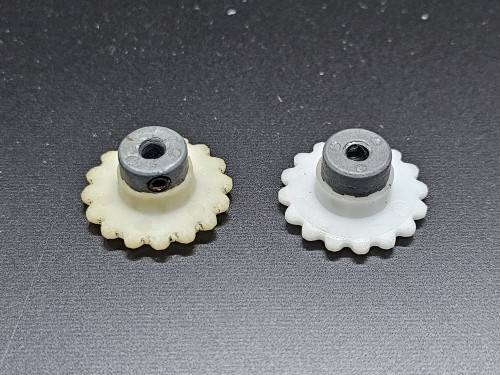

Next up is the sprocket and adapter, and these are identical

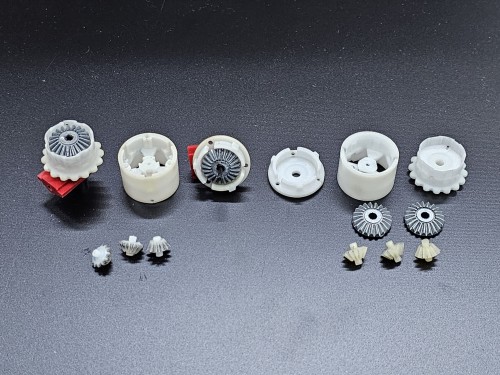

Lastly, the front diff. The long output shaft is longer on the Dolphin by a couple mm. The short one appears to be the same. The plastics are usable but you will need to shim up the long side approx 1mm and shave off the flange on the short side. I needed this as my front diff had some issues and it worked very well.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
silvertriple
Approved Member
Posts: 1732
Joined: Sun May 02, 2021 2:31 pm
Location: France, Isere
Has thanked: 614 times
Been thanked: 931 times

Re: some drivetrain comparisons between Samurai and Dolphin

Post by silvertriple »

I had some NIP packs of Marui and Aristocraft parts...
You may add the small bevel gears are technically identical. The color slightly differs, but you can drop in the bevel gears from Aristocraft in a Samurai diff (of Ninja/Shogun/Coors except the two later ones were metal ones) and vice versa.
I've never seen a diff mounted, but the NIP I got are including a Diff gear which is similar to the Samurai rear diff (maybe first version).
I buy kits to build and ru(i)n them :-)

Dadio
Approved Member
Posts: 3906
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2352 times
Been thanked: 2017 times

Re: some drivetrain comparisons between Samurai and Dolphin

Post by Dadio »

Looking at the parts next to each other does it look like they came from the same molds ?
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

User avatar
GoMachV
Approved Member
Posts: 11431
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 854 times
Been thanked: 2586 times

Re: some drivetrain comparisons between Samurai and Dolphin

Post by GoMachV »

I'd say no, while very similar there are some differences including where the sprues attach. They are very well copied though, just adjusting for their own design like the offset of the front diff.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
silvertriple
Approved Member
Posts: 1732
Joined: Sun May 02, 2021 2:31 pm
Location: France, Isere
Has thanked: 614 times
Been thanked: 931 times

Re: some drivetrain comparisons between Samurai and Dolphin

Post by silvertriple »

Well... They may have used the original Marui design. Likely modify the original parts and build a mould for it. As long as you have working design, conical bevel gears are defined by 3 things mainly : Number of teeth input, numer of teeth output and the mod. Everything else is defined from there. You could argue the pressure angle is part of the equation, but most of the times the default pressure angle is used.

But here it is very clear when you look at the parts that the design was done using the Marui design as a basis (too much similarities between the parts to be a coincidence...
I buy kits to build and ru(i)n them :-)

Dadio
Approved Member
Posts: 3906
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2352 times
Been thanked: 2017 times

Re: some drivetrain comparisons between Samurai and Dolphin

Post by Dadio »

The design of the whole Dolphin leans very heavily on the Samurai , the modular layout of components is the same , even the mounting of the bumper is the same design , the rear gearbox (disregarding quality control) may actually be better .
I think the question that's been most often asked is was there any cooperation or purchase of rights involved or was it just design theft ?
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

Dadio
Approved Member
Posts: 3906
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2352 times
Been thanked: 2017 times

Re: some drivetrain comparisons between Samurai and Dolphin

Post by Dadio »

The design of the whole Dolphin leans very heavily on the Samurai , the modular layout of components is the same , even the mounting of the bumper is the same design , the rear gearbox (disregarding quality control) may actually be better ?
I think the question that's been most often asked is was there any cooperation or purchase of rights involved or was it just design theft ?
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.
