RC10T 3D printed rear bulkhead

General discussion, builds/restorations, etc...

Moderators: scr8p, klavy69

rdnether
Regular Member
Posts: 29
Joined: Wed Jan 04, 2012 2:34 pm
Has thanked: 4 times
Been thanked: 3 times

RC10T 3D printed rear bulkhead

Post by rdnether »

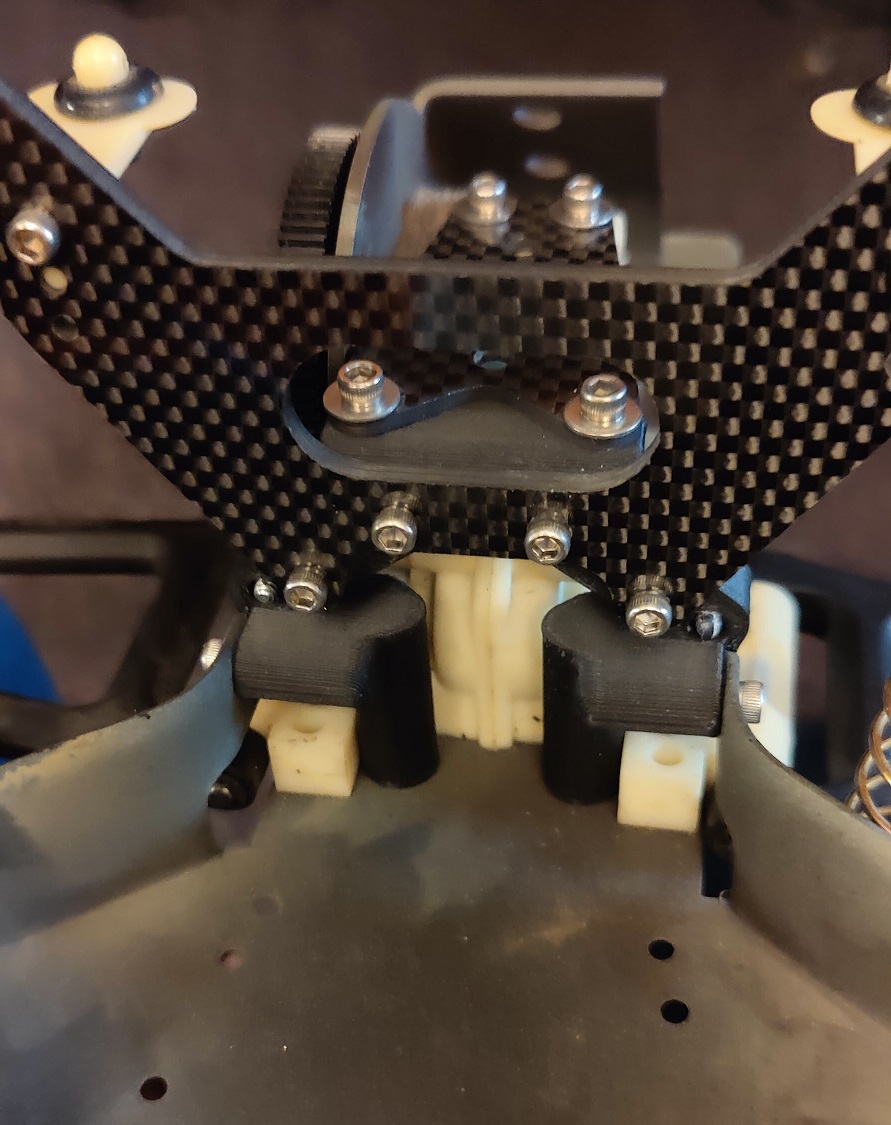

I just finished the design of a 3D printed rear bulkhead for my RC10T. I printed it using carbon fiber infused ABS. The original bulkhead weighted in at 25g, this printed part weighted in at 9g without the brass threaded inserts, 13 with the inserts. Everything seems to work fine, I suspect that it will be stronger than the original part.

User avatar
Frankentruck
Super Member
Posts: 2290
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 1364 times
Been thanked: 1493 times

Re: RC10T 3D printed rear bulkhead

Post by Frankentruck »

Very cool bulkhead! Nice job! Interesting choice of material too.
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

Dadio
Approved Member
Posts: 3770
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2105 times
Been thanked: 1895 times

Re: RC10T 3D printed rear bulkhead

Post by Dadio »

Nicely made part , I did try ABS CF and was never really sure if the CF brought anything to the party , it tends to make things stiffer but ABS is pretty stiff already , looks very pretty though and is easier to print than regular ABS .
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

rdnether
Regular Member
Posts: 29
Joined: Wed Jan 04, 2012 2:34 pm
Has thanked: 4 times
Been thanked: 3 times

Re: RC10T 3D printed rear bulkhead

Post by rdnether »

Dadio wrote: Fri Jan 12, 2024 6:38 pm Nicely made part , I did try ABS CF and was never really sure if the CF brought anything to the party , it tends to make things stiffer but ABS is pretty stiff already , looks very pretty though and is easier to print than regular ABS .
I cannot say definitively that the CF makes the part stronger. I have had good luck with the filament and it prints great!
Thanks for the comment!

JosephS
Approved Member
Posts: 1398
Joined: Thu Mar 23, 2017 9:31 pm
Has thanked: 935 times
Been thanked: 398 times

Re: RC10T 3D printed rear bulkhead

Post by JosephS »

That is a great looking part.

dragos243
Regular Member
Posts: 2
Joined: Thu Aug 17, 2017 11:00 am
Has thanked: 1 time
Been thanked: 1 time

Re: RC10T 3D printed rear bulkhead

Post by dragos243 »

Great looking print! Are you using M3 fasteners now? Will you sell / share the design?

rdnether
Regular Member
Posts: 29
Joined: Wed Jan 04, 2012 2:34 pm
Has thanked: 4 times
Been thanked: 3 times

Re: RC10T 3D printed rear bulkhead

Post by rdnether »

dragos243 wrote: Sat Jan 20, 2024 10:37 pm Great looking print! Are you using M3 fasteners now? Will you sell / share the design?
Thanks for the comment!

Most are 4-40 inserts:


The bottom two are 8-32 inserts:


I have a few tweaks that need to be made before I make it available.

Thanks!

User avatar
Bottom Feeder
Approved Member
Posts: 313
Joined: Wed Nov 06, 2013 4:30 pm
Location: Virginia
Has thanked: 5 times
Been thanked: 23 times

Re: RC10T 3D printed rear bulkhead

Post by Bottom Feeder »

Are the brass inserts necessary?
