Gomachv's 4wd RC10 project- finished!

General discussion, builds/restorations, etc...

Moderators: scr8p, klavy69

Post Reply
User avatar
Phin
Approved Member
Posts: 2733
Joined: Tue Feb 21, 2012 5:17 pm
Location: NY²
Has thanked: 64 times
Been thanked: 186 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by Phin »

gomachv wrote:That would be a very expensive way to go, McMaster Carr and sdp are better sources once I sit down and determine size
If you're looking to attach the pulley to the inside slipper plate this should work:

http://www.ebay.com/itm/X-Ray-XRA-335010-Front-Diff-Case-27T-Pulley-/160458212619?pt=Radio_Control_Parts_Accessories&hash=item255c0e050b

...or if you want aluminum:

http://www.ebay.com/itm/3Racing-Aluminum-Front-Pulley-32T-For-Kyosho-V-One-RR-/150983626740?pt=Radio_Control_Parts_Accessories&hash=item2327534ff4


The inside hole on these are 12mm and the screw holes that attach them to their diffs are approx. where spur gear screw holes are on a slipper. Though it shouldn't really matter if the screw holes are off since you'll have to drill new holes in the inner slipper plate anyway, no?

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

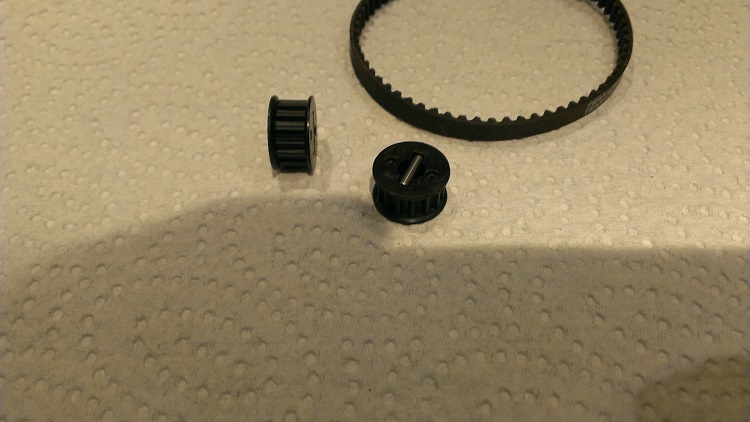

Those are getting close but the outside diameter is a bit large- I don't think I could run trans spacers! The size I'm aiming for is closer to a rampage timing pulley
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
DennisM
Approved Member
Posts: 2403
Joined: Sun Feb 26, 2012 7:07 am
Location: Denmark
Has thanked: 30 times
Been thanked: 64 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by DennisM »

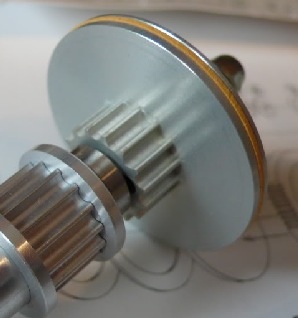

I don´t know if these are any smaller - Kyosho´s and fit a 5mm shaft?
Attachments
Belt pulley 003.jpg
Gone fishing

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

Those may be a bit too small hard to tell...what are they from?

The center hole will be bored to 3/8", so as long as there is some "meat" left...

I would love to have a pulley and inner slipper hub machined as one. After a proof of concept that is what I would like to do
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
Phin
Approved Member
Posts: 2733
Joined: Tue Feb 21, 2012 5:17 pm
Location: NY²
Has thanked: 64 times
Been thanked: 186 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by Phin »

Doh! Forgot about the trans spacer. :?

Could do like the SC10 does and mount the motor plate flush to the trans case...without spacers. Motor plate will need some new screw holes where it attaches to the chassis and some filing where the motorplate meets the case over the outdrives.

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 2:44 pm
Location: USA
Been thanked: 8 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by Charlie don't surf »

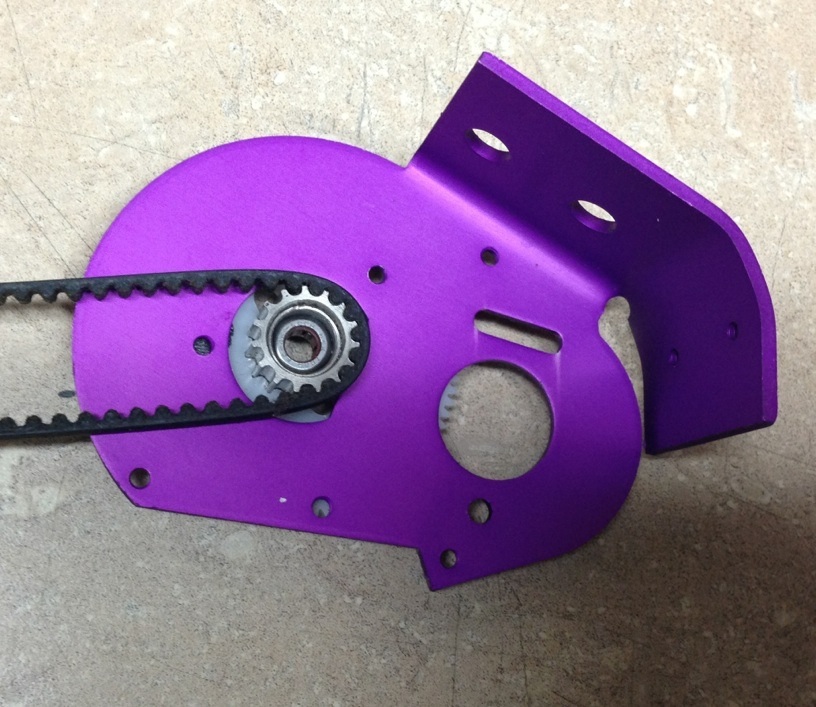

The Yokomo TCS backplate has the inner slipper hub and 3mm sprocket in one part-

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

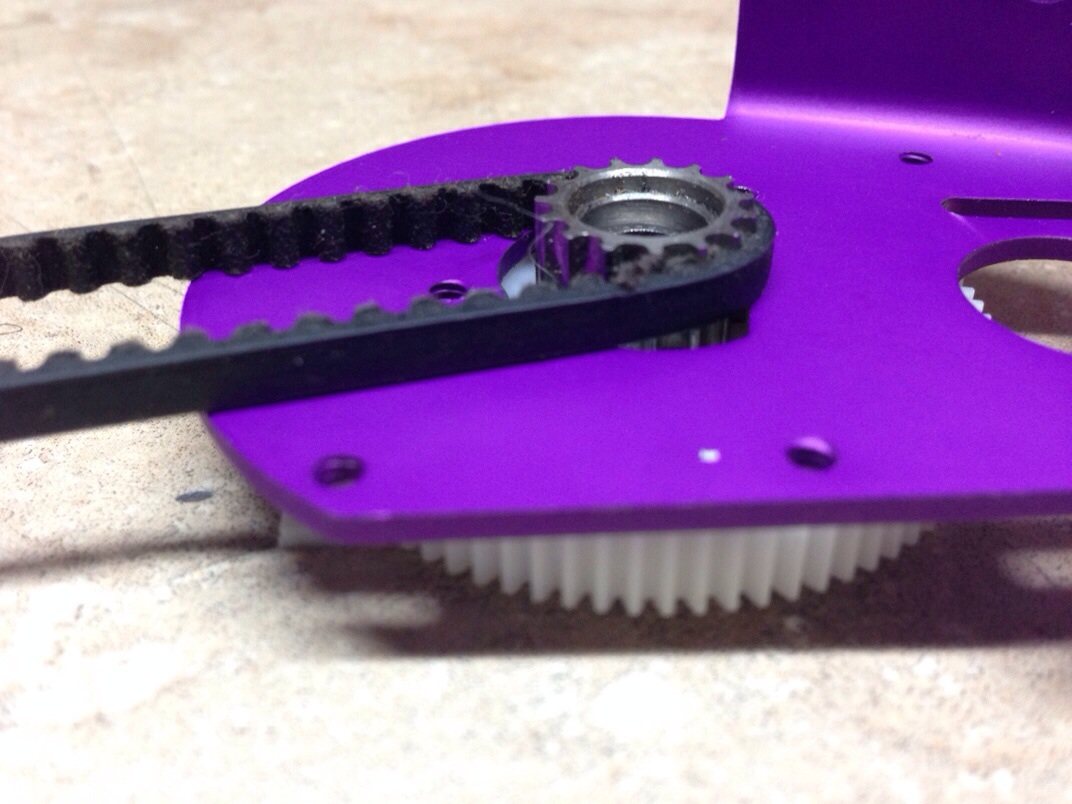

Thanks Reggie, that's the exact idea I was having....now where did that Jake guy go :mrgreen: :lol:
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 2:44 pm
Location: USA
Been thanked: 8 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by Charlie don't surf »

The TCS one-way would be going the wrong direction to work, sadly- but a solid YZ-10 unit should work. Is be happy to send you the parts (and some belts) to try-

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

I was thinking my application may be wrong for the actual part but the idea is perfect. If love to borrow one to have a look

While I am working on this portion, what is the most ideal for all around- front slipper, front oneway, both, or solid. I assume solid is best for being easy to drive but probably lacks on the track compared to a oneway. Not sure if a front slipper is necessary, why did MIP go to one?
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
DennisM
Approved Member
Posts: 2403
Joined: Sun Feb 26, 2012 7:07 am
Location: Denmark
Has thanked: 30 times
Been thanked: 64 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by DennisM »

DennisM wrote:I don´t know if these are any smaller - Kyosho´s and fit a 5mm shaft?

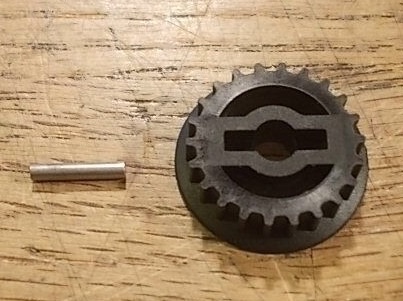

It´s from the D´agostino Ferrari

Flipped input shaft at the front and a longer one at the rear?
I can have them on the way to You in the morning. It´s just a stamp and I´ve got more than one set.
Gone fishing

Charlie don't surf
Approved Member
Posts: 8921
Joined: Tue Apr 08, 2008 2:44 pm
Location: USA
Been thanked: 8 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by Charlie don't surf »

gomachv wrote:I was thinking my application may be wrong for the actual part but the idea is perfect. If love to borrow one to have a look

While I am working on this portion, what is the most ideal for all around- front slipper, front oneway, both, or solid. I assume solid is best for being easy to drive but probably lacks on the track compared to a oneway. Not sure if a front slipper is necessary, why did MIP go to one?
The belt cars seem to work better with a one-way, or clicker- otherwise they skip under braking, and they lack a "solid" drive train connection IMO. Not to sure on the 4-10 front slipper set-up, but Aaron would know-
depending on the spacing of the Yokie one-way unit it could still work and the TCS and solid pulley can have the same tooth count as the back-plate, so no under/overdrive-

PM me your address, and get me a measurement in mm from "center to center" of the topshafts, and I'll see if I have a belt that might fit-

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

Charlie don't surf wrote:
PM me your address, and get me a measurement in mm from "center to center" of the topshafts, and I'll see if I have a belt that might fit-
I will PM you as well, but just in case anyone wondered- it's 266mm from shaft to shaft
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

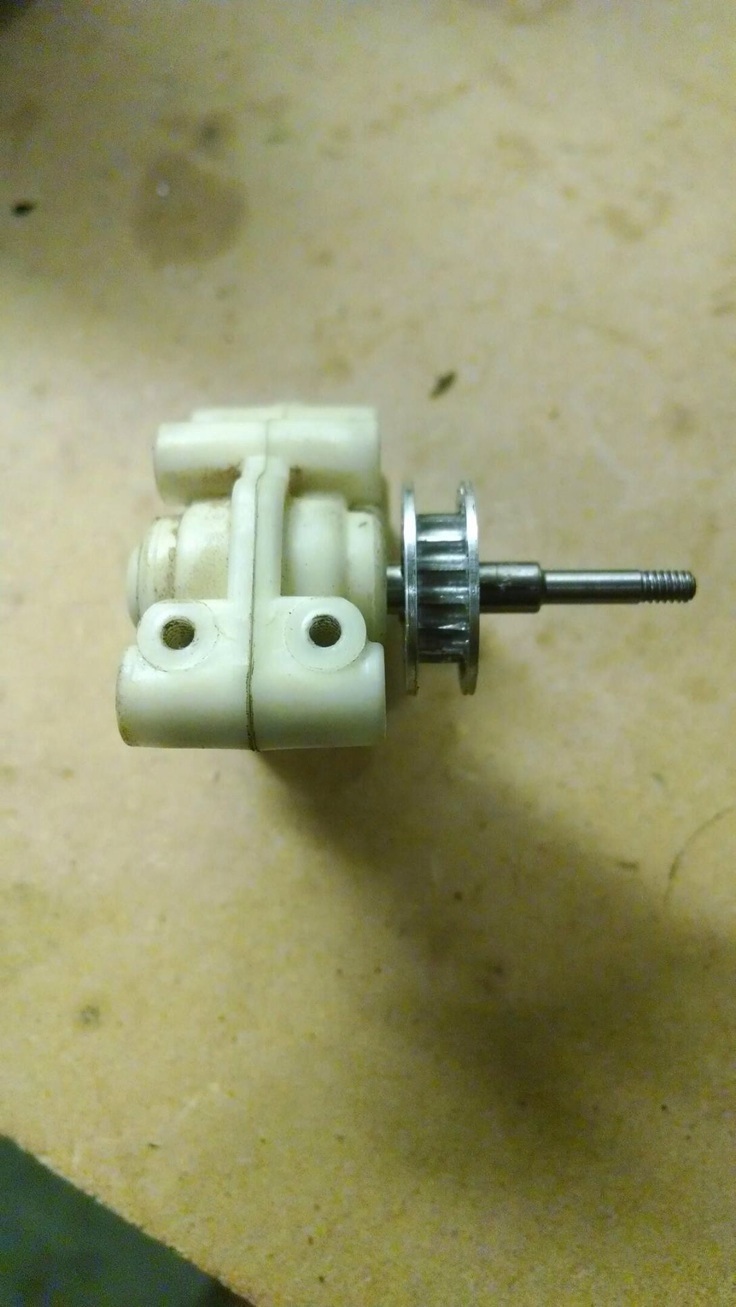

Here is a dirty mock up with a yz10 Robinson cluster, perfect pulley diameter at 13.5mm and 15t. Misses the stealth standoffs and wouldn't even need to trim the motor plate. The belt length with this pulley is around 574.5mm
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
GoMachV
Super Member
Posts: 11352
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2459 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by GoMachV »

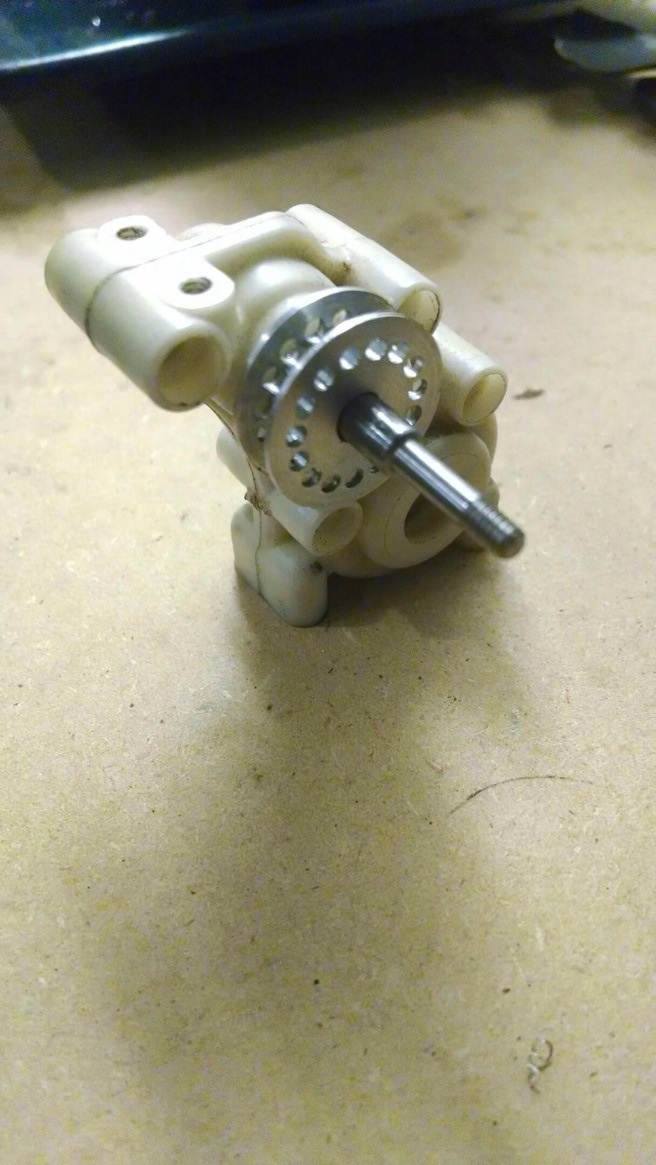

Lookie Lookie what Jake whipped up 8)

This is the front pulley, the rear has the slipper backplate

Very nice work Seabass! Very Mipetish 8)
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
Seabass
Business Member
Posts: 1402
Joined: Mon Jul 27, 2009 8:34 pm
Location: Mississippi
Been thanked: 12 times

Re: Gomachv's 4wd RC10 project, still unnamed and unproven

Post by Seabass »

This is going to be a pretty sweet build that should work great. You will be required to take video of the car for us though :mrgreen:
