Tamiya Madcap barn find!

Post by K1W1 »

OK, so not quite a barn find, but giving the condition it is in, I felt the title was appropriate!

I've owned this Madcap since new - I'm not sure of the year - but it was a Christmas present from my parents sometime in the early Nineties. After owning (and destroying) a multitude of RC cars, mum and dad finally caved and agreed to get me a real RC car. I still remember going to the model shop with dad, and picking out the Madcap. I was given the kit a few days before Christmas in order to allow me to build it up in time for Christmas day. As far as I can remember, 14 year old me built it mostly by myself. My memory is a little hazy as to when I got the first drive, but I remember it was a dark evening (possibly Christmas Eve), when I finally got to thrash it about until the battery went flat! Good times!
The paint was originally highlighter yellow (no idea why I chose that colour - it was the Nineties remember!), but I think I cheaped out on the paint, which is why the shell is now clear. Somewhere along the line I peeled off the decals (again, no idea why). The car received an absolute hiding in my hands - my weekends were spent building ramps and jumps and performing stunts and the odd bit of circle work - usually resulting in the car ending up on it's roof - which explains why I went through so many heat sinks - and why the rear spoiler has been fashioned out of an ice cream container. Any yes, those are teeth marks in it...
The car has sat untouched for years, and aside from the dodgy body mods, the only upgrade I ever did was to splash out on a fast charger - because waiting 12 hours between drives was never fun!
Now the time has come to restore the Madcap to it's former glory, but I'm a little unsure on where to start... I figure a strip down, clean and rebuild is in order, but I'd like also to upgrade to an electronic speed controller (I always wanted one - but they we're soooo expensive back in the day!). I also have a new bodyshell from TBG, which I intend to paint (along with the current shell) in the original colours, and add some repro decals.
I have no intention racing the car, just wanna relive the good old days and thrash it about. Any tips for the rebuild and update would be greatly appreciated!
Attachments
Tamiya Madcap_4.jpg
Tamiya Madcap_3.jpg
Tamiya Madcap_2.jpg
Tamiya Madcap_1.jpg
Tamiya Madcap.jpg

User avatar
jeekelemental
Approved Member
Posts: 48
Joined: Tue Dec 16, 2008 10:51 am
Location: Caorle - Venice - Veneto
Has thanked: 39 times
Been thanked: 12 times

Re: Tamiya Madcap barn find!

Post by jeekelemental »

Looks dusty but not bad... 8)
"Flagellum Dei"
Powered by Flux Capacitor

tamiyadan
Approved Member
Posts: 1697
Joined: Wed Apr 07, 2010 8:45 pm
Been thanked: 6 times

Re: Tamiya Madcap barn find!

Post by tamiyadan »

.

User avatar
jkelm24
Approved Member
Posts: 375
Joined: Fri Nov 16, 2012 3:03 am
Location: Portland, Or
Has thanked: 16 times
Been thanked: 77 times

Re: Tamiya Madcap barn find!

Post by jkelm24 »

Doesn't the A&L Lethal Weapon trans fit the Mad Cap too?

http://vintageteamaandl.com/

Maybe not a consideration if you're sticking with the stock can motor. But if you want more power, you'll want to give the transmission some attention.

User avatar
GoMachV
Approved Member
Posts: 11125
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 736 times
Been thanked: 2114 times

Re: Tamiya Madcap barn find!

Post by GoMachV »

It uses an adapter under the suspension mounts. Might fit with a little work. Bigger problem is I’m about out of em!
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
Lonestar
Approved Member
Posts: 4270
Joined: Wed Dec 12, 2007 10:17 am
Location: Switzerland, yannow, in Europe (or almost)
Has thanked: 620 times
Been thanked: 165 times

Re: Tamiya Madcap barn find!

Post by Lonestar »

Childhood memories - awesome find :)

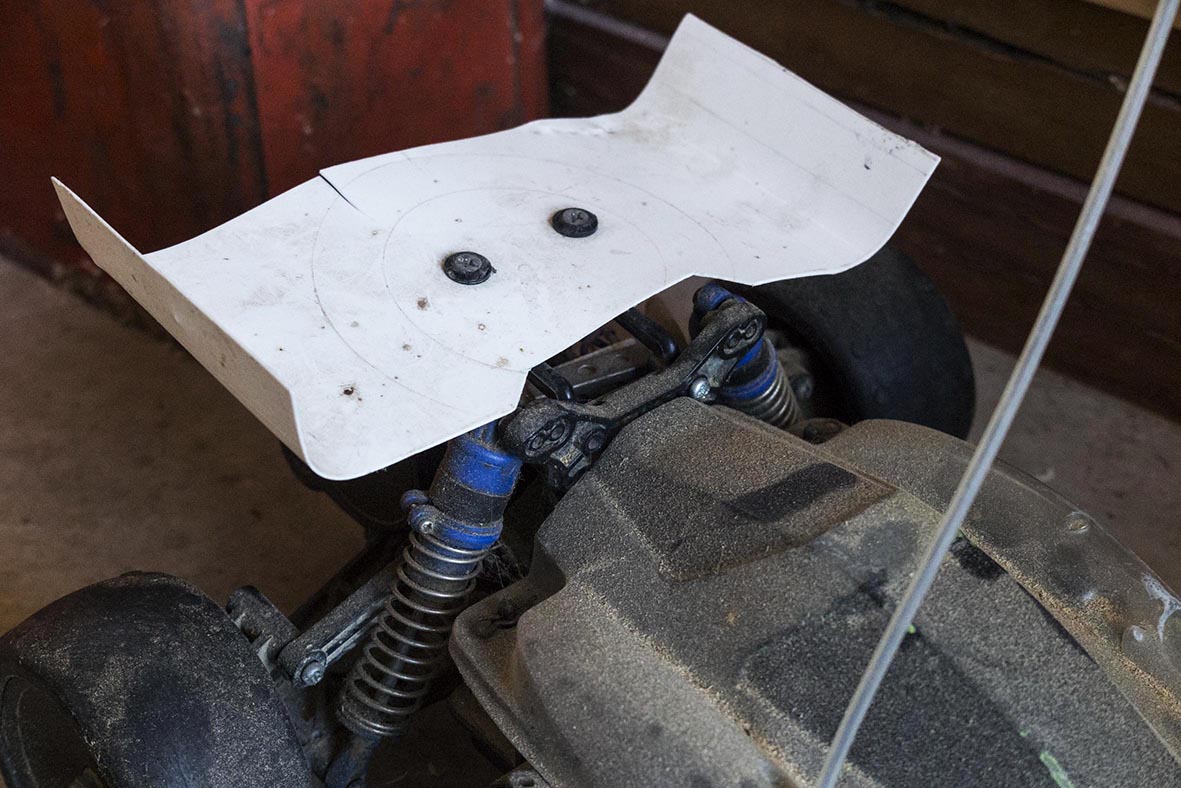

Should restore nicely! keep that wing... it's part of the DNA of that runner :)
AE RC10 - Made In The Eighties, Loved By The Ladies.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.

User avatar
Coelacanth
Approved Member
Posts: 7342
Joined: Thu Jul 29, 2010 10:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 265 times

Re: Tamiya Madcap barn find!

Post by Coelacanth »

Lonestar wrote: Fri Sep 22, 2017 8:01 am Childhood memories - awesome find :)

Should restore nicely! keep that wing... it's part of the DNA of that runner :)

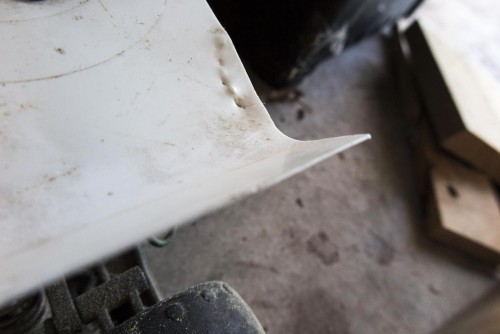

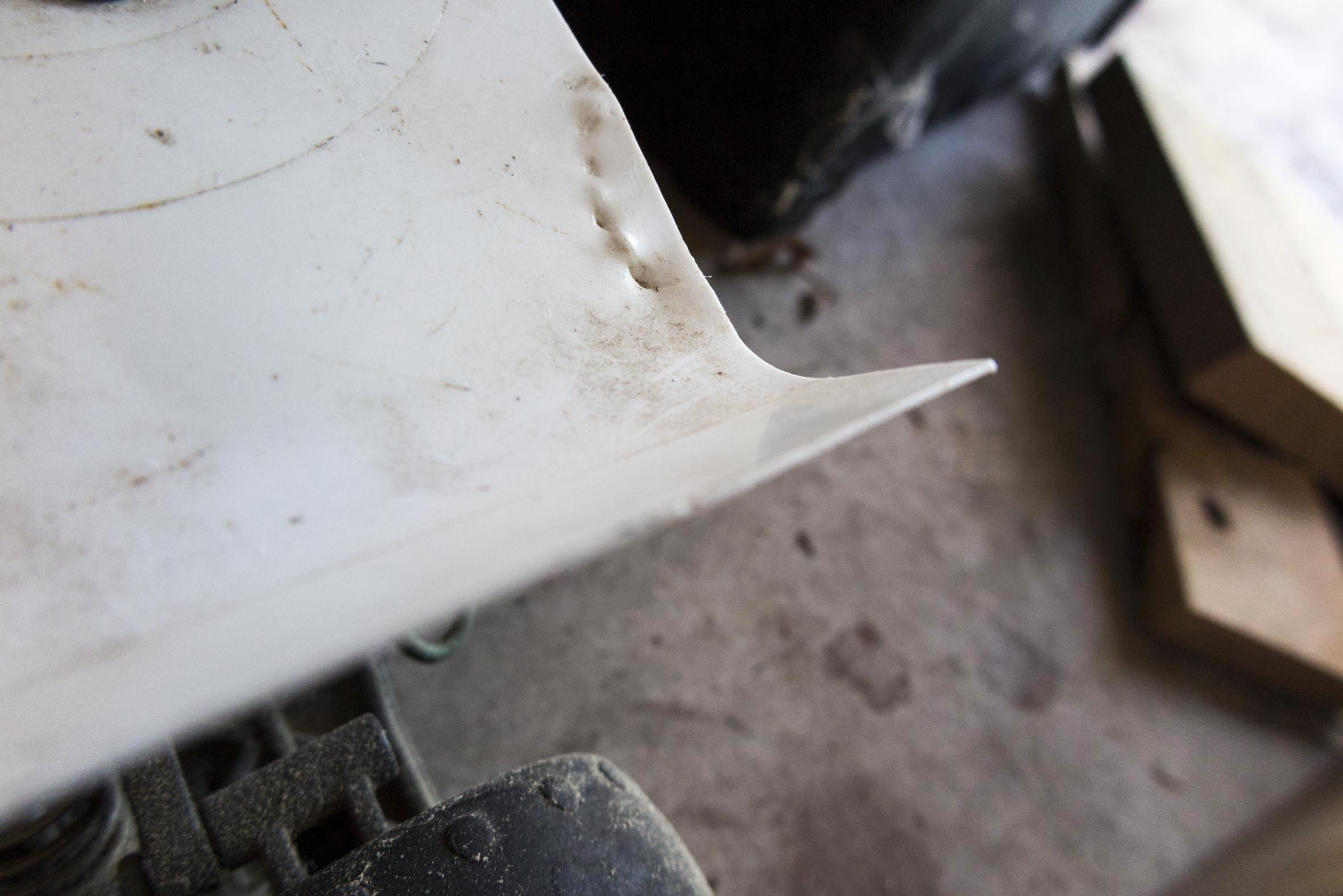

And with the bite marks, the DNA is also part of the wing. :P
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
jkelm24
Approved Member
Posts: 375
Joined: Fri Nov 16, 2012 3:03 am
Location: Portland, Or
Has thanked: 16 times
Been thanked: 77 times

Re: Tamiya Madcap barn find!

Post by jkelm24 »

Raise your hand if you used your RC to torment your childhood dog. Comedy!

I remember my childhood wiener dog, Barkley, loosing his mind while chasing my Hornet, then Raider, then Blackfoot, then RC10, then Nitro Hawk as a kid. Poor guy hated those things! But they gave him great exercise in the yard! :lol:

K1W1
Regular Member
Posts: 7
Joined: Thu Sep 21, 2017 12:55 am
Location: Auckland, New Zealand

Re: Tamiya Madcap barn find!

Post by K1W1 »

Thanks for the replies and tips. I will post some more pics once I crack into the teardown!

K1W1
Regular Member
Posts: 7
Joined: Thu Sep 21, 2017 12:55 am
Location: Auckland, New Zealand

Re: Tamiya Madcap barn find!

Post by K1W1 »

Here's a quick video I made showing the teardown process.
https://youtu.be/uy5wN04CBis

K1W1
Regular Member
Posts: 7
Joined: Thu Sep 21, 2017 12:55 am
Location: Auckland, New Zealand

Re: Tamiya Madcap barn find!

Post by K1W1 »

Update time!
So I've stripped the car down ready for a big clean - here's pics of the process...

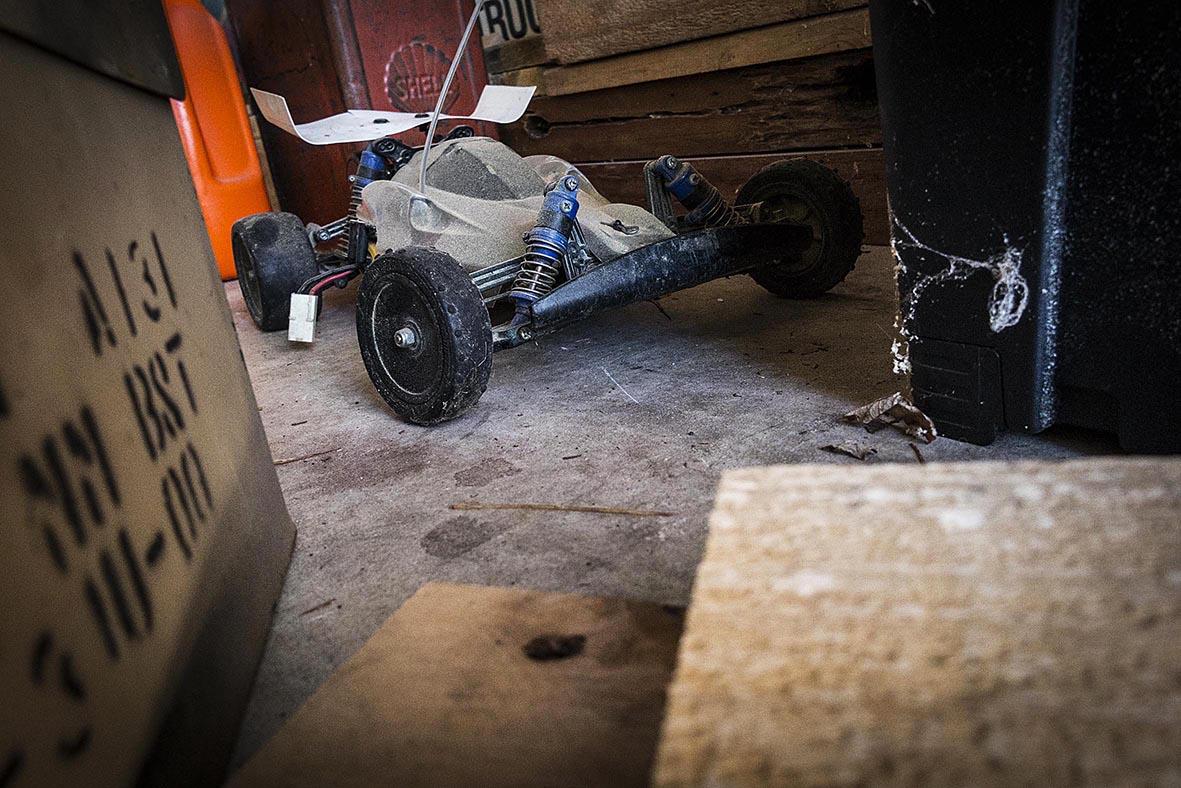

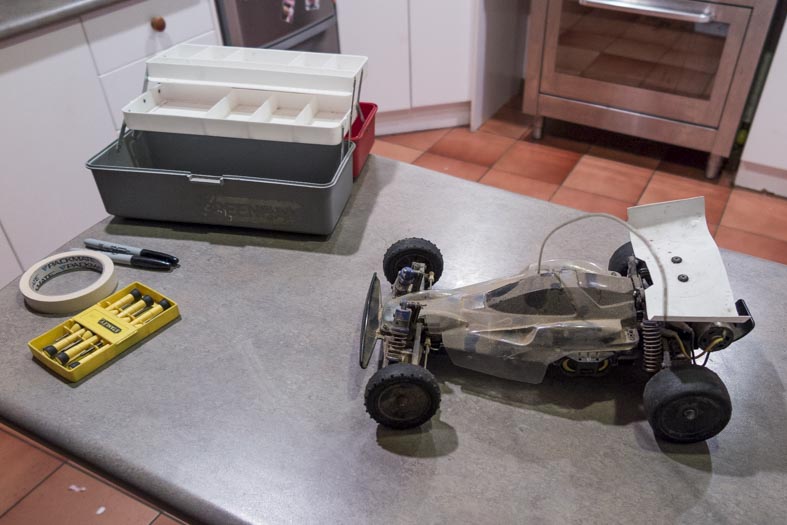

Before:
Madcap-before strip down.jpg

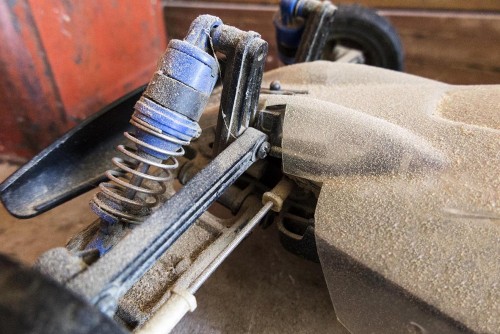

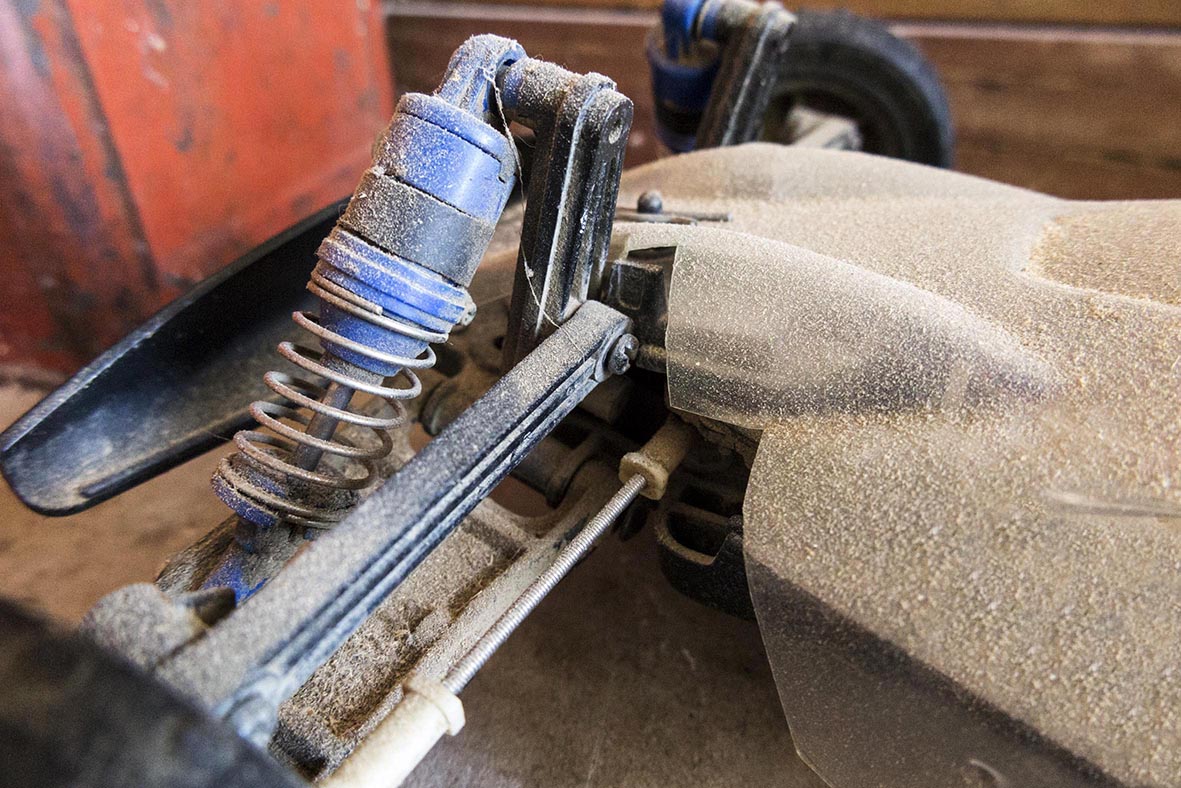

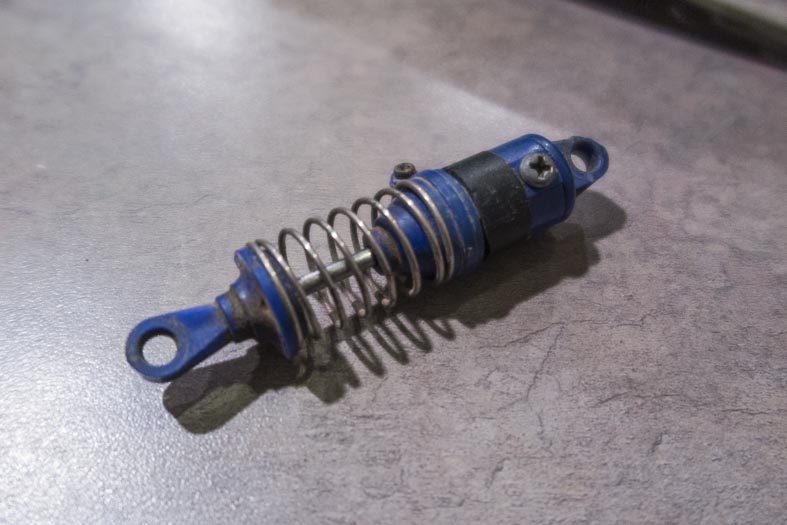

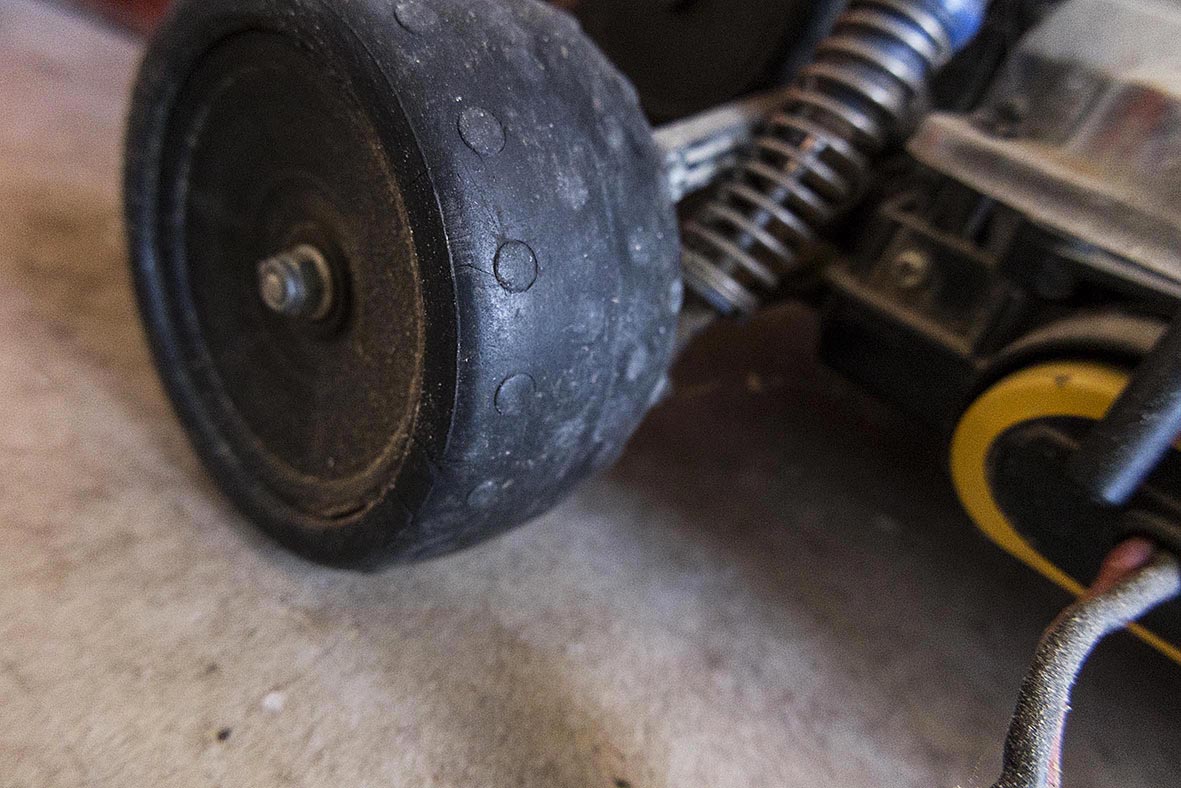

Old shocks: yep, that is a piece of garden hose on there!

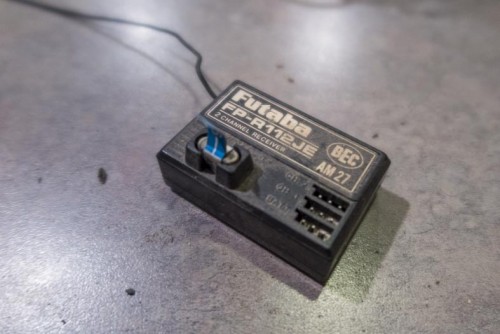

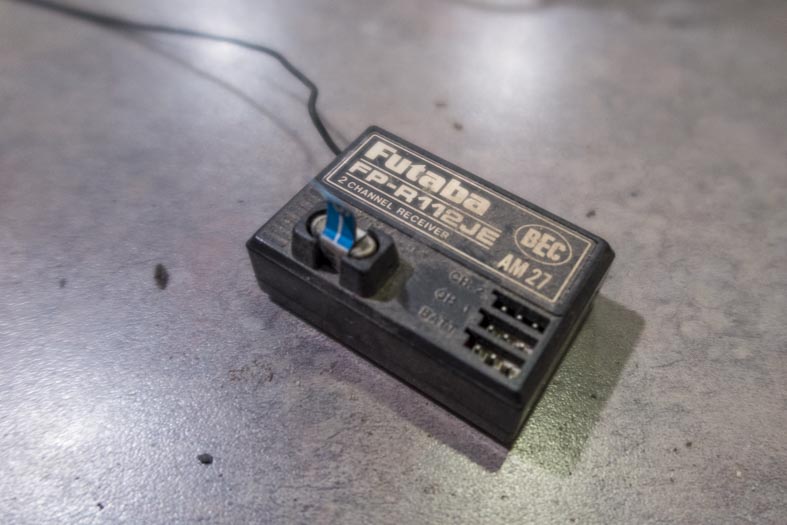

Old receiver - still works as far as I know!

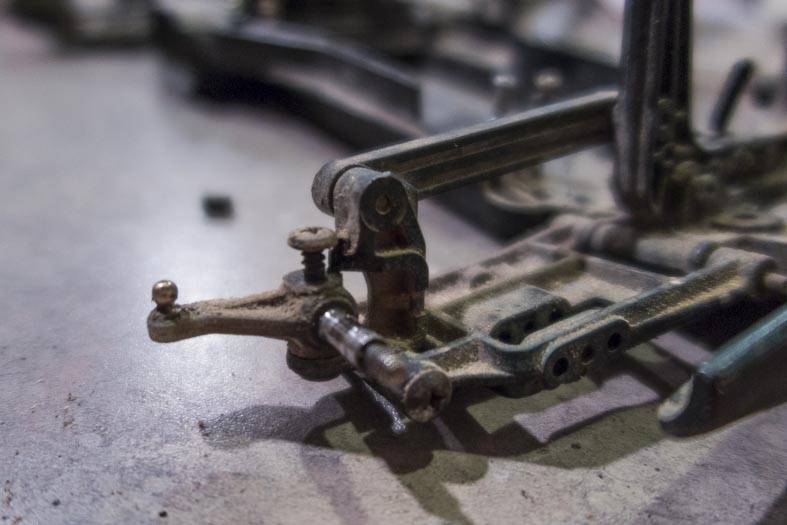

First broken piece - not entirely sure what it is called - doesn't seem to be named in the instruction manual
Madcap-broken hub carrier.jpg

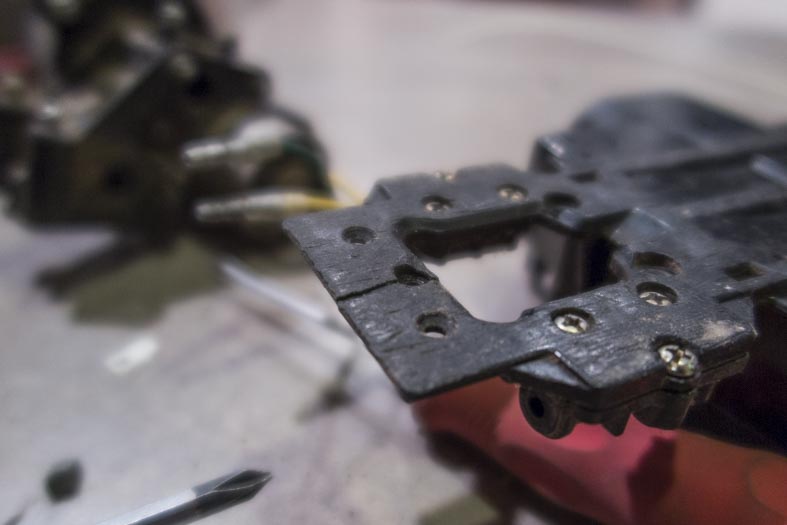

Second broken bit - cracked chassis - hoping I can glue this up
Madcap-cracked chassis.jpg

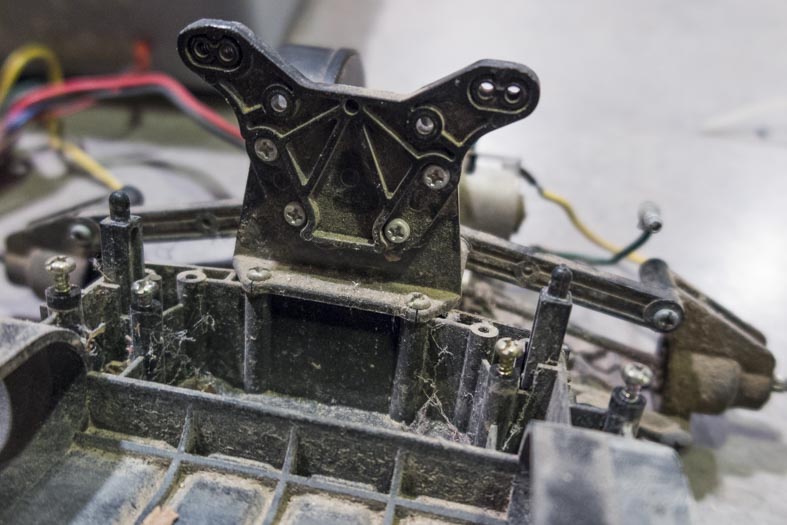

Doh! another broken bit - luckily I don't think it's too bad, might just refit it and hope for the best...
Madcap-rear suspension tower.jpg

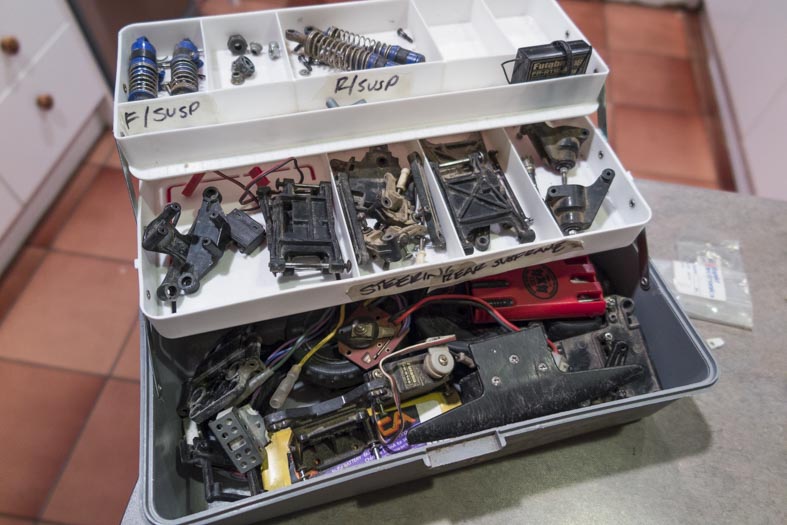

All boxed up and awaiting another free evening!
Madcap-in box.jpg
Question time!
Any suggestions on glue to use on the chassis crack? I have some model cement, or should I try something stronger?

The broken front hub carrier - is it worth trying to hunt down an original piece - or is there any aftermarket stuff that will work? I have seen these on AliExpress, but I'm not sure if they will fit? bit.ly/2yJOwcr

User avatar
Lonestar
Approved Member
Posts: 4270
Joined: Wed Dec 12, 2007 10:17 am
Location: Switzerland, yannow, in Europe (or almost)
Has thanked: 620 times
Been thanked: 165 times

Re: Tamiya Madcap barn find!

Post by Lonestar »

that's a LOT of crud on these pictures... even hard to see the breakages sometimes ;)

for the hub carriers, not sure you can adapt newer parts but why not, everything's possible. I'd stay away from anything alloy, though, as something else will have to give at the next hit otherwise.

chassis crack: if for display purposes only, as I believe it's abs, use uhu hart. otherwise, CA should do the trick. If for running: get a new chassis :!:
AE RC10 - Made In The Eighties, Loved By The Ladies.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.

User avatar
Incredible_Serious
Approved Member
Posts: 3352
Joined: Tue Jan 29, 2008 5:09 am
Location: Melbourne, Victoria, Australia
Has thanked: 1301 times
Been thanked: 773 times

Re: Tamiya Madcap barn find!

Post by Incredible_Serious »

K1W1 wrote: Tue Oct 24, 2017 7:56 am The broken front hub carrier - is it worth trying to hunt down an original piece - or is there any aftermarket stuff that will work? I have seen these on AliExpress, but I'm not sure if they will fit? bit.ly/2yJOwcr
When I rebuilt my MadCap, I had a bunch of Bear Hawk parts NIP, which included the C-Parts.... a quick check confirmed that, apart from the red colour, these were the same as the MadCap. (True story: My MadCap had heaps of red parts, and the friction shocks were alternating blue and red!).

As the Bear Hawk parts are the same apart from colour, and they're just a buggy-bodied Stadium Blitzer, any C-Parts to suit that range of models should work.

Some part numbers to look at:

0005364 / 10005364 / X10373
58082 MadCap
58083 Saint Dragon

0005431 / 10005431
58106 Stadium Blitzer
58122 Blitzer Beetle
58181 Stadium Thunder
58252 Blitzer Beetle Chrome Metallic Special
58482 Stadium Blitzer 2010
58502 Blitzer Beetle 2011
58524 Stadium Thunder

0005394 / 0005394 / X10506
58093 Bear Hawk


Good luck, hope that helps!

Alex
Osiris is the key.

"The world looks so much better through beer goggles... except Farmer in his underwear" - Ken

Look out for Todd K. - he's a convicted serial killer!!!

User avatar
jeekelemental
Approved Member
Posts: 48
Joined: Tue Dec 16, 2008 10:51 am
Location: Caorle - Venice - Veneto
Has thanked: 39 times
Been thanked: 12 times

Re: Tamiya Madcap barn find!

Post by jeekelemental »

K1W1 wrote: Tue Oct 24, 2017 7:56 am Question time!
Any suggestions on glue to use on the chassis crack? I have some model cement, or should I try something stronger?
Back in the days (1990) I've used CA glue and it's still in place... I own a NIP chassis but until the glue will hold I keep it as spare. 8)
K1W1 wrote: Tue Oct 24, 2017 7:56 am The broken front hub carrier - is it worth trying to hunt down an original piece - or is there any aftermarket stuff that will work? I have seen these on AliExpress, but I'm not sure if they will fit? bit.ly/2yJOwcr
I agreee with Incredible_Serious ST 2010 hubcarrier will fit... the one showed by your pics is typical MC breakage
"Flagellum Dei"
Powered by Flux Capacitor

K1W1
Regular Member
Posts: 7
Joined: Thu Sep 21, 2017 12:55 am
Location: Auckland, New Zealand

Re: Tamiya Madcap barn find!

Post by K1W1 »

Awesome - thanks heaps for those part numbers - I will hunt down some replacement parts.
In the meantime, here's another update:

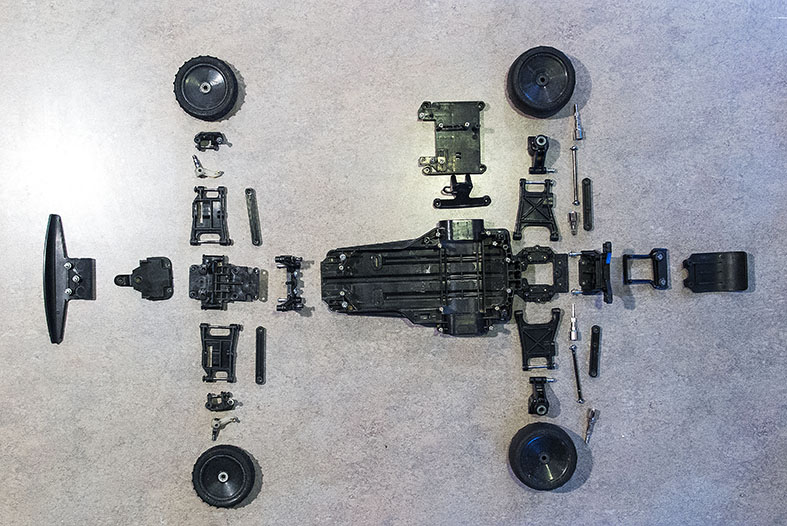

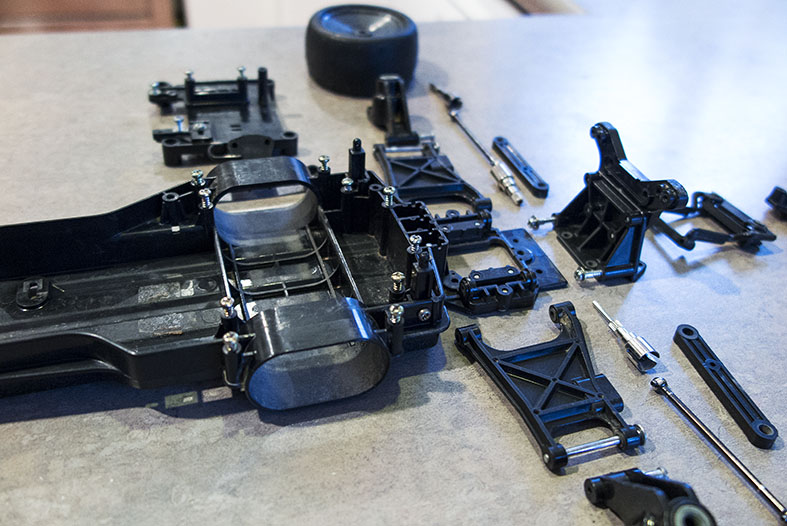

All clean!
Madcap-flat lay.jpg

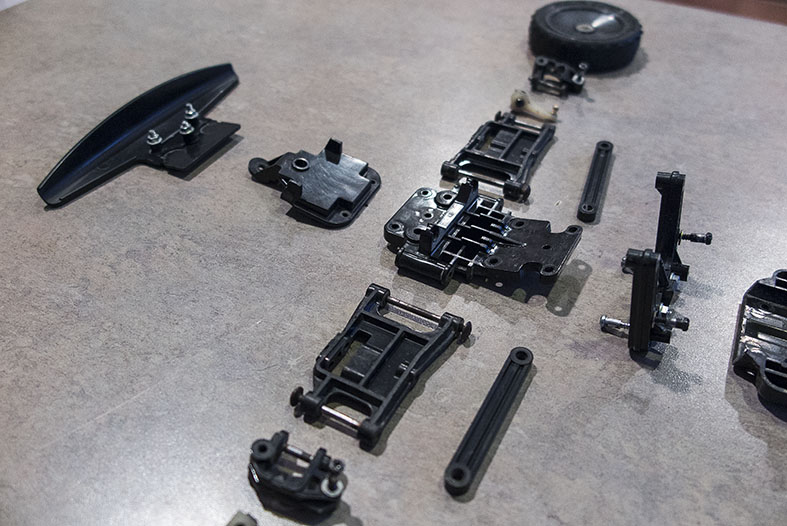

Front close up
Madcap-front layout.jpg
Rear close up
Madcap-rear layout.jpg

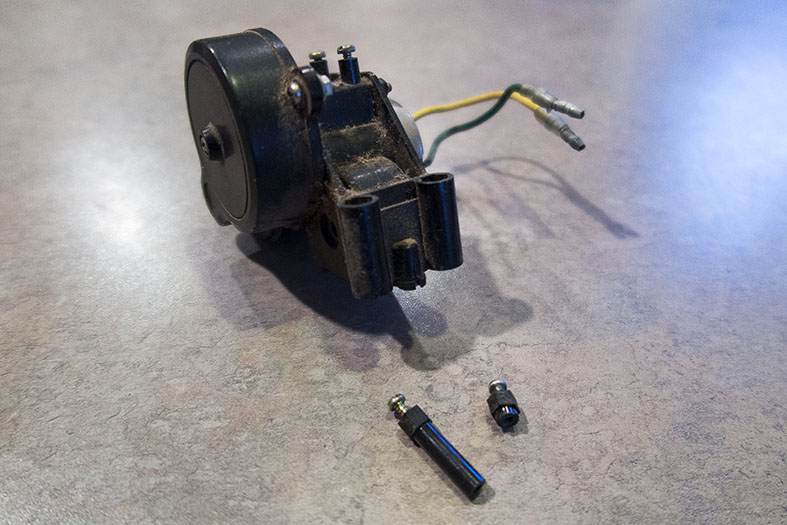

More broken bits :( haven't yet tackled the gearbox strip down...

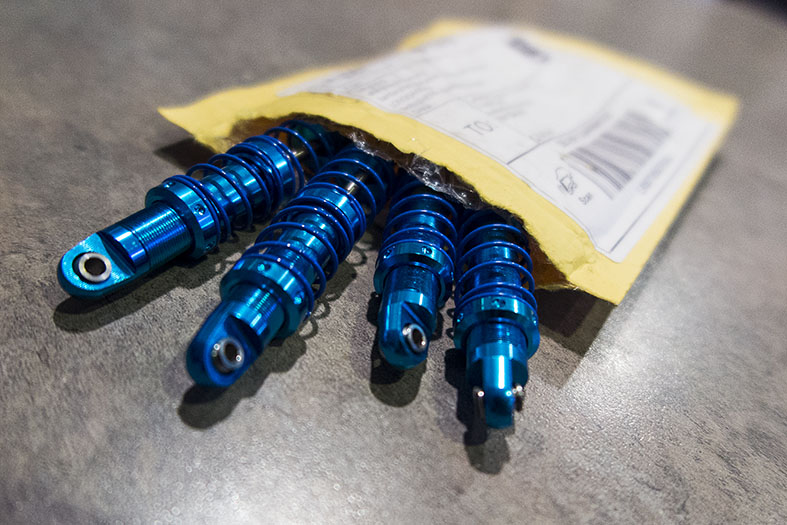

New parts! Just some cheapies off AliExpress - but they seem pretty well made - and will no doubt be an improvement on the originals...
Now I just need to order a few spares, and wait for my bearings to arrive before I can start on the rebuild.
