3d printed 4-10
- myfordcnc
- Approved Member
- Posts: 365
- Joined: Wed Feb 20, 2013 5:10 am
- Location: Stockton, CA.
- Been thanked: 1 time
Re: 3d printed 4-10
I saw those in fact when i saw them I thought "Huh interesting there is a company called Moor's Ideal products that was making parts for the 4-10" I never even questioned what MIP stood for.
For the update: I'm revising the case design. The bearings were too tight of a fit (they went in but needed a little persuasion.) and a few other fits needed attention. Right now I'm working on a different mounting set up so that one does not have to have a special shock tower r have to modify any thing. By Thursday I'll put in an order at shapewayes for another prototype and go from there.
For the update: I'm revising the case design. The bearings were too tight of a fit (they went in but needed a little persuasion.) and a few other fits needed attention. Right now I'm working on a different mounting set up so that one does not have to have a special shock tower r have to modify any thing. By Thursday I'll put in an order at shapewayes for another prototype and go from there.
- GoMachV
- Super Member
- Posts: 11360
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 832 times
- Been thanked: 2470 times
Re: 3d printed 4-10
Good call on the shock tower, they were pretty weak with the cutout!
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- myfordcnc
- Approved Member
- Posts: 365
- Joined: Wed Feb 20, 2013 5:10 am
- Location: Stockton, CA.
- Been thanked: 1 time
Re: 3d printed 4-10
So practically nothing that i said I'd do I did. Didn't get it out by last Thursday. Got it out to day though. Had to allow for a cut out in the front tower albeit a small one. Did find what I think will be a stiffer way to mount. Adjusted the clearances for bearings and shafts. Anyway some progress and I'm certain there will be more prototypes to come. It will be tough to fit a buggy body too.
- GoMachV
- Super Member
- Posts: 11360
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 832 times
- Been thanked: 2470 times
Re: 3d printed 4-10
Looks good! Integrated mounts? I like it!
Get'r'done so we can race
Get'r'done so we can race
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- DMAT
- Approved Member
- Posts: 884
- Joined: Wed Mar 20, 2013 8:53 am
- Location: Baton Rouge, La
- Been thanked: 3 times
Re: 3d printed 4-10
just a few thoughts ive had
if you could find a work around for having nose tubes, making it fit becomes a much easier task.
why not get a front shock tower with the top brace and still trim it at the bottom.
If your 3d printing parts, why not make the case and front bulkheads 1 piece?
b44 parts look like they might fit for the front but your probably designing your own.
if you could find a work around for having nose tubes, making it fit becomes a much easier task.
why not get a front shock tower with the top brace and still trim it at the bottom.
If your 3d printing parts, why not make the case and front bulkheads 1 piece?
b44 parts look like they might fit for the front but your probably designing your own.
-
- Approved Member
- Posts: 1693
- Joined: Sun Oct 05, 2008 2:33 pm
- Location: 33445 florida
- Has thanked: 6 times
- Been thanked: 101 times
Re: 3d printed 4-10
wish the owner of mip was on this site, i bet if he saw u doing this might put a fire under his ass to put out a rere mip kit. which i really think he should do now with 2 reissues rc10's out now, and a rc10t on the way???
- myfordcnc
- Approved Member
- Posts: 365
- Joined: Wed Feb 20, 2013 5:10 am
- Location: Stockton, CA.
- Been thanked: 1 time
Re: 3d printed 4-10
I like that top brace idea.DMAT wrote:just a few thoughts ive had
if you could find a work around for having nose tubes, making it fit becomes a much easier task.
why not get a front shock tower with the top brace and still trim it at the bottom.
If your 3d printing parts, why not make the case and front bulkheads 1 piece?
b44 parts look like they might fit for the front but your probably designing your own.
Kind of what I was thinking too. I have a lot more appreciation for his design now that I'm trying to design it too.hugger19 wrote:wish the owner of mip was on this site, i bet if he saw u doing this might put a fire under his ass to put out a rere mip kit. which i really think he should do now with 2 reissues rc10's out now, and a rc10t on the way???
- myfordcnc
- Approved Member
- Posts: 365
- Joined: Wed Feb 20, 2013 5:10 am
- Location: Stockton, CA.
- Been thanked: 1 time
Re: 3d printed 4-10

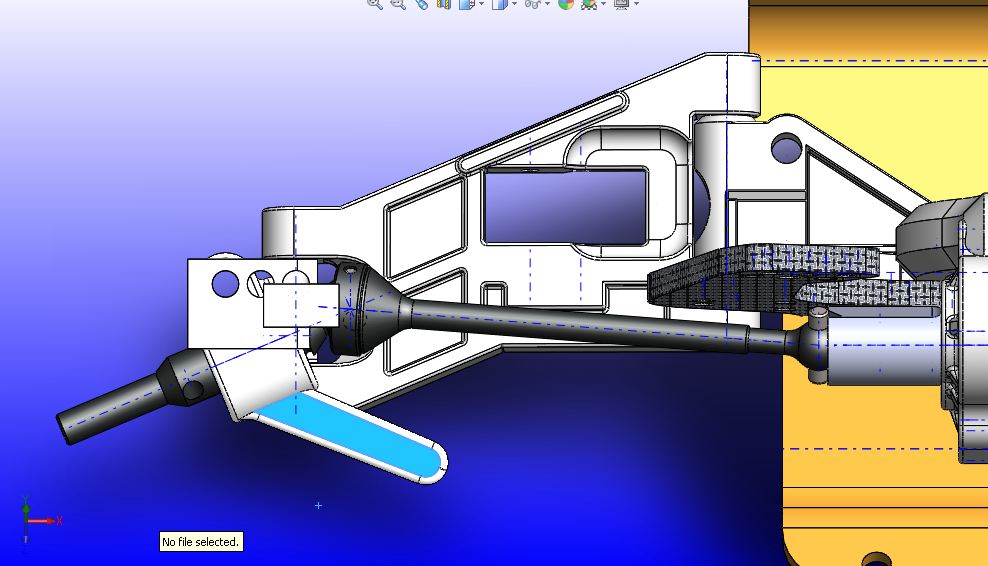

Hey Guys, I was hoping to get some input on some issues I have with the front steering block, castor block and B4 CVD I'm trying to mash together. The b4 CVD is just too short in any of the 3 positions I am trying it in. I would prefer to use the Middle position (position 2 as I'm calling it). I've drawn it as a 5deg. castor block. The steering arm is using 3/8" x 1/4" Flanged bearings.
Does any body now the lengths of the different CVDs available.

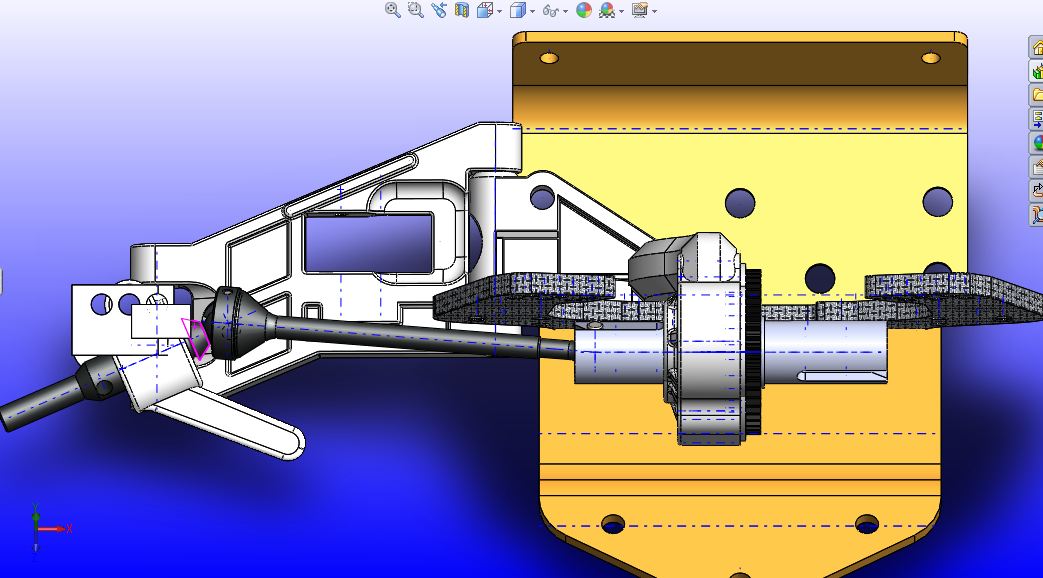

Below I have listed all the positions. Turning left, Right, and Neutral in positions 1,2 and 3. Position 3 is the most inboard position. And the B4 CVD
Does any body now the lengths of the different CVDs available.
Below I have listed all the positions. Turning left, Right, and Neutral in positions 1,2 and 3. Position 3 is the most inboard position. And the B4 CVD
-
- Approved Member
- Posts: 8921
- Joined: Tue Apr 08, 2008 2:44 pm
- Location: USA
- Been thanked: 8 times
Re: 3d printed 4-10
The 2.19" (aprox 55mm) you have listed as B4 is an RC10- the B44.2 is approx 63mm rear and 71mm front
- myfordcnc
- Approved Member
- Posts: 365
- Joined: Wed Feb 20, 2013 5:10 am
- Location: Stockton, CA.
- Been thanked: 1 time
Re: 3d printed 4-10
No but thats not a bad idea.

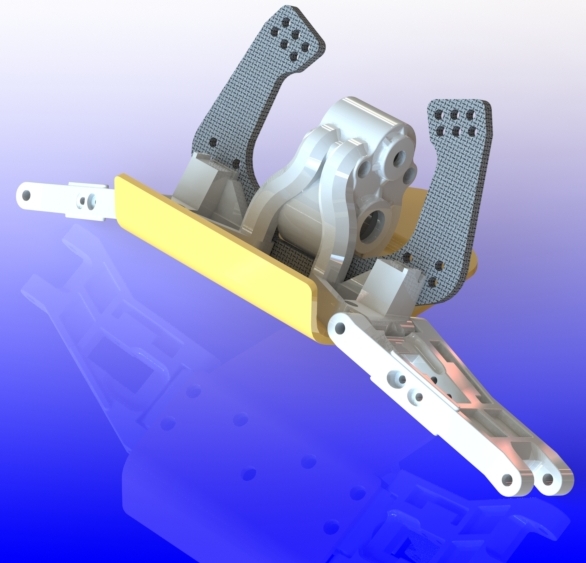

Here is the current state of things.
Here is the current state of things.
- Attachments
-
- 014.JPG (42.67 KiB) Viewed 1231 times
- 014.JPG (42.67 KiB) Viewed 1231 times
-
- 013.JPG (81.47 KiB) Viewed 1231 times
- 013.JPG (81.47 KiB) Viewed 1231 times
-
- 011.JPG (102.19 KiB) Viewed 1231 times
- 011.JPG (102.19 KiB) Viewed 1231 times
-
- 010.JPG (111.59 KiB) Viewed 1231 times
- 010.JPG (111.59 KiB) Viewed 1231 times
-
- 008.JPG (48.57 KiB) Viewed 1231 times
- 008.JPG (48.57 KiB) Viewed 1231 times
- Phin
- Approved Member
- Posts: 2734
- Joined: Tue Feb 21, 2012 5:17 pm
- Location: NY²
- Has thanked: 64 times
- Been thanked: 186 times
Re: 3d printed 4-10
Well really I asked because I don't think it's a good idea to use trailing knuckles. Every 4wd I can think of used inline steering knuckles and I got to think there's a good reason for that. Admittedly I don't know exactly what that reason is but my guess is that the uneven arc trailing knuckles would pull the CVD/dogbone through could cause binding.myfordcnc wrote:No but thats not a bad idea.
....
That said...really digging the transmission case.
- GoMachV
- Super Member
- Posts: 11360
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 832 times
- Been thanked: 2470 times
Re: 3d printed 4-10
Trailing on a 4wd would create a lot of odd length issues as the travel and steering are articulated. If you look at the 4-10 it looks like a trailing setup but the pivot points are inline with the axle
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- jwscab
- Super Member
- Posts: 6506
- Joined: Wed Jan 28, 2009 9:42 am
- Location: Chalfont, PA
- Has thanked: 10 times
- Been thanked: 453 times
Re: 3d printed 4-10
Further more , the centerline of rotation of the CVD/universal and c hub should be in line. This will prevent the doggone end from telescoping while the car turns. It can telescope a little when articulating the suspension but not during the hub rotation. You might be best served adapting b44 or yokomo parts for the hub/spindle.
