Re: Dadio's 3D Printing Stuff

Post by Dadio »

Frankentruck wrote: Fri Jun 02, 2023 9:22 pm I think monster is a perfect descriptive name for it. It's such a composition of different design styles.
What's really weird is like Hirobo , Ishipla was known for helicopters and in the 80s they were rocket science compared to buggy s .
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

User avatar
silvertriple
Approved Member
Posts: 1927
Joined: Sun May 02, 2021 2:31 pm
Location: France, Isere
Has thanked: 651 times
Been thanked: 1097 times

Re: Dadio's 3D Printing Stuff

Post by silvertriple »

Dadio wrote: Fri Jun 02, 2023 9:36 pm
Frankentruck wrote: Fri Jun 02, 2023 9:22 pm I think monster is a perfect descriptive name for it. It's such a composition of different design styles.
What's really weird is like Hirobo , Ishipla was known for helicopters and in the 80s they were rocket science compared to buggy s .
Well... But if you look at the first Hirobo car, it's quite impressive what it brought into the rc car world :
- first 1/10 Offroad EP 4WD
- belt driven
- quite good possibilities of adjustment for the suspensions

And it was early 1983. Most genetics of the modern 1/10 rc cars were present in this car...
I buy kits to build and ru(i)n them :-)

Dadio
Approved Member
Posts: 3980
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2491 times
Been thanked: 2094 times

Re: Dadio's 3D Printing Stuff

Post by Dadio »

silvertriple wrote: Sat Jun 03, 2023 8:42 am
Dadio wrote: Fri Jun 02, 2023 9:36 pm
Frankentruck wrote: Fri Jun 02, 2023 9:22 pm I think monster is a perfect descriptive name for it. It's such a composition of different design styles.
What's really weird is like Hirobo , Ishipla was known for helicopters and in the 80s they were rocket science compared to buggy s .
Well... But if you look at the first Hirobo car, it's quite impressive what it brought into the rc car world :
- first 1/10 Offroad EP 4WD
- belt driven
- quite good possibilities of adjustment for the suspensions

And it was early 1983. Most genetics of the modern 1/10 rc cars were present in this car...
Absolutely, the Hirobo cars were well ahead , adjustable camber double wishbone suspension with C hub carriers , front kick up , belt drive , glass fibre reinforced nylon suspension components and all in 1983 :shock:
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

User avatar
silvertriple
Approved Member
Posts: 1927
Joined: Sun May 02, 2021 2:31 pm
Location: France, Isere
Has thanked: 651 times
Been thanked: 1097 times

Re: Dadio's 3D Printing Stuff

Post by silvertriple »

Dadio wrote: Sat Jun 03, 2023 9:44 am Absolutely, the Hirobo cars were well ahead , adjustable camber double wishbone suspension with C hub carriers , front kick up , belt drive , glass fibre reinforced nylon suspension components and all in 1983 :shock:
As per my understanding, it was only pure Nylon in 1983 for Hirobo. I believe the Nylon Reinforced with fibers came with the Alien...
I buy kits to build and ru(i)n them :-)

Dadio
Approved Member
Posts: 3980
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2491 times
Been thanked: 2094 times

Re: Dadio's 3D Printing Stuff

Post by Dadio »

silvertriple wrote: Sat Jun 03, 2023 9:56 am
Dadio wrote: Sat Jun 03, 2023 9:44 am Absolutely, the Hirobo cars were well ahead , adjustable camber double wishbone suspension with C hub carriers , front kick up , belt drive , glass fibre reinforced nylon suspension components and all in 1983 :shock:
As per my understanding, it was only pure Nylon in 1983 for Hirobo. I believe the Nylon Reinforced with fibers came with the Alien...
Your probably right .
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

Dadio
Approved Member
Posts: 3980
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2491 times
Been thanked: 2094 times

Re: Dadio's 3D Printing Stuff

Post by Dadio »

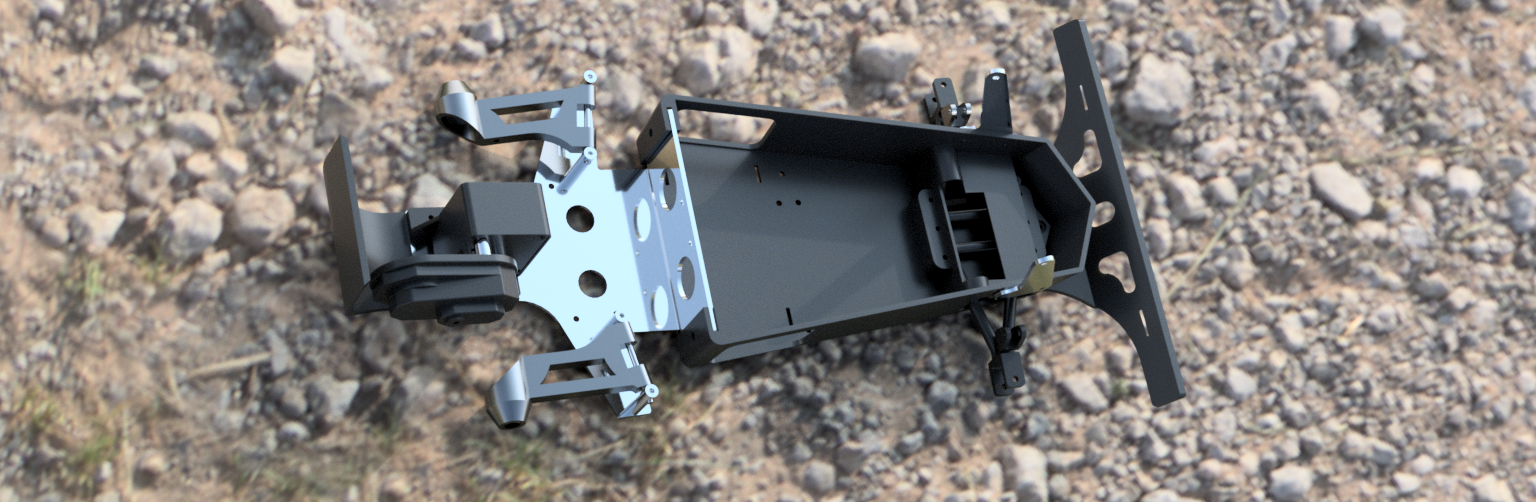

more monster
assembly v21.png
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

Dadio
Approved Member
Posts: 3980
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2491 times
Been thanked: 2094 times

Re: Dadio's 3D Printing Stuff

Post by Dadio »

I just discovered something in Cura that's solved a gear printing problem I came up against , I was trying to print a low tooth count 0.8 mod gear and when I sliced it it was in a lot of places just printing the outer wall and leaving the tooth virtually hollow like a vase print .

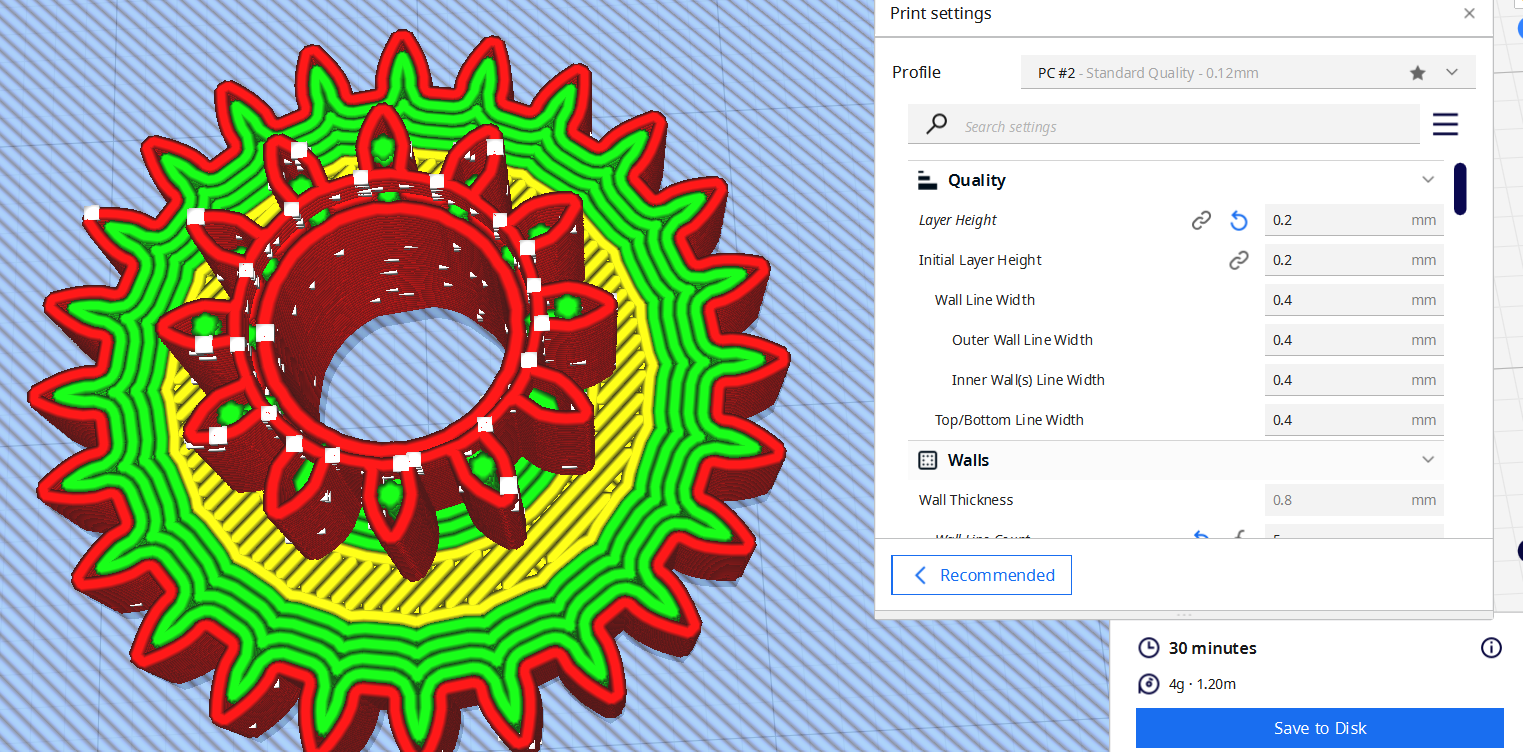

cog 0.4 wall.png
I tried a ton of things to resolve the problem until I stumbled on this , you can in Cura adjust the outer wall line width , I've used this function on vase prints (a vase print is only one wall thick and mostly used for printing light weight vases ) to make them stronger and water proof by making the wall wider , in this case I went the other way and instead of a 0.4 mm wall width I went for 0.3 mm and it worked perfectly .

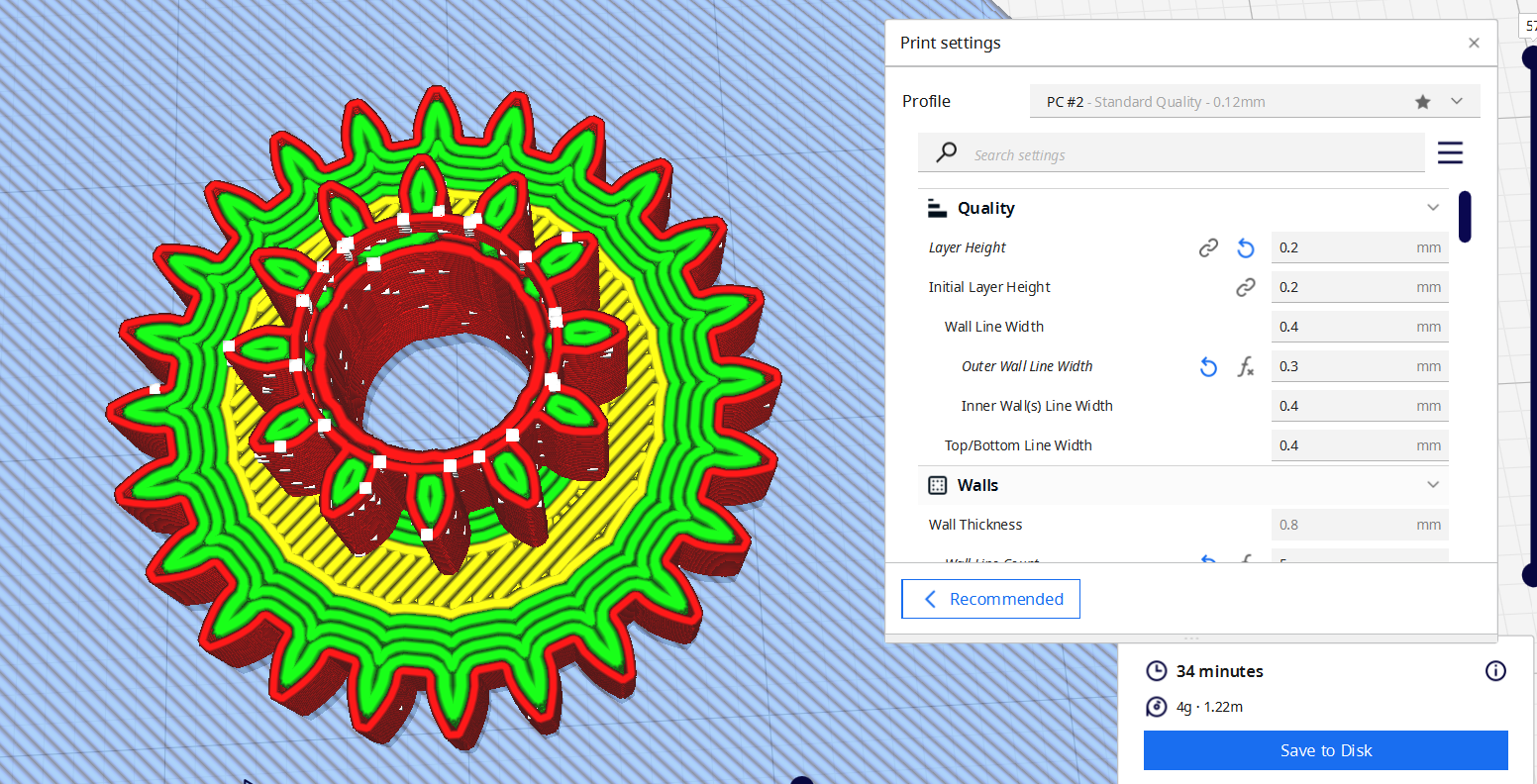

cog 0.3 wall.png
I think I may have invented something useful for a change !
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

Dadio
Approved Member
Posts: 3980
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2491 times
Been thanked: 2094 times

Re: Dadio's 3D Printing Stuff

Post by Dadio »

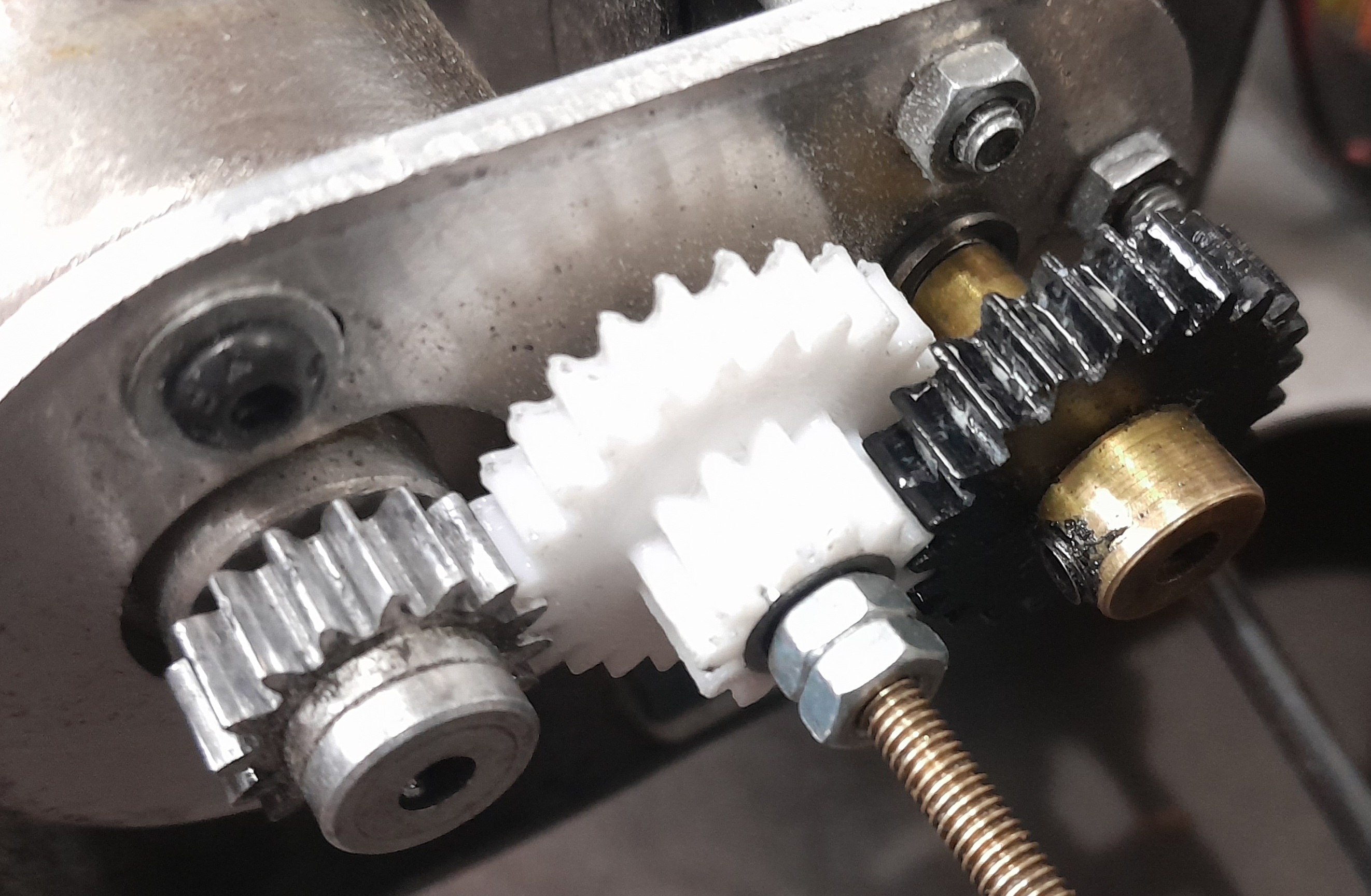

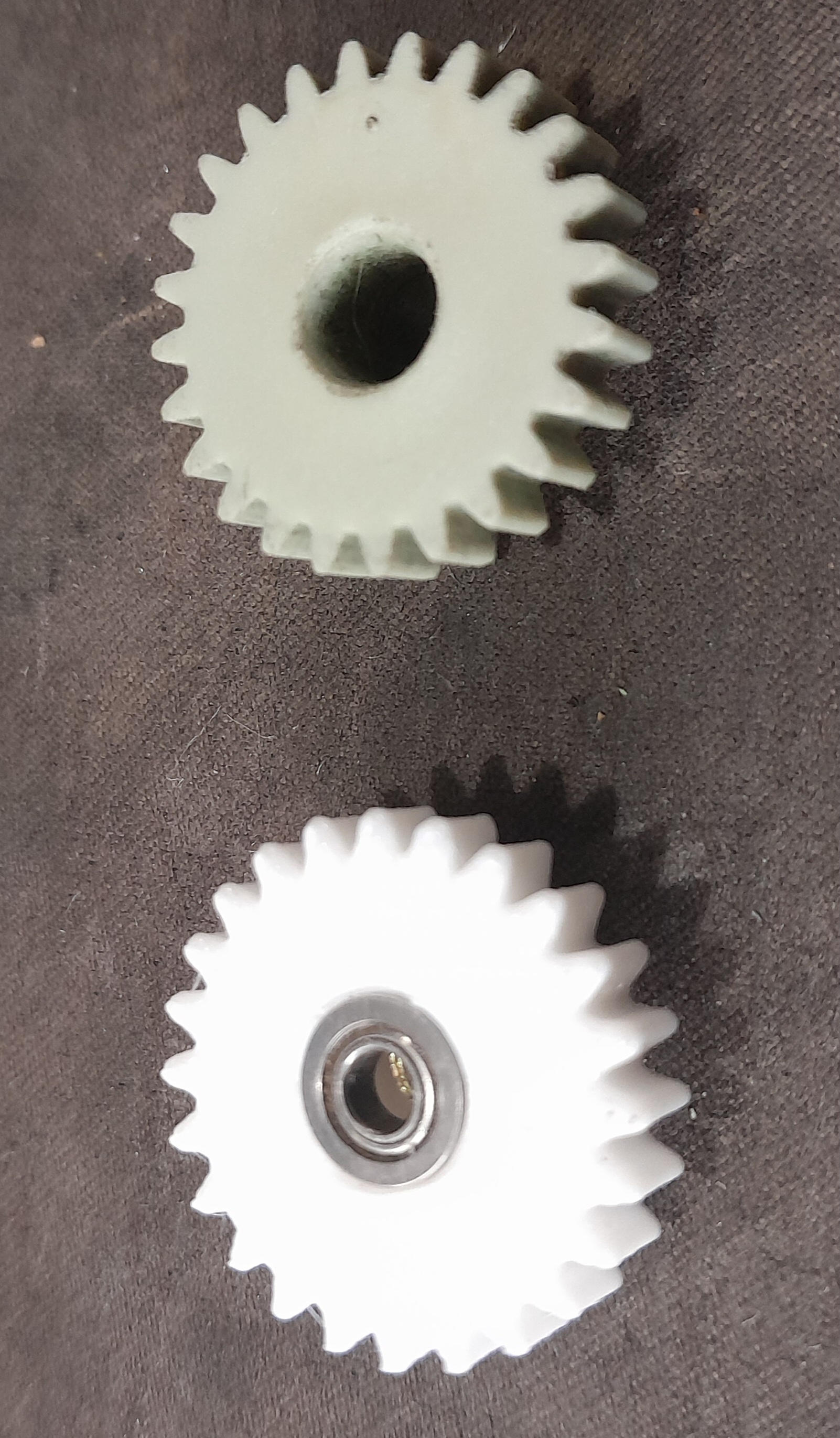

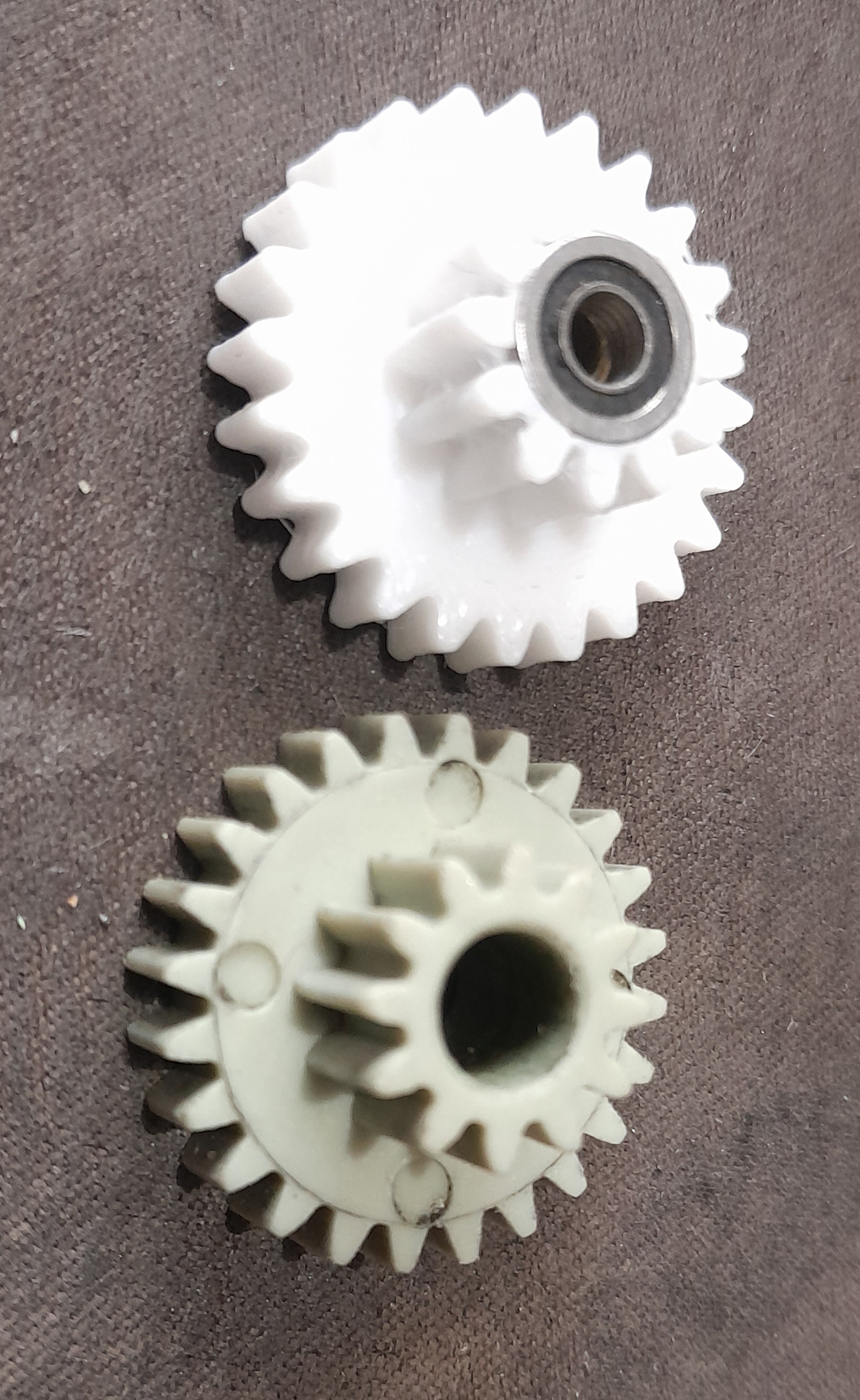

Drew up and printed the reduction gear , it's to replace a gear in the Ishipla Monster that runs on a bushing that has no equivalent bearing so this one can take two 6x3x3 flanged bearings
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

Dadio
Approved Member
Posts: 3980
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2491 times
Been thanked: 2094 times

Re: Dadio's 3D Printing Stuff

Post by Dadio »

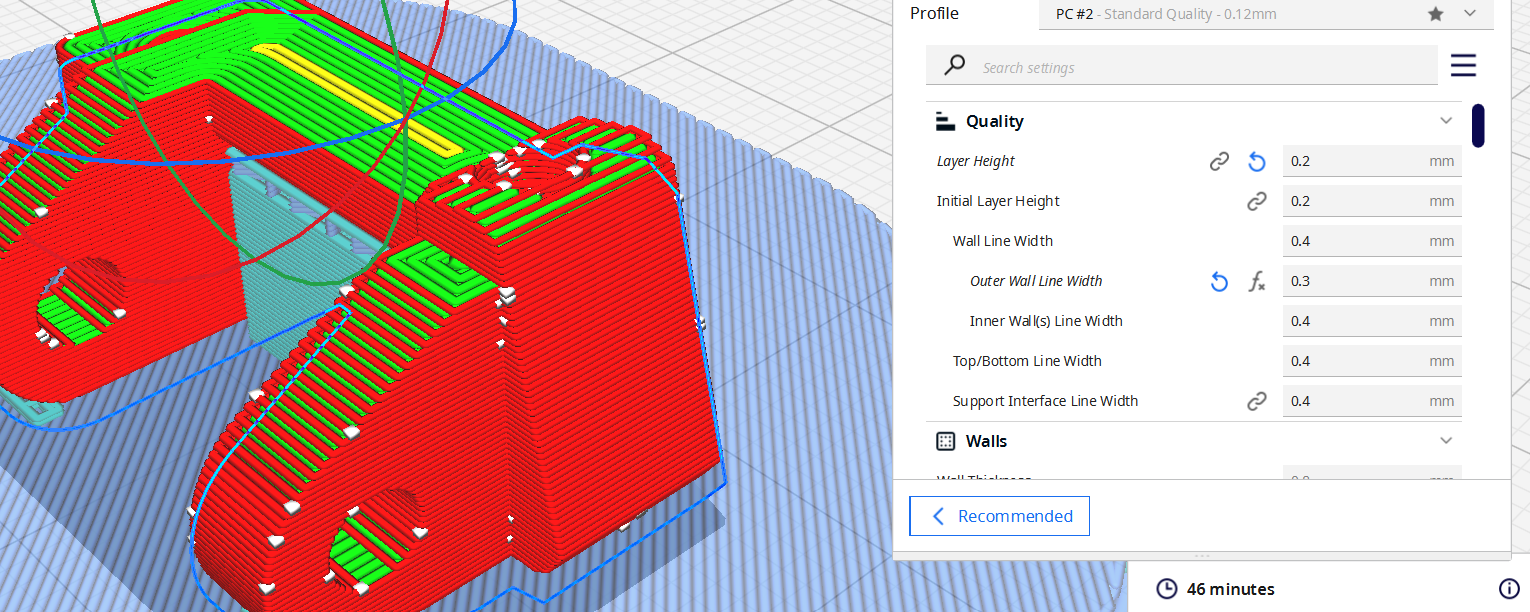

I just found another part that had poor wall quality with 0.4 outer wall so I tried 0.3 and its perfect again

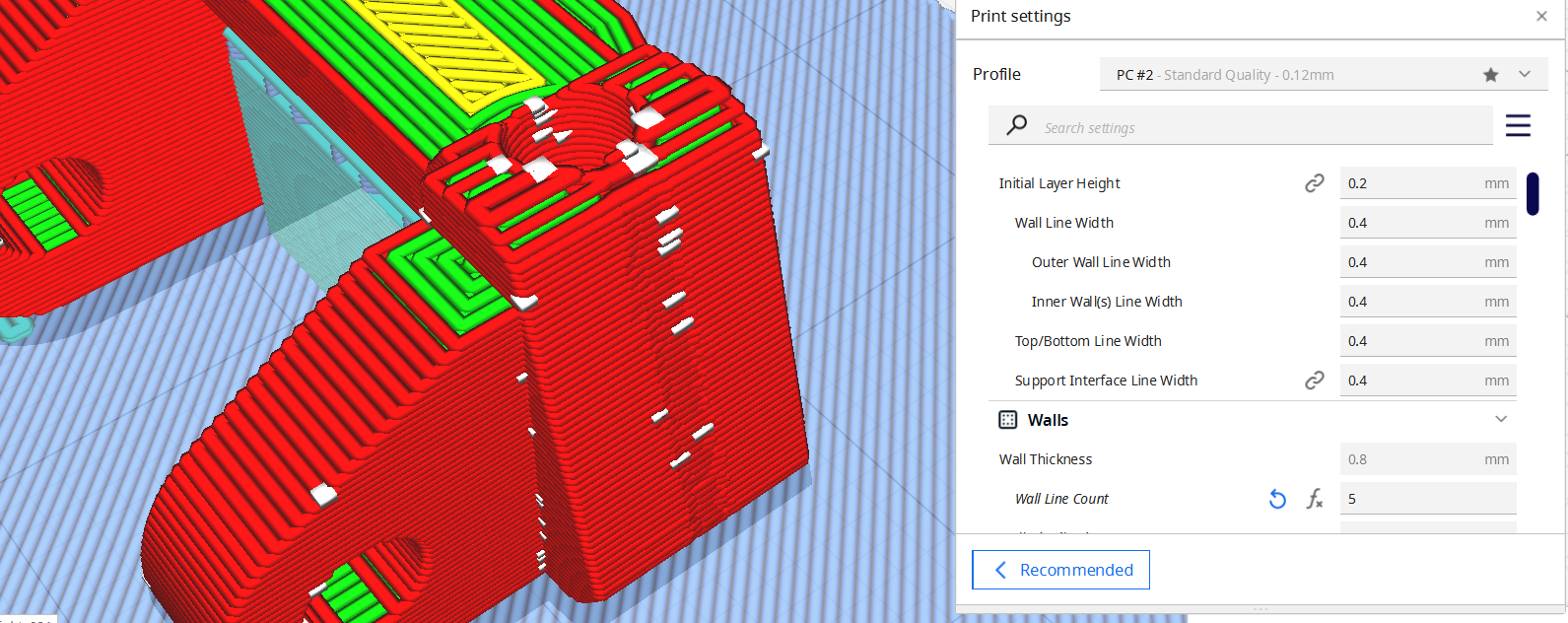

this is an RC10 caster block and you can see a dip in the wall at 0.4 mm wall
Screenshot 2023-06-12 192205.png
now with the 0.3 mm wall .
Screenshot 2023-06-12 193437.png
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

Dadio
Approved Member
Posts: 3980
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2491 times
Been thanked: 2094 times

Re: Dadio's 3D Printing Stuff

Post by Dadio »

Two days ago I received a Bambu Labs P1P , the following day an upgrade package of parts to run abrasive filaments , jumbo cooling fan and a fan for the control board as I intend to make an enclosure for it , anyway I just finished fitting all the kit of parts and I've run a few prints , man oh man this thing is good ! its one thing to read reviews or watch them on YouTube but to actually see it is another thing , once I have it enclosed I can't see me using my other printers ever again ! its producing better prints at three times or more the speed , it doesn't look real watching it :shock:
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 9:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 205 times

Re: Dadio's 3D Printing Stuff

Post by clm »

You are making me jealous here man! lol :)
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

User avatar
silvertriple
Approved Member
Posts: 1927
Joined: Sun May 02, 2021 2:31 pm
Location: France, Isere
Has thanked: 651 times
Been thanked: 1097 times

Re: Dadio's 3D Printing Stuff

Post by silvertriple »

I can't say that I'm surprised, based on y own experience with the X1C... Looking forward to see your amazing prints...
I buy kits to build and ru(i)n them :-)

Dadio
Approved Member
Posts: 3980
Joined: Sun Apr 24, 2016 6:21 pm
Location: Guildford UK
Has thanked: 2491 times
Been thanked: 2094 times

Re: Dadio's 3D Printing Stuff

Post by Dadio »

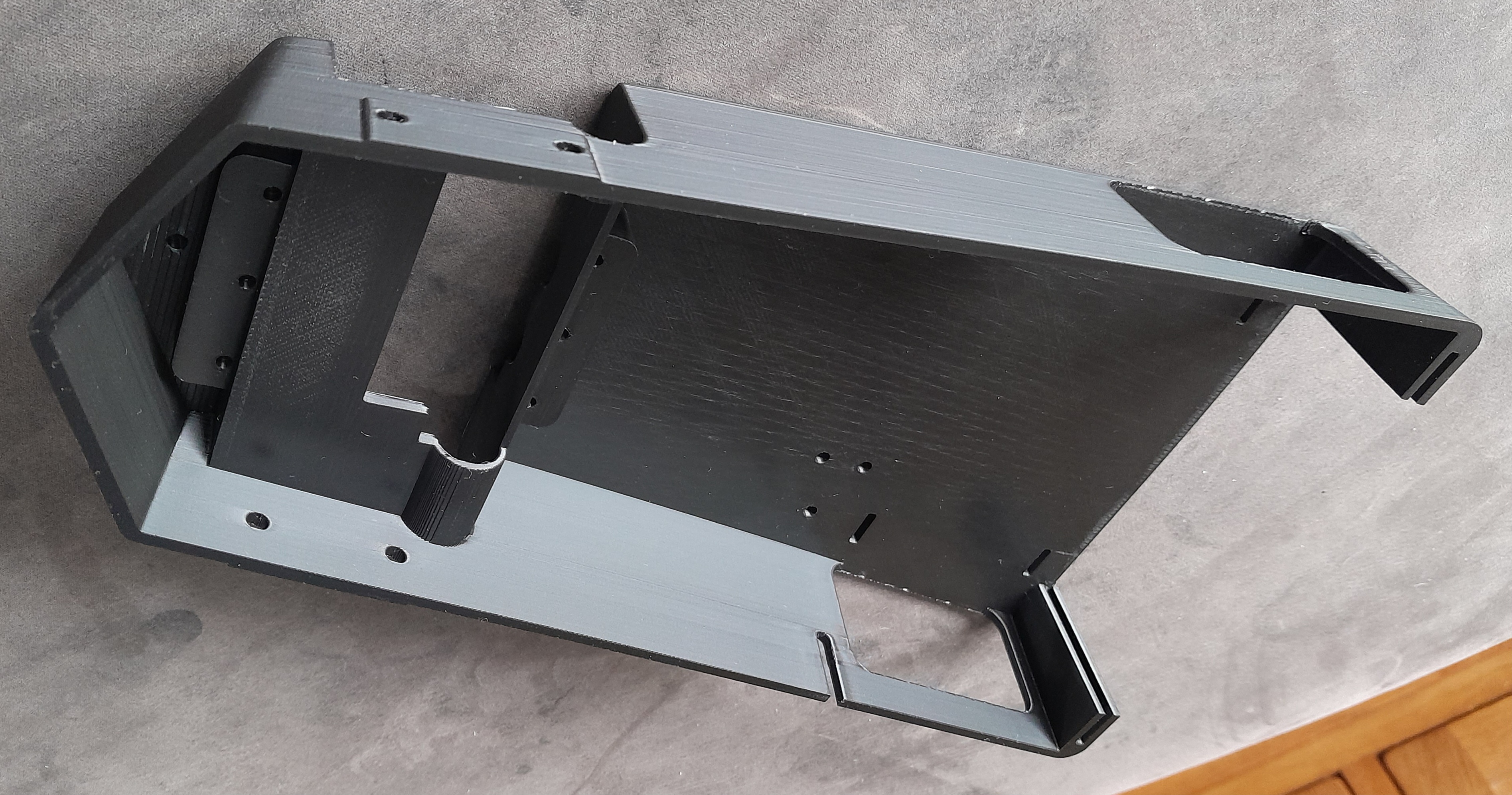

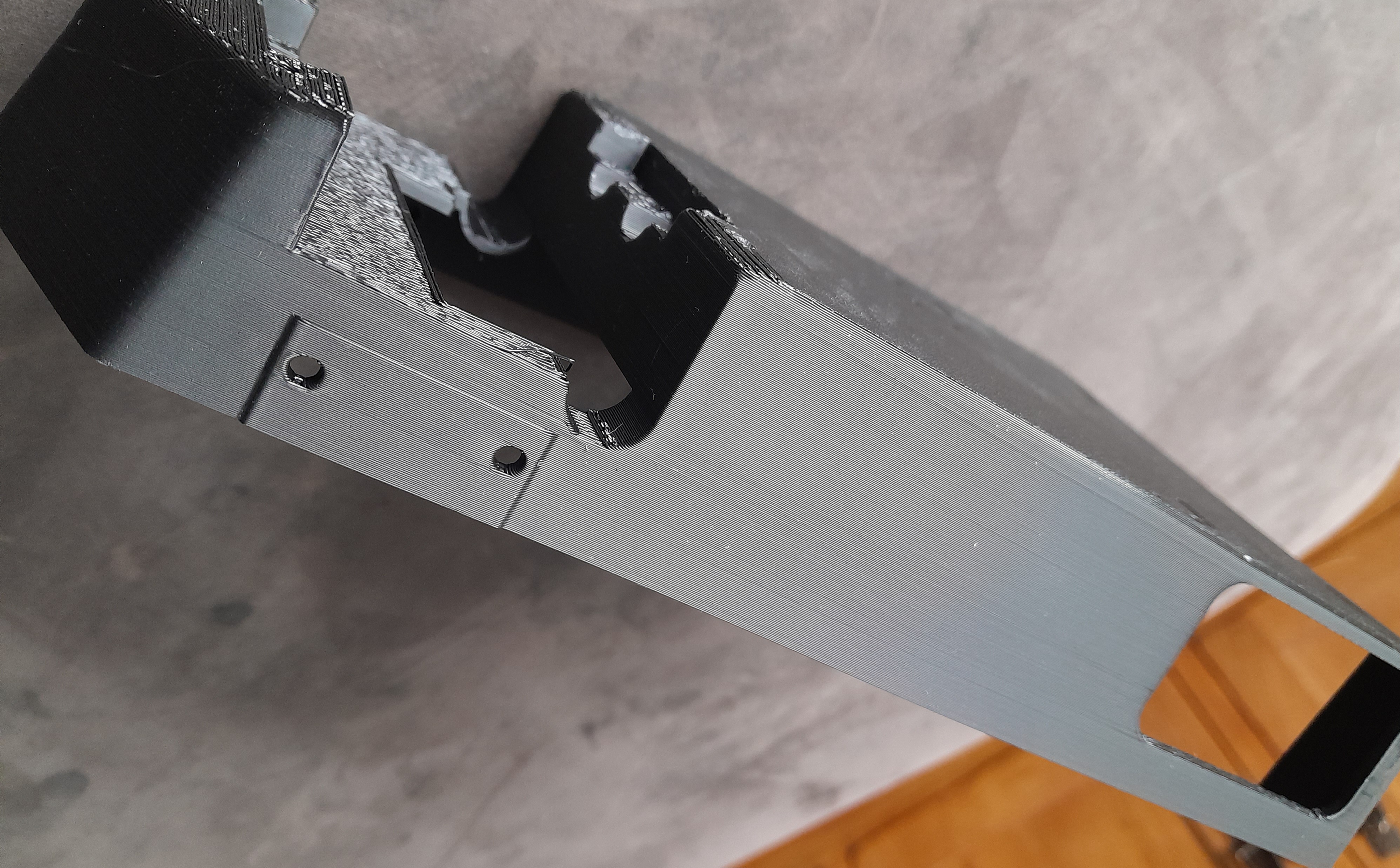

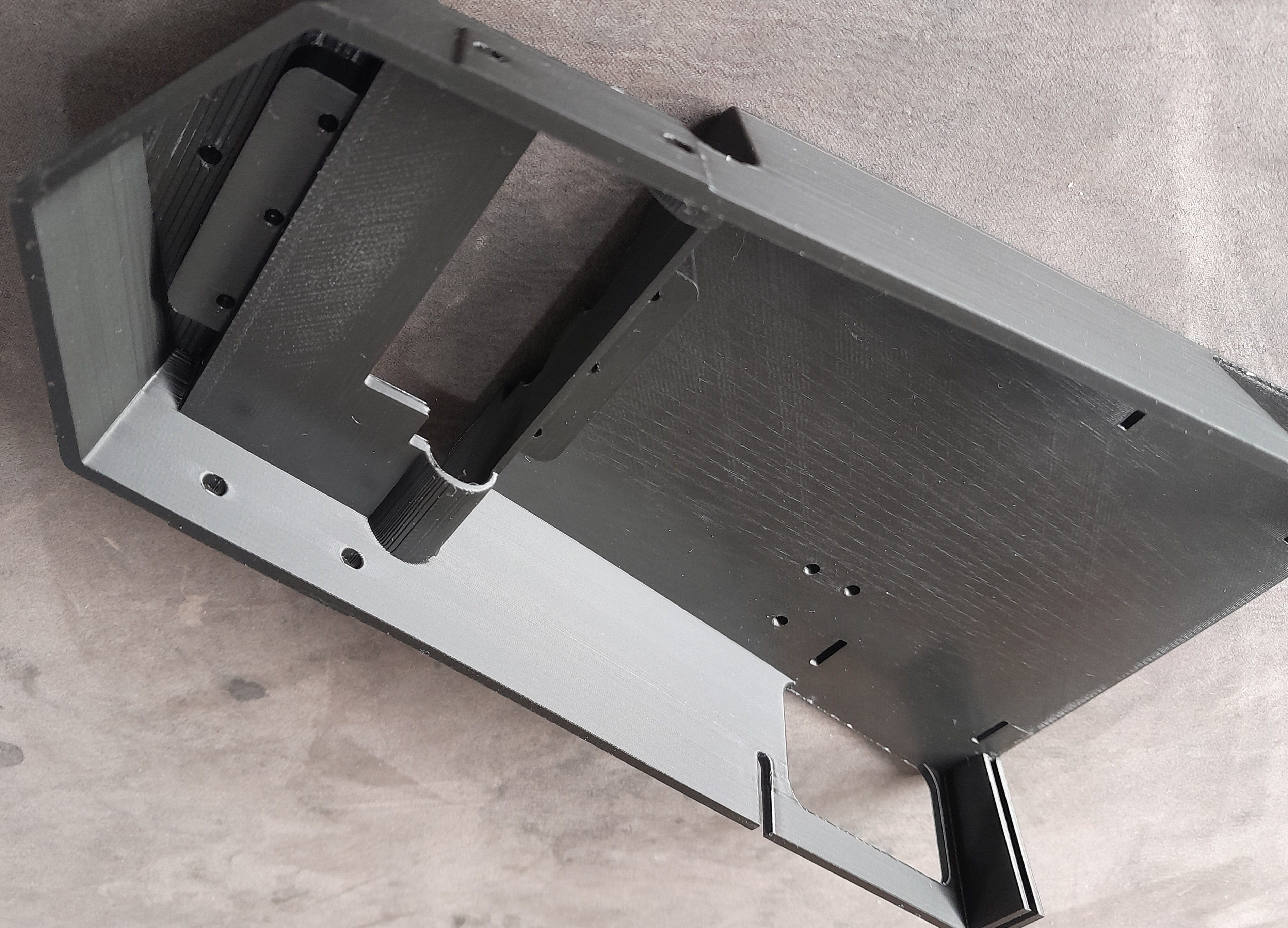

Printed this Ishipla Monster chassis today but being a dumb ass I printed the wrong file , now waiting another 4 hours for the proper version to print lol , super impressed with the quality especially the ironing feature that gives a smoothed finish to flat top surfaces.
If a jobs not worth doing then its certainly not worth doing well.
A problem shared is a problem halved but an advantage shared is no advantage at all.

User avatar
Frankentruck
Super Member
Posts: 3187
Joined: Fri Feb 19, 2021 2:59 pm
Location: Texas, USA
Has thanked: 2045 times
Been thanked: 2227 times

Re: Dadio's 3D Printing Stuff

Post by Frankentruck »

Oooo.... very nice! Is that print file from your own measurements?

{edit- I guess it would be. I forgot you modelled the entire buggy.}
Frankensteined RC10T3 / Franky Jr RC10GT-e (x2) / A+ stamp / Toy Story RC / Graphite replica / B1.5 BFG 5LTi / Clonewald / Hyper Hornet

"I love the effort, but it sure looks like you took the long way around to a tub again"

User avatar
silvertriple
Approved Member
Posts: 1927
Joined: Sun May 02, 2021 2:31 pm
Location: France, Isere
Has thanked: 651 times
Been thanked: 1097 times

Re: Dadio's 3D Printing Stuff

Post by silvertriple »

Dadio wrote: Mon Jul 03, 2023 2:52 pm Printed this Ishipla Monster chassis today but being a dumb ass I printed the wrong file , now waiting another 4 hours for the proper version to print lol , super impressed with the quality especially the ironing feature that gives a smoothed finish to flat top surfaces.
I've not played with ironing yet, as most of my prints until now were not requiring it, and most often than not having curved top : and for this adaptative layers gives very nice results...
