Street Eliminator project “it doesn’t say you cant”

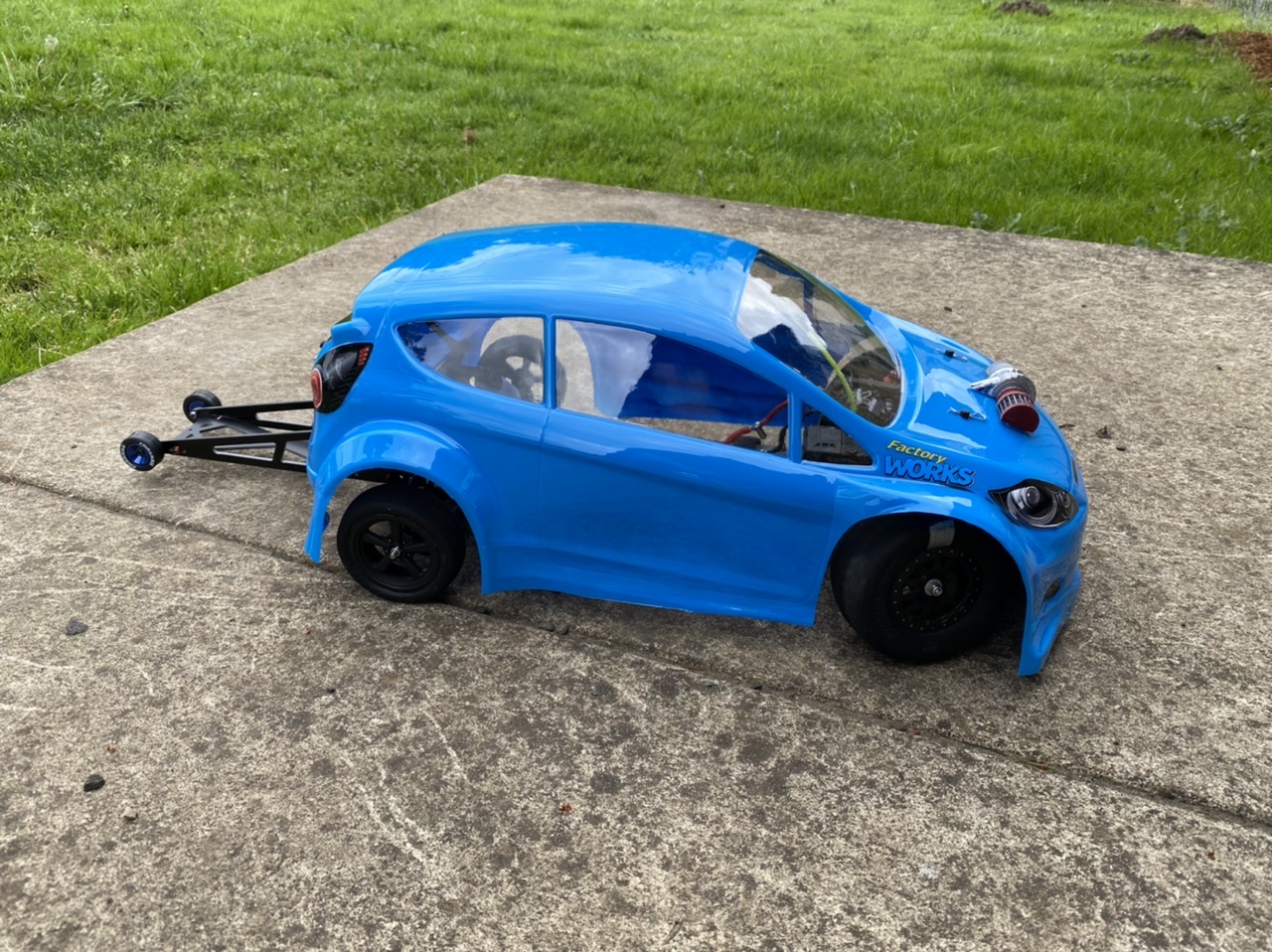

Finishing up this beast. Slightly rearranged slash 2wd with a modified version of our Factory Works chassis. The motor in the car currently is a no name 3.5t and is pretty weak. I’ll update once the Maclan drag pack motor arrives
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- KidAgain
- Super Member
- Posts: 906
- Joined: Fri Feb 01, 2019 2:11 pm
- Location: So Cal
- Has thanked: 288 times
- Been thanked: 198 times
Re: Street Eliminator project “it doesn’t say you cant”
Looks killer bud.
Visit Nostalgic RC in the business section or @nostalgicrc on Facebook for your custom RC10DS parts
Gone: RC10, Jrx-2 and Jrx-t
Current: 3 SC10 first gens, 3 SC10 Street Outlaw's, 12 RC10 DS’s, Carbon RC10T, RC10LSS,RC10L, RC10 Graphite,RC10 B44
Gone: RC10, Jrx-2 and Jrx-t
Current: 3 SC10 first gens, 3 SC10 Street Outlaw's, 12 RC10 DS’s, Carbon RC10T, RC10LSS,RC10L, RC10 Graphite,RC10 B44
- Lonestar
- Approved Member
- Posts: 4270
- Joined: Wed Dec 12, 2007 5:17 am
- Location: Switzerland, yannow, in Europe (or almost)
- Has thanked: 626 times
- Been thanked: 166 times
Re: Street Eliminator project “it doesn’t say you cant”
Is it the slipper or the tires that we're hearing?
AE RC10 - Made In The Eighties, Loved By The Ladies.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.
- GoMachV
- Super Member
- Posts: 11333
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 823 times
- Been thanked: 2419 times
Re: Street Eliminator project “it doesn’t say you cant”
Tires- they grow pretty significantly on the hit. The wheelie bar is set so when the front tires grow it takes the weight off the rear tires so you are probably hearing some chatter from that as well. On the last couple runs I took out some power and it helped the launch a bit. Once the new motor arrives I will spend more time trying to get it set up.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
-
- Approved Member
- Posts: 298
- Joined: Sat Aug 08, 2015 12:02 pm
- Location: Near Limoges - France
- Has thanked: 264 times
- Been thanked: 157 times
Re: Street Eliminator project “it doesn’t say you cant”
Nice proto!
Do you have closer pics?
Which size of rear wheels?
Jerome
Do you have closer pics?
Which size of rear wheels?
Jerome
Sorry for my rusty english, i'm a kind of French farmer lost in his montain ...
- GoMachV
- Super Member
- Posts: 11333
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 823 times
- Been thanked: 2419 times
Re: Street Eliminator project “it doesn’t say you cant”
Using up some DR10 front tires on the rear since they are not doing much. They are the same size as a buggy front. Some just use a stock bandit tire and wheel. On the front I have a set of DE Racing drag tires on proline wheels for the pro track suspension which offsets them in just a bit. If the front is too wide the body gets in the way when the tires grow.
As far as the chassis goes, it’s pretty much the same as what we make for our Street Eliminator chassis, but with the holes switched up a little to allow the rear suspension to be moved fore and aft to center it in the body easily, and of course the wheelie bar mounts are moved to the opposite end of the chassis. We didn’t want to mess too much with as design that works. We use rustler 4x4 heavy duty axles and steering assembly, rally front arms, and Lunsford 4mm turnbuckles. The rest is mostly just stock type parts moved around.
As far as the chassis goes, it’s pretty much the same as what we make for our Street Eliminator chassis, but with the holes switched up a little to allow the rear suspension to be moved fore and aft to center it in the body easily, and of course the wheelie bar mounts are moved to the opposite end of the chassis. We didn’t want to mess too much with as design that works. We use rustler 4x4 heavy duty axles and steering assembly, rally front arms, and Lunsford 4mm turnbuckles. The rest is mostly just stock type parts moved around.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- KidAgain
- Super Member
- Posts: 906
- Joined: Fri Feb 01, 2019 2:11 pm
- Location: So Cal
- Has thanked: 288 times
- Been thanked: 198 times
Re: Street Eliminator project “it doesn’t say you cant”
You just reversed motor direction?
Visit Nostalgic RC in the business section or @nostalgicrc on Facebook for your custom RC10DS parts
Gone: RC10, Jrx-2 and Jrx-t
Current: 3 SC10 first gens, 3 SC10 Street Outlaw's, 12 RC10 DS’s, Carbon RC10T, RC10LSS,RC10L, RC10 Graphite,RC10 B44
Gone: RC10, Jrx-2 and Jrx-t
Current: 3 SC10 first gens, 3 SC10 Street Outlaw's, 12 RC10 DS’s, Carbon RC10T, RC10LSS,RC10L, RC10 Graphite,RC10 B44
- GoMachV
- Super Member
- Posts: 11333
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 823 times
- Been thanked: 2419 times
Re: Street Eliminator project “it doesn’t say you cant”
Yes, the mamba x allows the motor direction to be swapped and of course the motor needs to have any mechanical timing mirrored. The cheapie motor in the rig now does not have adjustable timing so I am not sure where it sits. The Maclan 5t drag pack should show up tomorrow. Hope to get some runs in if it doesn’t rain
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- THEYTOOKMYTHUMB
- Super Member
- Posts: 6814
- Joined: Wed Oct 22, 2008 5:15 pm
- Location: Evansville, IN
- Has thanked: 2122 times
- Been thanked: 1346 times
Re: Street Eliminator project “it doesn’t say you cant”
Cool build!
"The world looks so much better through beer goggles: Enjoy today, you never know what tomorrow may bring."
Ken
Ken
- KidAgain
- Super Member
- Posts: 906
- Joined: Fri Feb 01, 2019 2:11 pm
- Location: So Cal
- Has thanked: 288 times
- Been thanked: 198 times
Re: Street Eliminator project “it doesn’t say you cant”
If this works for you with a hot motor I may have to build me a FWD eliminator...........GoMachV wrote: ↑Fri Jun 12, 2020 9:00 am Yes, the mamba x allows the motor direction to be swapped and of course the motor needs to have any mechanical timing mirrored. The cheapie motor in the rig now does not have adjustable timing so I am not sure where it sits. The Maclan 5t drag pack should show up tomorrow. Hope to get some runs in if it doesn’t rain
Visit Nostalgic RC in the business section or @nostalgicrc on Facebook for your custom RC10DS parts
Gone: RC10, Jrx-2 and Jrx-t
Current: 3 SC10 first gens, 3 SC10 Street Outlaw's, 12 RC10 DS’s, Carbon RC10T, RC10LSS,RC10L, RC10 Graphite,RC10 B44
Gone: RC10, Jrx-2 and Jrx-t
Current: 3 SC10 first gens, 3 SC10 Street Outlaw's, 12 RC10 DS’s, Carbon RC10T, RC10LSS,RC10L, RC10 Graphite,RC10 B44
- coxbros1
- Super Member
- Posts: 2187
- Joined: Mon Dec 24, 2018 8:50 am
- Location: Energy, Illinois
- Has thanked: 1975 times
- Been thanked: 1756 times
Re: Street Eliminator project “it doesn’t say you cant”
Yeah! What Thumbs (Benji) said
Tap pic for clarity: Derek
- RC10th
- Approved Member
- Posts: 4293
- Joined: Sat Feb 16, 2013 9:51 am
- Location: Australia
- Has thanked: 40 times
- Been thanked: 1018 times
Re: Street Eliminator project “it doesn’t say you cant”
I was old school - when old school wasn't cool !
- RC10th
- Approved Member
- Posts: 4293
- Joined: Sat Feb 16, 2013 9:51 am
- Location: Australia
- Has thanked: 40 times
- Been thanked: 1018 times
Re: Street Eliminator project “it doesn’t say you cant”
In all seriousness though I think it would be a fun and competative class. It would take a bit more skill to get a good launch and control wheel spin to be "fast"
I was old school - when old school wasn't cool !
- Coelacanth
- Approved Member
- Posts: 7370
- Joined: Thu Jul 29, 2010 6:20 pm
- Location: Alberta, Canada
- Has thanked: 16 times
- Been thanked: 289 times
Re: Street Eliminator project “it doesn’t say you cant”
Very cool build. Is the wheelie bar just to help keep it going straight?
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
