Scr8p's Worlds Re-re #4 / Modern Masami Replica - '94 Winterchamps

Post by scr8p »

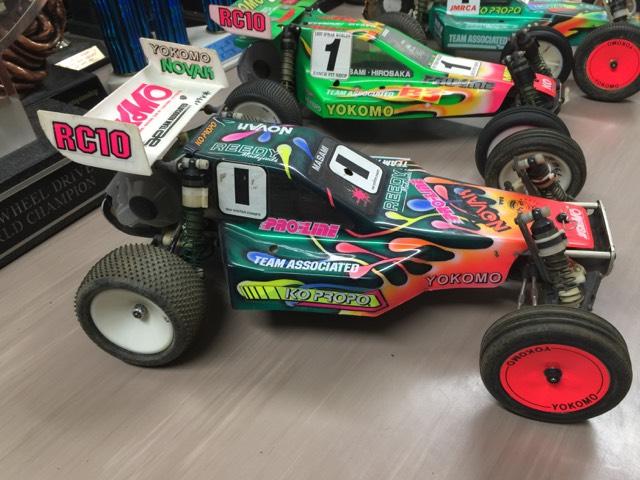

I picked up an almost RTR Worlds car a few weeks before Christmas. This one is going to become a modernized replica of Masami's rc10 he used to win the '94 Florida Winterchamps.

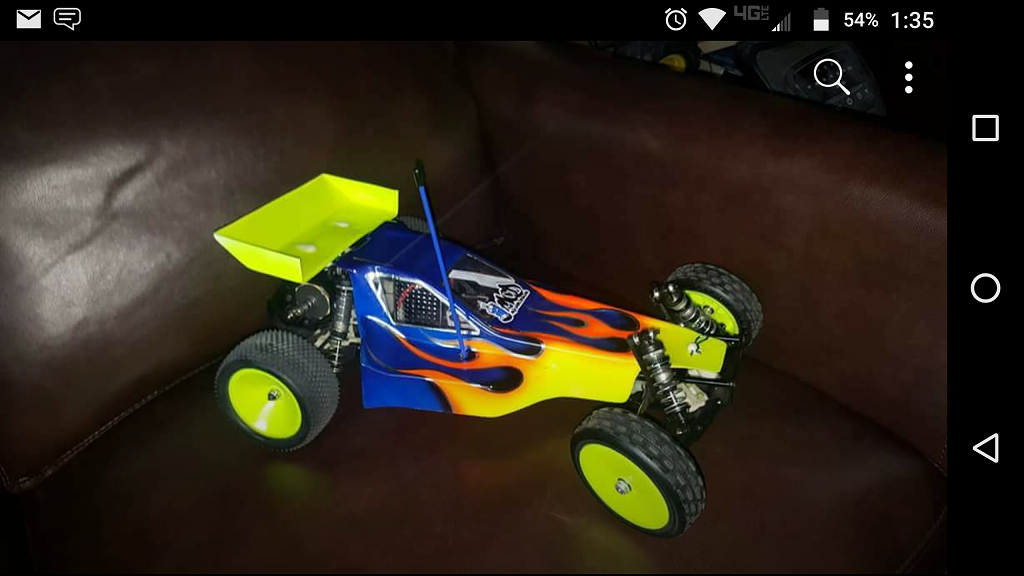

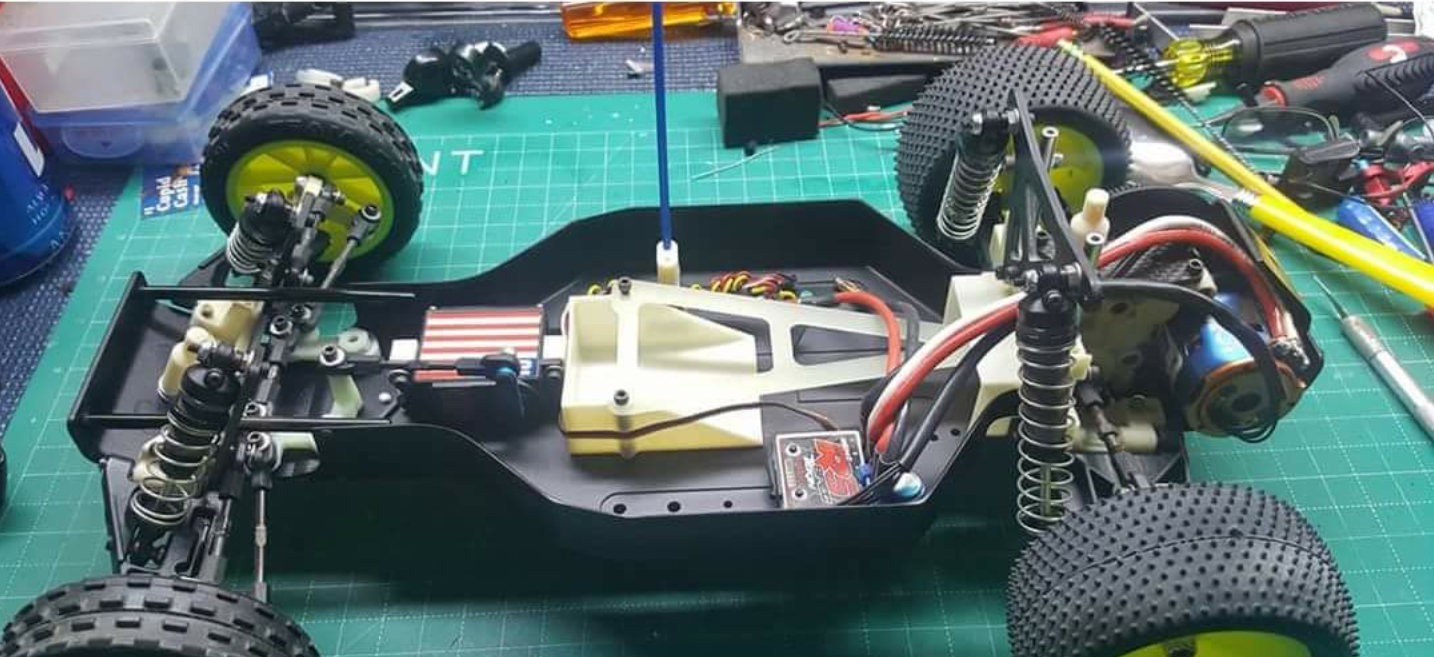

So this is what I started with.
Screenshot_20171128-133532 (1).png

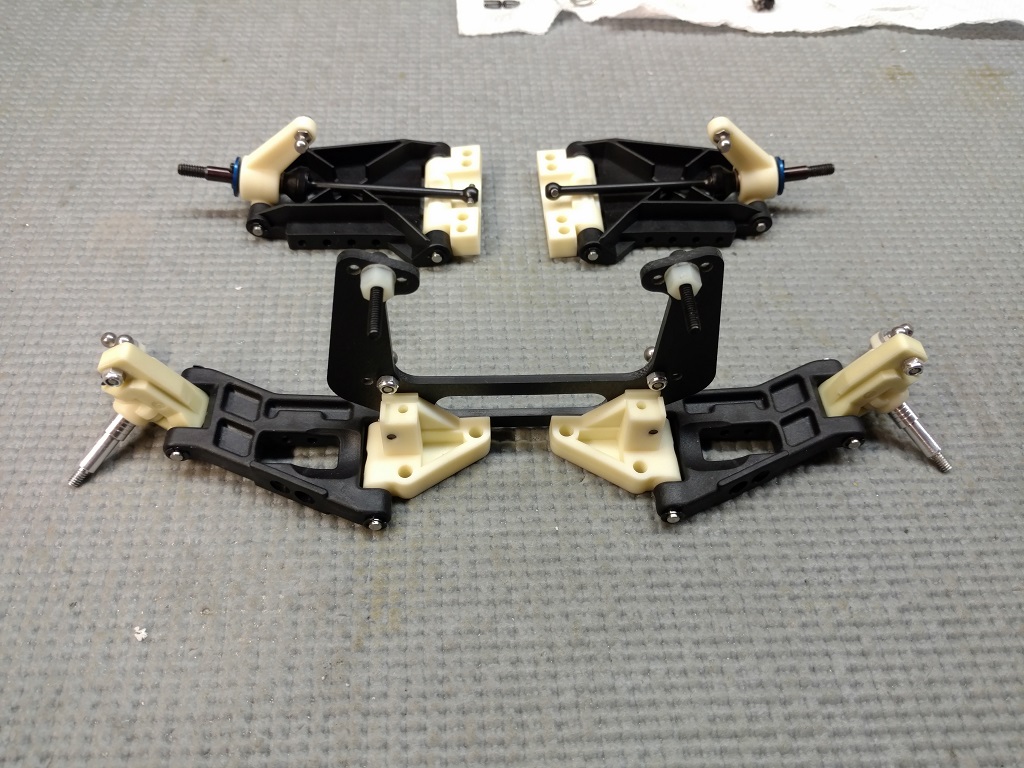

Tore the car all down to clean the parts and start fresh. I also picked up a new black classic tub which is out getting milled at the moment. Got the rear arm assemblies back together, as well as the front end. Rebuilt the trans, but I still have to do the alterations to the motor plate.

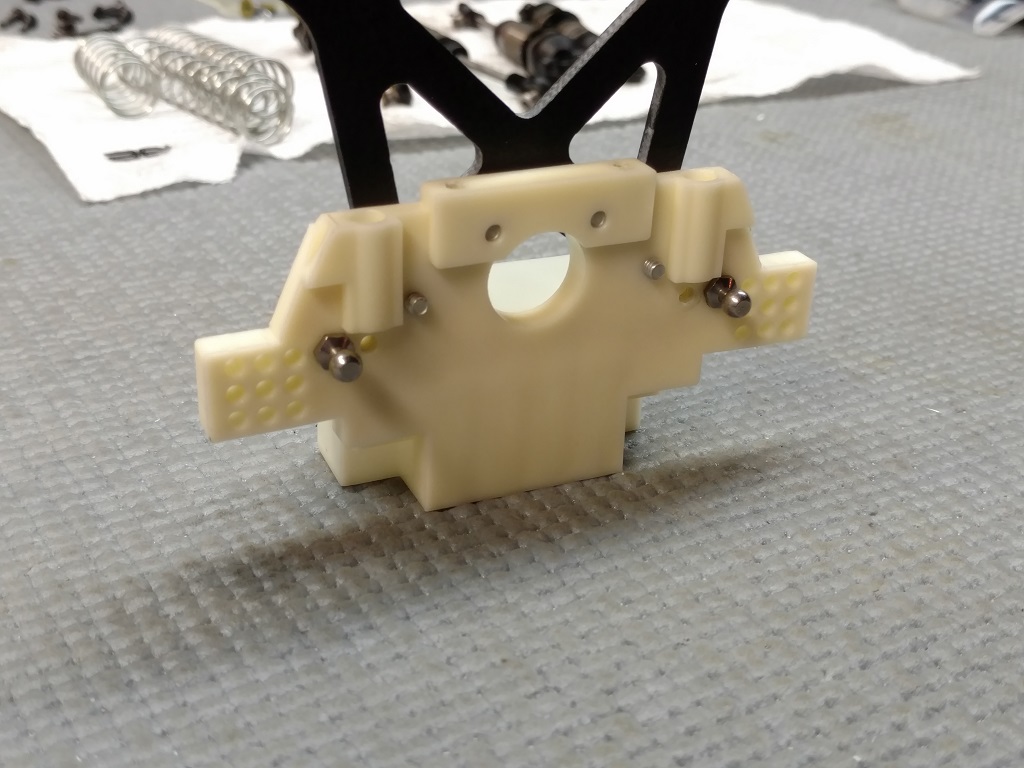

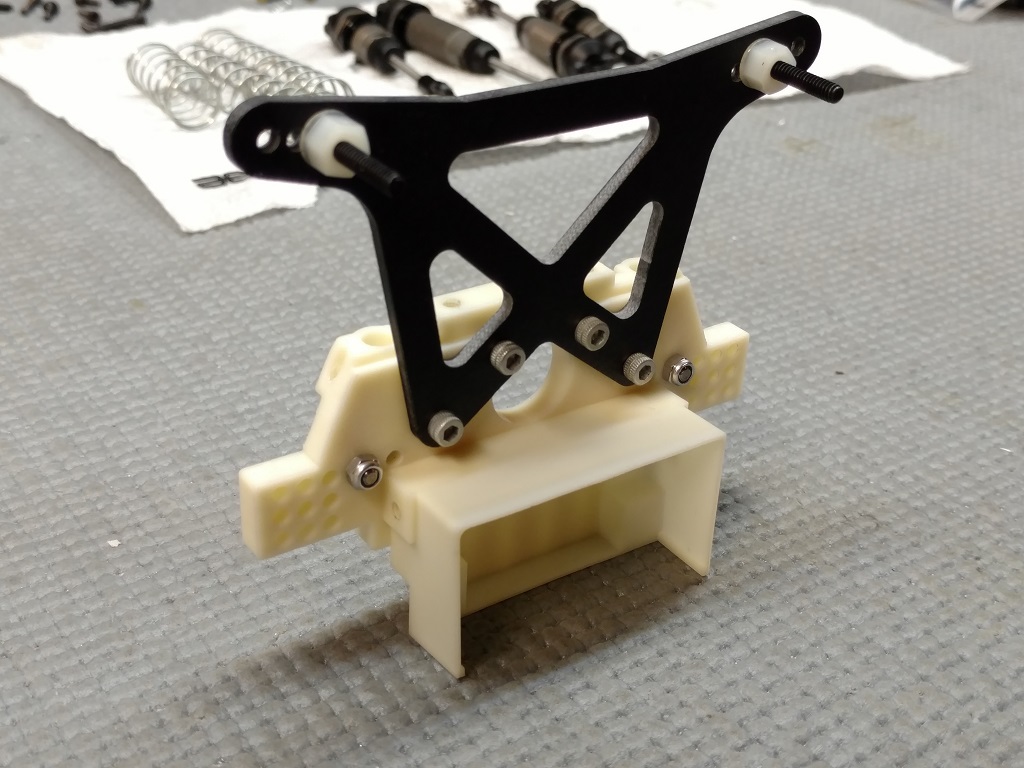

Added the "worlds" camber holes, and did a little bit of trimming to the bulkhead.

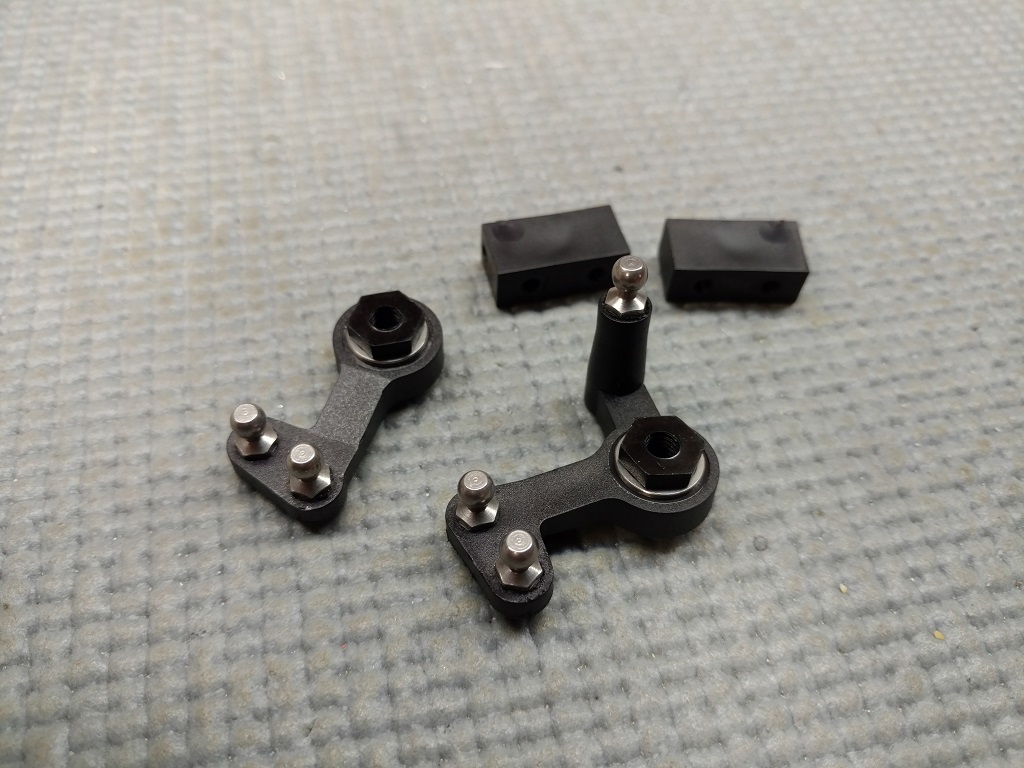

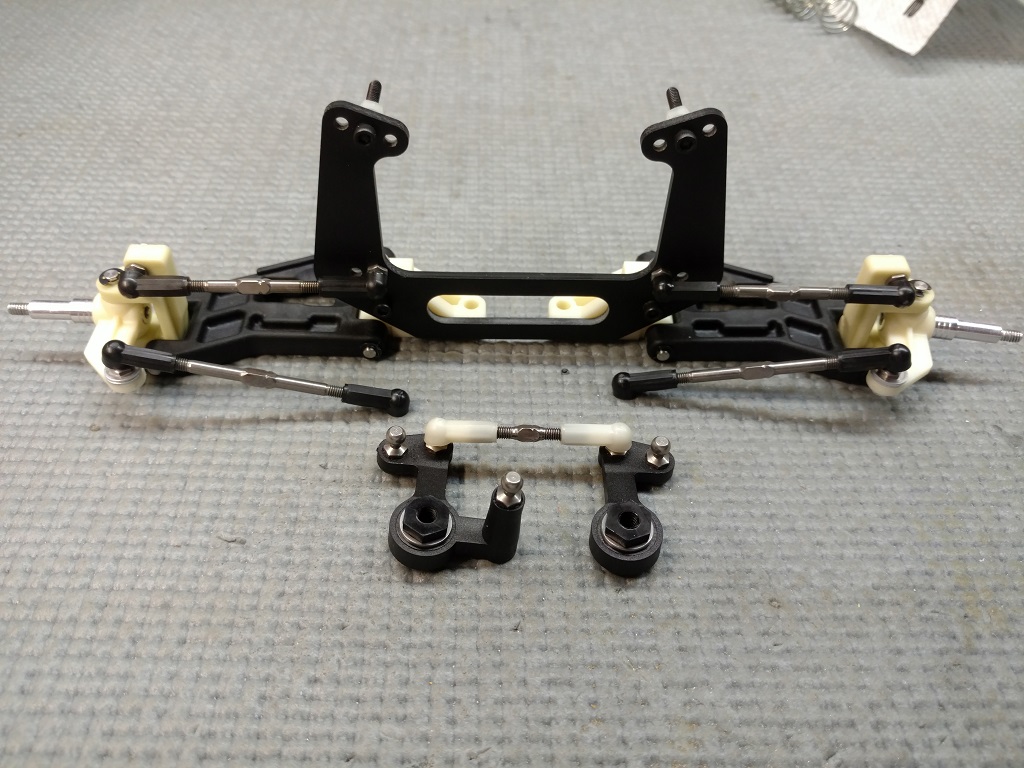

Masami used a Composite Craft bellcrank in the original car, which was black. So I gave the kit bellcrank a dye bath. I also did the servo mounts. Masami taped his servo in but I want to bolt it down. I figured doing the mounts black would help make them blend in with the servo.

User avatar
NomadRacer
Approved Member
Posts: 1467
Joined: Sun Apr 16, 2017 11:29 am
Location: Eastern Shore of Virginia
Has thanked: 83 times
Been thanked: 77 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by NomadRacer »

Nice man, very nice! I'm digging what you've done to the bulkhead.
Bum on Direct Deposit

User avatar
scr8p
Administrator
Posts: 16536
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 973 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by scr8p »

The bulkhead is so subtle it's almost not even worth doing. But, that's how the original one is, so.......

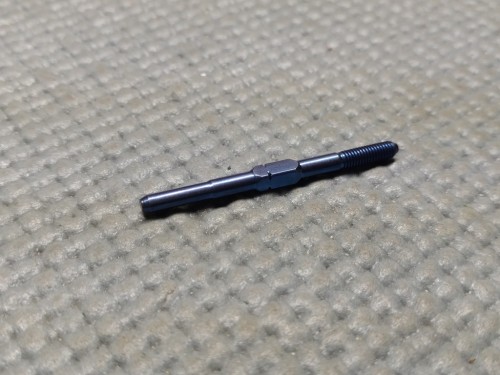

I was trying to decide on what turnbuckles to go with on this. Masami used the later style RCPS turnbuckles. It would have been easier (and cheaper) to just get a set of Punishers and be done with it, but I wanted to use something that looked a little closer. So, I decided to use AE FT turnbuckles. I just had to remove the blue from the titanium. I heard about this Whisk Rust Remover that is supposed to do just that. Local grocery store had it in stock for a few dollars. It only takes a few seconds for it to come off. I'm still waiting for the rear camber links to show up and i'll do them all at once.

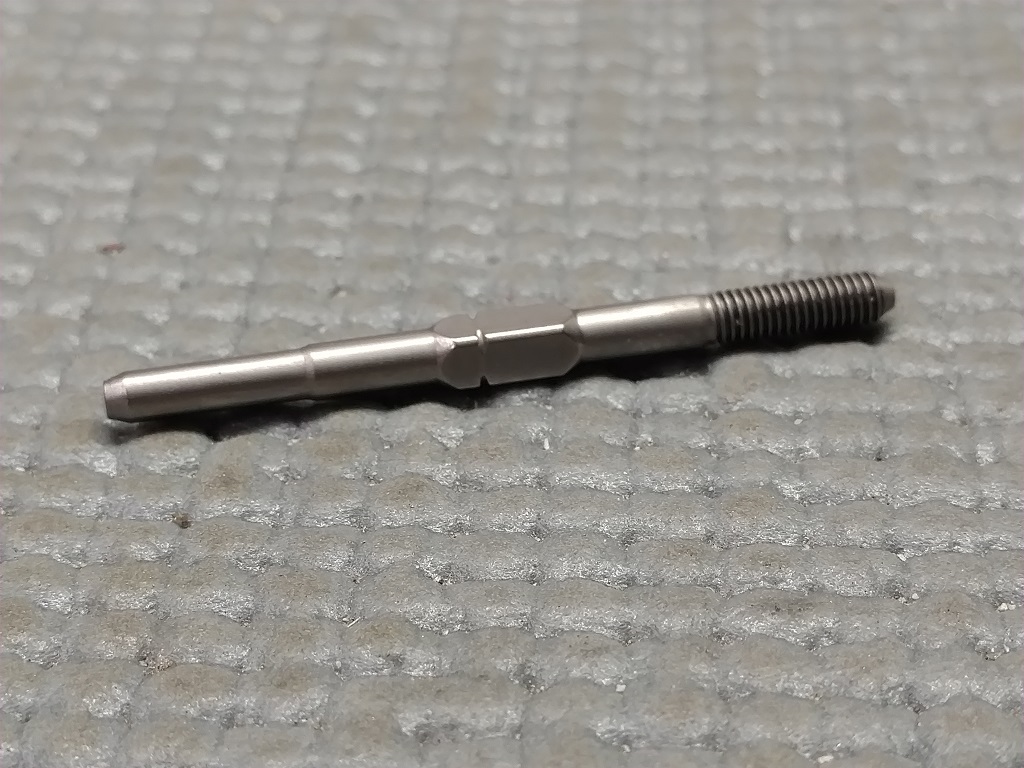

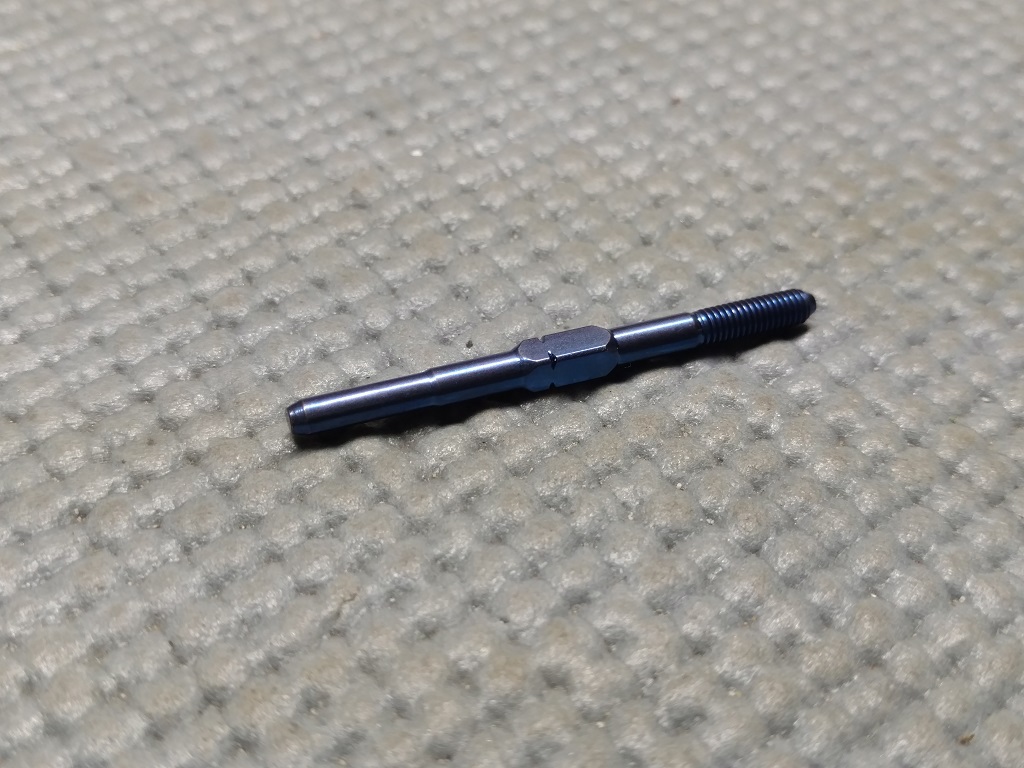

Sample piece:

User avatar
jwscab
Super Member
Posts: 6502
Joined: Wed Jan 28, 2009 2:42 pm
Location: Chalfont, PA
Has thanked: 10 times
Been thanked: 448 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by jwscab »

Nice threading on that turnbuckle there. Which one is missing the left or right threads?

User avatar
scr8p
Administrator
Posts: 16536
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 973 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by scr8p »

Left.... Of course.

User avatar
NomadRacer
Approved Member
Posts: 1467
Joined: Sun Apr 16, 2017 11:29 am
Location: Eastern Shore of Virginia
Has thanked: 83 times
Been thanked: 77 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by NomadRacer »

That's one tool I don't have, left cutting die :?
Bum on Direct Deposit

User avatar
scr8p
Administrator
Posts: 16536
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 973 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by scr8p »

Yeah, me either. I figured I'll just put right hand threads on it and use it for a servo rod.

User avatar
mk-Zero
Business Member
Posts: 1678
Joined: Fri Jan 03, 2014 7:14 pm
Location: Orange, CA
Has thanked: 4 times
Been thanked: 19 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by mk-Zero »

You could try to single point it....

Is that just a defect or what? Can't imagine it being that way on purpose...

User avatar
scr8p
Administrator
Posts: 16536
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 973 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by scr8p »

Yeah, just a blem that made it's way through to packaging.

User avatar
XLR8
Approved Member
Posts: 3016
Joined: Sun Feb 19, 2017 8:46 am
Location: north/central Alabama
Has thanked: 1270 times
Been thanked: 908 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by XLR8 »

I swear AE's QC is total crap!! Ugly green molded ball cups, CVA's that are too short, gearboxes that don't spin, etc, etc... Will you let them know? You should.
Doug

User avatar
GoMachV
Super Member
Posts: 11349
Joined: Mon Apr 30, 2012 2:31 am
Location: Twin Falls, ID
Has thanked: 830 times
Been thanked: 2456 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by GoMachV »

XLR8 wrote: Tue Jan 02, 2018 5:01 pm .....Will you let them know? You should.
I don’t know if Jason speaks Chinese?
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website

User avatar
XLR8
Approved Member
Posts: 3016
Joined: Sun Feb 19, 2017 8:46 am
Location: north/central Alabama
Has thanked: 1270 times
Been thanked: 908 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by XLR8 »

Haha... I don't know, he's pretty talented. I wouldn't be surprised. :lol:
Doug

User avatar
scr8p
Administrator
Posts: 16536
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 973 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by scr8p »

I don't eat it, either. :lol:

User avatar
scr8p
Administrator
Posts: 16536
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 973 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by scr8p »

Alright......

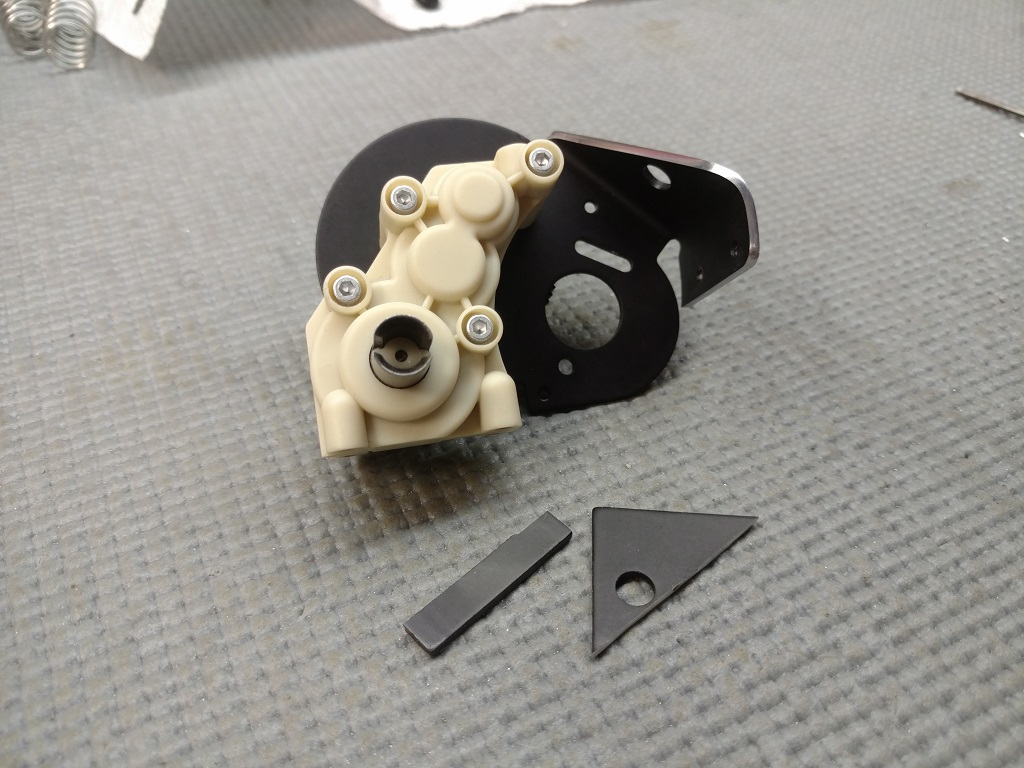

So I got the motor plate cut.

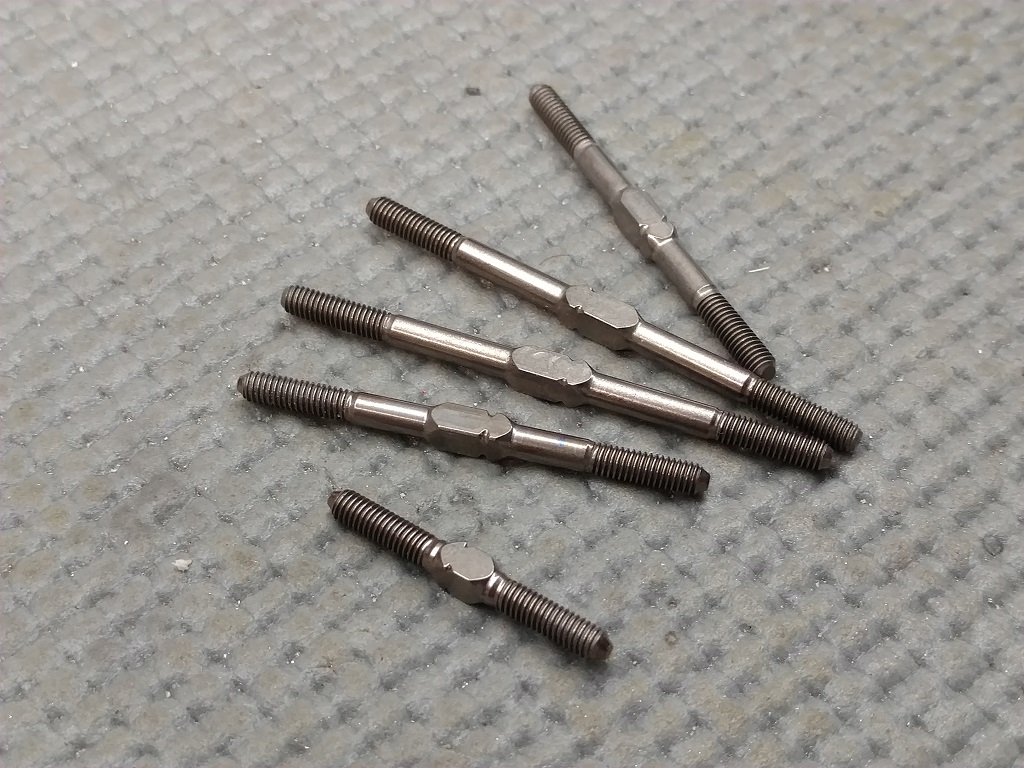

Then I figured I might as well just get the turnbuckles I have in hand stripped and get the ball cups on them.

User avatar
scr8p
Administrator
Posts: 16536
Joined: Wed Feb 08, 2006 2:46 am
Location: Northampton, PA
Has thanked: 28 times
Been thanked: 973 times

Re: Scr8p's Worlds Re-re #4 / Modern Masami '94 Winterchamps Replica

Post by scr8p »

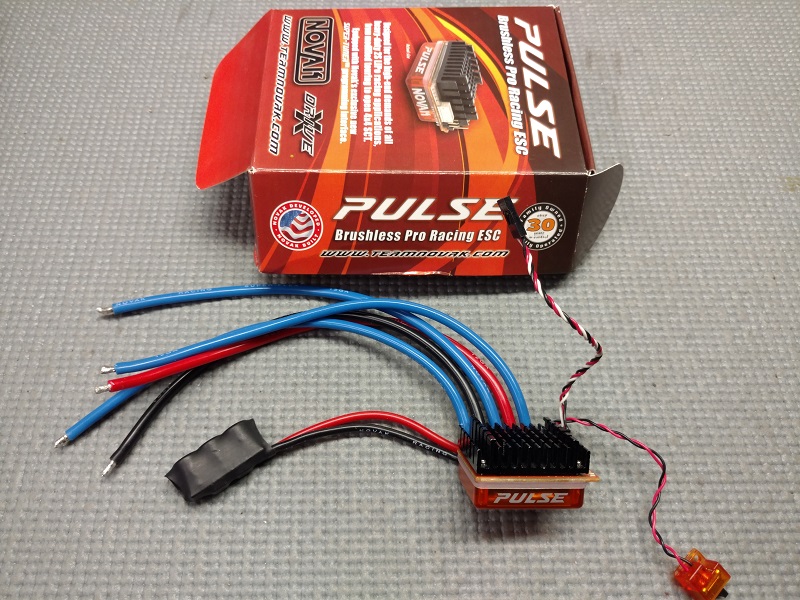

I also picked up a new Novak Pulse esc for it. I'll be doing this one like my modern Kinwald build. Using newer versions of the original electronics. Still have to get a KO servo and a Reedy motor.
