RC10LS from spares bin

Post by GeneralZod »

Here is some progress from my parts bin LS pan car. Some parts were missing and broken so I made my own. Others I ordered and slowly put it together.

Bumpers were used as templates for the new ones.
Test fitting parts. This one is destined to be a runner.
Haven't made a saddle pack in years so it's not perfect. I tore apart a 6 cell stick and assembled the old school pack.
I made my own front spacers from aluminum to get the ride height adjusted a bit higher.
Testing the vintage electronics before mounting.
Layout finalized.
I decided to hard wire the battery and motor to eliminate connector loss. Using alligator clips to charge this one.
Won't be long and this will be back on the road!

User avatar
NomadRacer
Approved Member
Posts: 1467
Joined: Sun Apr 16, 2017 11:29 am
Location: Eastern Shore of Virginia
Has thanked: 83 times
Been thanked: 77 times

Re: RC10LS from spares bin

Post by NomadRacer »

Nice! It's good to see guys making parts :wink:
Bum on Direct Deposit

User avatar
GeneralZod
Approved Member
Posts: 406
Joined: Mon Dec 10, 2012 12:19 am
Location: Colorado
Has thanked: 146 times
Been thanked: 152 times

Re: RC10LS from spares bin

Post by GeneralZod »

To keep the cells isolated from the chassis and create a tight grip once the battery straps are snugged down, I cut an old bike inner tube and tucked it under the cells.
Next, I am making the lexan antenna mount....

User avatar
NomadRacer
Approved Member
Posts: 1467
Joined: Sun Apr 16, 2017 11:29 am
Location: Eastern Shore of Virginia
Has thanked: 83 times
Been thanked: 77 times

Re: RC10LS from spares bin

Post by NomadRacer »

Nice work with the rubber isolation. I'm eager to see your lexan antenna mount. I've messed around with one for my 12L3 but really need a guide! :wink:
Bum on Direct Deposit

User avatar
LoboNYC
Approved Member
Posts: 778
Joined: Tue Apr 09, 2013 4:26 pm
Location: Staten Island, NYC
Has thanked: 813 times
Been thanked: 344 times

Re: RC10LS from spares bin

Post by LoboNYC »

Oh man i love spare part builds.

Looking good! brings back memories :D

User avatar
GeneralZod
Approved Member
Posts: 406
Joined: Mon Dec 10, 2012 12:19 am
Location: Colorado
Has thanked: 146 times
Been thanked: 152 times

Re: RC10LS from spares bin

Post by GeneralZod »

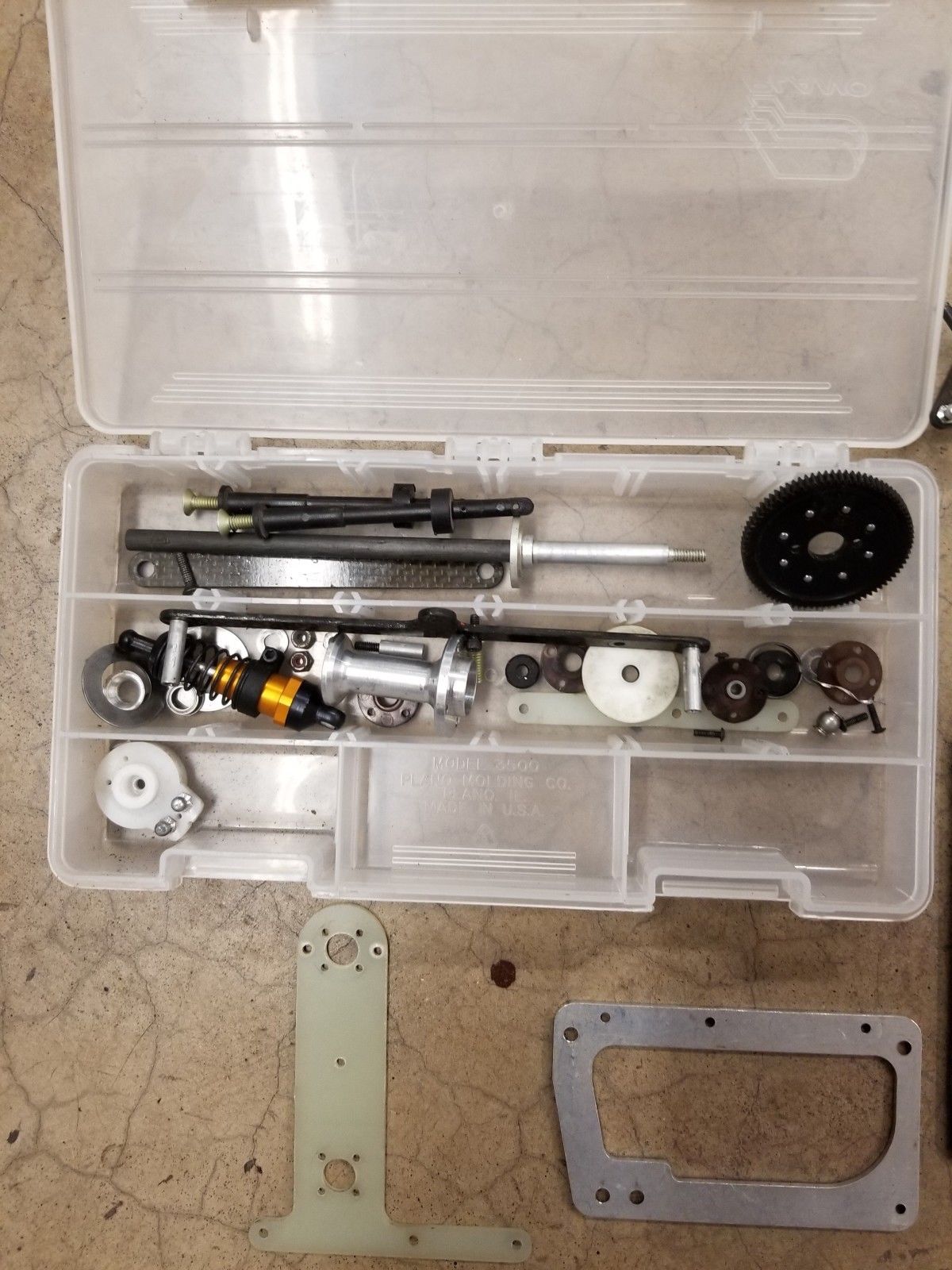

I forgot to show what it looked like before the build. Some parts I already had and some I aquired. I just had to rescue this neglected LS. I am still mix and matching various parts to get the car to where I like it to be. :P
s-l1600 (8).jpg
s-l1600 (7).jpg

User avatar
GeneralZod
Approved Member
Posts: 406
Joined: Mon Dec 10, 2012 12:19 am
Location: Colorado
Has thanked: 146 times
Been thanked: 152 times

Re: RC10LS from spares bin

Post by GeneralZod »

Stealth antenna complete. It's attached to the servo using velcro and fits inside canopy area of GTP body nicely. I think I will swap out the front e-clip axles for the threaded ones. I also made an edge guard to the front bumper to protect the chassis from road damage. Now for the fun part...fitting the body and mounts. I got lazy on the body but I think you guys might like it. :wink:

User avatar
NomadRacer
Approved Member
Posts: 1467
Joined: Sun Apr 16, 2017 11:29 am
Location: Eastern Shore of Virginia
Has thanked: 83 times
Been thanked: 77 times

Re: RC10LS from spares bin

Post by NomadRacer »

Wow! I like that Kydex "chip guard" you've made for the front of the chassis. I'll be stealing your idea. :mrgreen:
Bum on Direct Deposit

User avatar
GeneralZod
Approved Member
Posts: 406
Joined: Mon Dec 10, 2012 12:19 am
Location: Colorado
Has thanked: 146 times
Been thanked: 152 times

Re: RC10LS from spares bin

Post by GeneralZod »

Glad you can use it! Doing this really saves the chassis from being road sanded down or de laminating the carbon fiber on impacts. I will also cut out a lexan sheet for the entire underside and run with that on the street. I may need to run the smaller bumper as this one is sticking out from the body and I really don't want to cut the body more than it needs. I'll add this guard to the small bumper too. :)

User avatar
GeneralZod
Approved Member
Posts: 406
Joined: Mon Dec 10, 2012 12:19 am
Location: Colorado
Has thanked: 146 times
Been thanked: 152 times

Re: RC10LS from spares bin

Post by GeneralZod »

I am torn between installing a Reedy Ti 12x1 or a Checkpoint 12x2 motor. The Checkpoint required some work to get it working. The brushes were seized in the housing. The arm was rusted to the end bell bearing and took some effort to get it apart. After replacing the bearings and a good cleaning, it now is back to life. The Reedy just needed a light cleaning and is such a smooth runner. I can't decide. :|

The body is already painted so it's a bit more of a challenge to get it mounted. I am having some difficulty finding front AE black body mounts. I have another project lined up but I would like to get this one finished. ;)

User avatar
KidAgain
Super Member
Posts: 902
Joined: Fri Feb 01, 2019 7:11 pm
Location: So Cal
Has thanked: 276 times
Been thanked: 190 times

Re: RC10LS from spares bin

Post by KidAgain »

If the Checkpoint motor is period'ish correct I would run that since it looks sexier unless the Reedy is far more superior........................
Visit Nostalgic RC in the business section or @nostalgicrc on Facebook for your custom RC10DS parts

Gone: RC10, Jrx-2 and Jrx-t
Current: 3 SC10 first gens, 3 SC10 Street Outlaw's, 12 RC10 DS’s, Carbon RC10T, RC10LSS,RC10L, RC10 Graphite,RC10 B44

User avatar
GeneralZod
Approved Member
Posts: 406
Joined: Mon Dec 10, 2012 12:19 am
Location: Colorado
Has thanked: 146 times
Been thanked: 152 times

Re: RC10LS from spares bin

Post by GeneralZod »

KidAgain wrote: Fri Feb 22, 2019 2:07 pm If the Checkpoint motor is period'ish correct I would run that since it looks sexier unless the Reedy is far more superior........................
Agreed. I think the checkpoint came out around 2005-7? Not totally period correct but did install anyways as it does look unique. I dont see many around either. The Reedy is also nice but the only drawback is the missing label on the can. Right now I am looking to install the inline front axle and steering blocks. The inline axles are larger in diameter and have the threaded ends. Much better than using e-clips. Car is almost complete, just working on lightly restoring and polishing the vintage body. It will be for display only. It dates all the way back to 93 and was used for ads in RCCA back then. For running, I plan to use a protoform 905b.
Attachments

User avatar
GeneralZod
Approved Member
Posts: 406
Joined: Mon Dec 10, 2012 12:19 am
Location: Colorado
Has thanked: 146 times
Been thanked: 152 times

Re: RC10LS from spares bin

Post by GeneralZod »

Here is the actual Parma PSE Mazda body used for advertising in RCCA around 1993. After lightly polishing and some minor tweaks, it has managed to survive all these years later. I wish someone could re pop these bodies as they fit the 235mm pan cars nicely and look sharp. I don't have the heart to drill the mounting holes on this one so it will be for display only. I will paint up a Protoform 905b to use as a runner.

User avatar
Incredible_Serious
Approved Member
Posts: 3345
Joined: Tue Jan 29, 2008 5:09 am
Location: Melbourne, Victoria, Australia
Has thanked: 1295 times
Been thanked: 770 times

Re: RC10LS from spares bin

Post by Incredible_Serious »

GeneralZod wrote: Mon May 13, 2019 5:15 pm Here is the old Parma PSE Mazda used for advertising in RCCA around 1993. After lightly polishing and some minor tweaks, it has managed to survive all these years later. I wish someone could re pop these bodies as they fit the 235mm pan cars nicely and look sharp. I don't have the heart to drill the mounting holes on this one so it will be for display only. I will paint up a Protoform 905b to use as a runner.
Mazda Body.jpg
That's a gorgeous body, for sure.... would love one of those for my Daytona.... but, like you, I'll have to settle for the 905b.... and a McAllister Jaguar....

GeneralZod wrote: Mon May 13, 2019 5:15 pm
I wish I could find one of those Celica bodies.... they were standard fitment for the rally version of the Schumacher Nitro 4x4.... would complete my build nicely :D

Alex
Osiris is the key.

"The world looks so much better through beer goggles... except Farmer in his underwear" - Ken

Look out for Todd K. - he's a convicted serial killer!!!

User avatar
KidAgain
Super Member
Posts: 902
Joined: Fri Feb 01, 2019 7:11 pm
Location: So Cal
Has thanked: 276 times
Been thanked: 190 times

Re: RC10LS from spares bin

Post by KidAgain »

That is impressive bud looks great, can I commission you for an RC10DS bumper? One thing I dont have in my arsenal of tools is a router or anything CNC.........

Jake
Visit Nostalgic RC in the business section or @nostalgicrc on Facebook for your custom RC10DS parts

Gone: RC10, Jrx-2 and Jrx-t
Current: 3 SC10 first gens, 3 SC10 Street Outlaw's, 12 RC10 DS’s, Carbon RC10T, RC10LSS,RC10L, RC10 Graphite,RC10 B44
